equip 227369 8-Port Cat.6 Shielded Desktop Patch Panel Class E 250 MHz Dual IDC LSA 110 T568A/B Steel Light Grey

Brand:
Equip

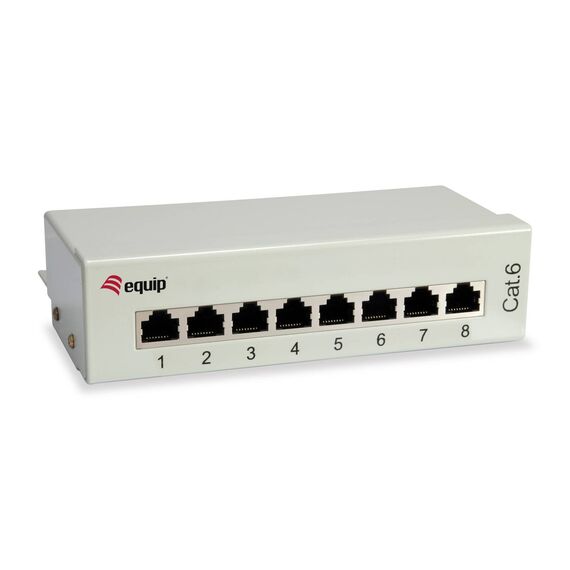

equip 227369 8-Port Cat.6 Shielded Desktop Patch Panel
equip 227369 8-Port Cat.6 Shielded Desktop Patch Panel Class E 250 MHz Dual IDC LSA 110 T568A/B Steel Light Grey
€38.48 inc. VAT
Buy
227369
€32.34
€38.48 inc. VAT
Ships from EU stock: 432 item(s)
+ −
Add to wish list Ask a question
Product Code
04:283462
EAN Code
4015867207536
Manufacturer
Equip

Quick Specs

Ports
8 × RJ45 Cat.6
Format
Desktop panel
Termination
Dual IDC (LSA / 110)
Shielding
Shielded
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

equip 227369 — 8-Port Cat.6 Shielded Desktop Patch Panel, Light Grey

8 × RJ45 Cat.6Desktop boxDual IDC LSA/110Shielded

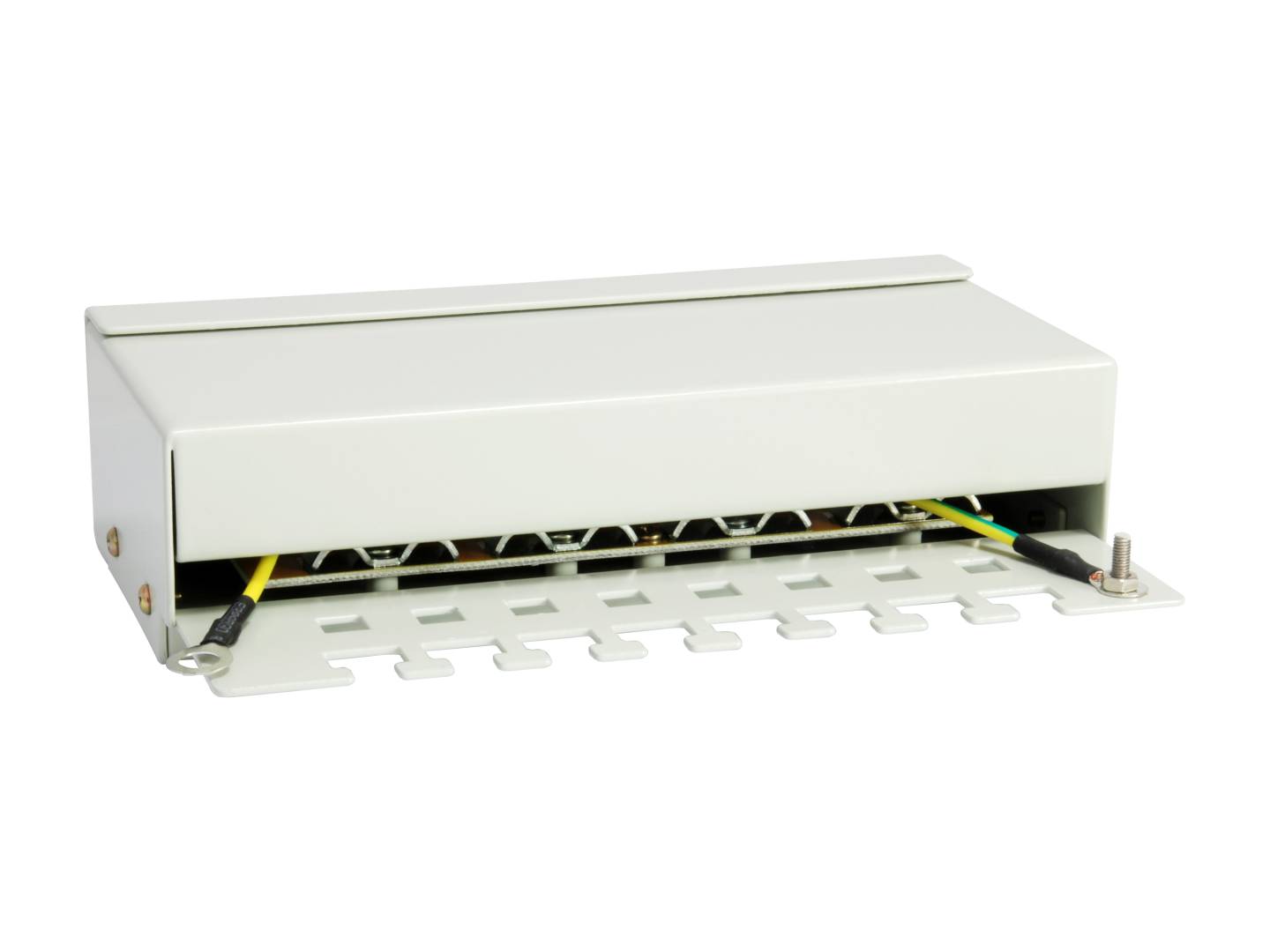

The equip 227369 is a 8-port Cat.6 shielded patch panel for a desk, a shelf or a small office where there is no rack. It carries 8 shielded RJ45 ports rated Cat.6 Class E up to 250 MHz in a light grey steel box that stands on a desk, with dual IDC terminations for LSA and 110 punch-down tools. In practice every cable from the wall outlets is terminated once at the back and stays put, while short patch cords at the front connect the ports to your switch — so moving a desk or a phone is a one-cable change at the panel, not new cabling.

Compatibility — check before buying:
Check before buying: It is a desktop unit, not a rack panel — there are no 19″ or 10″ rack ears. Shielding only helps with shielded cable (F/UTP, S/FTP) whose shield is terminated and the panel earthed; with UTP cable it works as a normal panel. Not sure it suits your cabinet or cable? Send us the rack or cable type and we check it.

Best For

✓ Small offices without a rack
✓ Home offices and studios
✓ Labs and test benches
✓ Meeting rooms and receptions
✓ Branch offices
✓ Tidy termination near the switch

Key Features


Dual IDC termination
Dual IDC connectors accept both LSA (Krone) and 110 punch-down tools, so installers can use the tool they already carry.

T568A / T568B colour coding
Each connector is colour-coded for both wiring schemes, so the installer terminates to the standard already used in the building.

Shielded design
A shielded steel housing keeps screening continuous from cable to switch when shielded cable and earthing are used.

Compact steel box

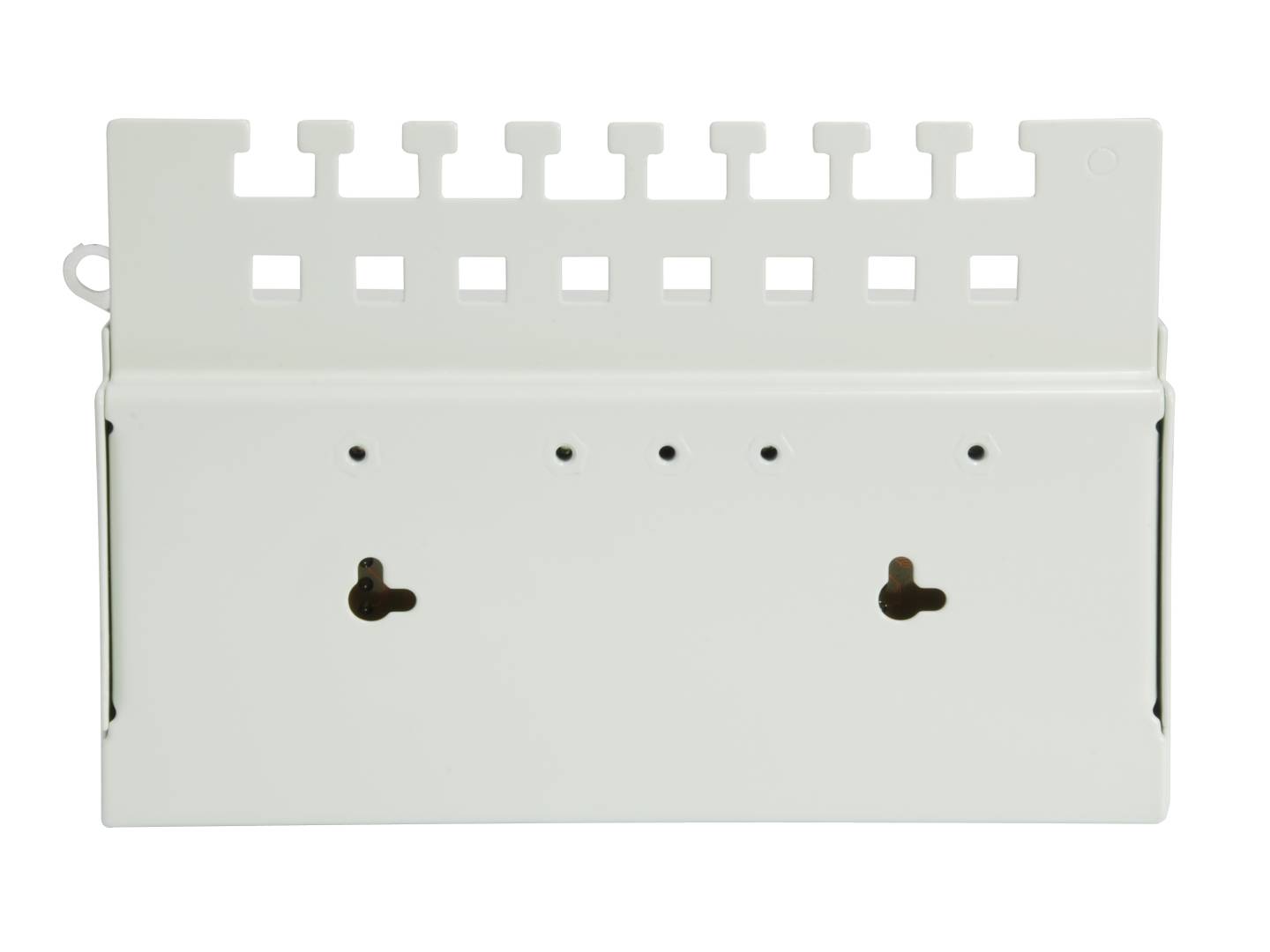

A 160 × 109 mm light grey steel housing that sits on a desk or shelf next to a small switch.

Technical Specifications

Identification
Brand equip
Product 8-Port Cat.6 Shielded Desktop Patch Panel
Part Number 227369
EAN / GTIN 4015867207536
Colour Light Grey (RAL 7035)
Connectivity
Ports 8 × RJ45
Category Cat.6 — Class E, up to 250 MHz
Speed 1GBase-T (Gigabit)
Shielding Shielded
Termination Dual IDC — LSA and 110 compatible
Wiring T568A / T568B colour-coded
Mechanical
Format Desktop panel
Dimensions 160.3 × 109.2 × 44.45 mm (W × D × H)
Weight 0.65 kg
Material Sturdy steel
Standards & Compliance
Standards ANSI/TIA/EIA 568
Compliance RoHS
Installation Notes
Planning Match the number of panel ports to your switch ports and allow one short patch cord per port; leave spare ports for future outlets.
Terminating Strip only as much jacket as needed, keep the pairs twisted up to the contacts and follow one wiring scheme (T568A or T568B) throughout the building.
Testing Test every run with a cable tester before patching it into the switch — it finds swapped pairs and poor terminations before users do.
In the Box
Included Desktop patch panel 227369
Not Included Punch-down tool, patch cords, wall screws, earthing cable
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term equip does not publish a warranty term for this product on its official site. Singular’s direct warranty is 1 year, and we support you locally for anything beyond it.

Frequently Asked Questions

Can I mount it in a rack?
No. It is a desktop panel for a desk, a shelf or a small office where there is no rack. It stands on a desk or shelf. If you have a 19-inch or 10-inch cabinet, ask us for the matching rack panel.
What tool do I need to terminate it?
A punch-down tool. equip states the dual IDC connectors work with both LSA (Krone) and 110 tools, so either type does the job. No tool is included.
Do I need shielded cable?
To benefit from the shielding, yes: use shielded cable (F/UTP or S/FTP), terminate the shield properly and earth the panel. With ordinary UTP cable it still works, but the shielding adds nothing.
Is it fast enough for my network?
It is rated Class E, up to 250 MHz for 1GBase-T (Gigabit). The whole link — cable, outlets, patch cords — must be at least the same category to reach that speed. For 10 Gigabit over longer runs, the full link must be Cat6A.
Singular Expert Insight
We suggest the 227369 for rooms without a cabinet where Cat6 runs from the walls need a proper end point: small offices, studios, labs. For Cat.5e cabling the 227308 does the same job; for 10 Gigabit, look at a Cat6A desktop panel. If you are planning a new cabinet, tell us the number of outlets and the switch you use and we suggest the panel, patch cords and tools together. Every order comes with Singular’s local support in Cyprus. See our patch panels for other formats and port counts, and the network switches to connect them to.

Buyer’s Guide

Buy it if

You have up to 8 Cat6 runs ending in a room with no rack and want a shielded, tidy box.

Skip it if

You have a rack or cabinet, or need Cat6A for 10 Gigabit.

Also consider

equip 227308, the 8-port Cat.5e desktop panel.
