Equip LC/PC Fibre Optic Pigtail Set OM3 Multimode 50/125µm 12 Colours 2m LSZH Ceramic Ferrule
Brand:
Equip
Equip LC/PC Fibre Optic Pigtail Set OM3 Multimode 50/125µm 12 Colours 2m LSZH Ceramic Ferrule
€45.46 inc. VAT
255633
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Equip LC/PC OM3 Multimode Pigtail Set, 12 Colours, 2 m
12 pigtailsLC/PCOM3 50/125 µm2 m · LSZH

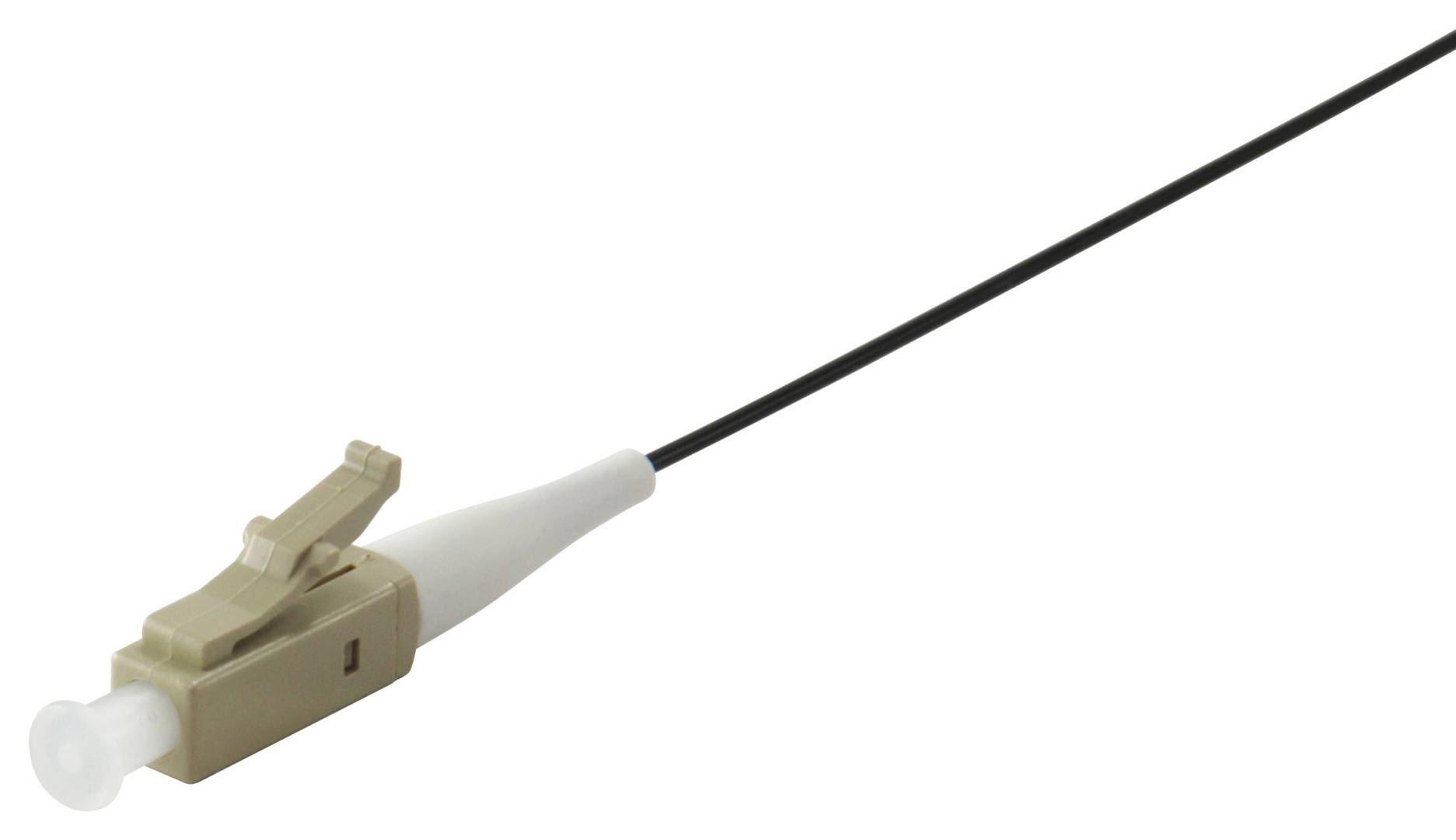

The Equip 255633 is a set of twelve 2 m OM3 multimode 50/125 µm pigtails, each factory-terminated with an LC/PC connector on one end and bare fibre on the other, for splicing onto incoming trunk or breakout cables in patch panels, splice boxes and distribution frames.
Each pigtail has a different colour so that fibre 1 to 12 of a trunk can be matched and labelled without mistakes — the usual way to terminate a 12-fibre cable with factory-polished connectors instead of field-fitting them.
Before you order: These are pigtails, not patch cables: only one end has a connector. The free end must be fusion-spliced (or mechanically spliced) to the incoming fibre, so you need splicing equipment and splice protection in the panel or box.
What's in the Box

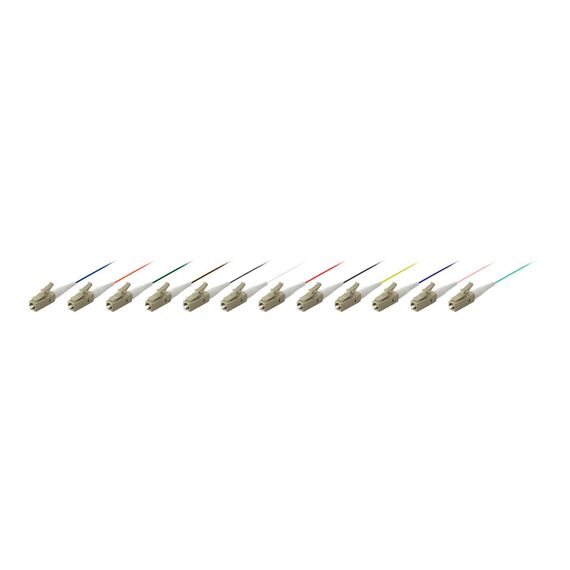

- 12 × Equip LC/PC OM3 pigtails, 2 m, in 12 colours
What It Means in Practice
- Typical job: strip the incoming 12-fibre OM3 cable in a patch panel, splice one pigtail to each fibre, and plug the LC/PC connectors into the panel's adapters from the inside.
- The colour of each pigtail lets you follow the fibre order of the trunk, so port 1 is fibre 1 at both ends of the link.
- Factory-terminated connectors give consistent loss values, which is easier and more reliable than polishing connectors on site.
- The 2 m length leaves enough slack to coil the fibres in the splice tray and to re-splice once if a splice has to be redone.
What Will Not Work
- Plug-and-play patching — the second end is bare fibre and must be spliced.
- Single-mode (OS2) trunk cables — splice OM3 pigtails only onto 50/125 µm multimode fibre.
- Adapters or panels of another connector type — these fit LC adapters only.
- Use without splice protection sleeves and a splice tray — these are not included.
Key Features
Factory-terminated
LC/PC connectors are fitted and polished at the factory, on ceramic ferrules.
12-colour coding
One colour per fibre for error-free identification of a 12-fibre trunk.
Laser-optimised OM3
OM3 50/125 µm fibre matches modern multimode backbones for 1G/10G links.
Low-smoke jacket
LSZH construction for safe use inside panels, cabinets and enclosed rooms.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
A pigtail set is the clean way to terminate a multimode trunk in a panel: splice twelve factory-polished LC/PC connectors on, instead of fitting connectors in the field. Make sure your adapters are LC, the trunk is 50/125 µm, and you have splice protectors and a tray. See also our rack accessories for panels and cable management.
✓ Buy it if you are terminating a 50/125 µm multimode trunk into LC patch panel adapters by splicing.
✕ Skip it if you need ready-made patch cables with connectors at both ends, or your trunk is single-mode.
→ Also consider pre-terminated OM3 patch cables for device connections, or the same pigtail set with the other connector type.
Not sure it fits your setup? Send us the model of your rack, switch or device and we will check compatibility before you order.
Features - Equip - 255633
Length
2m
More Details
Product Code
04:267014
EAN Code
4015867202609
Manufacturer
Equip
