Equip 118943 DVI-A to VGA HD15 Cable Male to Male 1.8 m Black

Brand:
Equip
equip VGA cable single link DVIA (M) to HD-15 (VGA) (M) 118943
Equip 118943 DVI-A to VGA HD15 Cable Male to Male 1.8 m Black
€8.9 inc. VAT
Buy
118943
€7.48
€8.90 inc. VAT
Ships from EU stock: 117 item(s)
+ −
Add to wish list Ask a question
Product Code
04:154892
EAN Code
4015867166185
Manufacturer
Equip
Quick Specs
Type
DVI-A to VGA cable
Connectors
DVI-A (12+5) male · HD15 male
Length
1.8 m
Max resolution
1920 × 1200 (WUXGA)
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

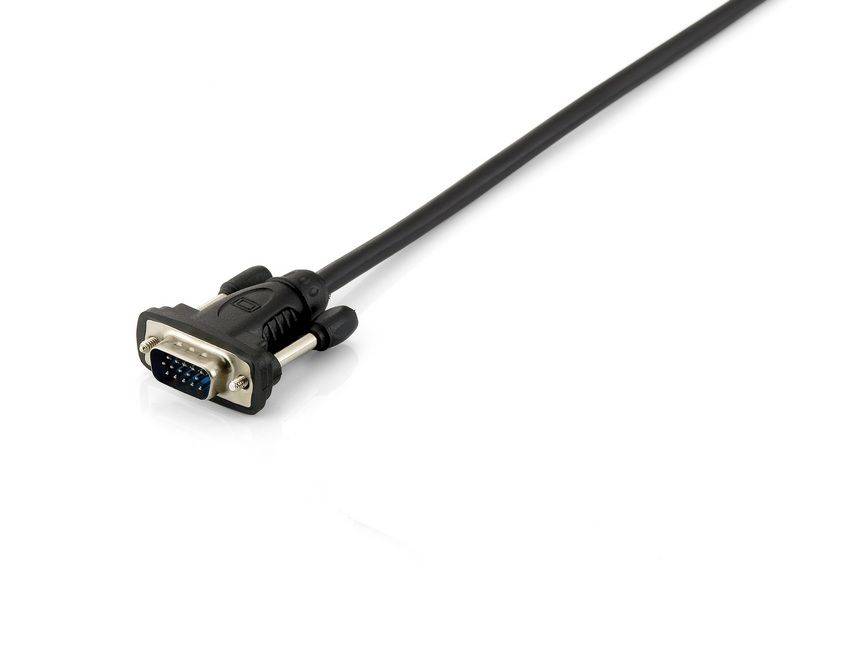

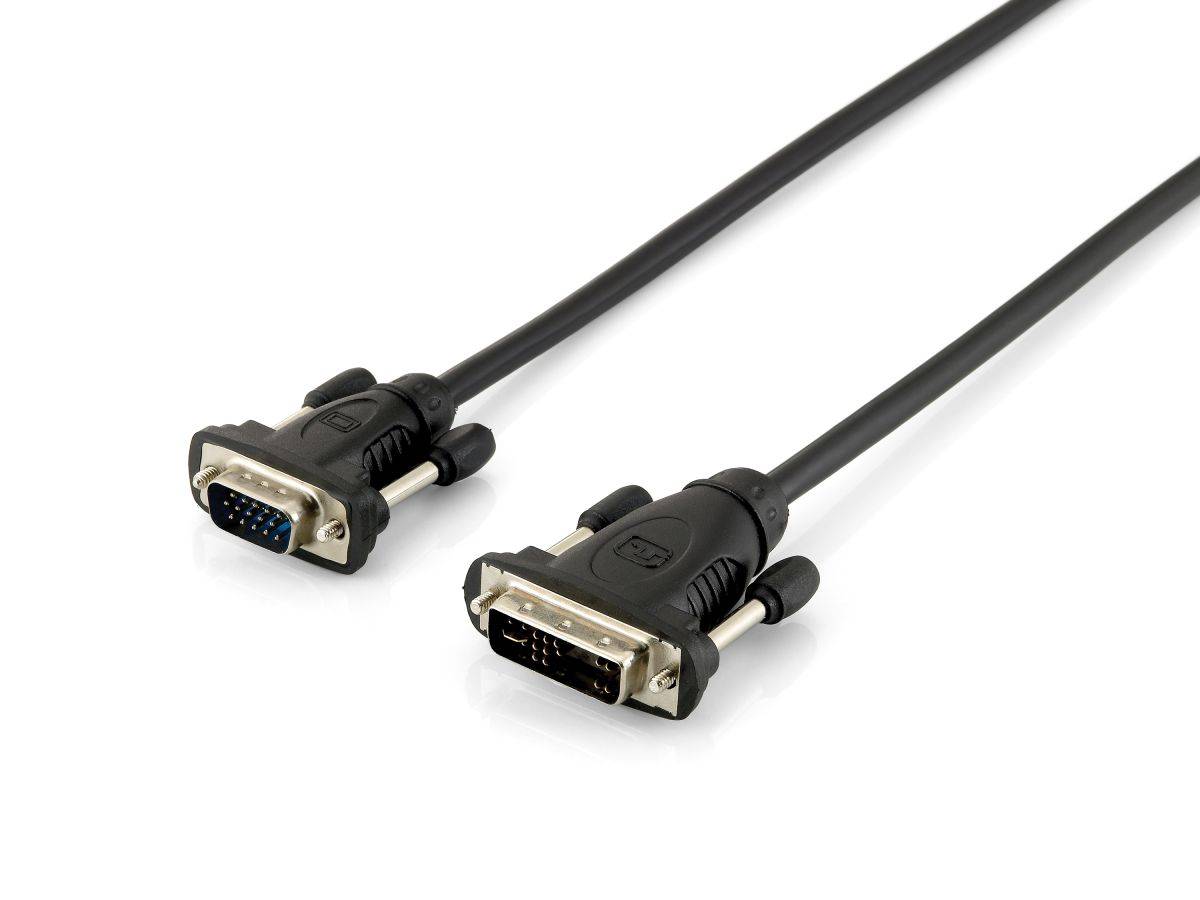

Equip 118943 DVI-A to VGA (HD15) Cable — 1.8 m

1.8 mUp to 1920 × 1200Gold-plated contacts

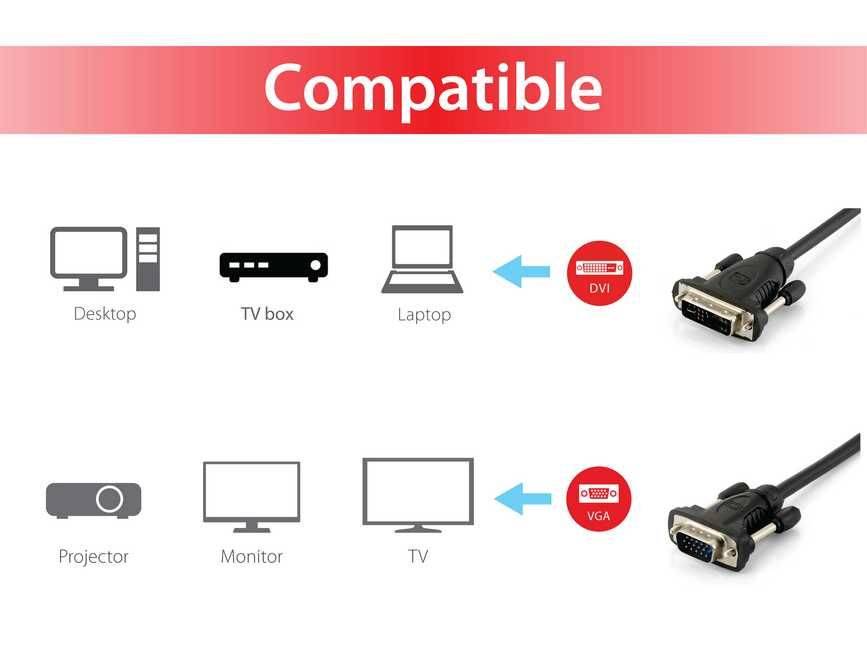

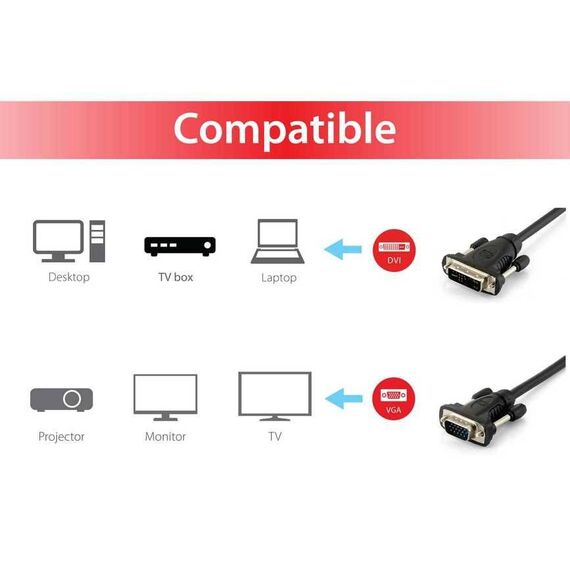

The Equip 118943 is a 1.8 m DVI-A (12+5) male to VGA (HD15) male cable for connecting a PC, graphics card or KVM switch with an analogue-capable DVI output to a VGA monitor or projector at up to WUXGA 1920 × 1200. Part number 118943 has gold-plated contacts, double shielding and a PVC jacket with straight (non-angled) plugs.

Compatibility note: Works only with DVI-I or DVI-A outputs that carry an analogue signal. Most modern graphics cards have DVI-D (digital-only) ports, which do not output VGA — check that your port has the four analogue pins around the flat blade.

Technical Specifications

Identification
Part Number 118943
EAN / GTIN 4015867166185
MPN 118943
Brand Equip (Digital Data Communications)
Connection
Connector A DVI-A (12+5) male — analogue DVI pin layout
Connector B VGA (HD15) male
Max resolution 1920 × 1200 (WUXGA)
Signal Analogue RGB video (no audio)
Contacts Gold-plated
Construction
Length 1.8 m
Shielding Double shielded — two shield layers reduce interference
Plugs Straight (not angled)
Jacket PVC
Colour Black
Weight 0.153 kg
Compliance RoHS

Frequently Asked Questions

Will the Equip 118943 connect a DVI-D graphics card to a VGA monitor?
No. DVI-D is digital-only and has no analogue pins, so a passive DVI-A cable cannot produce a VGA signal from it. You need an active DVI-D (or HDMI) to VGA converter instead.
Can I use the 118943 with a KVM switch?
Yes, if the KVM switch has a DVI-I or DVI-A console or computer port that carries analogue video. It is a common way to connect older workstations with DVI-I outputs to VGA KVM switches and monitors.
Singular Expert Insight
The right cable for older workstations, servers and graphics cards with a DVI-I port that still need to drive a VGA screen or projector — one lead, no adapter block hanging off the port. Double shielding keeps the analogue image clean over 1.8 m. Upgrading the display as well? Browse our PC monitors.
✓ Buy it if your source has a DVI-I or DVI-A output and your display only accepts VGA.
✕ Skip it if your graphics card has DVI-D only — you need an active converter.
→ Also consider Equip 118817 (1.8 m VGA to VGA) if both ends already have VGA ports.

Features - Equip - 118943

Colour
black
Length
1.8m
More Details
Product Code
04:154892
EAN Code
4015867166185
Manufacturer
Equip
