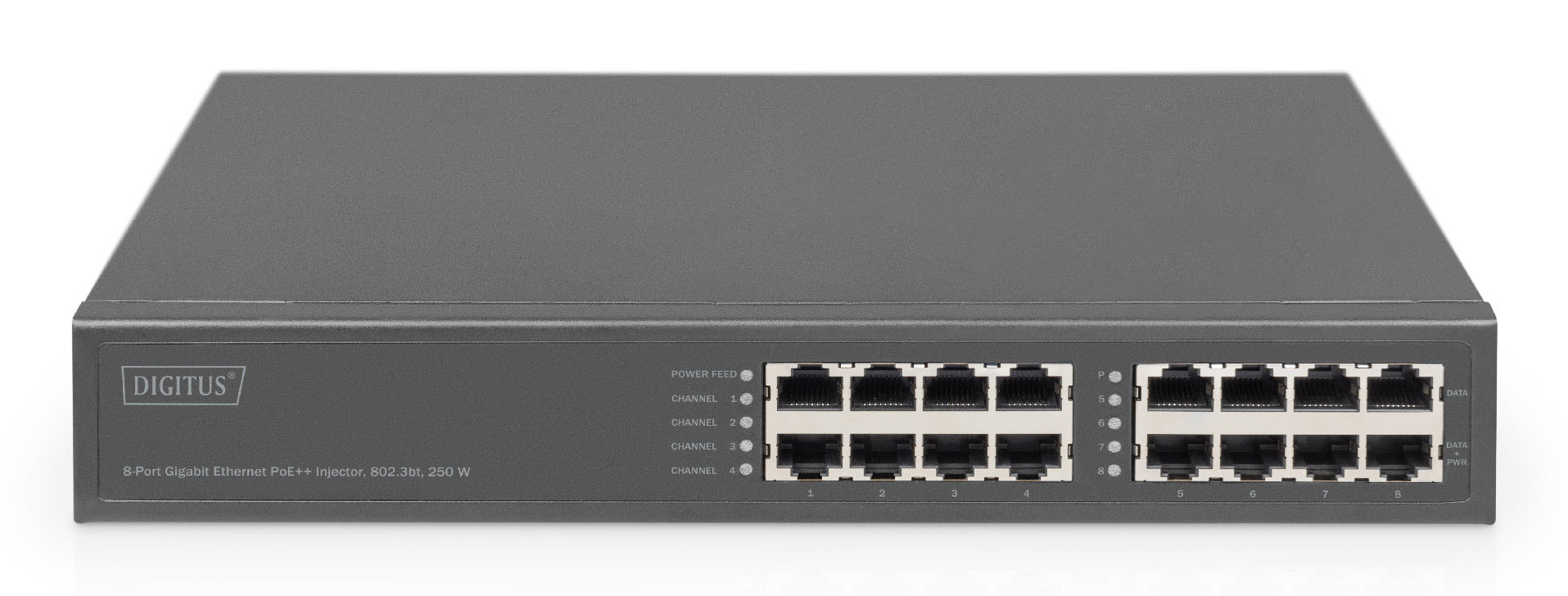

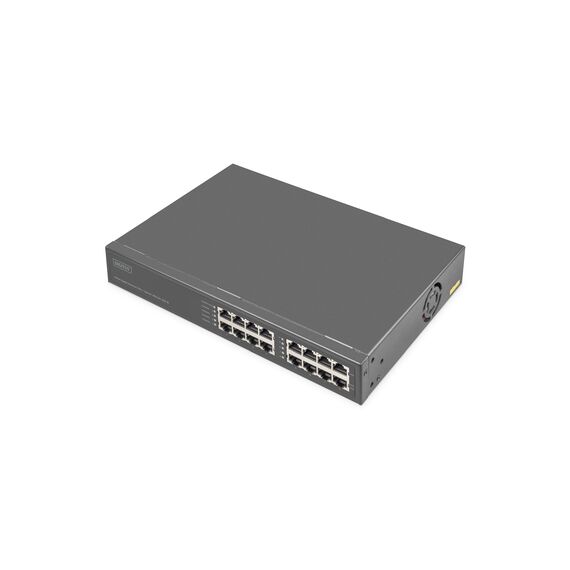

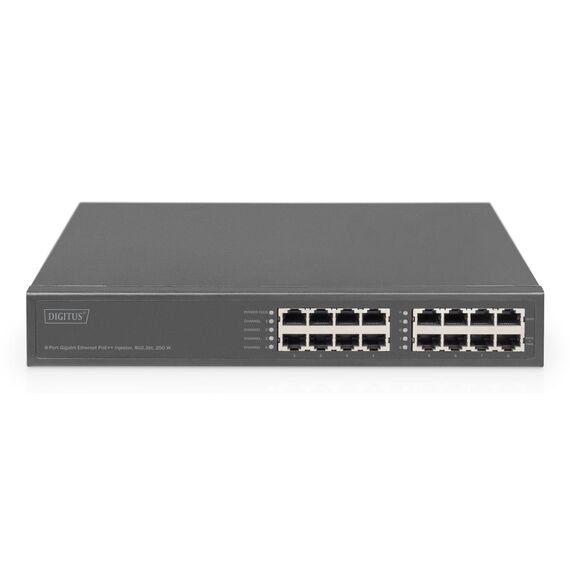

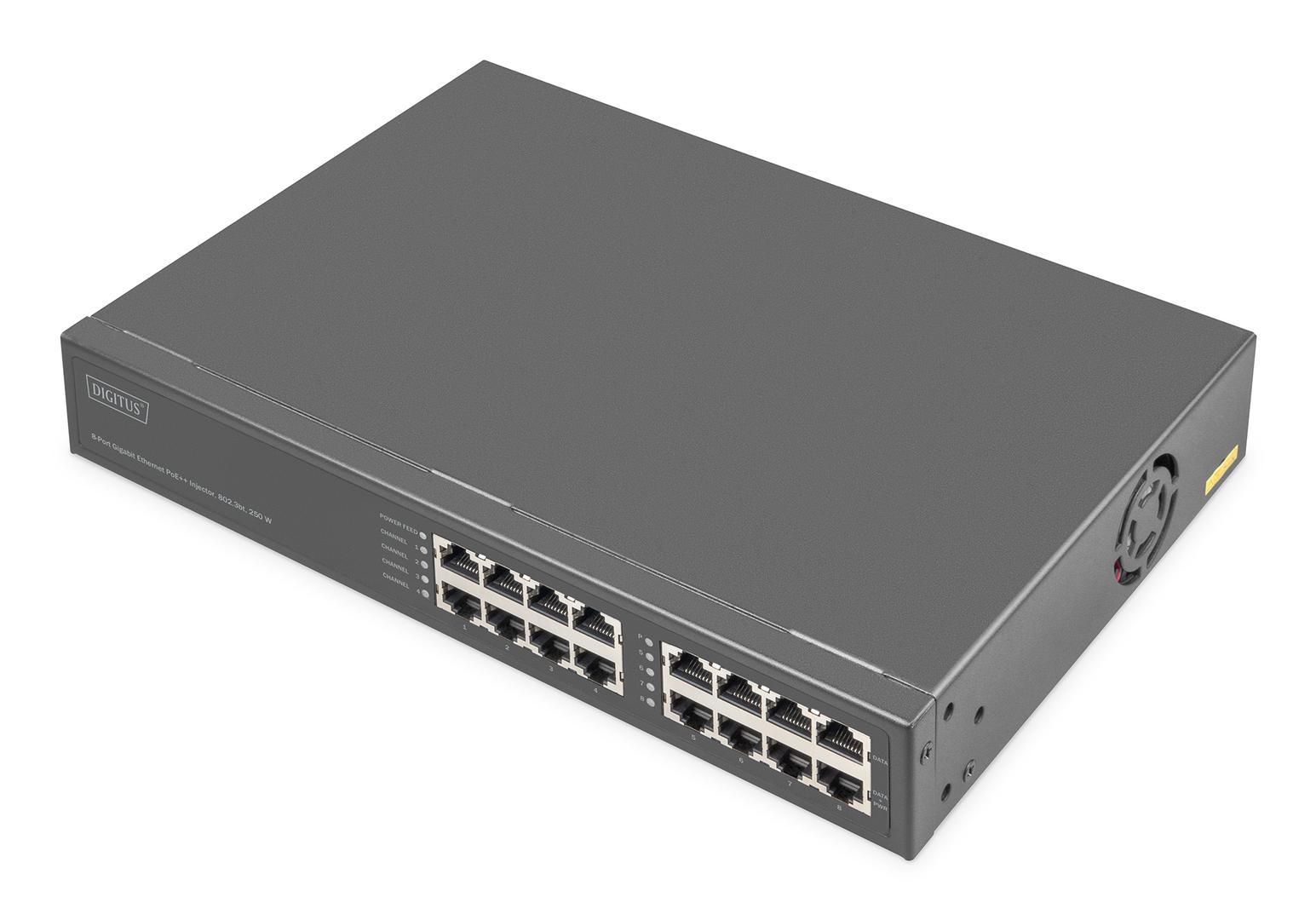

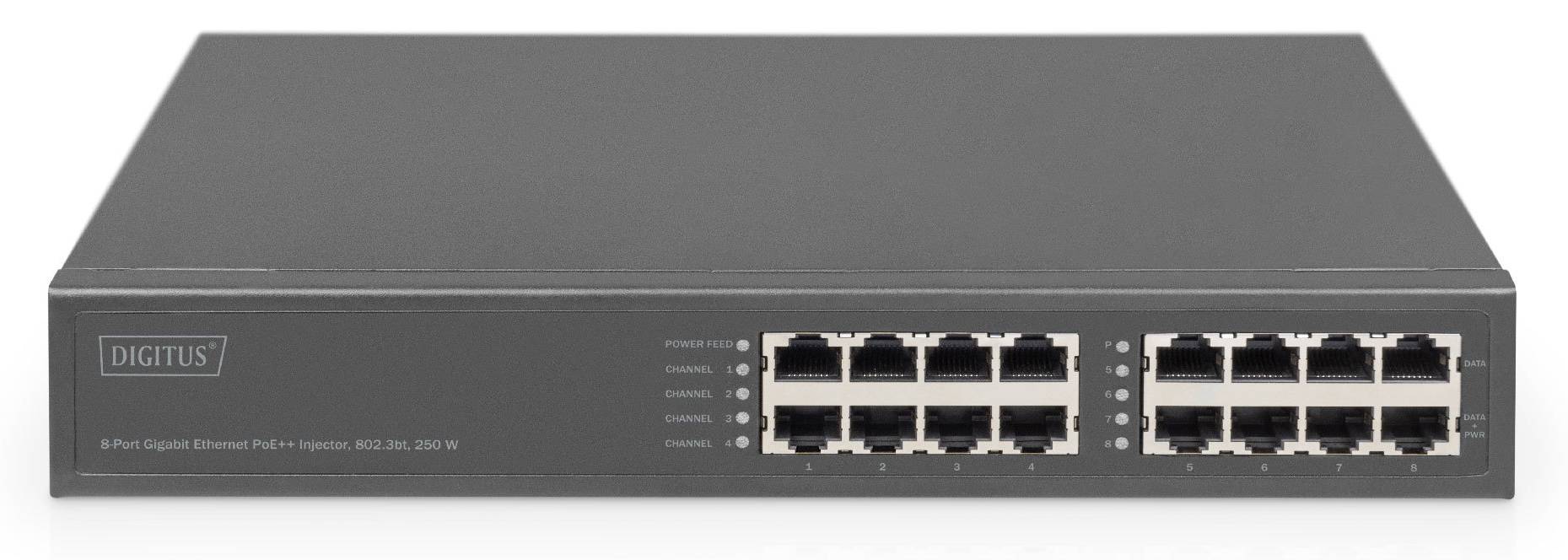

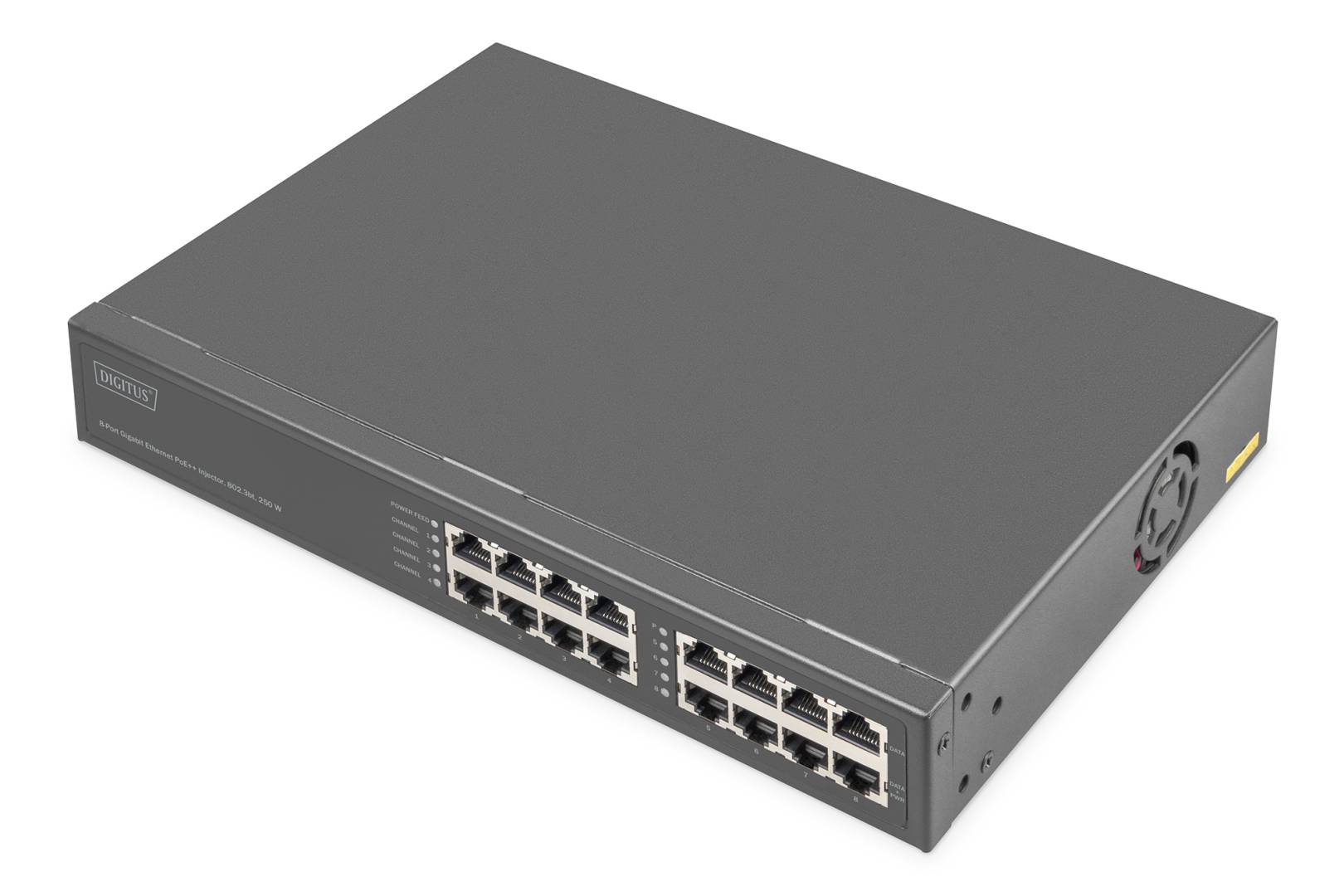

DIGITUS 8-Port Gigabit PoE++ Injector, 802.3bt Type 4, up to 90 W per Port, 250 W Total, Internal Power Supply

Brand:
Digitus
DIGITUS 8-Port Gigabit PoE++ Injector 802.3bt 250 W
DIGITUS 8-Port Gigabit PoE++ Injector, 802.3bt Type 4, up to 90 W per Port, 250 W Total, Internal Power Supply
€312.34 inc. VAT
Buy
DN-95118
€262.47
€312.34 inc. VAT
Ships from EU stock: 15 item(s)
+ −
Add to wish list Ask a question
Product Code
04:488954
EAN Code
4016032495338
Manufacturer
Digitus

Quick Specs

Type
8-port PoE++ midspan injector
Connectors/Interface
8x RJ45 data in · 8x RJ45 PoE out
Key spec
Up to 90 W per port · 250 W total
Compatibility
802.3af/at/bt devices; any non-PoE switch
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

DIGITUS DN-95118 — 8-Port Gigabit PoE++ Injector, 802.3bt, 250 W

8 ports PoE++Up to 90 W per port250 W totalGigabit

The DIGITUS DN-95118 is an 8-port Gigabit PoE++ midspan injector that adds IEEE 802.3bt Type 4 power — up to 90 W per port over all four pairs, 250 W in total — to the links of a non-PoE switch, while staying backward compatible with 802.3af and 802.3at devices.

It suits high-power loads such as PTZ cameras with heaters, Wi-Fi 6E/7 access points, thin clients or digital signage. Connect the switch to the "Data in" ports and the devices to the matching "PoE out" ports; the AC power supply is built in.

Before you order: 250 W is the total for all 8 ports: you can run about two to three 90 W devices, or eight 30 W devices — not eight at 90 W. Data pass-through is Gigabit (10/100/1000), not multi-gig.

What's in the Box

  • 1x DIGITUS DN-95118 PoE++ injector
  • 1x AC power cord
  • 2x mounting brackets
  • 6x screws
  • 4x rubber feet
  • 1x quick installation guide

What It Means in Practice

  • Adds high-power PoE to an existing switch without replacing it.
  • Each port negotiates the right class automatically — af (15.4 W), at (30 W) or bt (up to 90 W).
  • Output 54 V DC over 4 pairs (Alternative A on 1/2–3/6, Alternative B on 4/5–7/8), up to 100 m.

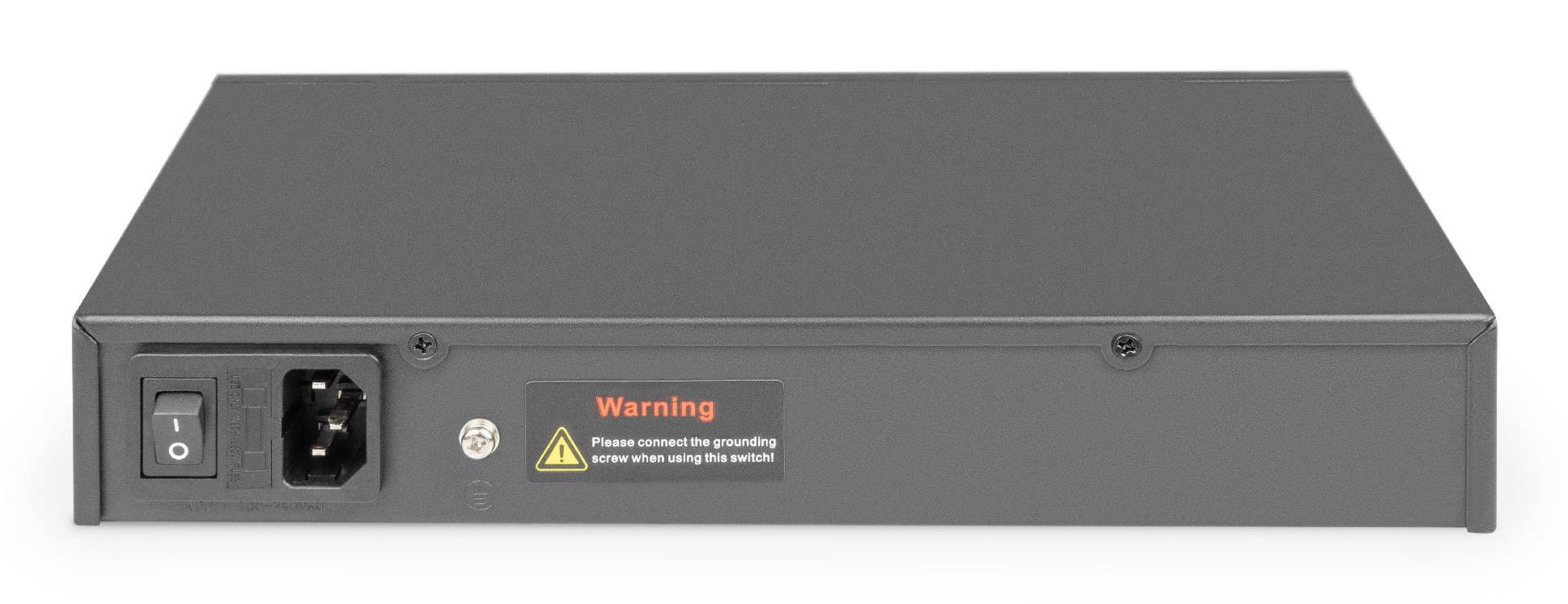

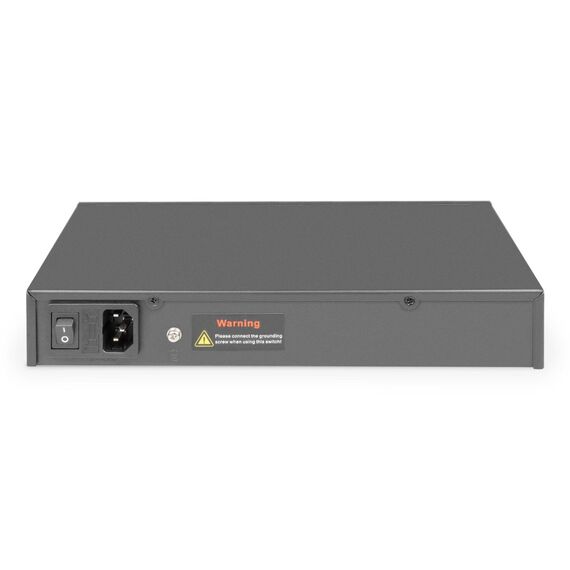

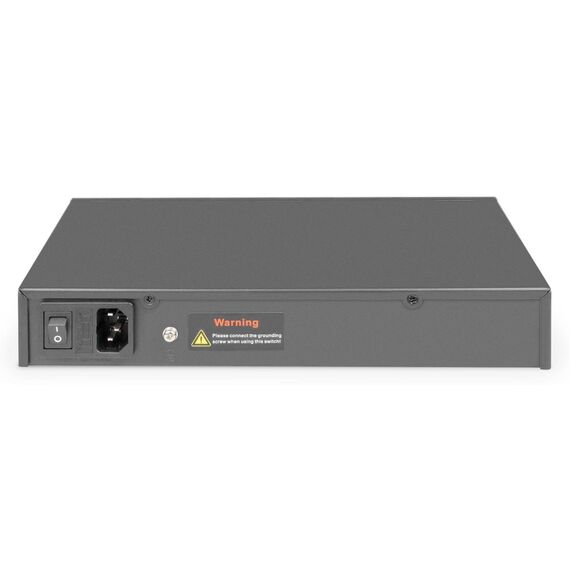

  • No external power brick: the 100–240 V AC supply is internal.
  • Desk or wall/shelf installation with the supplied brackets (275 x 200 x 44 mm).

What Will Not Work

  • Not 90 W on all 8 ports at once — the total is 250 W.
  • No multi-gig (2.5G/5G/10G) data pass-through.
  • Not a switch — it does not switch data between ports.
  • Indoor use only.

Key Features


802.3bt Type 4
Up to 90 W per port over 4 pairs, backward compatible with 802.3af/at.

250 W budget
Shared across 8 ports — enough for several high-power devices.

Internal PSU
100–240 V AC, 50/60 Hz built in — one mains cord, no brick.

Status LEDs
Power LED plus one LED per channel.

Technical Specifications

Identification
Part Number DN-95118
EAN / GTIN 4016032495338
Brand DIGITUS
Product type 8-port PoE++ injector (midspan)
PoE & Network
Ports 8x RJ45 Data in, 8x RJ45 Data + PoE out
Standards IEEE 802.3af, 802.3at, 802.3bt Type 4
Data rate 10/100/1000 Mbps
PoE per port Up to 90 W (4-pair)
Total PoE budget 250 W
Output voltage 54 V DC
Pin assignment Alt. A: V+ 3/6, V− 1/2 · Alt. B: V+ 4/5, V− 7/8
Distance Up to 100 m
Power & Physical
Power supply Internal, 100–240 V AC, 50/60 Hz
LEDs Power; 1 per channel
Dimensions 275 x 200 x 44 mm
Weight 1.86 kg
Environment
Operating temperature 0 to 40 °C
Storage temperature −10 to 70 °C
Humidity 5–95%, non-condensing
Use Indoor
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term Manufacturer warranty term not published for this model — claims handled through Singular

Frequently Asked Questions

How many 90 W devices can I power?
Up to two at full 90 W with headroom (180 W), or a mix of high- and low-power devices within the 250 W total.
Will my 802.3at access point work?
Yes. The injector is backward compatible and gives af/at devices the power they request.
Can I use it with a 2.5G switch?
The data path is Gigabit; a 2.5G link through it will run at 1 Gbps.
Singular Expert Insight · Buyer's Guide
The DN-95118 is the practical way to run a few 802.3bt devices — PTZ cameras, Wi-Fi 7 APs, signage — from a switch without PoE++. Count your watts against the 250 W total. If you are replacing the switch anyway, a PoE++ switch from our switches may be simpler.
✓ Buy it if you need up to 90 W per port for a handful of devices on a non-PoE switch.
✕ Skip it if you need 90 W on every port or multi-gig data.
→ Also consider DIGITUS DN-95109 — a single-port 85 W 802.3bt injector for one device.
Not sure your devices fit in 250 W? Send us the device models and we will check the power budget before you order.
