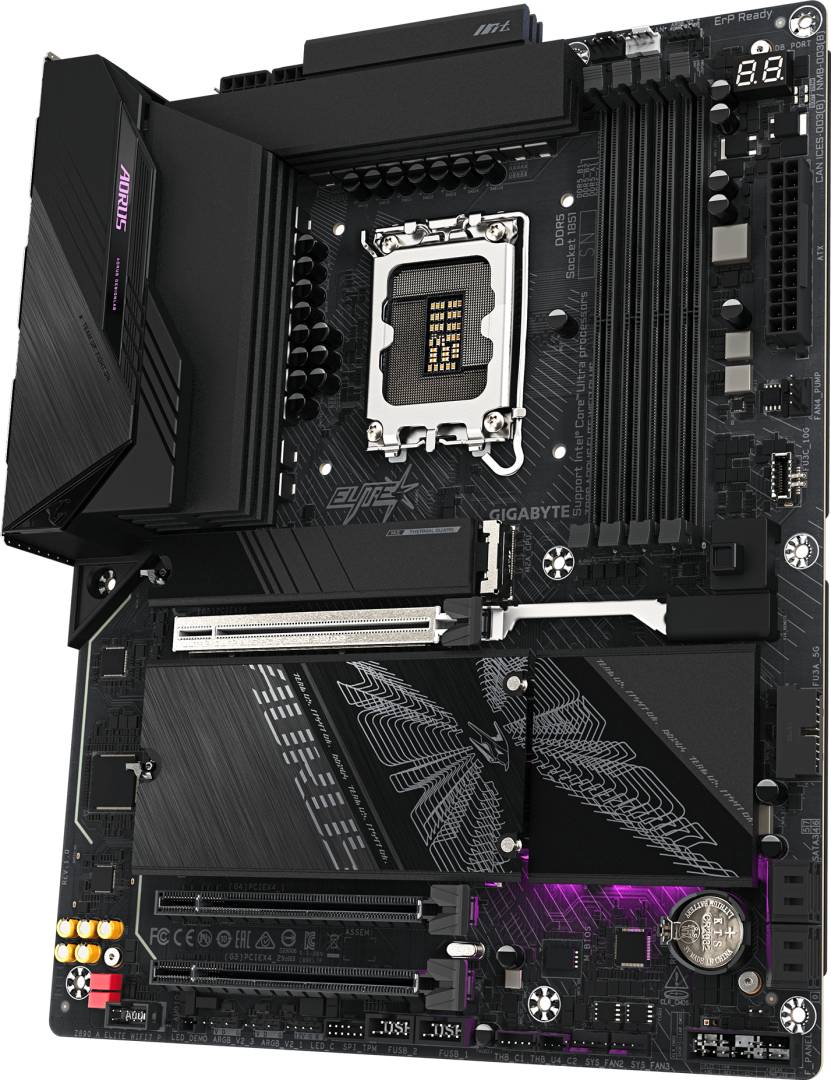

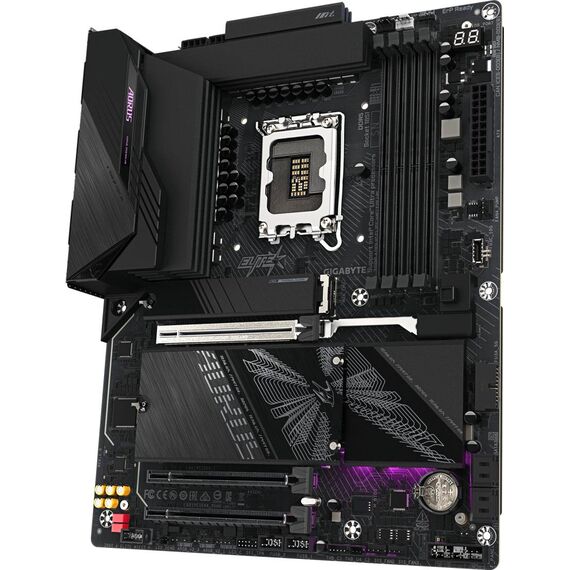

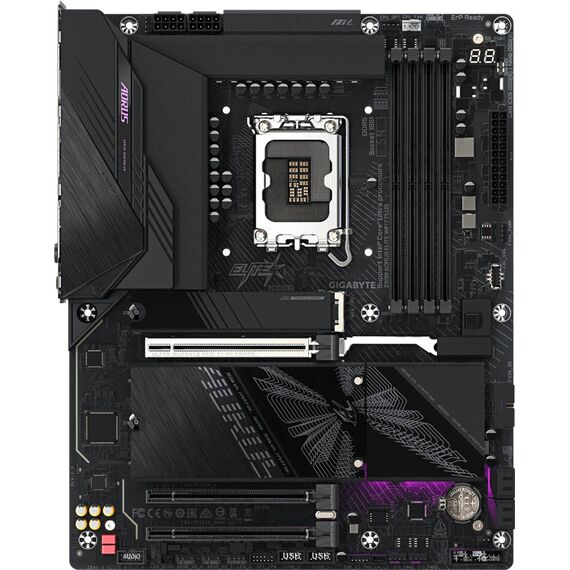

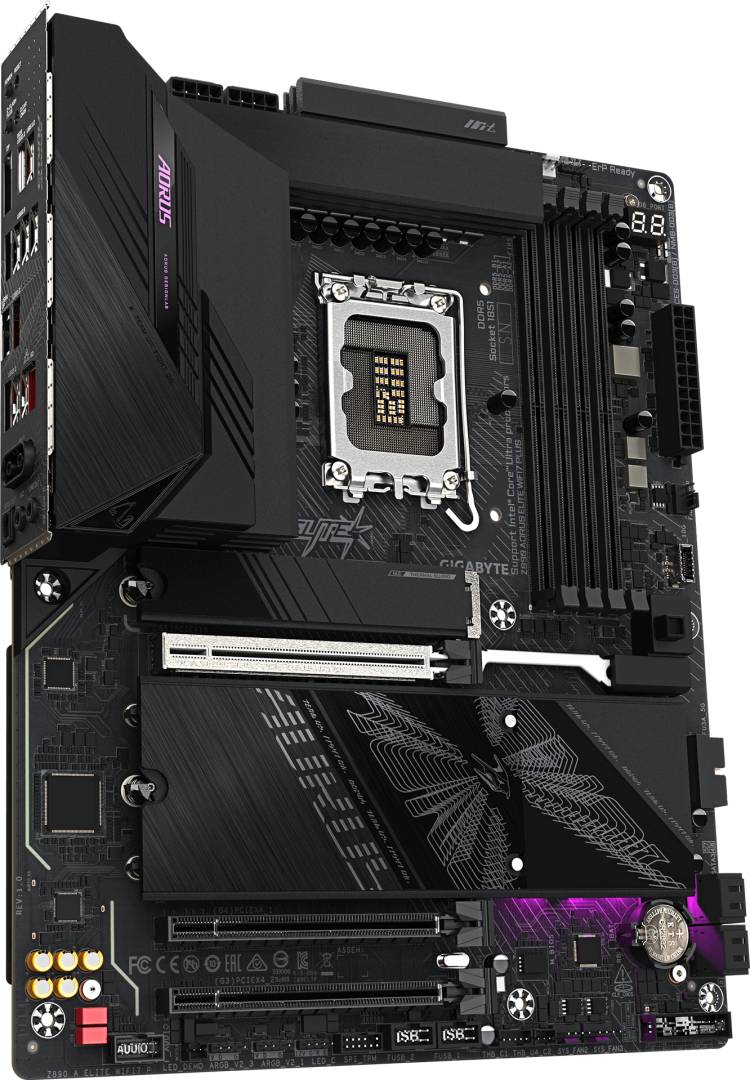

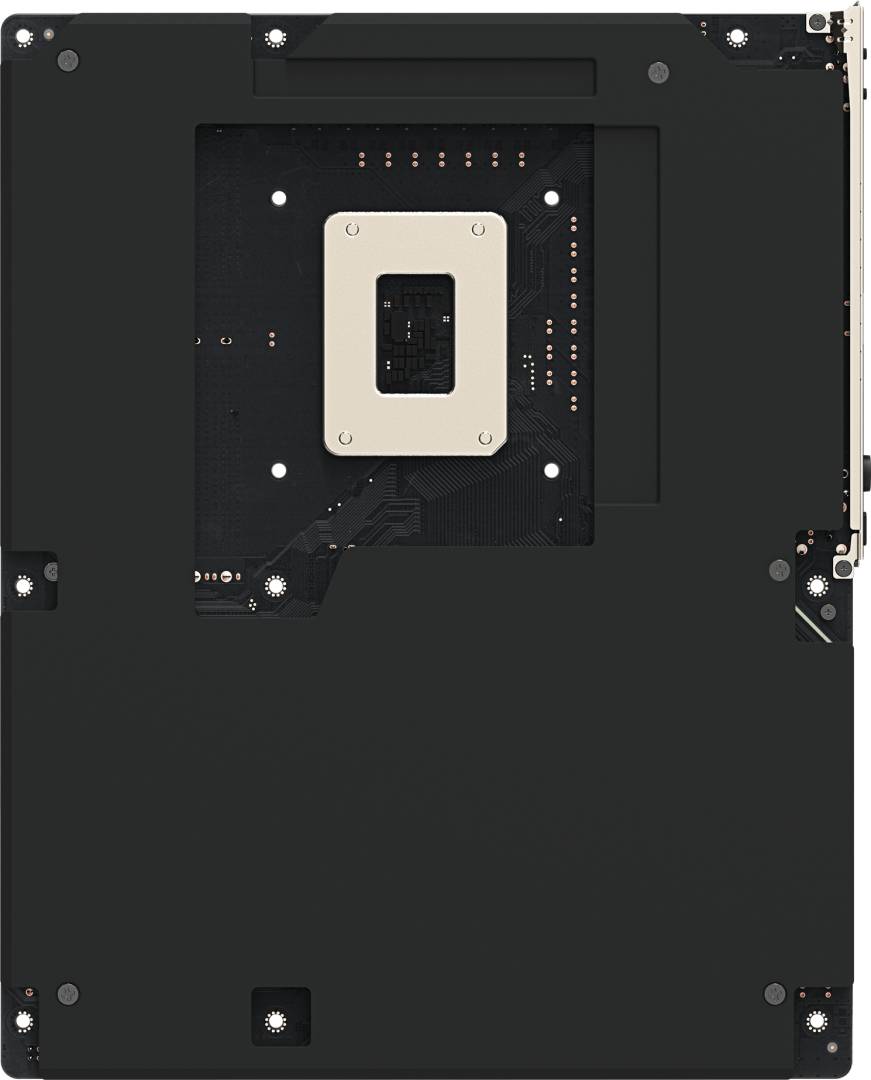

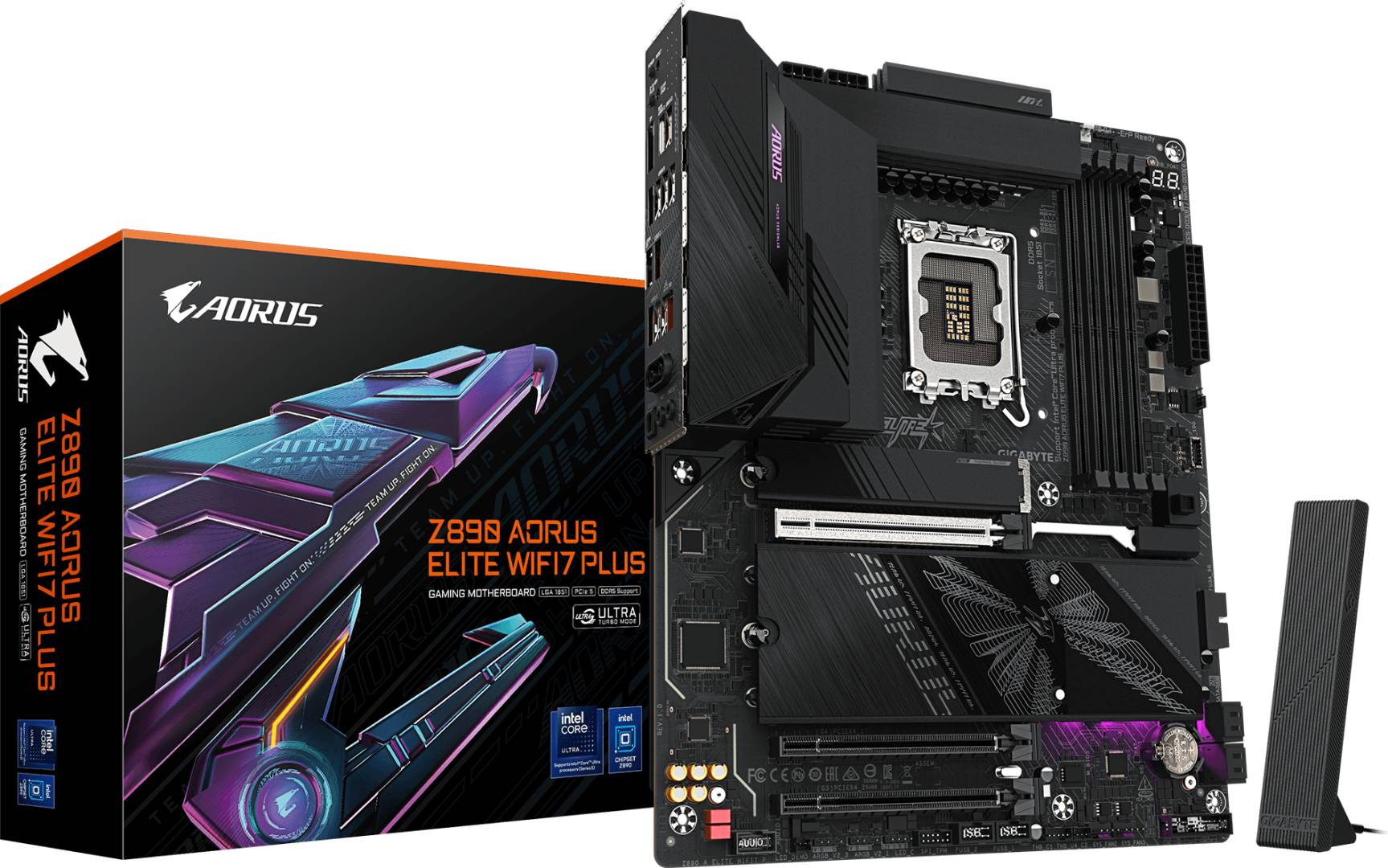

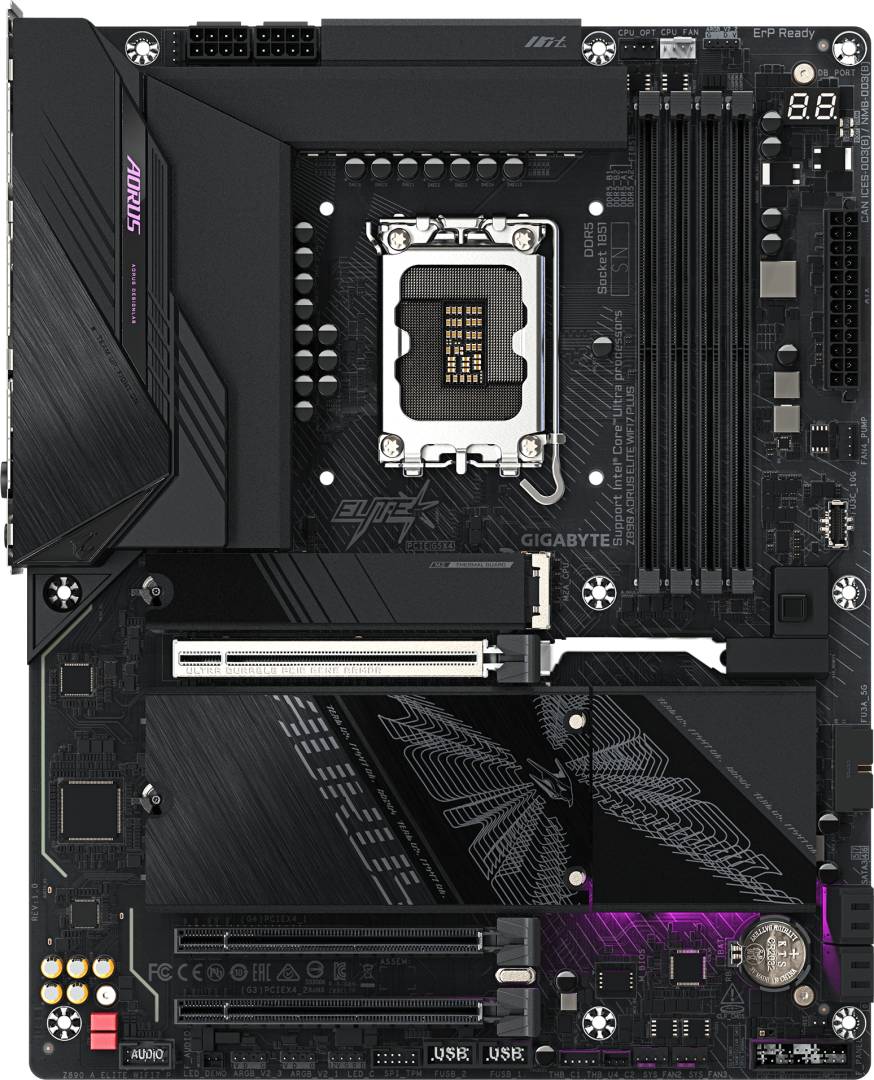

Gigabyte Z890 AORUS ELITE WIFI7 PLUS LGA1851 ATX Motherboard DDR5 Wi-Fi 7 5GbE USB4 4x M.2 (Z890 A ELITE WIFI7 P)

Brand:
GigaByte
Z890 A ELITE WIFI7 P
€310.39 €344.88
€369.36 inc. VAT
Out of stock
Add to wish list Ask a question
Product Code
04:601784
EAN Code
4719331880798
Manufacturer
GigaByte
Quick Specs
Socket & chipset
LGA1851 · Intel Z890
Memory
4x DDR5 · up to 256GB · 9466+ MT/s OC
Expansion
PCIe 5.0 x16 · 4x M.2 (1x Gen5)
Connectivity
5GbE · Wi-Fi 7 · USB4
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Gigabyte Z890 AORUS ELITE WIFI7 PLUS — overclocking-ready ATX for Core Ultra

Intel Z890 · LGA1851DDR5 9466+ MT/s (OC) · CUDIMM5GbE · Wi-Fi 7USB4 · PCIe 5.0 M.2

The Gigabyte Z890 AORUS ELITE WIFI7 PLUS (part number Z890 A ELITE WIFI7 P) is an ATX motherboard for Intel Core Ultra (Series 2) processors on LGA1851, built on the Z890 chipset for CPU and memory overclocking — a strong base for high-end gaming and creator PCs.

Four DDR5 slots support up to 256GB and overclocked kits beyond 9466 MT/s, including CUDIMM modules. The graphics slot runs PCIe 5.0 x16, and four M.2 slots include one PCIe 5.0 x4 (up to 25110 length) from the CPU plus three PCIe 4.0 x4 slots, one of which also takes SATA M.2 drives.

Connectivity includes Realtek 5GbE, Intel Wi-Fi 7 BE200 (320 MHz) with Bluetooth 5.4, a USB4 Type-C port with DisplayPort output, two 10 Gbps USB-A ports, ALC1220 audio with S/PDIF, and two headers ready for Gigabyte Thunderbolt 5 add-in cards.

Compatibility note: Rear video is limited to one DisplayPort 2.1 and the USB4 port — there is no HDMI. Wi-Fi 7 needs Windows 11 (no Windows 10 driver). The two x16-length chipset slots run PCIe 4.0 x4. Core Ultra F-series CPUs have no integrated graphics, so the rear display outputs will not work with them.

Best For

✓ High-end Core Ultra 7 / 9 gaming PCs
✓ CPU and DDR5 memory overclocking
✓ Content creation with fast NVMe storage
✓ 5GbE home-lab and NAS connections
✓ Future Thunderbolt 5 upgrade via add-in card
✓ Wi-Fi 7 desktops

Key Features


Z890 overclocking platform
Unlocked CPU and memory tuning on a 16+1+2 twin digital VRM, with CUDIMM support and DDR5 up to 9466+ MT/s (OC) for enthusiasts chasing performance.

Gen5 M.2 plus three Gen4
M2A_CPU takes PCIe 5.0 x4 SSDs up to 25110, with three more PCIe 4.0 x4 slots (one SATA-capable) and NVMe/SATA RAID 0/1/5/10.

5GbE + Wi-Fi 7
Realtek 5GbE wired networking plus Intel BE200 Wi-Fi 7 with 320 MHz channels and Bluetooth 5.4.

USB4 and TB5-ready
Rear USB4 Type-C with DisplayPort output, two 10 Gbps USB-A, front USB-C 10 Gbps header and two connectors for a Gigabyte Thunderbolt 5 add-in card.

Technical Specifications

Identification
Part Number Z890 A ELITE WIFI7 P
EAN/GTIN 4719331880798
MPN Z890 AORUS ELITE WIFI7 PLUS
Brand Gigabyte (AORUS)
Processor & Chipset
Socket Intel LGA1851
Supported CPUs Intel Core Ultra (Series 2) desktop processors
Chipset Intel Z890 Express
VRM 16+1+2 twin digital (8+8 parallel phases)
CPU power 2x 8-pin ATX 12V + 24-pin ATX
Memory
Slots 4x DDR5 DIMM, dual channel
Maximum 256GB
Speed Up to 9466+ MT/s (OC)
Type Non-ECC unbuffered · CUDIMM · Intel XMP
Expansion & Storage
PCIe x16 (CPU) 1x PCIe 5.0 x16
PCIe x16 (chipset) 2x PCIe 4.0, run x4
M.2 CPU M2A_CPU PCIe 5.0 x4 (25110/22110/2580/2280) · M2B_CPU PCIe 4.0 x4 (22110/2280)
M.2 chipset M2Q_SB PCIe 4.0 x4 · M2M_SB SATA or PCIe 4.0 x4 (22110/2280)
SATA 4x SATA 6Gb/s
RAID NVMe and SATA RAID 0/1/5/10
Networking & Audio
LAN Realtek 5GbE
Wireless Intel Wi-Fi 7 BE200NGW (2.4/5/6 GHz, 320 MHz) + Bluetooth 5.4
Audio Realtek ALC1220 · 7.1-channel · S/PDIF out · DSD on line out

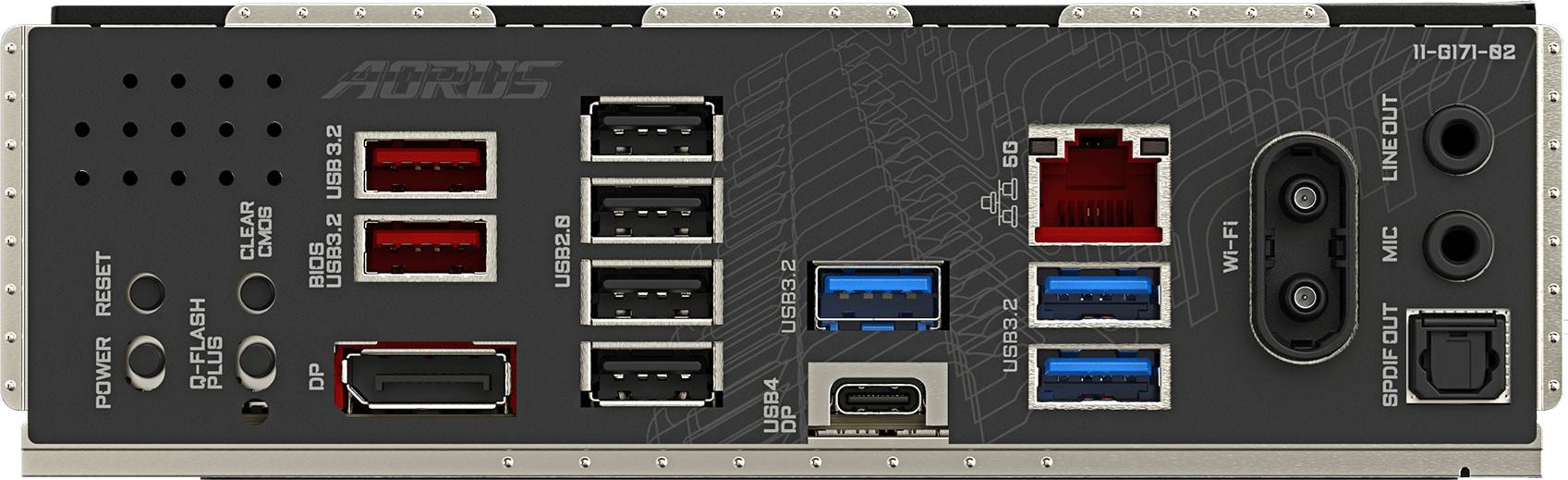

Rear I/O
USB 1x USB4 Type-C (DP out) · 2x USB-A 3.2 Gen 2 · 3x USB-A 3.2 Gen 1 · 4x USB 2.0
Video 1x DisplayPort 2.1 · USB4 DP (3840x2160@144)
Other Power, reset, Q-Flash Plus and Clear CMOS buttons · RJ-45 · 2x antenna (2T2R) · optical S/PDIF · 2 audio jacks
Internal Connectors
USB headers 1x USB-C 3.2 Gen 2 · 1x USB 3.2 Gen 1 · 2x USB 2.0
Fans & RGB CPU fan · CPU fan/pump · 3x system fan · system fan/pump · 3x ARGB Gen2 · 1x RGB
Other 2x Thunderbolt add-in card connectors (Gigabyte TB5 card) · TPM header
General
Form factor ATX, 30.5 x 24.4 cm
BIOS 512 Mbit AMI UEFI · Q-Flash Plus
OS Windows 11 64-bit
Software GIGABYTE Control Center

Frequently Asked Questions

Is the Z890 AORUS ELITE WIFI7 PLUS ready for Thunderbolt 5?
Not natively, but it has two Thunderbolt add-in card connectors for a Gigabyte Thunderbolt 5 add-in card (sold separately); the rear USB4 port already provides 40 Gbps and DisplayPort output.
Can I use CUDIMM memory?
Yes, it supports clocked unbuffered DDR5 (CUDIMM) as well as standard non-ECC UDIMMs with XMP, up to 9466+ MT/s overclocked.
Does it have HDMI?
No. Integrated graphics output is through one DisplayPort 2.1 and the USB4 Type-C port. Use a USB-C or DP to HDMI adapter if needed.
Does it support Windows 10?
Gigabyte lists Windows 11 64-bit only, and the Wi-Fi 7 module has no Windows 10 driver.

Singular Expert Insight

A well-balanced Z890 board: 5GbE, Wi-Fi 7, USB4 and a Gen5 M.2 slot cover almost every enthusiast need without flagship pricing. If you do not overclock and want to save money, the Z890 EAGLE PLUS models trim the extras. Pair it with a fast DDR5 or CUDIMM kit from our DDR5 memory range.
✓ Buy it if you want a feature-rich LGA1851 ATX board for overclocking a Core Ultra 7/9 with fast networking and Wi-Fi 7.
✕ Skip it if you need HDMI on the rear panel or will not overclock — a B860 board costs less.
→ Also consider the Z890 EAGLE WIFI7 PLUS for a cheaper Z890 with Wi-Fi 7, or an X870 AORUS board on AMD AM5.
