AORUS Z890 PRO ICE / Motherboard / ATX / LGA1851 Socket / Z890 Chipset / USB4, USB 3.2 Gen 2, USB 3.2 Gen 1, USB-C 3.2 Gen 2x2 / 5 Gigabit Ethernet, Bluetooth, Wi-Fi 7 / onboard graphics (CPU required) / HD Audio (8-channel) | Z890 AORUS PRO ICE
AORUS Z890 PRO ICE / Motherboard / ATX / LGA1851 Socket / Z890 Chipset / USB4, USB 3.2 Gen 2, USB 3.2 Gen 1, USB-C 3.2 Gen 2x2 / 5 Gigabit Ethernet, Bluetooth, Wi-Fi 7 / onboard graphics (CPU required) / HD Audio (8-channel) | Z890 AORUS PRO ICE
€483.35 inc. VAT
Z890 AORUS PRO ICE
Sales 8%
Promotion details
Sales at Singular store
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Robust connectivity options
The motherboard features multiple high-speed interfaces, including USB 3.2 Gen 2, USB-C 3.2 Gen 2x2, and Thunderbolt 4, allowing for fast data transfer and a wide range of peripherals. - High-performance memory support
With support for dual-channel memory architecture and Intel Extreme Memory Profiles (XMP), users can easily upgrade and optimize their system's memory performance. - Advanced audio capabilities
Featuring a Realtek ALC1220 audio codec, this motherboard provides high definition audio output with 8-channel support, ensuring sound quality for gaming and media consumption. - Intelligent temperature management
Equipped with GIGABYTE Smart Fan 6 technology, this motherboard provides customizable fan controls and thermal management, ensuring optimal performance during intense workloads. - Durable and gamer-friendly design
The ultra-durable PCIe Armor and pre-mounted I/O shield enhance durability, while RGB FUSION offers customizable lighting options to suit any build style.
Special Features
- Supports Intel Core Ultra processors with LGA1851 socket
- Capable of running DDR5 RAM at speeds up to 4800 MHz
- Equipped with multiple M.2 and SATA interfaces for versatile storage options
- High definition audio with 8-channel output for immersive sound
- Advanced cooling features including customizable fan controls
Product Specification
| Product Type | Motherboard - ATX |
| Chipset Type | Intel Z890 |
| Processor Socket | LGA1851 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports Intel Core Ultra processors (Series 2)) |
| Supported RAM | Supported RAM |
| Max Size | 256 GB |
| Technology | DDR5 |
| Bus Clock | 4750 MHz (O.C.), 4733 MHz (O.C.), 4667 MHz (O.C.), 4600 MHz (O.C.), 4533 MHz (O.C.), 4467 MHz (O.C.), 4400 MHz (O.C.), 4300 MHz (O.C.), 4200 MHz (O.C.), 4133 MHz (O.C.), 4100 Mhz (O.C), 4000 MHz (O.C.), 3975 MHz (O.C.), 3950 MHz (O.C.), 3900 MHz (O.C.), 3800 MHz (O.C.), 3700 MHz (O.C.), 3600 MHz (O.C.), 3500 MHz (O.C.), 3400 MHz (O.C.), 3300 MHz (O.C.), 3200 MHz, 3100 MHz, 3000 MHz, 2900 MHz, 2800 MHz |
| Supported RAM Integrity Check | Non-ECC, ECC (operate in non-ECC mode) |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), supported ECC modules operate in non-ECC mode |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC1220 |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Controller | Intel Wi-Fi 7 BE200 |
| Network Interfaces | 5 Gigabit Ethernet, Bluetooth 5.4, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7) |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 (x4 mode) 1 x PCIe 4.0 x16 (x1 mode) 1 x M.2 socket (2280/2580/22110/25110 M.2 Key M slot) 2 x M.2 socket (2280/22110 M.2 Key M slot) 2 x M.2 socket (2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 SATA-600 / PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 |

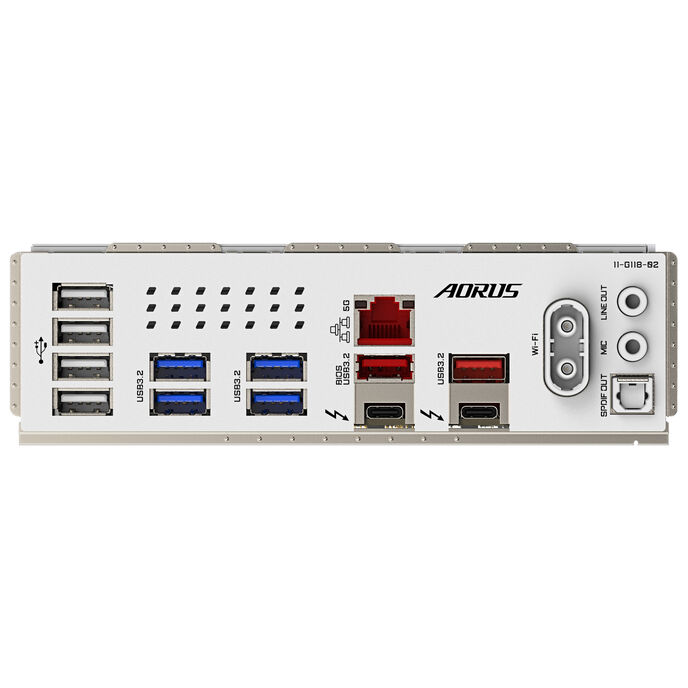

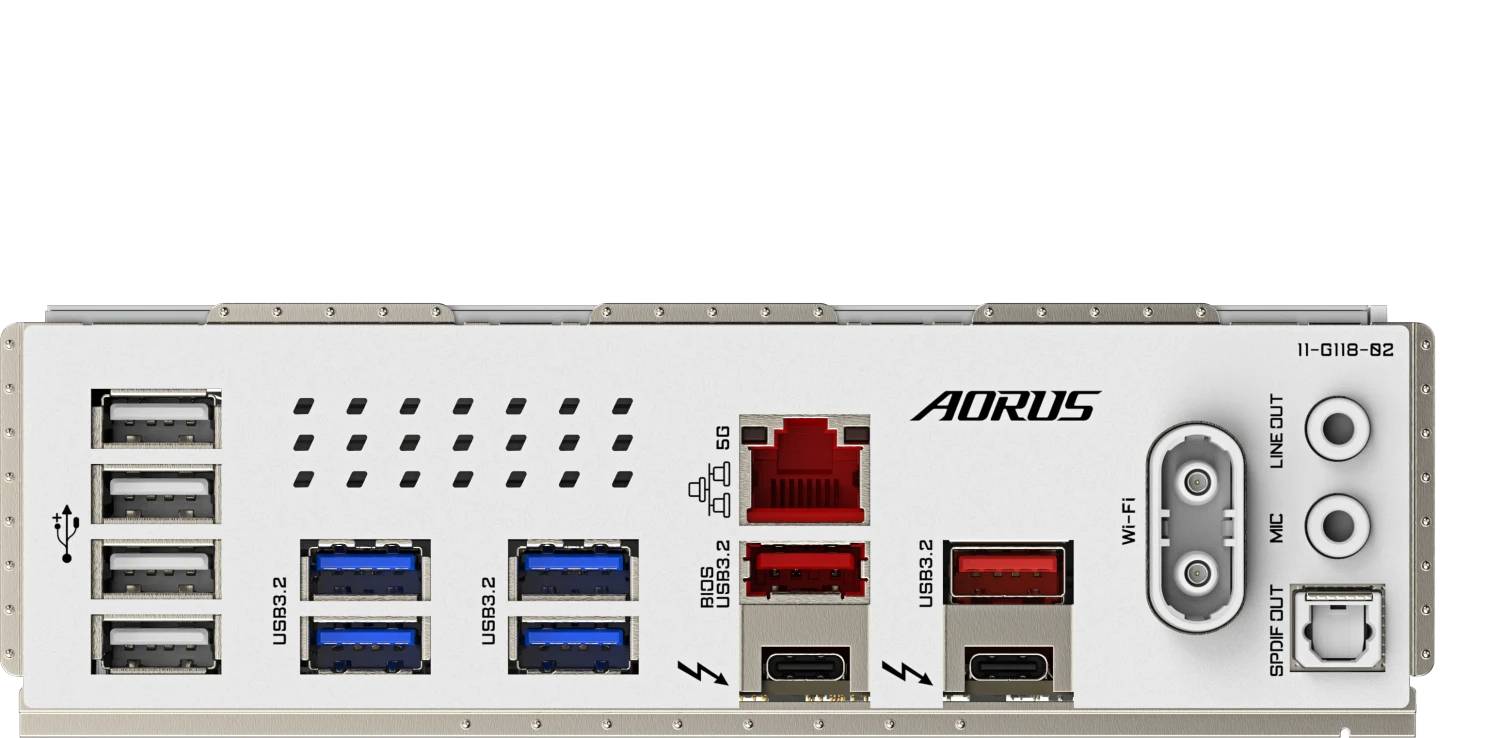

| Interfaces | 4 x USB 2.0 2 x aerial 4 x USB 3.2 Gen 1 2 x Thunderbolt 4/DisplayPort/USB4 2 x USB 3.2 Gen 2 1 x LAN (5Gigabit Ethernet) 1 x microphone - mini-jack 1 x audio line-out - mini-jack 1 x SPDIF out |
| Internal Interfaces | 1 x USB-C 3.2 Gen 2 - header 2 x USB 3.2 Gen 1 - header 4 x USB 2.0 - header 1 x audio - header 1 x SPI - header |
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS, PnP 1.0a support, DMI 2.7 support, WfM 2.0 support, SMBIOS 2.7 support, ACPI 5.0 support |
| Hardware Monitoring | Fan control, fan fail warning, fan speed detection, system voltage, temperature detection |
| Hardware Features | 16+1+2 Phase Power Design, CUDIMM support, AI Perfdrive, WIFI EZ-Plug, power button, reset button, M.2 Thermal Guard L, VRM Thermal Armor Advanced, 2x Copper PCB, 8 Layer PCB, AI Overclocking, DIY Friendly Design, M.2 Thermal Guard Ext., metal backplate, pre-mounted I/O shield, Ultra Durable PCIe Armor, AI SNATCH Engine, VRM heatsink design, GIGABYTE Smart Fan 6, RGB FUSION |
| Miscellaneous | Miscellaneous |
| Included Accessories | Wi-Fi aerial, noise detection cable, G-Connector, 2 thermistor cables, DDR Wind Blade |
| Cables Included | 2 x SATA Express cable |
| Software Included | GIGABYTE Control Center, Norton Internet Security (OEM Version), HWiNFO |
| Compliant Standards | DisplayPort 1.4, HDCP 2.3 |
| Width | 30.5 cm |
| Depth | 24.4 cm |
