Gigabyte Z890 D PLUS — the leanest route to Z890 for Core Ultra
Intel Z890 · LGA1851DDR5 9466+ MT/s (OC) · CUDIMMPCIe 5.0 x16 + Gen5 M.22.5GbE · no Wi-Fi

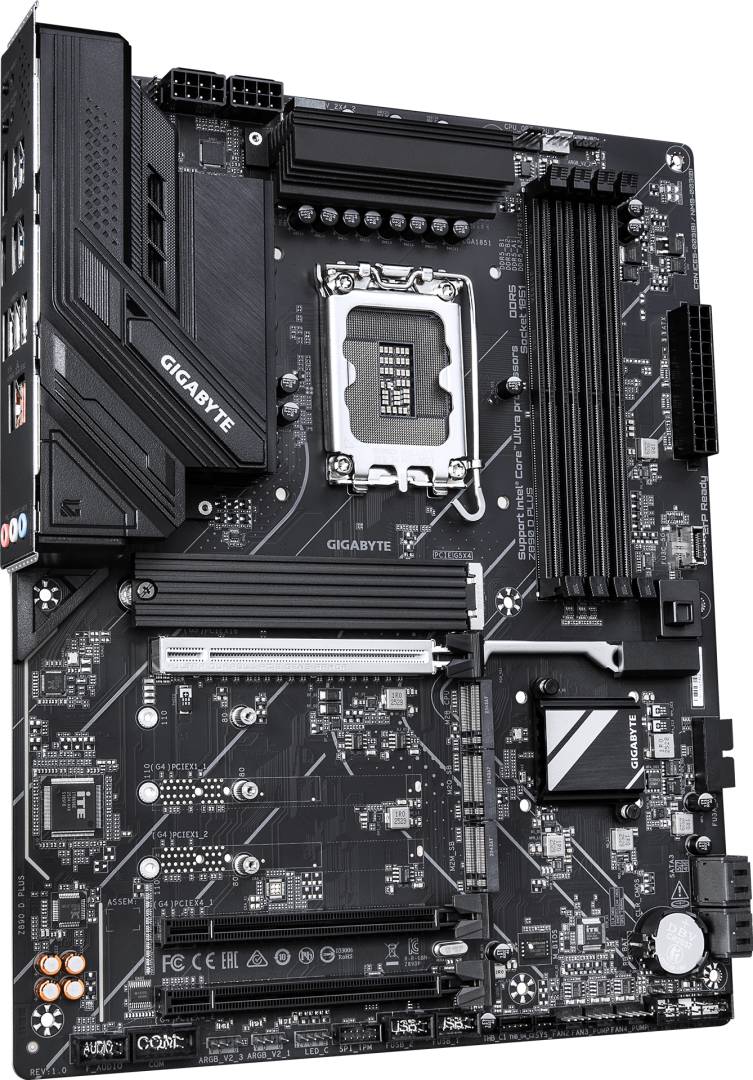

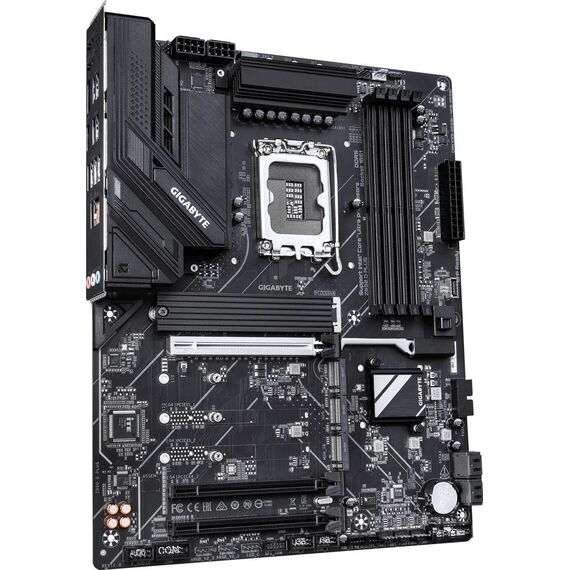

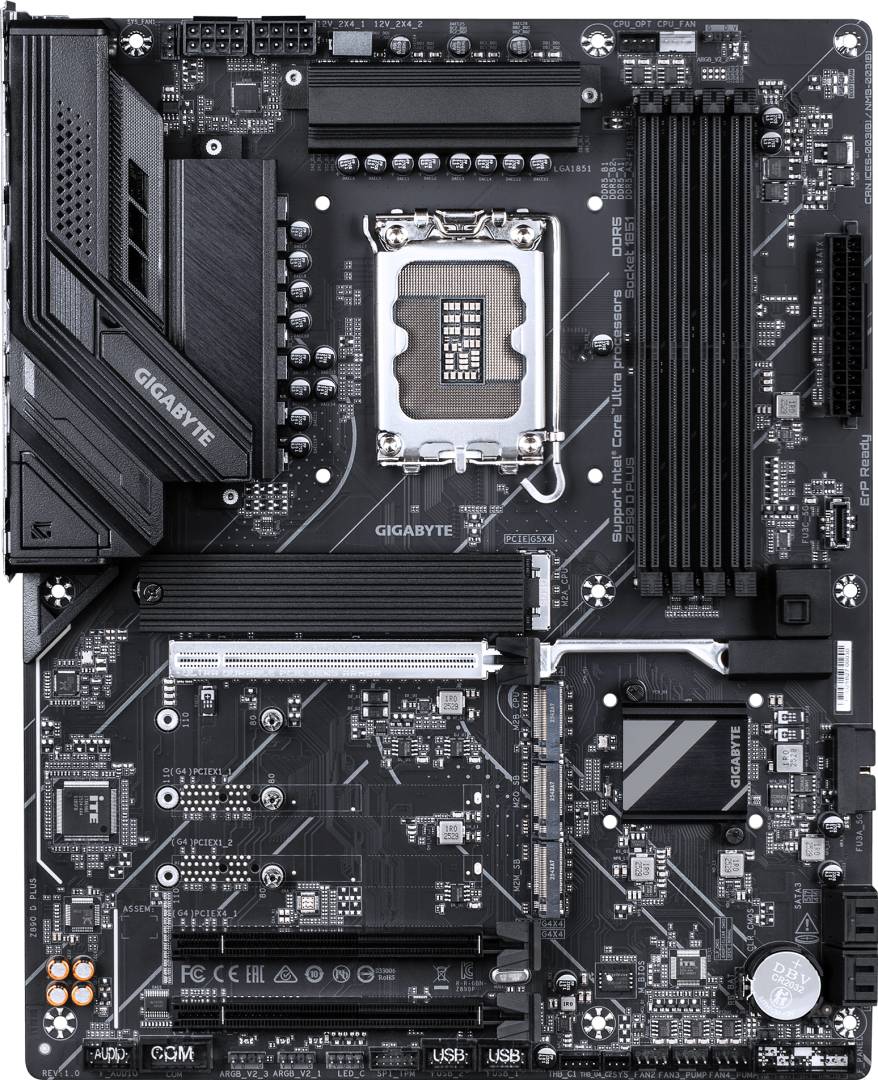

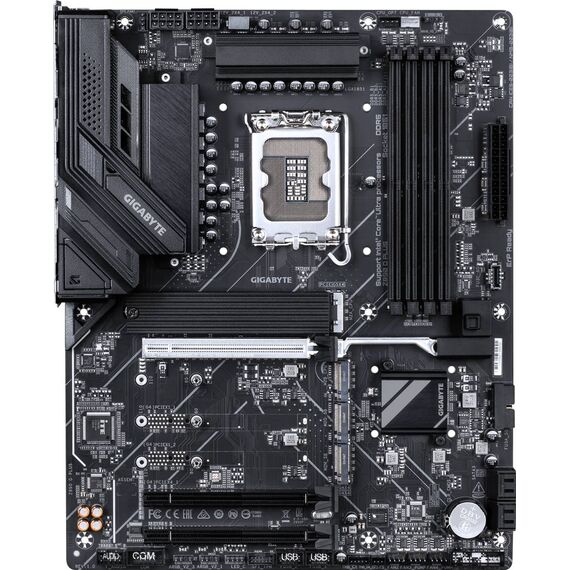

The Gigabyte Z890 D PLUS (part number Z890 D PLUS) is an ATX motherboard for Intel Core Ultra (Series 2) processors on LGA1851, giving the Z890 chipset overclocking platform in its leanest, most affordable form for gaming and workstation builds.
A 12+1+2 twin digital VRM feeds the CPU, four DDR5 slots support up to 256GB and overclocked kits beyond 9466 MT/s (CUDIMM supported), and the PCIe 5.0 x16 slot is paired with four M.2 slots: one PCIe 5.0 x4 (up to 25110) and three PCIe 4.0 x4, one of which also takes SATA M.2 SSDs.

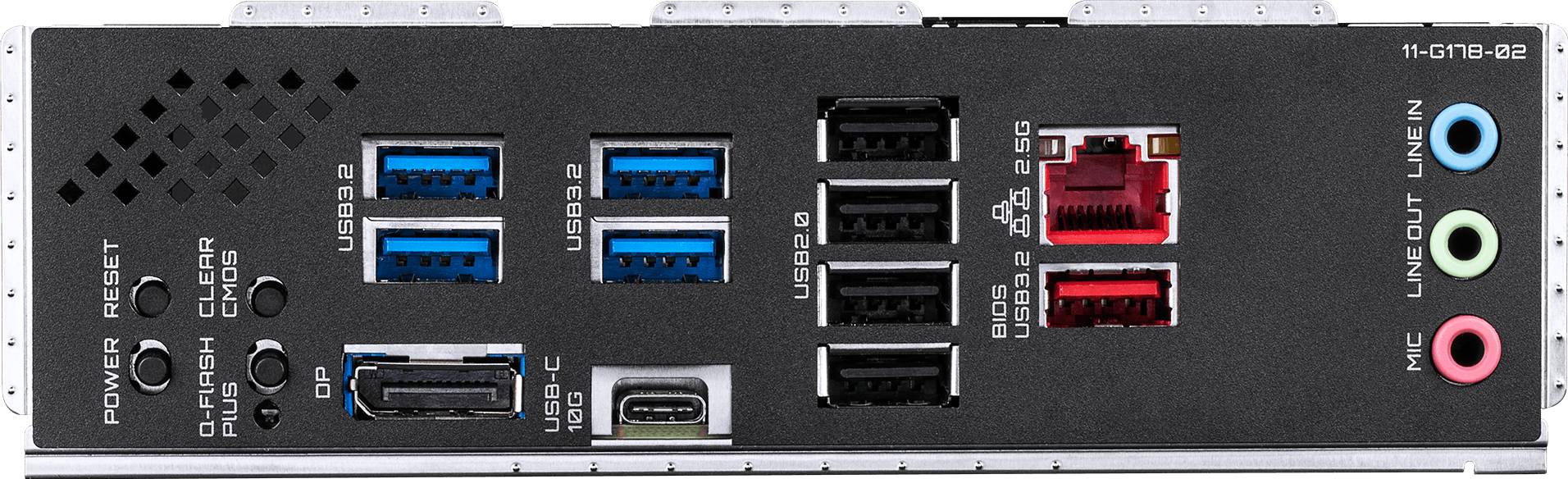

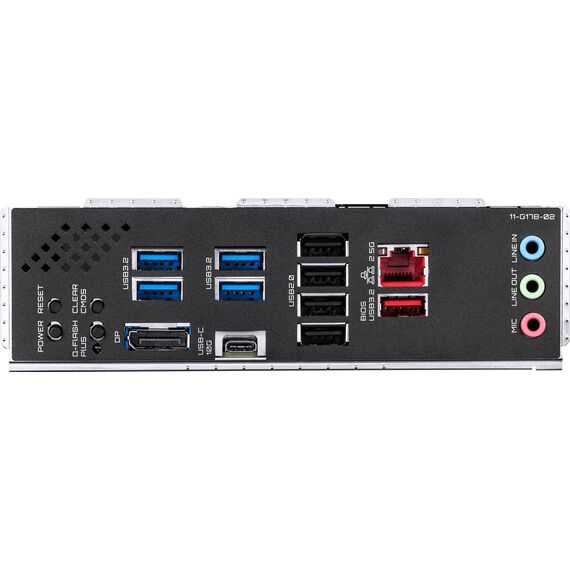

The rear panel has Realtek 2.5GbE, a 10 Gbps USB-C, a 10 Gbps USB-A, four 5 Gbps USB-A and one DisplayPort 2.1 output. Internally there is a serial (COM) header and connectors for a Gigabyte Thunderbolt 5 add-in card.
Compatibility note: There is no Wi-Fi, no USB4 and only one DisplayPort for integrated graphics (no HDMI). Audio is a basic Realtek codec with 5.1-channel output and no S/PDIF. The two x16-length chipset slots run PCIe 4.0 x4. Core Ultra F-series CPUs have no integrated graphics.
Best For
✓ Budget Z890 gaming builds with a dedicated GPU
✓ CPU and DDR5 overclocking at the lowest Z890 cost
✓ Workstations needing four M.2 slots
✓ Wired office and studio PCs
✓ Legacy devices via the serial header
✓ Future Thunderbolt 5 via add-in card
Key Features
Z890 at an entry price
Full Z890 CPU and memory overclocking with CUDIMM support, powered by a 12+1+2 twin digital VRM (6+6 parallel phases).
Four M.2 slots incl. Gen5
M2A_CPU PCIe 5.0 x4 (up to 25110) plus M2B_CPU, M2Q_SB and SATA/PCIe M2M_SB at PCIe 4.0 x4, with NVMe and SATA RAID 0/1/5/10.
2.5GbE and 10 Gbps USB
Realtek 2.5GbE LAN, a rear 10 Gbps USB-C and USB-A, and a front USB-C header.
Expansion-ready
Two extra x16-length PCIe 4.0 x4 slots, a serial port header and two Thunderbolt add-in card connectors.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
The D PLUS strips Z890 down to the essentials that matter for a GPU-based gaming or workstation build: overclocking, PCIe 5.0 graphics, four M.2 slots and 2.5GbE. If you want USB4, better audio or Wi-Fi 7, the EAGLE PLUS models are worth the small step up. Pair it with DDR5 from our DDR5 memory range.
✓ Buy it if you want the most affordable Z890 board for a Core Ultra K-series build with a dedicated graphics card.
✕ Skip it if you need Wi-Fi, USB4, HDMI or better onboard audio.
→ Also consider the Z890 EAGLE PLUS for USB4 and ALC1220 audio, or the Z890 EAGLE WIFI7 PLUS with Wi-Fi 7.
Features - GigaByte - Z890 D PLUS
CPU Socket
- Socket 1851
More Details
Product Code
04:601788
EAN Code
4719331880644
Manufacturer
GigaByte
