Good Connections DP20-005 DisplayPort 2.0 Cable 0.5 m 8K60 54 Gbps Black

Brand:
GoodConnections
Good Connections DP20-005 - 0.5 m - DisplayPort - DisplayPort - M
Good Connections DP20-005 DisplayPort 2.0 Cable 0.5 m 8K60 54 Gbps Black
€8.84 inc. VAT
Buy
DP20-005
€7.43
€8.84 inc. VAT
Ships from EU stock: 11 item(s)
+ −
Add to wish list Ask a question
Product Code
04:479799
EAN Code
4014619603411
Manufacturer
GoodConnections
Quick Specs
Type
DisplayPort 2.0 cable (M/M)
Connectors
DP male · DP male, latching
Max resolution
8K 60 Hz · 4K 240 Hz
Length
0.5 m · black
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

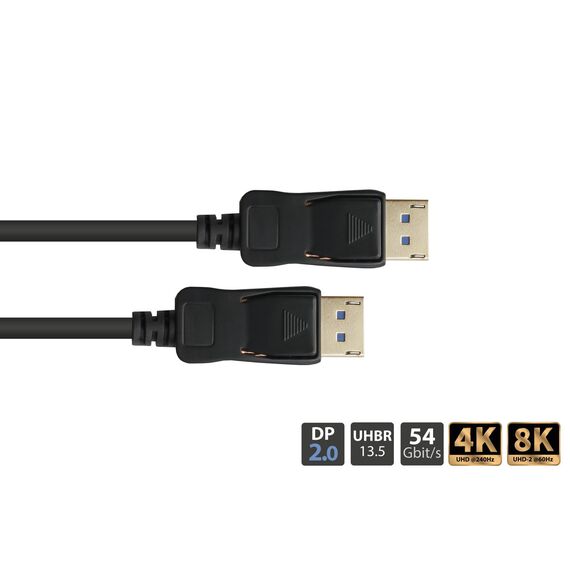

Good Connections DisplayPort 2.0 Cable 0.5 m — 54 Gbps, 8K 60 Hz / 4K 240 Hz

DisplayPort 2.0 UHBR13.58K 60 · 4K 240 Hz0.5 m · Black

The Good Connections DP20-005 is a 0.5 m DisplayPort 2.0 cable rated for UHBR13.5 (54 Gbps), made for short, high-bandwidth links between a current graphics card or dock and an 8K or very high-refresh 4K monitor.

It supports 8K at 60 Hz and 4K at 240 Hz in full 4:4:4 colour without compression, uses triple-shielded AWG 30 copper with latching plugs, and leaves pin 20 unconnected to avoid back-powering issues.

Compatibility note: DisplayPort 2.0 speeds (UHBR13.5) are only reached when both the graphics card and the monitor support DP 2.0/2.1; with DP 1.4 devices the cable simply runs at DP 1.4 speed. At 0.5 m it is meant for desk-side or rack-internal connections.

Technical Specifications

Identification
Part Number DP20-005
EAN / GTIN 4014619603411
MPN DP20-005
Brand Good Connections
Connection
Connector A DisplayPort male, latching
Connector B DisplayPort male, latching
Standard DisplayPort 2.0 — UHBR13.5, 54 Gbps link rate (approx. 52.2 Gbps effective)
Pin 20 Not connected — prevents unwanted power flow between devices
Copy protection HDCP 1.4 / 2.3
Performance
Max resolution 7680 × 4320 @ 60 Hz and 3840 × 2160 @ 240 Hz (4:4:4, no DSC)
With DSC Up to 8K 120/144 Hz when source and display support DSC 1.2a
Bandwidth 54 Gbps
Cable
Length 0.5 m
Conductor Copper
Wire gauge AWG 30/1 — solid 30-gauge conductors

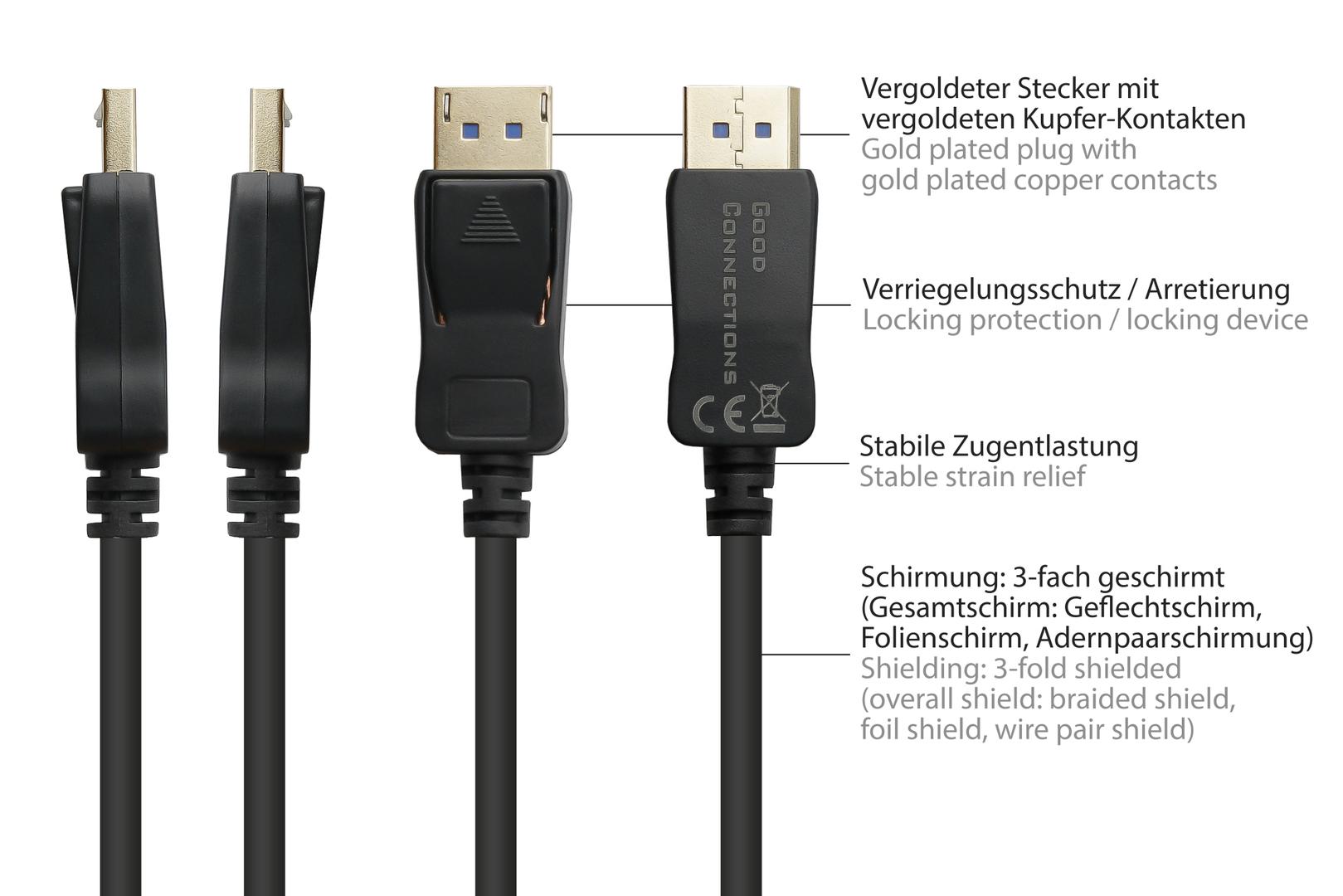

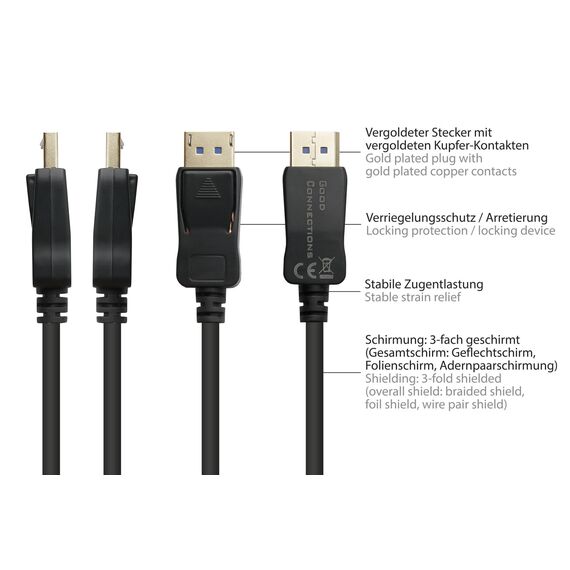

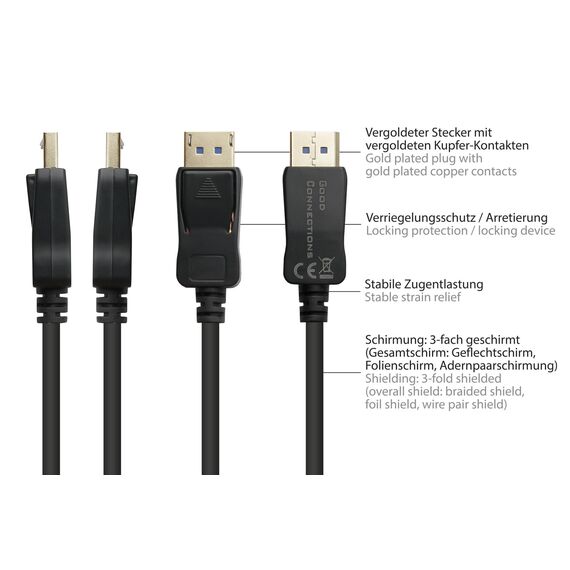

Shielding Triple shielded (pair foil + overall foil + braid)
Contacts Gold-plated
Colour Black
Weight Approx. 45 g

Frequently Asked Questions

Is the DP20-005 backwards compatible with DisplayPort 1.4 graphics cards?
Yes. DisplayPort is backwards compatible, so the cable works with DP 1.2 and DP 1.4 devices at their own maximum speed. You only gain the extra 54 Gbps bandwidth when both ends are DisplayPort 2.0/2.1.
What is the difference between DP20-005 and DP20-015 or DP20-020?
They share the same DisplayPort 2.0 UHBR13.5 specification; only the length changes (0.5 m, 1.5 m and 2 m). Pick the 0.5 m DP20-005 for tight installations, and a longer version when the monitor is further from the PC.
Singular Expert Insight

One of the few genuinely short DP 2.0 cables — ideal for connecting a docking station or eGPU right next to the monitor without coiling slack. If your hardware is DP 1.4 only, a DP 1.4 cable is cheaper and performs the same today.

✓ Buy it if you have DP 2.0/2.1 hardware and want a short, tidy 54 Gbps link.
✕ Skip it if your GPU and monitor are DP 1.4 — a DP 1.4 cable does the same job for less.
→ Also consider Good Connections DP20-015 (1.5 m) or DP20-020 (2 m) for longer runs.
