Hikvision DS-1280ZJ-DM8 Junction Box for Dome Cameras Aluminium Alloy 126.7 x 35 mm Waterproof Side and Bottom Inlet White

Brand:
Hikvision
Hikvision DS-1280ZJ-DM8 Junction Box for Dome Cameras
Hikvision DS-1280ZJ-DM8 Junction Box for Dome Cameras Aluminium Alloy 126.7 x 35 mm Waterproof Side and Bottom Inlet White
€21.44 inc. VAT
Buy
DS-1280ZJ-DM8
€18.02
€21.44 inc. VAT
Ships from EU stock: 35 item(s)
+ −
Add to wish list Ask a question
Product Code
04:281628
EAN Code
6954273672676
Manufacturer
Hikvision

Quick Specs

Type
Junction box for dome cameras
Size
126.7 x 35 mm
Cable entry
Side and bottom inlet
Max load
1 kg
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Hikvision DS-1280ZJ-DM8 — a waterproof junction box for dome cameras

Junction boxWaterproof designSide + bottom inletWhite

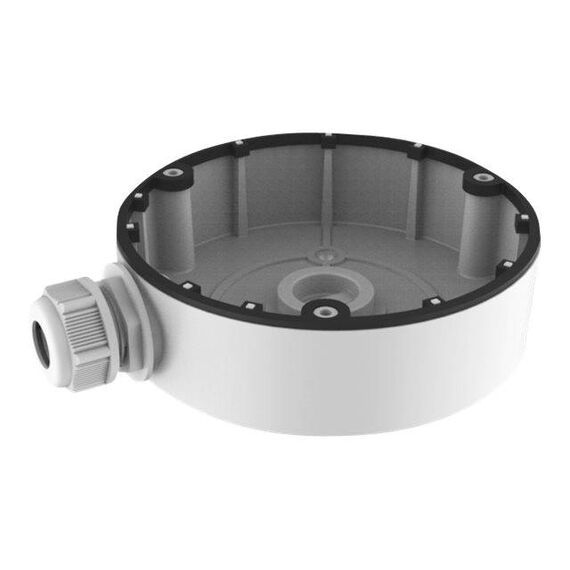

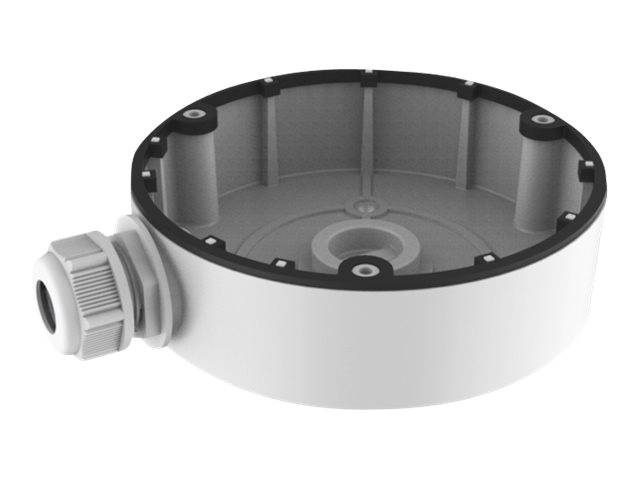

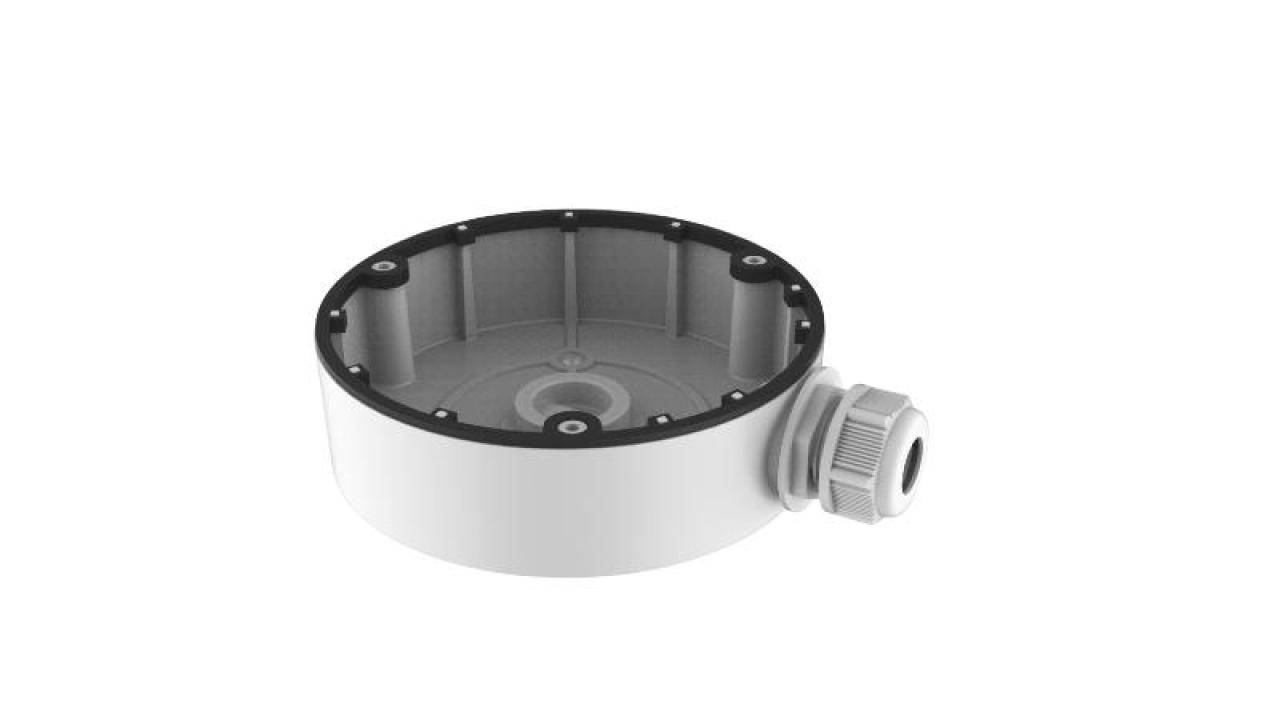

The Hikvision DS-1280ZJ-DM8 is a waterproof aluminium alloy junction box for dome cameras. It sits between the wall or ceiling and the camera, keeps the cable connections protected inside, and lets you bring the cable in from the side or from the bottom — the bottom waterproof cover and the side gland nut are interchangeable. It measures 126.7 x 35 mm, weighs about 210 g and is finished in Hikvision white.

Compatibility — check before buying:
Hikvision describes it as a junction box for dome cameras but does not list compatible models on its product page, so match the camera base to the box before you order. Its maximum load is 1 kg (Hikvision datasheet), much lower than the smaller DS-1280ZJ-DM18, and the two are not interchangeable. Hikvision also sells a black DM8 and a newer DS-1280ZJ-DM8-Y, which are different codes. Tell us the exact model you have and we check compatibility before you order.

Best For

✓ Outdoor dome installations
✓ Surface cable runs from the side
✓ Ceilings with cable from above
✓ Hikvision dome projects
✓ Neat, sealed connections
✓ Replacing a missing junction box

Key Features


Waterproof design
Built to keep water out of the cable connections.

Side and bottom inlet
Bring the cable in from the side or from behind, whichever suits the wall.

Interchangeable seals
The bottom waterproof cover and the side gland nut can be swapped.

Aluminium alloy
Sturdy painted aluminium body in Hikvision white.

Technical Specifications

Identification
Brand Hikvision
Product DS-1280ZJ-DM8 Junction Box
Part Number DS-1280ZJ-DM8
EAN / GTIN 6954273672676
Type Junction box for dome cameras
Colour Hikvision White
Physical
Material Aluminium alloy, spray-painted surface
Colour Hikvision White
Dimensions Ø126.7 x 35 mm
Weight Approx. 210 g
Installation
Max load 1 kg
Cable entry Side inlet and bottom inlet
Sealing Interchangeable bottom waterproof cover and side gland nut
Surface Flat surface
In the Box
Included DS-1280ZJ-DM8 junction box with bottom waterproof cover and side gland nut
Not Included Dome camera, wall plugs and screws for your surface
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term Hikvision does not publish a warranty term for this accessory on its product page. Singular’s direct warranty is 1 year, and we support you locally for anything beyond it.

Frequently Asked Questions

Which cameras does it fit?
Hikvision does not list models on the product page. Tell us the exact model you have and we check compatibility before you order.
How is the cable brought in?
From the side or from the bottom; the waterproof cover and the gland nut are interchangeable.
How much can it carry?
Hikvision’s datasheet gives a maximum load of 1 kg.
Is it the same as the DM18?
No. The DM8 is larger (126.7 mm) with a 1 kg load; the DM18 is 111 mm with a 4.5 kg load.
Singular Expert Insight
The DM8 is the choice when the cable has to come in from the side along the wall and the box must stay sealed outdoors. Because Hikvision sizes each DS-1280ZJ box to specific dome bases, always confirm the camera model first. Cameras are in our IP cameras range and more mounting parts in our networking accessories.

Buyer’s Guide

Buy it if

you need a sealed junction box with side or bottom cable entry for a Hikvision dome.

Skip it if

your camera needs a 111 mm base — look at the DS-1280ZJ-DM18.

Also consider

Hikvision DS-1280ZJ-DM18 junction box.
