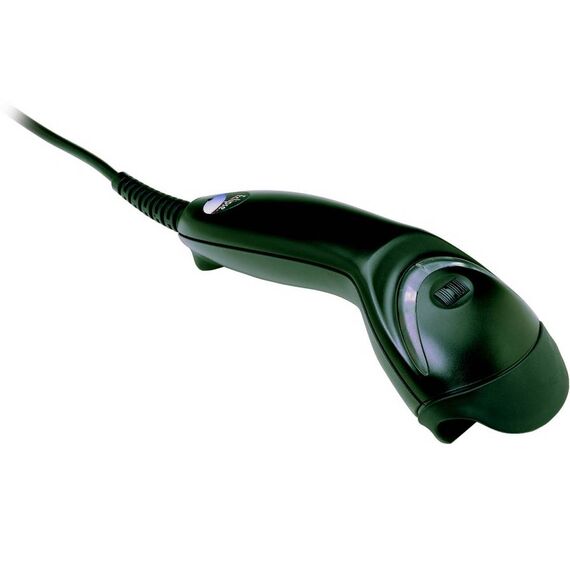

Honeywell MS5145 Eclipse / Barcode scanner / handheld / 72 line / sec / decoded / USB | MK5145-31A38-EU

MK5145-31A38-EU
52.13

(62.03  με Φ.Π.Α.)
Σε Απόθεμα
Αποστολή από Γερμανία εντός 2-8 εργάσιμων ημερών.

+
Delivery
Payment options
Product Code1T70137 EAN Code5656565656562 ManufacturerHoneywell

Honeywell MS5145 Eclipse / Barcode scanner / handheld / 72 line / sec / decoded / USB | MK5145-31A38-EU

Description

Honeywell's MS5145 Eclipse is a low cost laser-based alternative to CCD scanners. Its compact form factor and high end feature set simplify its use in a variety of applications at the press of a button.Eclipse is a single-line, hand-held laser scanner. Equipped with Honeywell's patented CodeGate technology, Eclipse can be used in a wide variety of applications. CodeGate technology allows the user to easily target the desired bar code and complete data transmission with the press of a single button. This makes Eclipse a perfect selection for menu scanning, point-of-sale, document processing and inventory control.With Honeywell's state-of-the-art scanning technology, the MS5145 Eclipse has a longer working range and a wider scan field than a typical CCD. The width of the scan line grows as the scanner moves further away from bar codes.CodeSense is a unique feature employed by Eclipse in the absence of infrared object detection. It provides the user with a pulsing laser line for bar code detection. When a bar code is detected, the laser line switches to a constant state to allow for scanning via CodeGate.

Honeywell MS5145 Eclipse / Barcode scanner | MK5145-31A38-EU

Special Features

  • CodeGate
  • CodeSense
  • Powerlink cables
  • Flash ROM

Product features

  • CodeGate
    Zero in on desired code and complete data transmission with the push of a single button - ideal for menu scanning applications.
  • CodeSense
    Automatically wakes scanner from sleep mode when a bar code is detected.
  • Powerlink cables
    It uses the same user-replaceable cables and power supplies as voyager and orbit.
  • Flash ROM
    It protects POS investment with free firmware updates via MetroSet2 software and standard PC.


Product Specification

Type Barcode scanner - handheld
Colour Black
Localisation Europe
Interface Type USB
Minimum Bar Width 4 mil
Scan Field Width 49 mm - 195 mm
Scan Element Type Visible laser diode
Light Source Wave Length 650 nm
Scan Mode Single-pass
Scan Speed 72 line / sec
Max Working Distance 191 mm
Skew (Degrees) 52
Pitch (Degrees) 68
Print Contrast Signal (PCS) 35%
Decode Capability Code 93, Matrix 2 of 5, Code 39, UCC/EAN-128, GS1 DataBar, Telepen, Code 39 Full ASCII, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, Codabar, Code 128, Code 11, Interleaved 2 of 5, MSI-Plessey
TTL Decoding Decoded
Connectivity Technology Wired
OK Notification Beeper, LED indicator
Features Triggered
Interfaces 1 x USB - Type A
Compliant Standards FCC Class B certified, UL, IEC 825-1/EN 60825-1 class 1, EN55022 Class B, ICES-003 Class B
Power Device Power adapter - external
Width 6.3 cm
Depth 16.9 cm
Height 3.5 cm
Weight 97 g
Min Operating Temperature 0 °C
Max Operating Temperature 40 °C
Humidity Range Operating 5 - 95%
Drop Specification 1.5 m
Χαρακτηριστικά
Product Code:
1T70137
EAN Code:
5656565656562
Manufacturer:
Honeywell
