Honeywell Genesis XP 7680g | Presentation 2D Scanner | Digimarc | 360° LED | USB Kit | Black
Honeywell Genesis XP 7680g
Black · Presentation 2D Scanner · 1MP · XP Technology · Digimarc · 360° LED · USB Kit

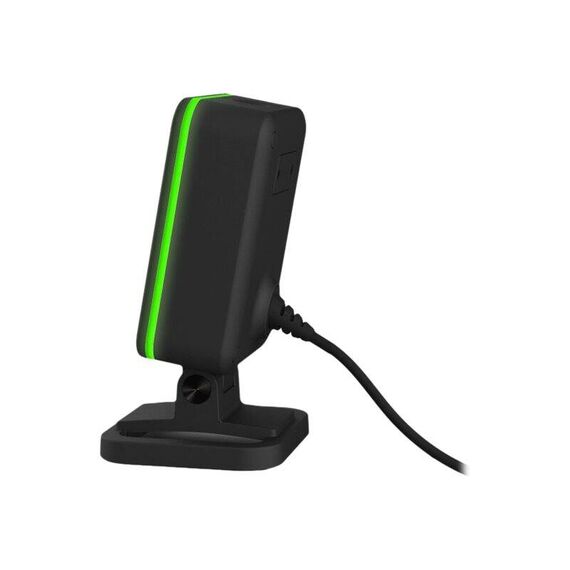

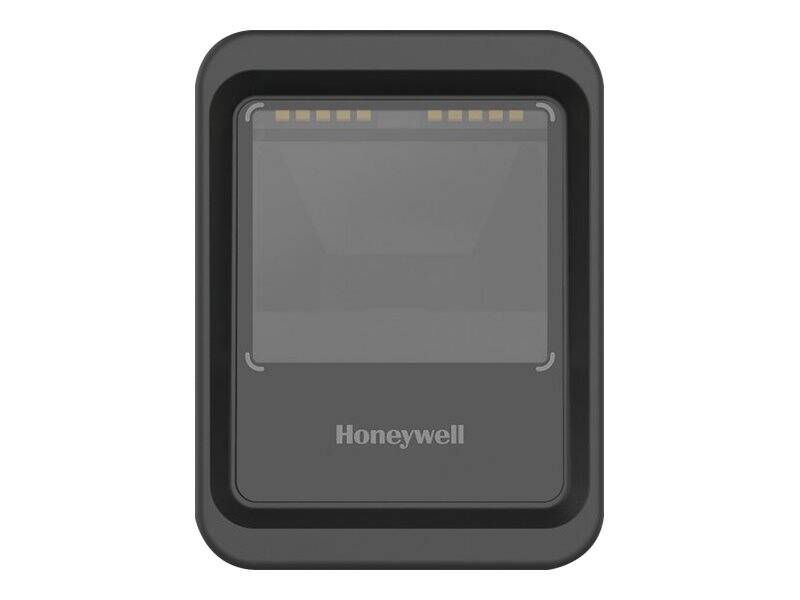

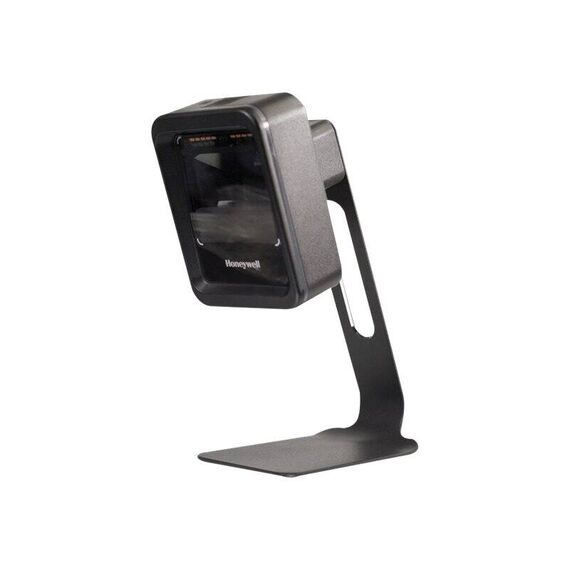

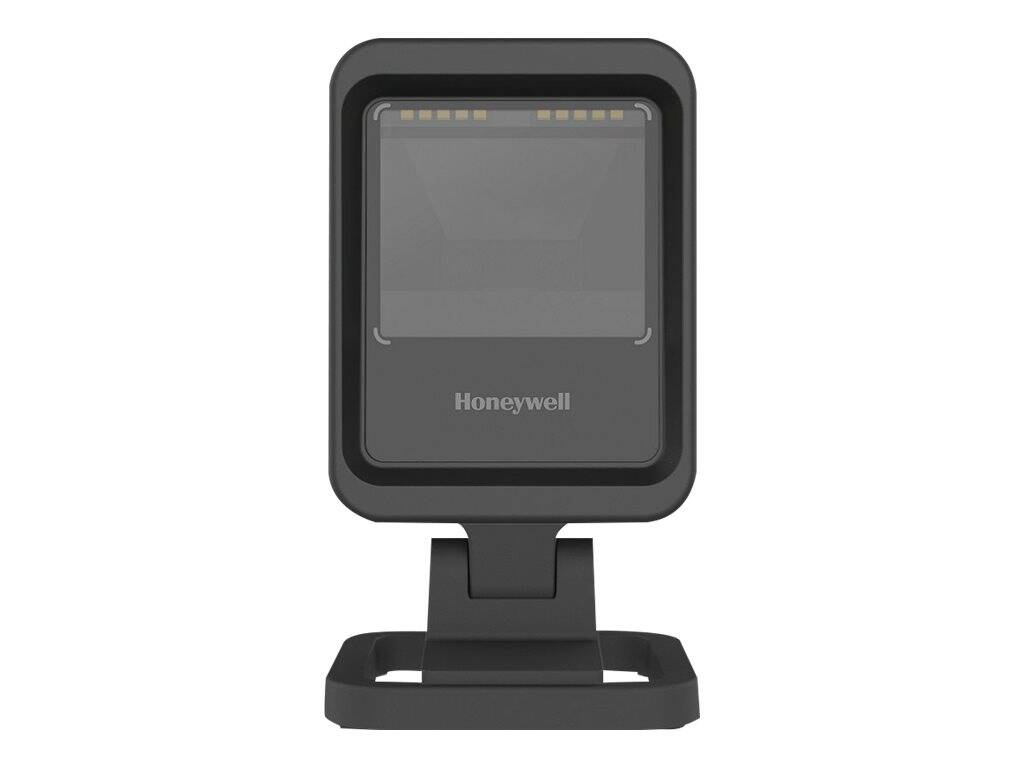

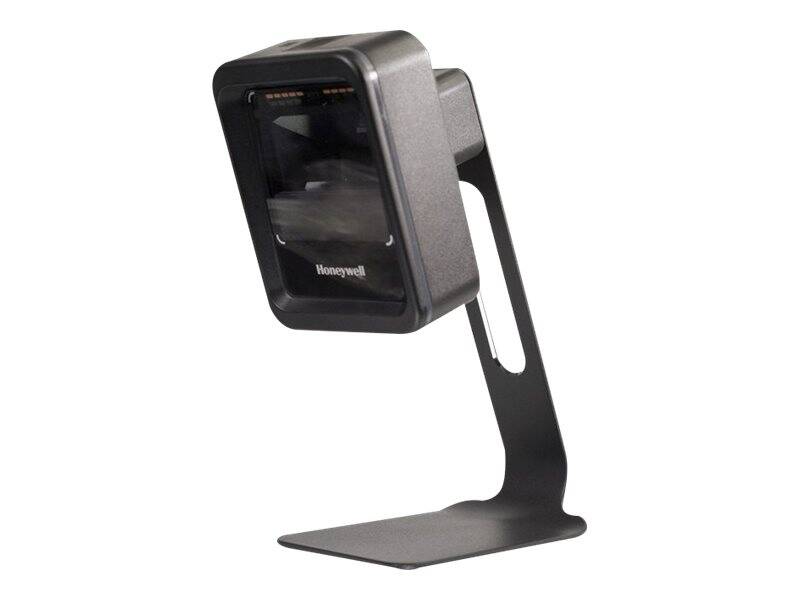

The Honeywell Genesis XP 7680g is a premium hands-free presentation scanner built for high-throughput retail, healthcare, and hospitality environments. Powered by a Snapdragon 801 quad-core processor and a 1 megapixel area imager, it delivers 20% faster scanning speed and a larger scanning area than its predecessor — with XP (extreme performance) technology that reads damaged, poorly printed, and digital barcodes with ease. A 360° tri-colour LED ring provides clear, intuitive good-read feedback visible to both operator and customer, while Digimarc digital watermark decoding enables next-generation retail workflows. This EU kit includes the scanner, stand, and 3m USB cable.
| Part Number | 7680GSR-2USB-1-R |
| EAN | 5704174522720 |
| Colour | Black |
| Scanning Technology | 2D Area Imager · 1 Megapixel · 1280×800 px · XP (Extreme Performance) · SR (Standard Range) focus |
| Processor | Snapdragon 801 quad-core |
| Scan Mode | Fixed projection — hands-free presentation |
| Motion Tolerance | 400 cm/s (158 in/s) for 13mil UPC at optimal focus |
| Field of View | Horizontal 48° · Vertical 30° |
| Barcode Support | All standard 1D · PDF417 · 2D (QR, Data Matrix, Aztec, MaxiCode etc.) · Dotcode · Digimarc digital watermarks |
| Multi-Barcode Scan | Up to 15 barcodes captured in a single flash, output in predetermined order |
| Illumination | Warm-white LED · 360° tri-colour LED ring for good-read feedback |
| Interface | USB · RS-232 · Keyboard Wedge · RS-485 (IBM 46xx) |
| Housing | Disinfectant-ready · IP52 |
| Drop Resistance | 1.5m (5ft) |
| Operating Temperature | 0°C to 50°C |
| Dimensions (scanner) | 80 × 40 × 105mm · 145mm H with stand |
| Weight | 340g (0.75 lbs) |
| In the Box | Genesis XP 7680g Scanner · Stand · USB Type-A 3m Straight Cable |
BUYER'S GUIDE
Best for: Retail POS checkout, self-service kiosks, pharmacy counters, healthcare reception desks, and hospitality venues that need a premium hands-free scanner capable of handling fast customer throughput — including mobile coupons, loyalty apps, Digimarc-enabled packaging, and product labels that won't align neatly in front of the scanner.
Why buy it: The XP technology, 1MP sensor, 400 cm/s motion tolerance, and 48° horizontal FOV make it one of the most forgiving presentation scanners available — it reads what you put in front of it, regardless of angle, speed, or print quality. Digimarc support future-proofs the investment for retailers adopting next-generation packaging. The 360° LED ring is a standout customer-experience feature at any checkout.
Know before you buy: This is an EU (-R) kit that includes the scanner, stand, and 3m USB cable — ready to deploy out of the box. The Digimarc feature requires product packaging to use Digimarc encoding; it does not replace standard barcode reading. For environments that also require handheld scanning, a separate handheld scanner is needed as the 7680g is a fixed presentation unit.
Bottom line: Honeywell's best-in-class hands-free presentation scanner — fast, forgiving, and ready for the future of retail scanning.
