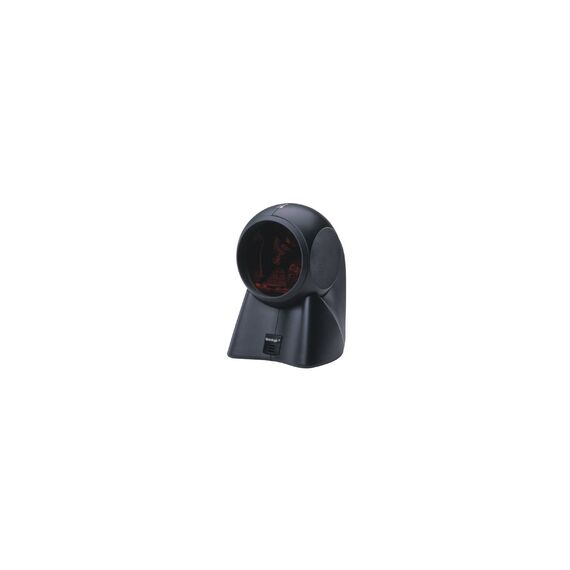

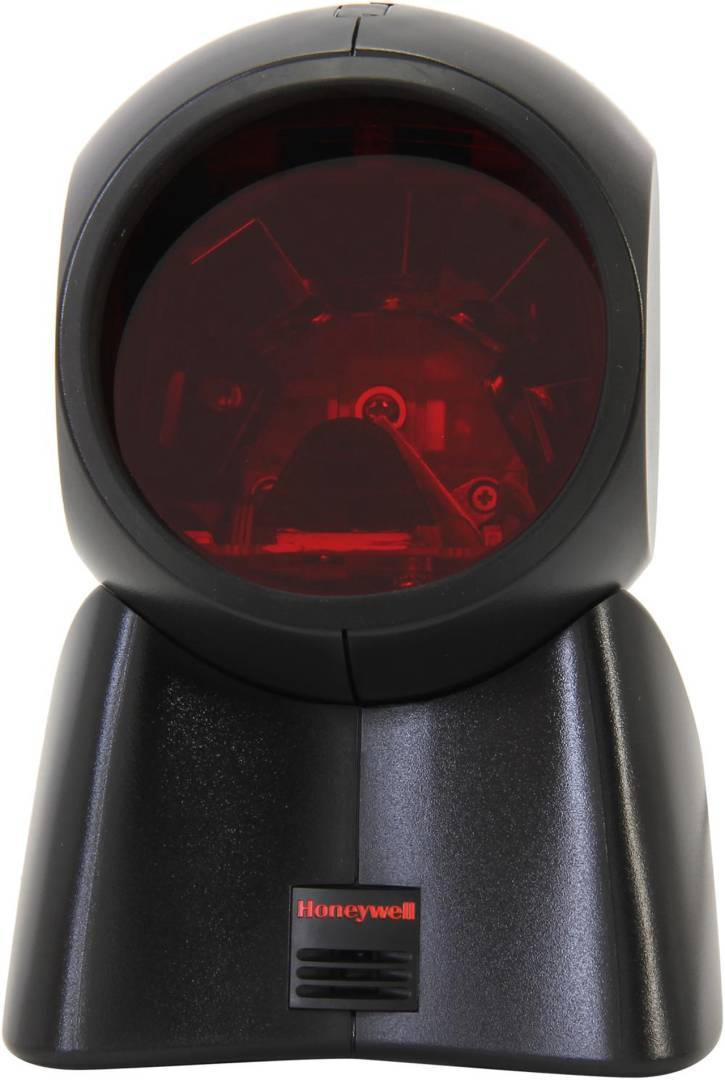

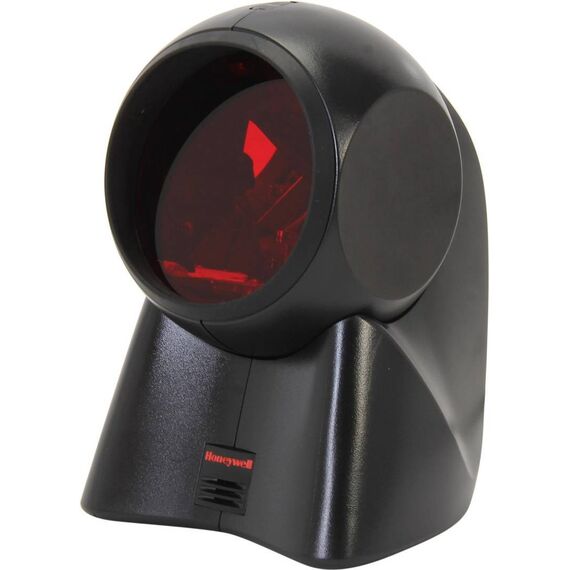

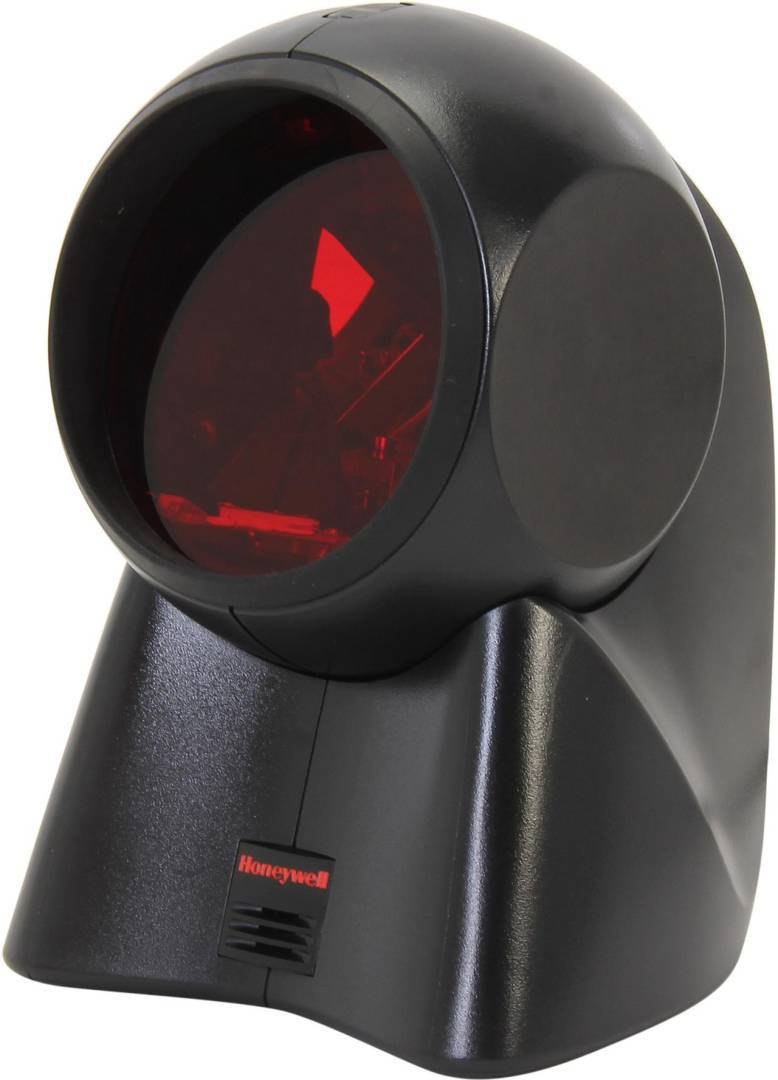

Honeywell Orbit MS7120 1D Laser Scanner RS-232 Kit, 2.9 m Cable, EU Power Supply, Black

Brand:
Honeywell
Honeywell Orbit MS7120 Black 1D Laser Presentation Scanner RS-232 EU Kit
Honeywell Orbit MS7120 1D Laser Scanner RS-232 Kit, 2.9 m Cable, EU Power Supply, Black
€233.54 inc. VAT
Buy
MK7120-31C41
€196.25
€233.54 inc. VAT
Ships from EU stock: 5 item(s)
+ −
Add to wish list Ask a question
Product Code
04:331804
EAN Code
5711045236754
Manufacturer
Honeywell

Quick Specs

Reading
1D laser · 20 lines
Pattern rate
1120 scan lines/s
Connection
RS-232 kit + EU power supply
Head adjustment
30°
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Printed 1D counter scanning for an RS-232 installation

1D laser20-line patternRS-232 + EU power30° tilting head

This black Orbit MS7120 kit is designed for an RS-232 host connection and includes a 2.9 m straight serial cable, EU power supply and mounting plate. Present a printed linear label to its window; the 20-line laser pattern reduces the need to align the code with one beam. The adjustable head helps position the reading area, and the small scanner can be lifted for bulky items.

Before you order:
Confirm that the POS has the required serial port and matching communication settings. This is the RS-232 EU kit, not the USB kit. It reads printed 1D labels, not QR or Data Matrix; 1120 scan lines/s is not a count of completed transactions.

What's in the Box

  • Black Orbit MS7120 scanner
  • Straight RS-232 cable 59-59000-3, 2.9 m
  • EU power supply 46-00526
  • Mounting plate 45-45619

What It Means in Practice

  • For example, present an EAN product label at the checkout and send the barcode into the compatible POS application. The POS looks up the item; the scanner does not contain a product-price database.

What Will Not Work

  • No QR or Data Matrix decoding.
  • No Bluetooth or wireless roaming.
  • CodeGate single-line selection and RF EAS features of OrbitCG7180 are not features of this7120.

Key Features


Omnidirectional 1D pattern
Five fields of four parallel lines create the20-line pattern for printed linear barcodes, including GS1DataBar.

Adjust the scan position
Tilt the head within30° to suit item size and counter position. The small housing can be handled for larger items.

Serial kit with EU power
The serial cable and EU power supply are included. Choose the USB kit instead if your installation requires a USB host connection.

Technical Specifications

Identification
Manufacturer SKU MK7120-31C41
EAN / GTIN 5711045236754
Reading
Technology 1D omnidirectional laser
Pattern 20 lines:5 fields×4parallel lines
Scan rate 1120 scan lines/s
Minimum resolution 5mil /0.125mm
Codes Standard 1D / GS1 DataBar
Contrast 35%
Pitch / skew 60° /60°
Head tilt 30°
Typical reading ranges
5.2mil 0–50mm
7.5mil 0–150mm
10mil 0–175mm
13mil 0–215mm
26mil 0–250mm
Range qualification Barcode quality and environment affect performance
Connection / power
Exact kit RS-232 cable 59-59000-3, EU power supply 46-00526, mounting plate 45-45619
Kit cable length 2.9 m straight RS-232
Family interfaces USB / RS-232 / keyboard wedge / IBM468xx RS485
Supply 5VDC ±0.25V
Operating / standby power 900 mW (180 mA at 5 V) / 850 mW (170 mA at 5 V)
Management MetroSet2 / MetroSelect / OPOS/JPOS
Physical / environment
Dimensions L × W × H 105 ×102 ×150mm
Weight 400g
Operating / storage 0–40°C /−40–60°C
Humidity 5–95% RH, non-condensing
Drop specification 1.2m
Sealing Resists airborne particulate contaminants; no IP rating stated
Ambient light 4842lux
Manufacturer Term 3-year factory warranty per family datasheet; manufacturer terms apply
Colour Black

Frequently Asked Questions

Is omnidirectional the same as2D?
No. It describes the multi-line reading pattern. MS7120 still reads linear1D barcodes, not QR or DataMatrix.
Are the RS-232 cable and EU power supply separate purchases?
No. The exact manufacturer kit list includes both, together with the black scanner and mounting plate.
Singular Expert Insight
Choose this kit to match an existing serial POS installation for printed linear labels. Connection type is the buying distinction from the USB Orbit kits: check the serial port and software settings before comparing price. For QR or phone-screen workflows, choose an appropriate 2D reader. Compare barcode scanners

Buyer’s Guide

✓

Buy it if

 Your POS uses RS-232 and scans printed linear labels.
✕

Skip it if

 You need QR/DataMatrix, wireless movement or7180-specific CodeGate.
→

Also consider

 Compare Equip351028 or other2D presentation readers for QR and phone-screen codes.
Tell us your equipment model, application and barcode examples so we can check compatibility requirements.
