Honeywell PM45 Industrial Label Printer, 4-Inch, 203 dpi, Thermal Transfer, Icon Display, USB, Ethernet, Serial

Brand:
Honeywell

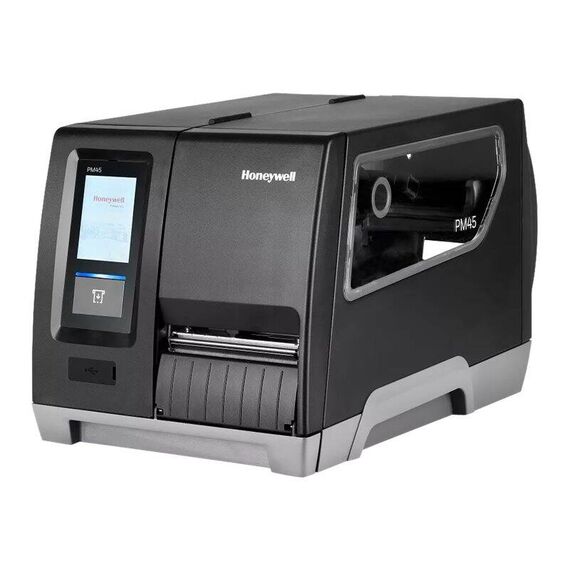

Honeywell PM45A 203 dpi Industrial Label Printer
Honeywell PM45 Industrial Label Printer, 4-Inch, 203 dpi, Thermal Transfer, Icon Display, USB, Ethernet, Serial
€2027.07 inc. VAT
Buy
PM45A00000000200
€1,703.42
€2,027.07 inc. VAT
Ships from EU stock: 6 item(s)
+ −
Add to wish list Ask a question
Product Code
CD14346
EAN Code
5704174952800
Manufacturer
Honeywell

Quick Specs

Print
203 dpi · 108 mm wide
Speed
Up to 350 mm/s (14 ips)
Media
Rolls up to 213 mm, 19–114 mm wide
Interfaces
USB · Ethernet · RS-232 · 2× USB host
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Honeywell PM45 — 4-Inch Industrial Label Printer, 203 dpi, Icon Display

203 dpi, up to 350 mm/sThermal transfer213 mm media rollsZPL / DPL emulation

The Honeywell PM45 (PM45A00000000200) is a 4-inch industrial thermal transfer label printer for warehouses, distribution centres and production lines that print shipping, pallet and product labels all day.

This standard configuration prints at 203 dpi up to 108 mm wide and 350 mm per second, takes 213 mm media rolls and 450 m ribbons, and has an icon display, a tear bar and USB, Ethernet, serial and two USB host ports built in. ZSim2 (ZPL II) and DPL emulations let it replace Zebra or Datamax printers without rewriting label formats.

Before you order: This is the icon-display version with a tear bar. Labels and ribbon are not included — order them with the printer.

What's in the Box

  • Honeywell PM45 printer (203 dpi, thermal transfer, tear bar)
  • Power cord
  • Labels and ribbon are not included

What It Means in Practice

  • Volume: 213 mm rolls on 38–76 mm cores and 450 m ribbons on 25 mm cores keep roll changes rare on long shifts.
  • Speed: up to 350 mm/s (14 ips) at 203 dpi, with labels up to 4.8 m long, keeps pace with shipping lines and batch jobs.
  • Drop-in replacement: Honeywell Fingerprint, Direct Protocol and IPL plus ZSim2 (ZPL II) and DPL emulation run existing Intermec, Zebra and Datamax label formats; XML and PDF printing are also supported.
  • Media: labels and tags 19–114 mm wide and 0.08–0.26 mm thick, roll-fed or fan-fold, with wax, wax/resin and resin ribbons, ink in or out.
  • Connectivity: 10/100 Ethernet, USB 2.0 device, two USB host ports (scanner, keyboard or USB memory) and RS-232 are standard.
  • Durability: an all-metal print mechanism and tool-less platen and printhead replacement keep downtime short.

What Will Not Work

  • Cutting, peeling or rewinding: labels are torn off by hand. Cutter, peeler and rewinder are separate options.
  • Wi-Fi or Bluetooth: not included in this configuration; WLAN and Bluetooth are optional interfaces.
  • Full touch screen: this version has the icon display. The full-touch display is a different PM45 configuration.
  • Wide labels: maximum print width is 108 mm; 6-inch labels need a 6-inch industrial printer.

Key Features


Industrial throughput
203 dpi at up to 350 mm/s, 213 mm rolls and 450 m ribbons.

Easy migration
ZSim2 (ZPL II), DPL, IPL, Fingerprint and Direct Protocol built in.

Full wired connectivity
Ethernet, USB, RS-232 and two USB host ports as standard.

Built to last
All-metal mechanism with tool-less printhead and platen replacement.

Technical Specifications

Identification
Part Number PM45A00000000200
Brand Honeywell
Model PM45
Configuration 203 dpi, thermal transfer, icon display, tear bar, USB/Ethernet/serial
Print
Method Thermal transfer
Resolution 203 dpi (8 dots/mm)
Print speed 50–350 mm/s (2–14 ips)
Max print width 108 mm
Max print length 4.8 m
Memory 512 MB flash, 256 MB SDRAM; USB memory support
Languages Fingerprint, Direct Protocol, IPL, ZSim2 (ZPL II), DPL, XML, PDF
Media & Ribbon
Media width 19–114 mm
Media thickness 0.08–0.26 mm (3–10.4 mil)
Media types Labels, tags, linered media; roll-fed or fan-fold
Max roll diameter 213 mm
Core 38–76 mm
Ribbon Wax, mid-range, resin; ink in or out; up to 450 m, 80 mm OD, 25 mm core
Interface & Operation
Standard interfaces 10/100 Ethernet, USB 2.0 device, 2× USB 2.0 host, RS-232
Optional interfaces Parallel, WLAN, Bluetooth/BLE, industrial, applicator, UHF RFID
Display Icon display
Physical & Electrical
Dimensions (L × H × W) 483 × 295 × 284 mm
Weight 13.2 kg
Power 100–240 VAC, 50–60 Hz
Operating environment 5–40 °C, 20–85% RH non-condensing
Certifications RoHS, CE (EN55032 Class B), FCC Class B, ENERGY STAR 3.0
Colour Black
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term Warranty term not published on Honeywell's PM45 datasheet — claims handled through Singular

Frequently Asked Questions

Can it replace our Zebra or Datamax printer?
Usually yes: ZSim2 emulates ZPL II and DPL emulation covers Datamax formats. Send us a sample label file and we will test it before you order.
Can I add a cutter or Wi-Fi later?
Cutter, peeler and wireless are offered as PM45 options; tell us which you need so we can confirm the right kit for this configuration.
Which ribbon should I use?
Wax for paper labels, mid-range (wax/resin) for coated paper and synthetics, resin for harsh environments. Choose a ribbon slightly wider than the label.
Singular Expert Insight · Buyer's Guide
The PM45 is built for sites that run labels all shift: big rolls, long ribbons and emulations that make swapping out an older Zebra, Datamax or Intermec painless. Match the ribbon grade to your label material and check the display version you need before ordering.
✓ Buy it if you print 4-inch shipping, pallet or product labels in volume over Ethernet and want ZPL/DPL compatibility.
✕ Skip it if you need a touch screen, automatic cutting or peeling, Wi-Fi out of the box, or 300 dpi fine print.
→ Also consider the matching wax/resin ribbon and label rolls on 76 mm cores — ask us for a matched set.
Send us your label size and material and your current printer model, and we will check ribbon, media and emulation before you order.
