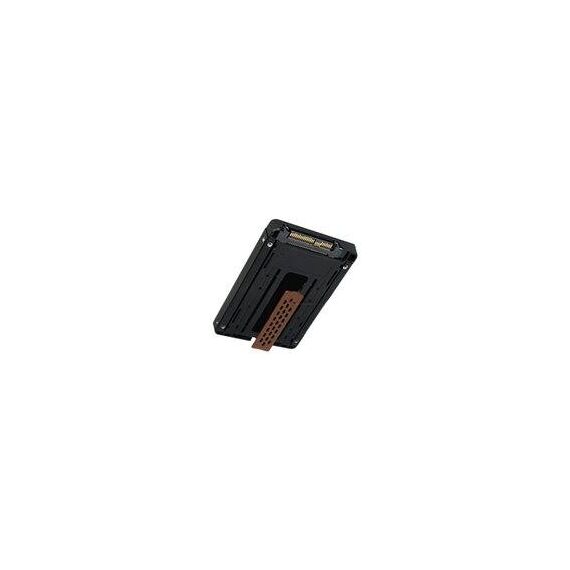

ICY DOCK EZConvert MB705M2P-B M.2 NVMe to 2.5 Inch U.2 Adapter

Brand:
Icy Box
ICY DOCK EZConvert MB705M2PB Interface adapter M.2 MB705M2PB
ICY DOCK EZConvert MB705M2P-B M.2 NVMe to 2.5 Inch U.2 Adapter
€62.48 inc. VAT
Buy
MB705M2P-B
€52.50
€62.48 inc. VAT
Ships from EU stock: 48 item(s)
+ −
Add to wish list Ask a question
Product Code
04:342372
EAN Code
4713227445191
Manufacturer
Icy Box

Quick Specs

Drive Support
1 x M.2 PCIe NVMe SSD
Output Format
2.5-inch U.2 SFF-8639
M.2 Lengths
2230 / 2242 / 2260 / 2280
Maximum Bandwidth
Up to 64Gb/s
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

ICY DOCK EZConvert MB705M2P-B — Tool-Free M.2 NVMe to U.2 Conversion

M.2 NVMe to U.2PCIe 4.0 SupportUp to 64Gb/sHot-Swap Support

The ICY DOCK EZConvert MB705M2P-B converts one M.2 PCIe NVMe SSD into the dimensions, mounting-hole positions and connector layout of a standard 9.5 mm 2.5-inch U.2 NVMe drive. It is designed for compatible U.2 backplanes, mounting brackets and removable enclosures where tool-free drive installation, protection and cooling are valuable.

Compatibility & What's in the Box
Supports one M-key or B+M-key M.2 PCIe 3.0/4.0 NVMe SSD in 2230, 2242, 2260 or 2280 length. A compatible U.2 SFF-8639 connection, backplane, cable or enclosure is required. M.2 SATA SSDs and ordinary SATA drive bays are not supported. The package includes the MB705M2P-B adapter, mounting screws, user manual and thermal pads.

Best For

✓Using an M.2 NVMe SSD in a compatible U.2 bay
✓Server and workstation U.2 storage deployments
✓Hot-swap-capable systems with suitable U.2 hardware
✓Protecting an exposed M.2 NVMe circuit board
✓Tool-free swaps between supported M.2 drive lengths
✓U.2 backplanes and ICY DOCK removable enclosures

Key Features

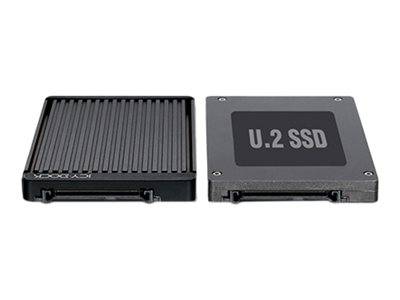

Exact 2.5-Inch U.2 Form Factor
The adapter matches the dimensions, port position and mounting-hole layout of a standard 9.5 mm U.2 NVMe SSD for broad compatibility with suitable U.2 hardware.

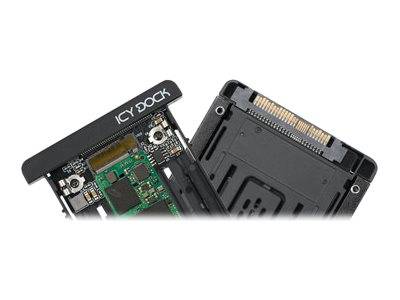

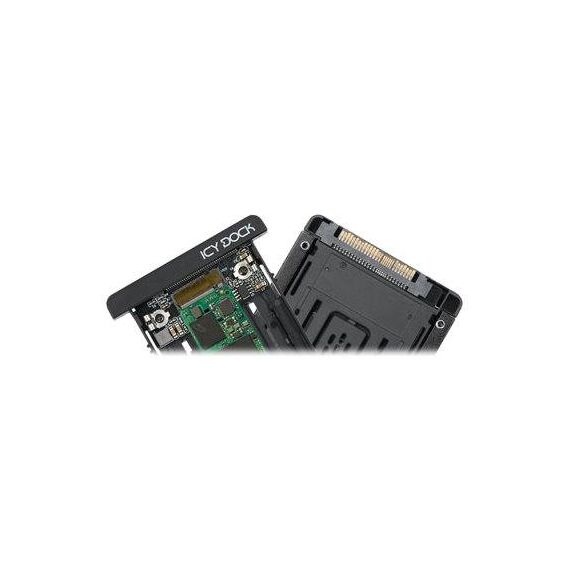

Tool-Free M.2 Installation
A removable one-piece lid and adjustable M.2 locker secure 2230, 2242, 2260 and 2280 NVMe SSDs without a drive-retaining screw.

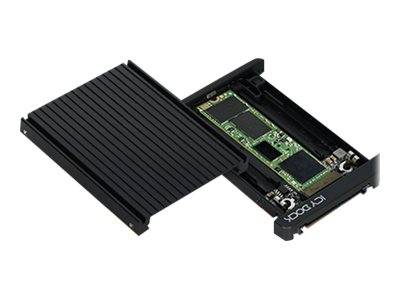

Cooling and Drive Protection
The aluminium lid acts as a heatsink and works with the supplied thermal pads, while the ABS lower body and ventilation opening help protect and cool the SSD.

Technical Specifications

Identification
Part Number MB705M2P-B
EAN / GTIN 4713227445191
MPN MB705M2P-B
Brand ICY DOCK
Storage Compatibility
Drive Quantity 1
Supported Drive M-key or B+M-key M.2 PCIe NVMe SSD
Supported PCIe Generations PCIe 3.0 and PCIe 4.0
Supported M.2 Lengths 2230, 2242, 2260 and 2280
Capacity Limit No limitation specified
M.2 SATA Support No
Interface & Performance
Host Interface 1 x U.2 SFF-8639; pin-out defined by SFF-9402 Rev 1.1
Maximum Transfer Rate Up to 64Gb/s
Hot-Swap Support Yes with a compatible host environment
U.2 Connector Durability Rated for 10,000 insertion and removal cycles
Tri-Mode HBA / RAID Support Compatible; some controllers require a suitable U.2 enabler cable
Construction & Physical
Material Aluminium and ABS plastic
Colour Black
Dimensions 70.0 × 9.5 × 101.0 mm
Net Weight 67 g
Cooling Aluminium heatsink lid, thermal pads and ventilated lower housing
Environment & Warranty
Operating Temperature 0°C to 60°C
Storage Temperature -35°C to 70°C
Operating Humidity 5%–65% RH
Compliance CE, RoHS and REACH
Warranty 3 years
Package Contents
Included MB705M2P-B adapter, mounting screws, user manual and thermal pads
SSD Included No
U.2 Cable Included No

Frequently Asked Questions

Can I install an M.2 SATA SSD in this adapter?
No. The MB705M2P-B supports M.2 PCIe NVMe SSDs only. For an M.2 SATA SSD, use an adapter specifically designed for the SATA interface.
Will it work in a normal 2.5-inch SATA bay?
No. Although it has a 2.5-inch form factor, it requires a compatible U.2 SFF-8639 NVMe connection, backplane, cable or enclosure.
Does it support hot-swapping?
Yes, the adapter supports hot-swap operation when installed in a compatible U.2 host environment. Power down before changing the internal M.2 SSD itself.
Singular Expert Insight
Choose the MB705M2P-B when a compatible U.2 system must accept a standard M.2 NVMe SSD while retaining the mechanical format, connector durability and hot-swap capabilities associated with U.2 hardware. It is not a SATA converter, and U.3-only environments do not necessarily support U.2 devices.

Buyer's Guide

Buy it if

  • You need to convert one M.2 NVMe SSD to U.2
  • Your system provides a compatible SFF-8639 connection
  • Tool-free mounting and integrated cooling are important

Skip it if

  • Your SSD uses the M.2 SATA interface
  • Your computer provides only a standard SATA bay
  • You need support for a 22110-length M.2 SSD

Also consider

  • An M.2 SATA to 2.5-inch SATA adapter
  • A direct motherboard M.2 slot with a heatsink
  • A native enterprise U.2 NVMe SSD
