ICY DOCK ICYNano MB861U31-1M2B M.2 NVMe SSD Enclosure, USB-C 3.2 Gen 2 10Gbps, Tool-less, Aluminium Heatsink Lid, Black

Brand:
Icy Box
ICY DOCK ICYNano M.2 NVMe SSD Enclosure USB-C 10Gbps
ICY DOCK ICYNano MB861U31-1M2B M.2 NVMe SSD Enclosure, USB-C 3.2 Gen 2 10Gbps, Tool-less, Aluminium Heatsink Lid, Black
€73.33 inc. VAT
Buy
MB861U31-1M2B
€61.62
€73.33 inc. VAT
Ships from EU stock: 7 item(s)
+ −
Add to wish list Ask a question
Product Code
04:342370
EAN Code
0884826508328
Manufacturer
Icy Box

Quick Specs

Type
M.2 NVMe SSD enclosure (1 bay)
Connectors/Interface
USB-C, USB 3.2 Gen 2 (10Gbps)
Key spec
Fits M.2 2230/2242/2260/2280/22110
Compatibility
NVMe (PCIe) M.2 only — not SATA M.2
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

ICY DOCK ICYNano MB861U31-1M2B — Tool-less M.2 NVMe Enclosure, USB-C 10Gbps

M.2 NVMe enclosureUSB 3.2 Gen 2 · 10Gbps2230 to 22110 lengthsTool-less · heatsink lid

The ICY DOCK ICYNano MB861U31-1M2B turns a single M.2 NVMe SSD into a fast portable USB-C drive for IT technicians, creators and anyone reusing an SSD after an upgrade: it connects over USB 3.2 Gen 2 at up to 10Gbps and takes every common M.2 length from 2230 up to 22110.

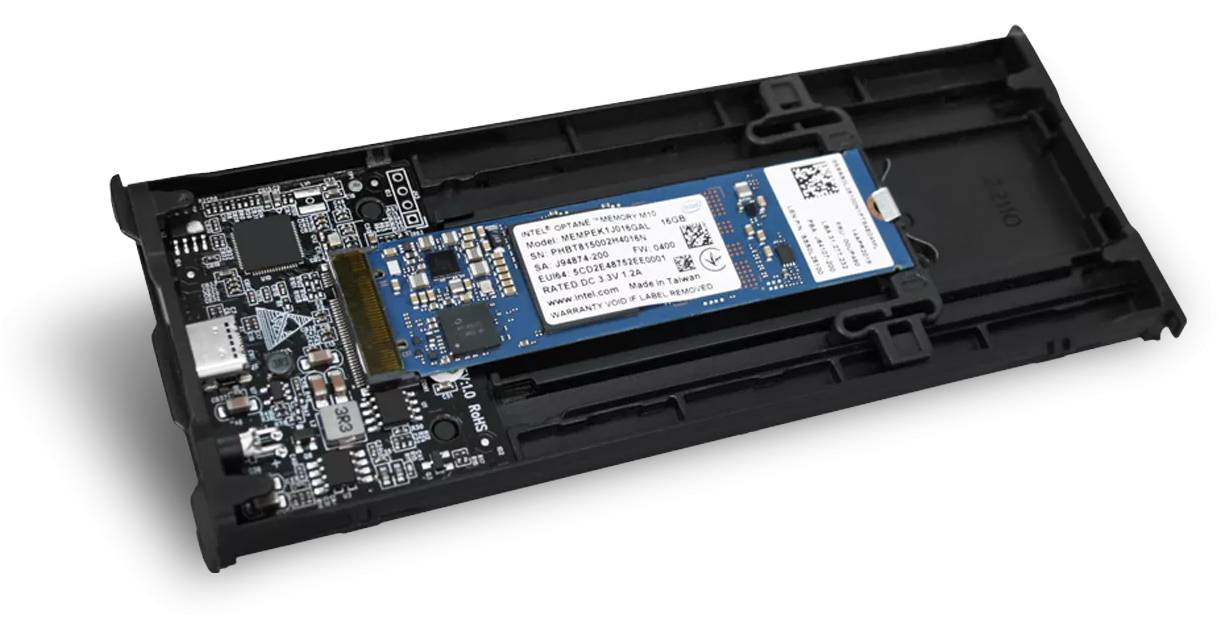

Installation needs no screwdriver — a patent-pending adjustable drive locker holds the SSD — and the aluminium lid doubles as a heatsink with the supplied thermal pad. It is bus-powered, Thunderbolt 4 compatible and comes with both USB-C to C and USB-C to A cables.

Before you order: NVMe (PCIe) M.2 SSDs only. M.2 SATA SSDs will not be recognised in this enclosure. The SSD is not included.

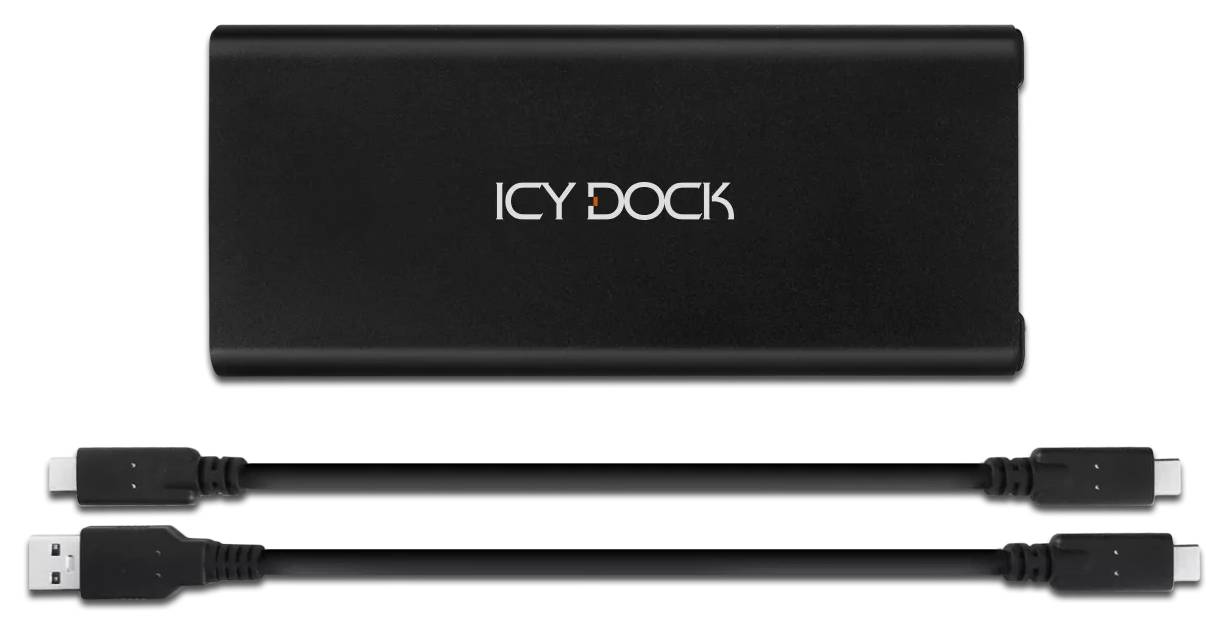

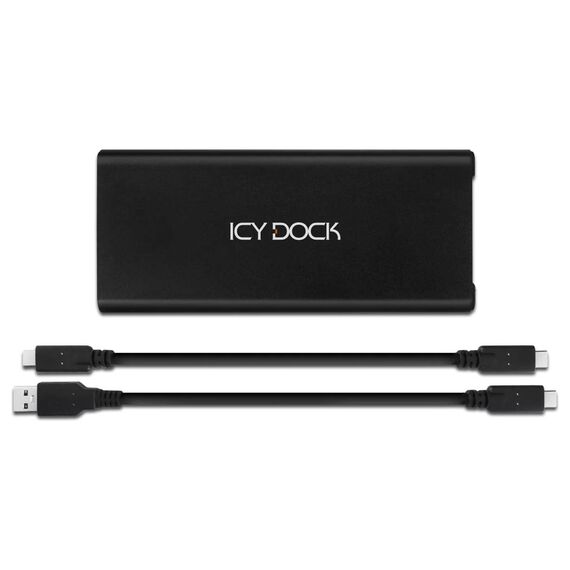

What's in the Box

  • ICY DOCK ICYNano MB861U31-1M2B enclosure
  • USB 3.2 Gen 2 USB-C to USB-C cable
  • USB 3.2 Gen 2 USB-C to USB-A cable
  • Thermal pad
  • User manual

What It Means in Practice

  • Reuse the NVMe SSD left over from a laptop or desktop upgrade as a fast external drive.
  • At 10Gbps a good NVMe SSD reaches around 1,000 MB/s — several times faster than a portable hard drive.
  • The adjustable locker means swapping drives takes seconds, useful for technicians imaging or cloning SSDs.
  • A brand-new SSD must be initialised and formatted before Windows or macOS shows it.

What Will Not Work

  • M.2 SATA SSDs (B-key SATA drives) — the JMS583 bridge is NVMe-only.
  • Speeds above 10Gbps — even on Thunderbolt 4 or USB4 ports it runs at USB 3.2 Gen 2 speed.
  • Drives longer than 110 mm or double-sided drives with tall heatsinks.
  • Using the SSD without formatting — new drives must be initialised first.

Key Features


Tool-less drive locker
Adjustable, patent-pending locker fits 2230/2242/2260/2280/22110 without screws.

Heatsink lid
Aluminium lid with thermal pad cools the SSD and reduces throttling.

USB 3.2 Gen 2
10Gbps USB-C, Thunderbolt 4 compatible, backward compatible with USB 3.2 Gen 1/3.0/2.0.

Both cables included
USB-C to C and USB-C to A cables for new and older computers.

Technical Specifications

Identification
Part Number MB861U31-1M2B
Brand ICY DOCK
Series ICYNano
Drive support
Drive type 1 × M.2 PCIe NVMe SSD
Lengths 2230, 2242, 2260, 2280, 22110
M.2 SATA Not supported
Connectivity
Host interface USB 3.2 Gen 2 (10Gbps), USB-C
Compatibility Thunderbolt 4 compatible; USB 3.2 Gen 1/3.0/2.0 backward compatible
Bridge chip JMicron JMS583
Power USB bus-powered
Physical
Material Aluminium and plastic
Cooling Aluminium heatsink lid + thermal pad
Dimensions 150 × 63 × 12 mm
Weight 99 g
Indicator LED: solid blue = power, flashing blue = access
Operating temperature 0 °C to 70 °C
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term 5-year limited warranty per ICY DOCK — claims handled through Singular

Frequently Asked Questions

Will my SSD fit?
If it is an M.2 NVMe (PCIe) SSD between 30 mm and 110 mm long, yes. Send us the SSD model if you are unsure whether it is NVMe or SATA.
How fast will it be?
Up to the 10Gbps limit of USB 3.2 Gen 2 — typically around 1,000 MB/s with a good NVMe SSD on a 10Gbps port.
Do I need tools?
No. The lid and drive locker are tool-less; just add the thermal pad on top of the SSD.
Why does Windows not show my new SSD?
A new SSD has no partition yet. Initialise and format it in Disk Management (Windows) or Disk Utility (macOS).
Singular Expert Insight · Buyer's Guide
The ICYNano is a well-built home for an NVMe SSD: no screws, real cooling and a 5-year warranty. If you are buying the SSD as well, pick one from our internal SSDs — any M.2 NVMe drive up to 22110 fits.
✓ Buy it if you have or plan to buy an M.2 NVMe SSD and want a fast, tool-less USB-C enclosure.
✕ Skip it if your SSD is M.2 SATA or you need more than 10Gbps (look at USB4/Thunderbolt enclosures).
→ Also consider LC-Power LC-M2-C-NVME-3 (budget NVMe enclosure) or Inter-Tech K-1696-P2 (NVMe + SATA).
Not sure your SSD fits? Send us the SSD model and we will check compatibility before you order.
