ICY DOCK ExpressTray MB324TP-B Spare 2.5 Inch SATA SAS Drive Tray for ExpressCage MB324SP-B Black
Brand:
Icy Box
ICY DOCK ExpressTray MB324TP-B Spare 2.5 Inch SATA SAS Drive Tray for ExpressCage MB324SP-B Black
€19.62 inc. VAT
MB324TP-B
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
ICY DOCK ExpressTray MB324TP-B — Spare Tray for ExpressCage MB324SP-B
For MB324SP-B only2.5″ SAS and SATA5–12.5 mm drives32 g, screws supplied

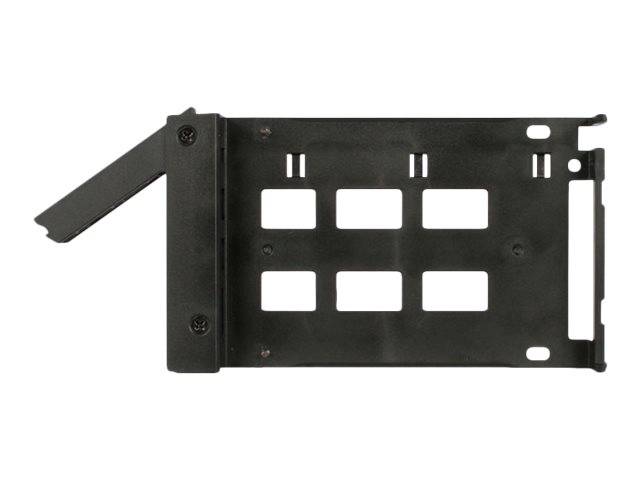

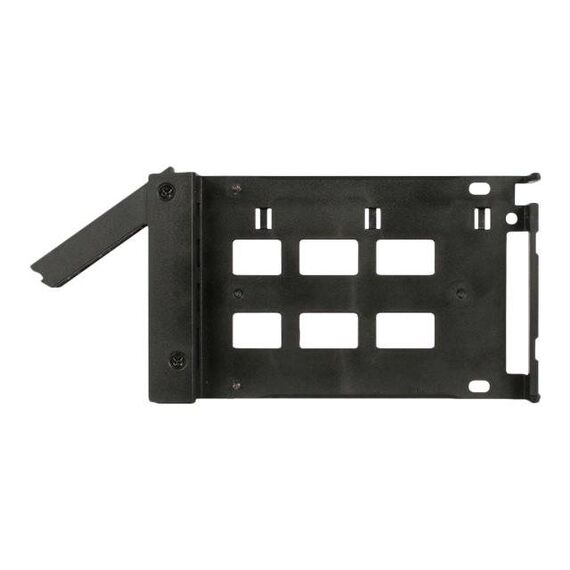

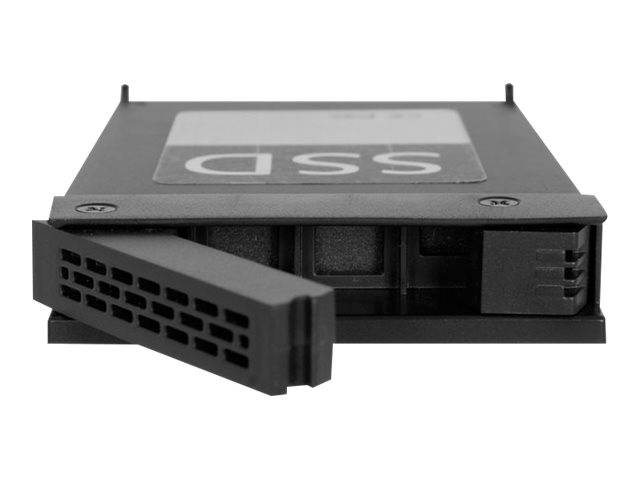

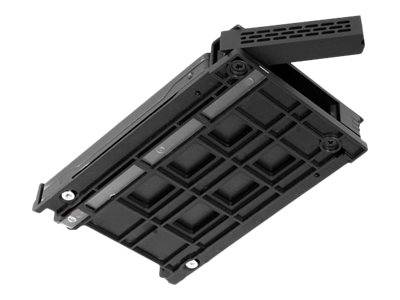

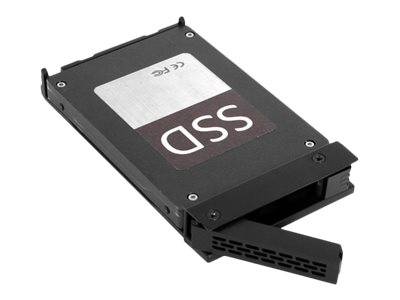

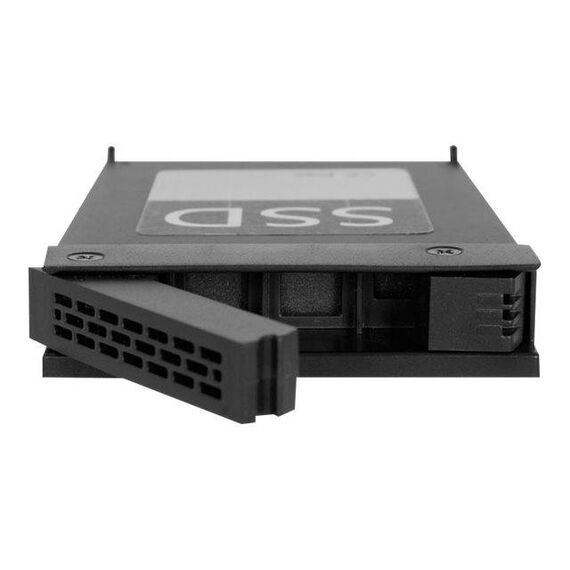

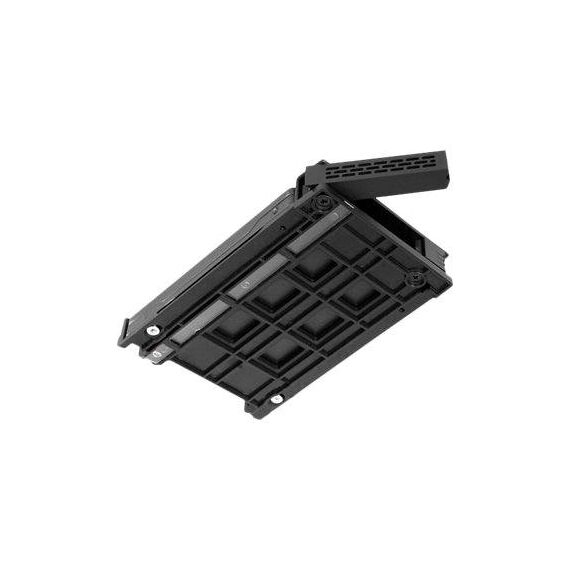

The ICY DOCK ExpressTray MB324TP-B is a spare drive tray for the ExpressCage MB324SP-B mobile rack. It is the caddy the drive screws into before it slides into the cage — a plastic carrier with a metal locating pin, 32 g, with no electronics of its own. Buy it when you want more drives than the cage came trays for, so that a set of disks can be rotated in and out without unscrewing anything, or when a tray has been lost or damaged. It takes any 2.5-inch SAS or SATA hard disk or SSD from 5 mm up to 12.5 mm thick. Note the word spare: on its own it does nothing, and it does not fit a plain drive bay.
Compatibility — check before buying:
This tray fits the ExpressCage MB324SP-B, and only that cage. ICY DOCK names exactly one parent for it. The trap in this family is close part numbers: the MB324V4P-B cage looks like a match because of the shared “324”, but it takes the MB732TP-B tray instead — the two are not interchangeable. The single-bay MB741SP-B takes MB741TP-B, and the two-bay MB742SP-B takes MB742TP-B. Before ordering, read the model number off the front of your cage rather than from a delivery note. Drive height must be 5–12.5 mm; a 15 mm 2.5-inch drive will not go in. And because the tray is passive, the interface is whatever the parent cage provides — a SAS drive still needs a SAS controller behind the cage. Send us a photo of the cage front and we will confirm the tray for you.
Best For
✓ Adding spare trays so drives can be swapped without a screwdriver
✓ Replacing a tray lost or broken during a rack move
✓ Keeping a rotating backup set, one drive per tray
✓ Test benches where drives change several times a day
✓ Cold-swap archive sets kept ready-mounted on the shelf
✓ Filling every bay of an MB324SP-B that shipped with fewer trays
Key Features
One cage, named exactly
ICY DOCK lists this tray for the ExpressCage MB324SP-B. That precision matters more than anything else on this page: ExpressTray part numbers are scoped tightly to their parent, and a tray from a neighbouring cage will not seat. Check the model number printed on your cage before ordering, not the description on the invoice.
Five to 12.5 millimetres, SAS or SATA
The tray carries 2.5-inch SAS and SATA I, II and III hard disks and SSDs from 5 mm up to 12.5 mm. That covers thin consumer SSDs and the common 7 mm and 9.5 mm enterprise drives. A 15 mm drive is outside the range. The tray itself adds no interface limit — the cage and the host controller decide that.
Light, screwed, and fast to swap
At 32 g the carrier is plastic with a metal locating pin, and screws are supplied so the drive can be secured properly rather than resting loose. Once a drive is mounted in its own tray it stays there: swapping means pulling one tray and pushing in another, with no tools and no cables touched.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
Spare trays are the cheapest upgrade a hot-swap cage ever gets. One tray per drive turns a five-minute screwdriver job into a two-second pull-and-push, which is the whole reason to own a mobile rack in the first place — and it is why most people who buy one cage end up buying trays a few at a time afterwards. The only mistake worth guarding against is the part number: ExpressTray codes look interchangeable and are not, so match the tray to the cage model rather than to the family. If you are building the storage rather than servicing it, our HDD and SSD enclosures section covers the cages these trays belong to, and the storage accessories range holds the brackets and converters that go with them.
Buyer’s Guide
Buy it if
You own an ExpressCage MB324SP-B and want more trays than it shipped with, or need to replace one; your drives are 2.5-inch SAS or SATA between 5 mm and 12.5 mm thick.
Skip it if
Your cage is any other model — the tray will not seat. Your drives are 15 mm thick. Or you were looking for the cage itself rather than a spare carrier for one.
Also consider
MB732TP-B for the ExpressCage MB324V4P-B and MB732SPO-B, MB741TP-B for the single-bay MB741SP-B, or the ExpressCage MB324SP-B itself if you do not yet own the rack.
Features - Icy Box - MB324TP-B
Colour
black
More Details
Product Code
04:195770
EAN Code
4711132869705
Manufacturer
Icy Box
