Intellinet 524179 PoE Injector IEEE 802.3af 15.4 W, 1-Port Fast Ethernet 10/100, 48 V DC, Internal AC Supply

Brand:
Intellinet
Intellinet 524179 PoE Injector 802.3af 15.4 W
Intellinet 524179 PoE Injector IEEE 802.3af 15.4 W, 1-Port Fast Ethernet 10/100, 48 V DC, Internal AC Supply
€35.06 inc. VAT
Buy
524179
€29.46
€35.06 inc. VAT
Ships from EU stock: 98 item(s)
+ −
Add to wish list Ask a question
Product Code
04:77404
EAN Code
0766623524179
Manufacturer
Intellinet

Quick Specs

Type
PoE injector, 1 port
Connectors
RJ45 data in · RJ45 data + power out · AC inlet
Key spec
IEEE 802.3af · 15.4 W · 10/100 Mbps
Compatibility
802.3af PDs (Mode B power pairs)
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Intellinet 524179 — basic 802.3af PoE for one device

IEEE 802.3af · 15.4 WFast EthernetInternal PSUFanless

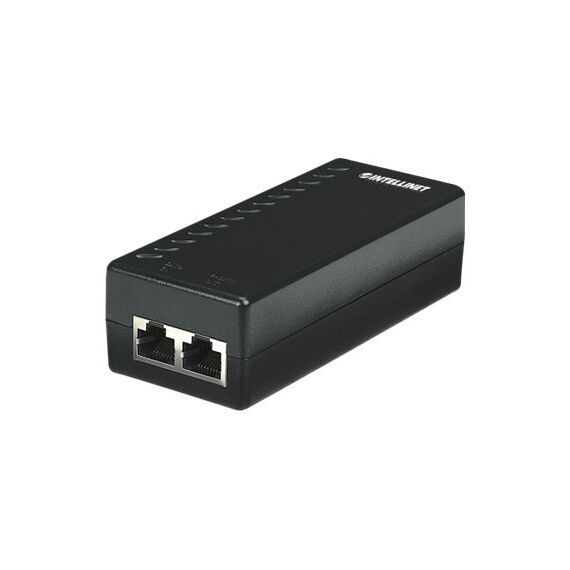

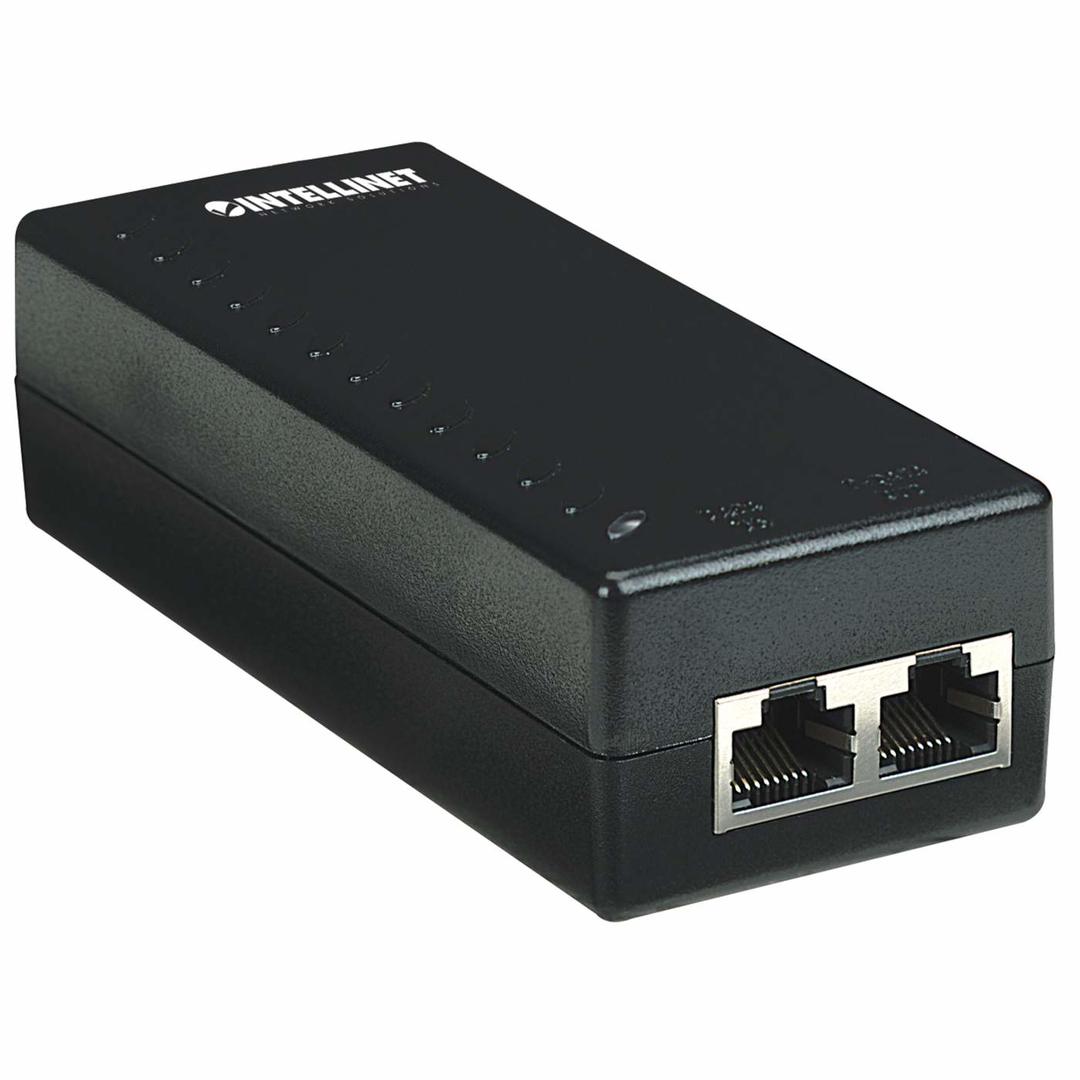

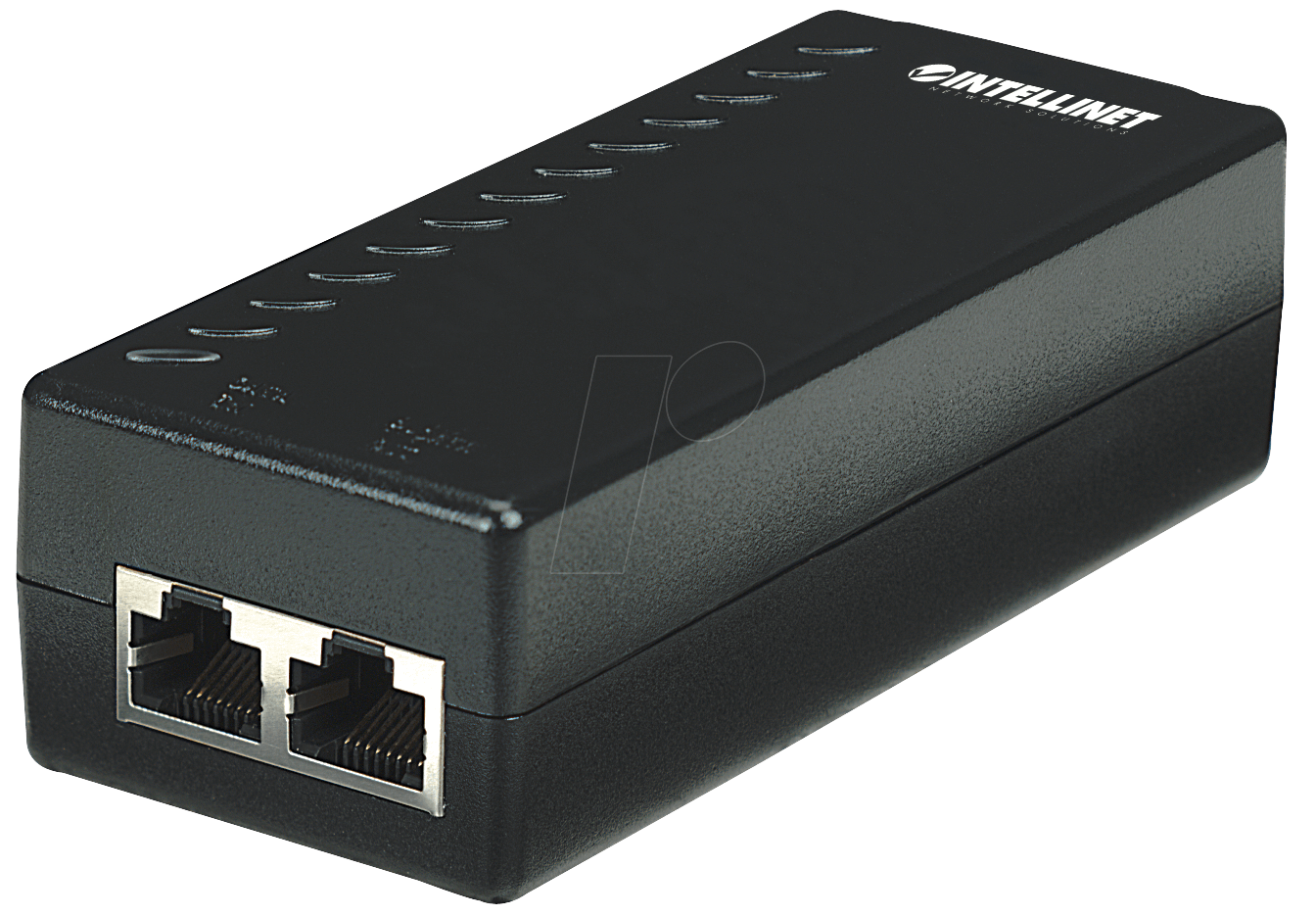

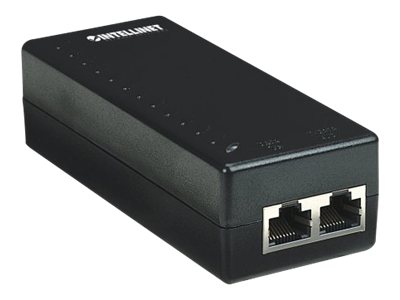

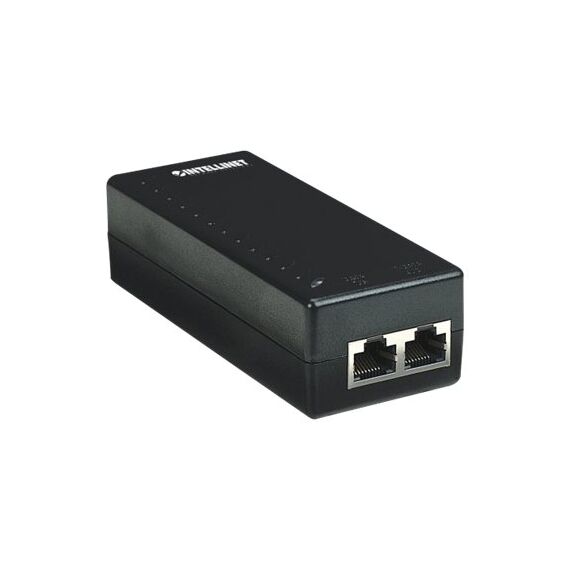

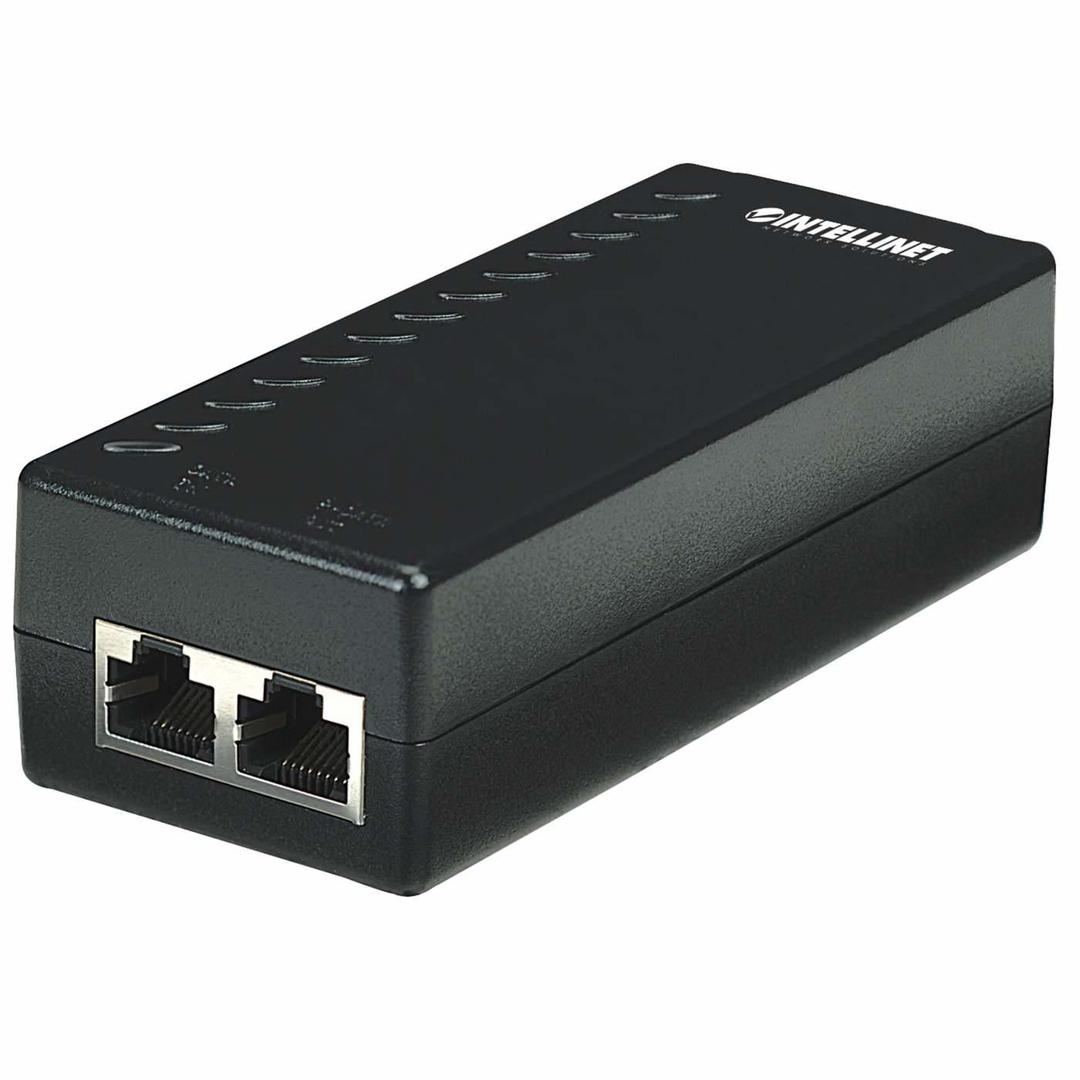

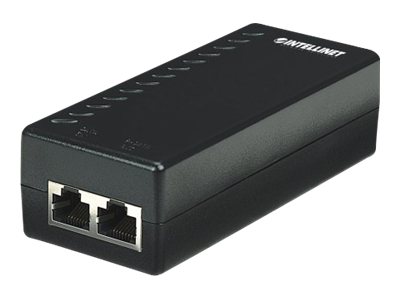

The Intellinet 524179 (IPI-15) is a single-port PoE injector that adds IEEE 802.3af power — 48 V DC, up to 15.4 W — to a 10/100 Mbps Ethernet link. It is a low-cost way to run one IP phone, basic IP camera or small access point from a switch without PoE.

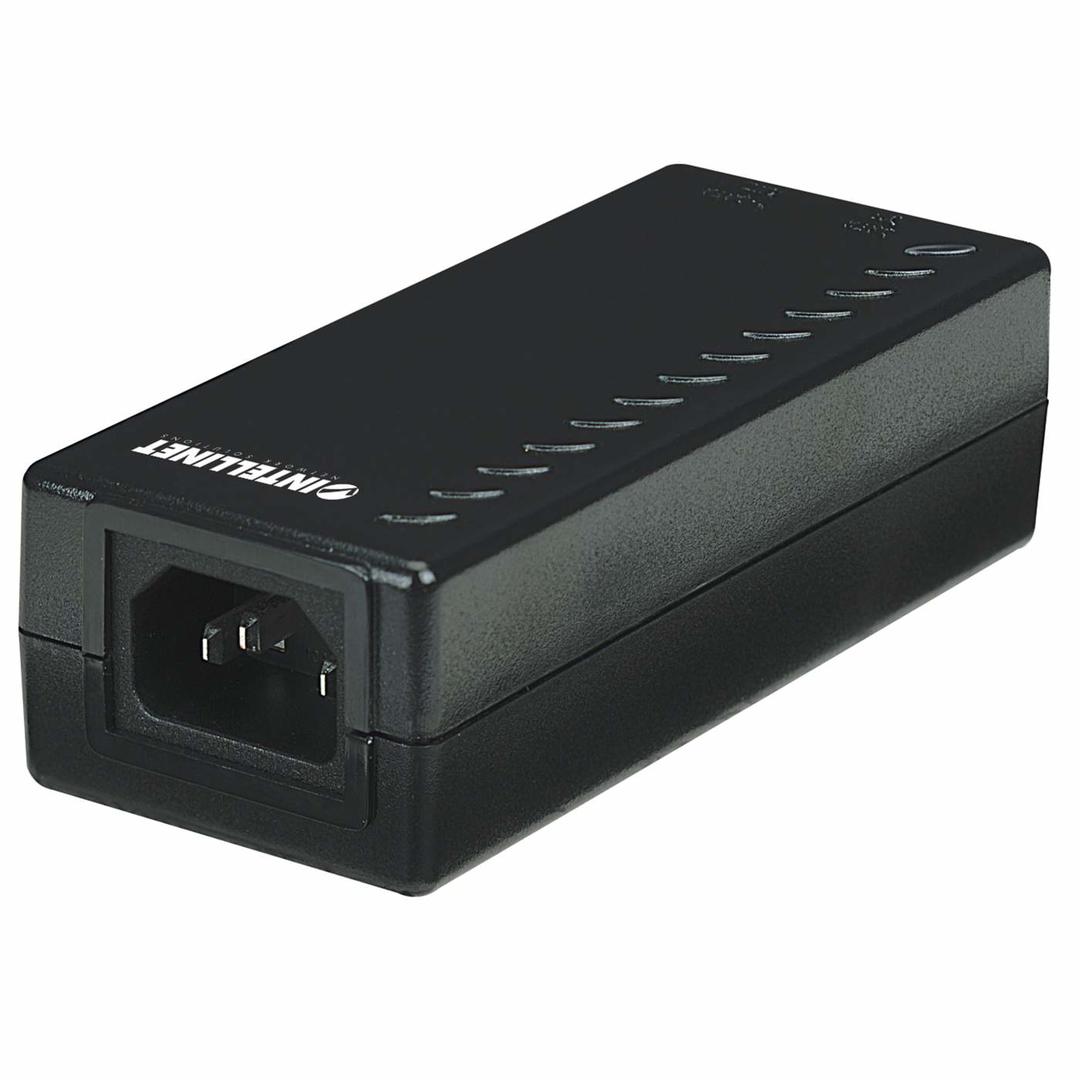

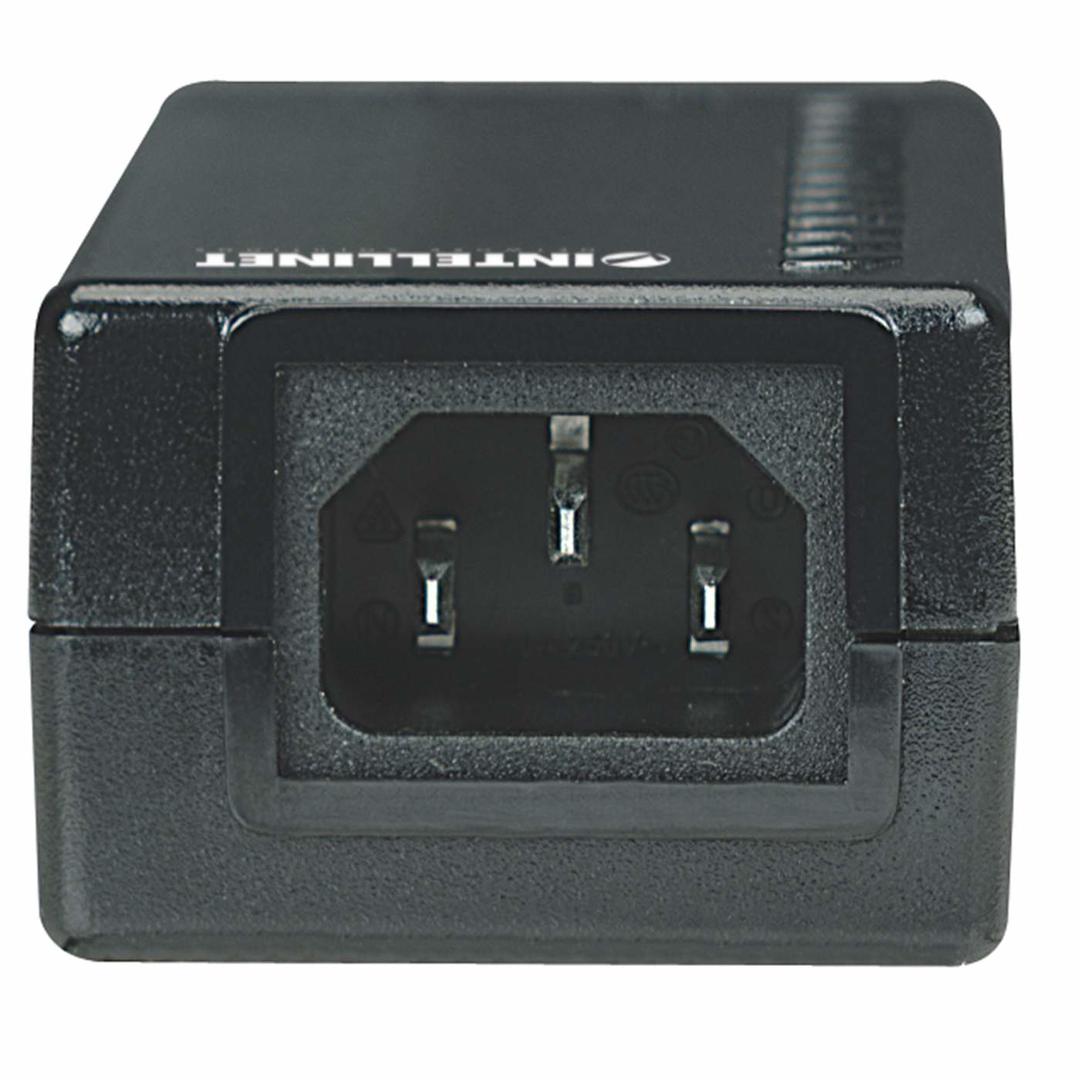

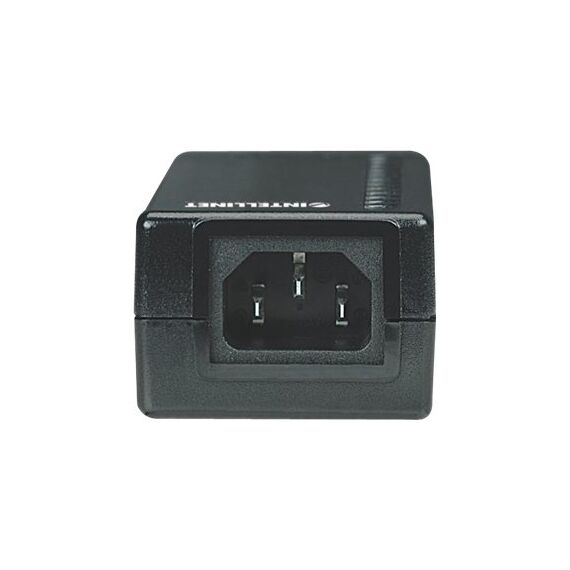

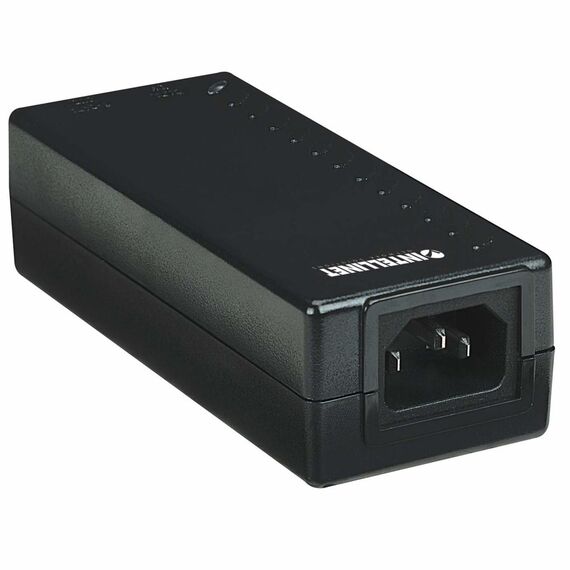

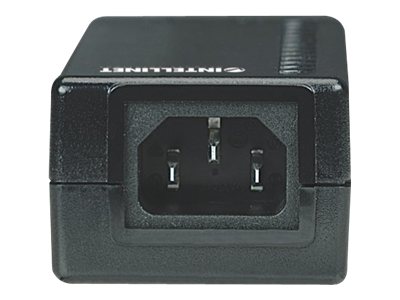

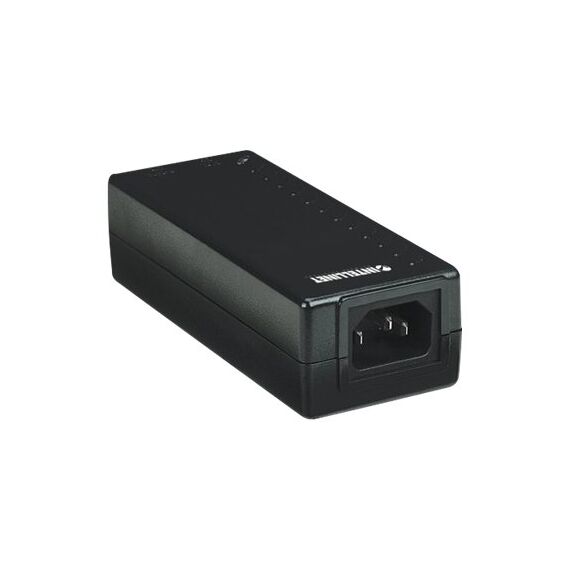

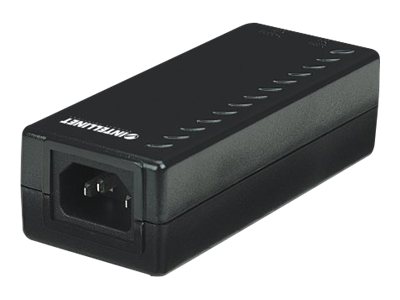

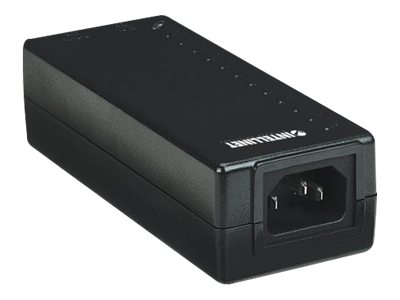

The power supply is internal and connects to the mains with a power cable. Power is applied only after an 802.3af device is detected, with protection against shorts, overload above 450 mA and over-voltage above 52 V. Three LEDs show AC power, channel power and channel alarm.

Before you order: This injector is Fast Ethernet only: a Gigabit device behind it will link at 100 Mbps. It is 802.3af (15.4 W), so PoE+ devices such as Wi-Fi 6 access points will not run reliably.

What's in the Box

  • 524179 PoE injector
  • Power cable
  • Instruction sheet

What It Means in Practice

  • One cable to the device carries data and power, removing the need for a local adapter.
  • 100 Mbps is plenty for IP phones and most single-stream cameras.
  • Power is on the spare pairs (4/5 positive, 7/8 negative), standard for 802.3af midspans.
  • The channel alarm LED makes a short or overload easy to spot.

What Will Not Work

  • It does not support Gigabit speeds.
  • It does not power 802.3at or 802.3bt devices at full load.
  • It does not output 12 V DC for non-PoE devices.
  • It is not a switch: one data input, one data + power output.

Key Features


802.3af 15.4 W
48 V DC at 350 mA, Class 3.

Protection
Short to ground, overload (>450 mA), over-voltage (>52 V).

Clear status
AC Powered, Channel Powered and Channel Alarm LEDs.

Fanless
ABS plastic housing, 120 g.

Technical Specifications

Identification
Brand Intellinet
Part Number 524179
Model IPI-15
EAN / GTIN 0766623524179
Connectivity

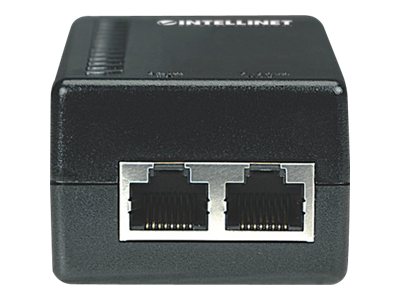

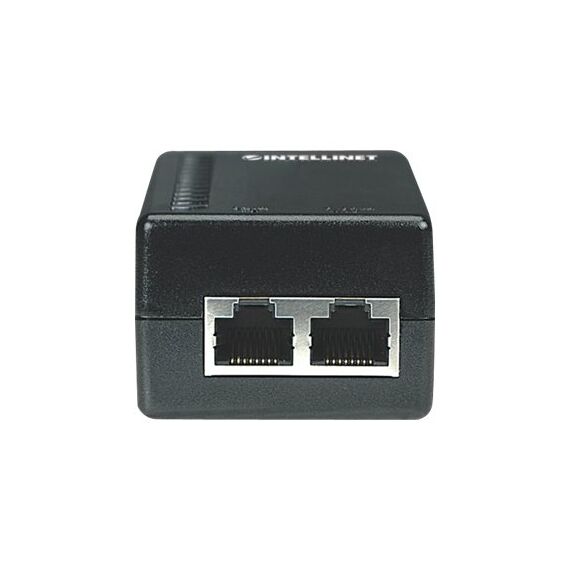

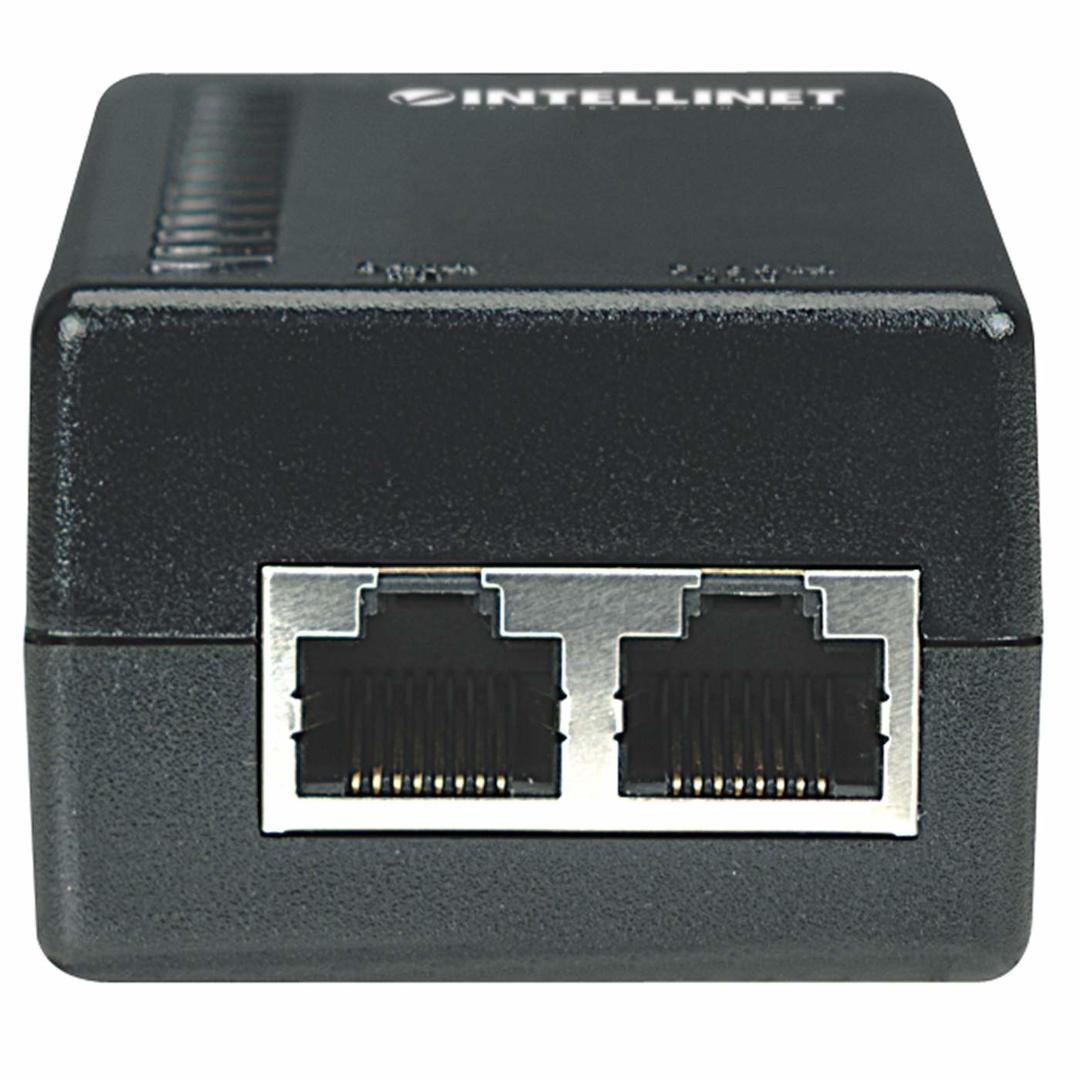

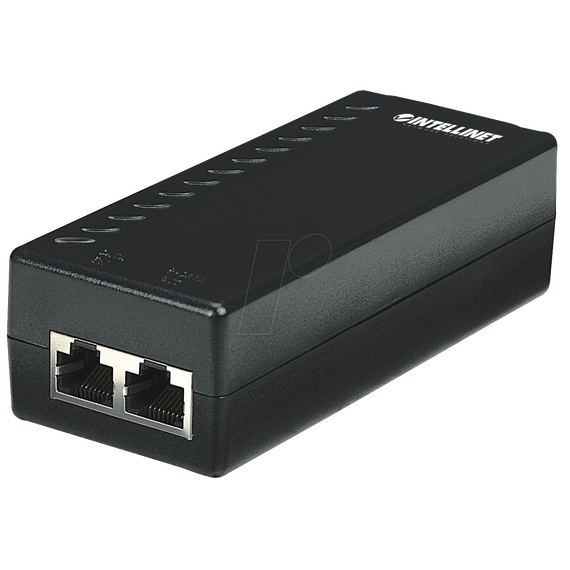

Ports 1× data in, 1× data + power out (RJ45)
Data rate 10/100 Mbps
Standards IEEE 802.3, 802.3u, 802.3af
PoE output 48 V DC, 350 mA, max. 15.4 W
Pin assignment 4/5 (+), 7/8 (-)
Distance 100 m
Electrical
Input 100–240 V AC, internal power supply
Power consumption Max. 19 W
LEDs AC Powered, Channel Powered, Channel Alarm
Physical
Housing ABS plastic, fanless
Dimensions 120 × 50 × 35 mm
Weight 120 g
Environment
Operating temperature 0 °C to 60 °C, 10–90% RH
Certifications FCC Class B, CE, UKCA
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term 3-year Intellinet warranty per manufacturer — claims handled through Singular

Frequently Asked Questions

Will it work with a Gigabit switch?
Yes, but the link through the injector runs at 100 Mbps.
Can it power a Wi-Fi 6 access point?
Usually not. Those need 802.3at (PoE+); choose a 30 W Gigabit injector.
Does it need an external adapter?
No. The power supply is built in.
Singular Expert Insight · Buyer's Guide
For a single IP phone or basic camera, an 802.3af Fast Ethernet injector is the cheapest PoE fix. For anything Gigabit or above 13 W at the device, step up to a 30 W PoE+ injector. For cameras that suit it, see our IP cameras.
✓ Buy it if you need to power one low-power 802.3af device at 100 Mbps.
✕ Skip it if the device is Gigabit or needs PoE+.
→ Also consider the Intellinet 561518 Gigabit 30 W PoE+ injector.
Not sure it fits your setup? Send us the model of your rack, switch or device and we will check compatibility before you order.
