Intellinet 19" Cantilever Rack Shelf, 1U, 350 mm Depth, 2-Point Front Mount, Non-Vented, 25 kg, Grey RAL 7035
Brand:
Intellinet
Intellinet 19" Cantilever Rack Shelf, 1U, 350 mm Depth, 2-Point Front Mount, Non-Vented, 25 kg, Grey RAL 7035
€37.27 inc. VAT
715119
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply

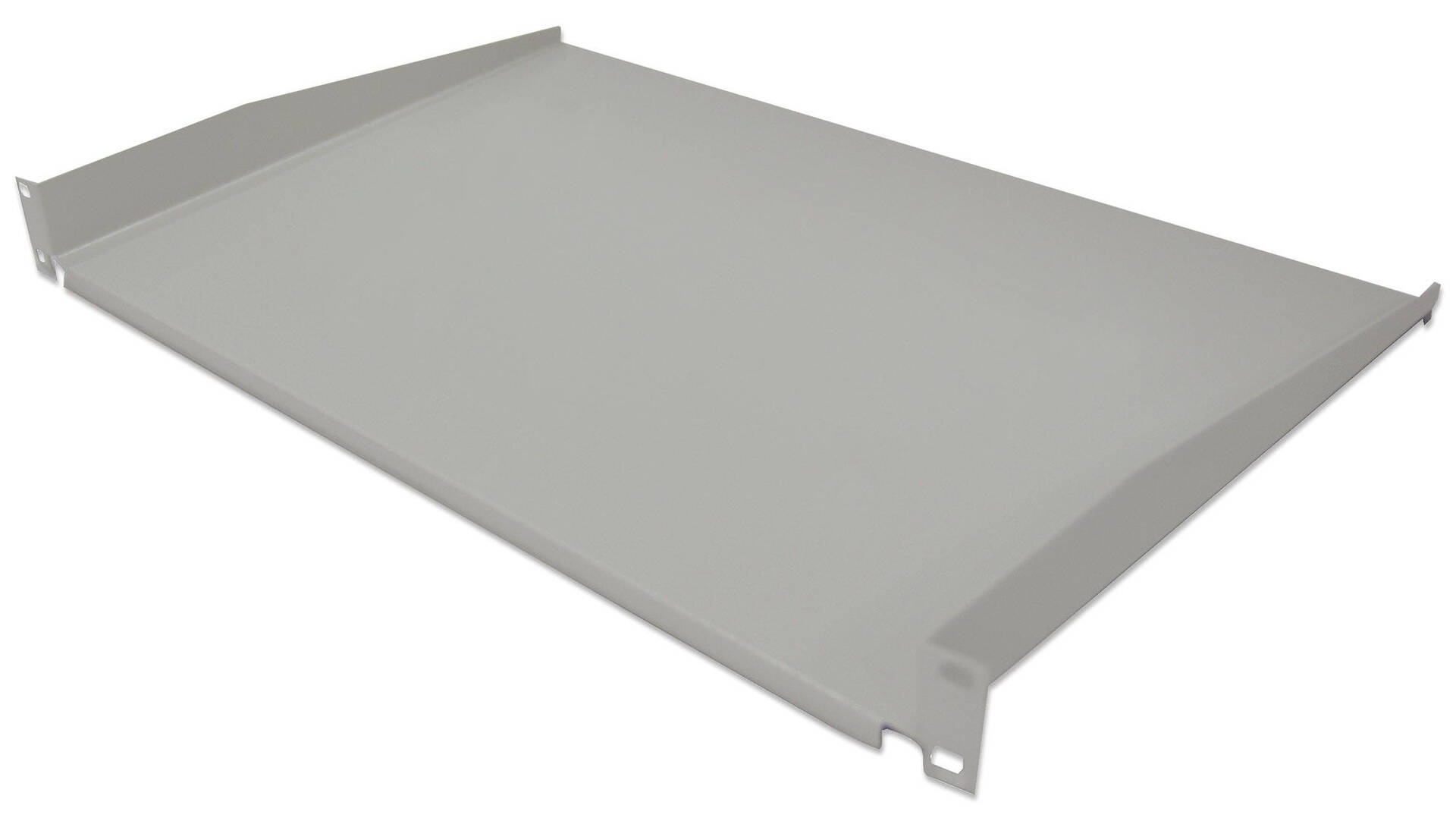

Intellinet 715119 19" Cantilever Shelf, 1U, 350 mm, Grey
1U2-point front mount25 kg static loadNon-vented
The Intellinet 715119 is a 19-inch cantilever shelf, 1U high and 350 mm deep, that mounts to the front rails only and carries up to 25 kg of static load. It is made of 1.2 mm steel with an antistatic powder coating in grey RAL 7035 and has a solid, non-vented surface.
It is designed for network racks and wall cabinets that have no rear rails, or where the rear rails are not at a convenient depth. Intellinet specifies it for racks with a minimum depth of 400 mm, which makes it a good fit for typical wall-mount cabinets holding a router, modem, NVR or small switch without ears.
Before you order: Front-mount (cantilever) shelves hang from two points, so the 25 kg limit is a static load spread across the shelf. Your rack must be at least 400 mm deep for the 350 mm shelf to fit.
What's in the Box
- 1 x 19-inch 1U cantilever shelf, 350 mm deep, grey
- Set of 4 cage nuts
What It Means in Practice
- Works in wall cabinets with front rails only - no rear rails needed.
- Solid (non-vented) surface is good for small items and power adapters that would otherwise slip through slots.
- For warm devices such as NVRs or routers, leave space above them, because the shelf itself does not allow airflow from below.
- Uses 1U of rack space.
What Will Not Work
- Racks shallower than 400 mm.
- Loads above 25 kg or heavy UPS units - use a fixed shelf on four points for that.
- Black cabinets if colour matching matters.
- Improved airflow from below - this model is non-vented.
Key Features
Front-only mounting
Two-point cantilever design for racks without usable rear rails.
Antistatic powder coating
1.2 mm steel with antistatic finish for use next to network equipment.
Solid surface
Non-vented plate keeps small parts and adapters on the shelf.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
Cantilever shelves are the easy answer for wall cabinets, where rear rails are often missing or fixed at the wrong depth. The 715119 is solid rather than vented, which suits small devices and power bricks. For vented and 2U versions, fixed shelves and cage nuts, see our rack accessories.
✓ Buy it if your cabinet has front rails only and is at least 400 mm deep.
✕ Skip it if you need to carry more than 25 kg or want a vented shelf for airflow.
→ Also consider Intellinet 712217 (2U vented cantilever shelf, grey) or Intellinet 712231 (1U fixed shelf, 50 kg).
Not sure it fits your cabinet? Send us the cabinet model or its internal depth and we will check before you order.
Features - Intellinet - 715119
Colour
grey
More Details
Product Code
04:256432
EAN Code
0766623715119
Manufacturer
Intellinet
