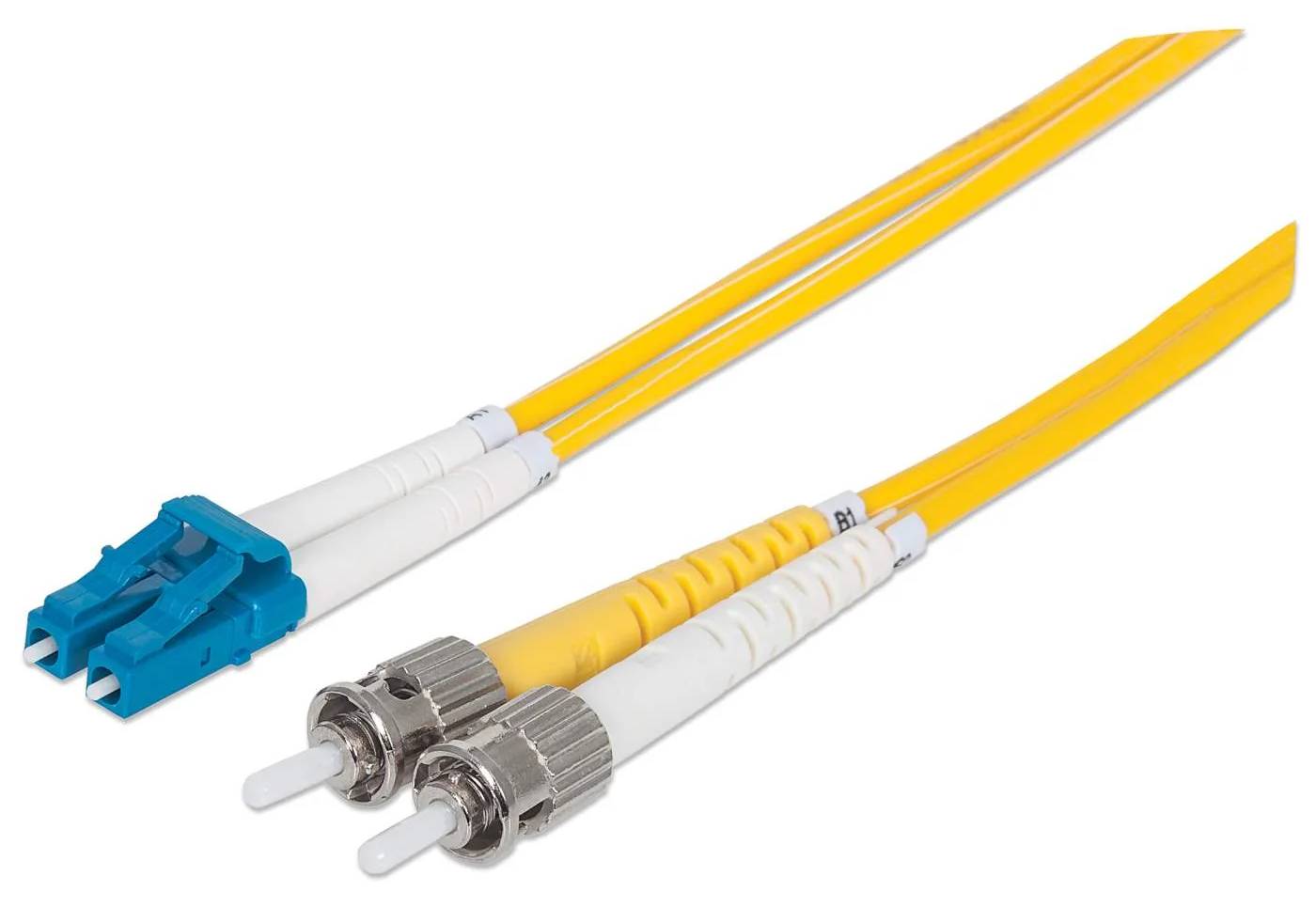

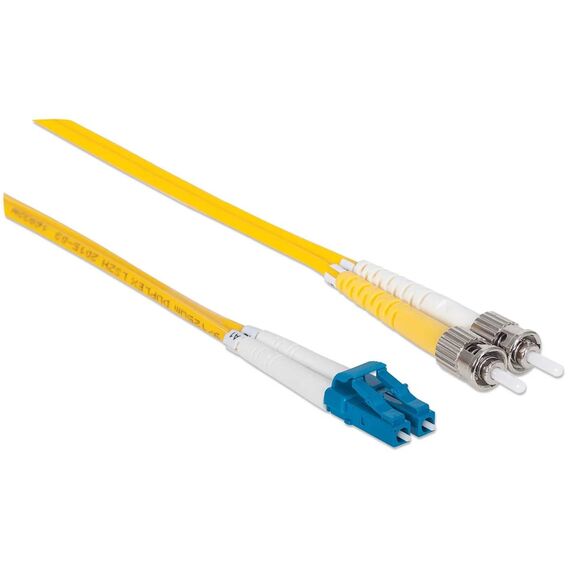

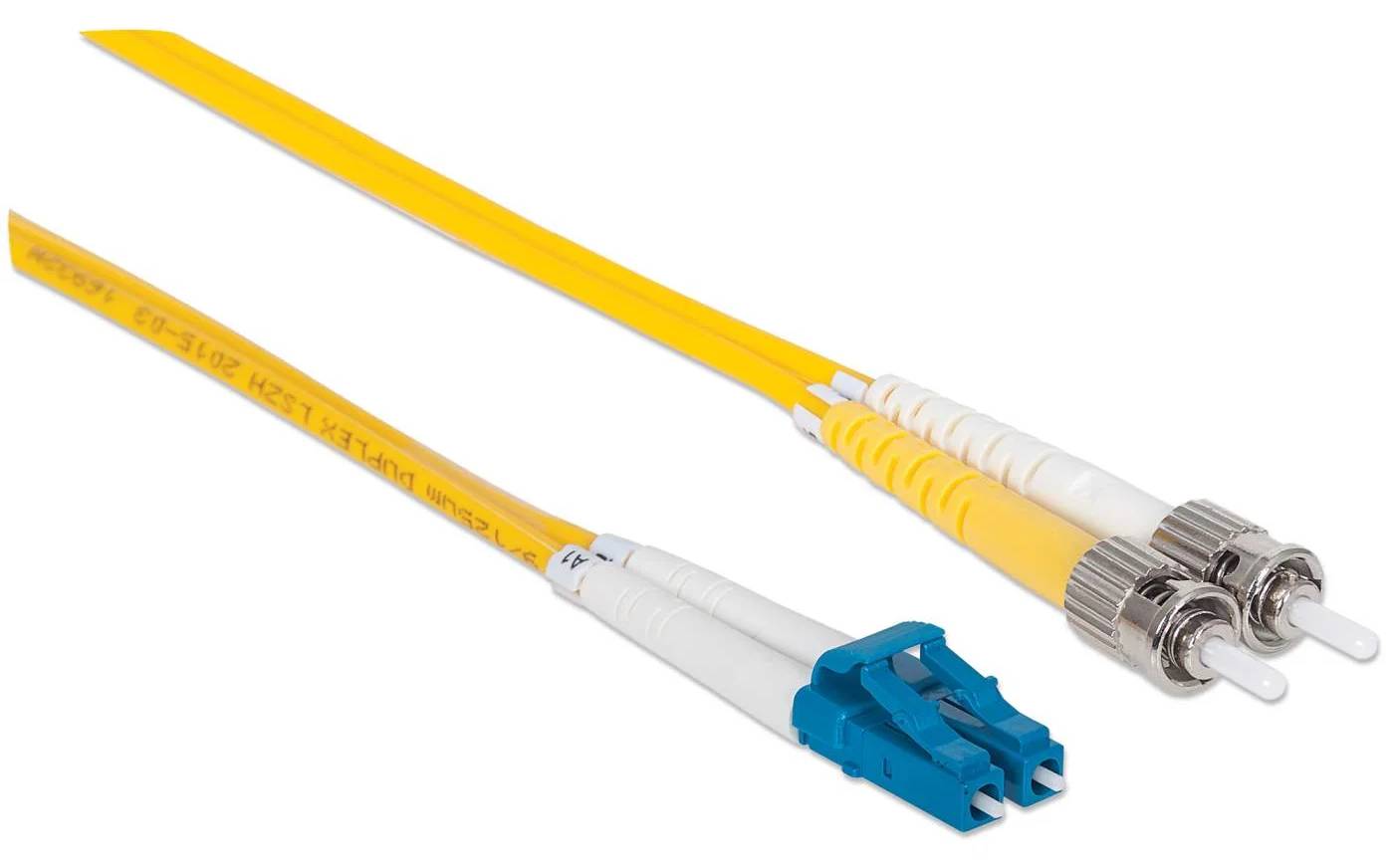

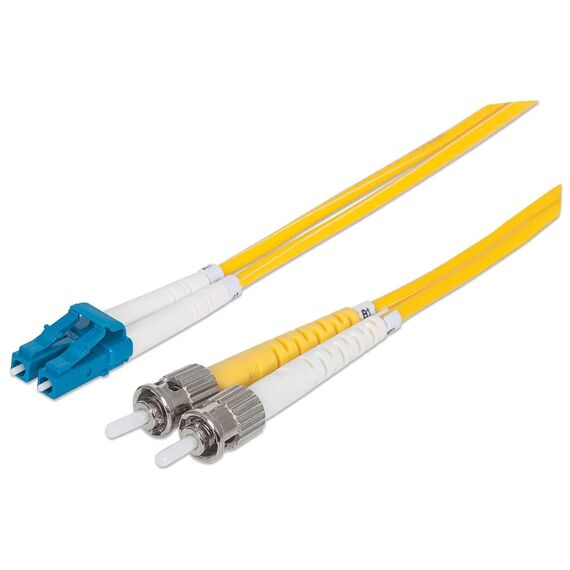

Intellinet 2m LC to ST OS2 Single-Mode Duplex Fibre Patch Cable
LC ↔ STOS2 9/125 µm2m · DuplexLSZH · Yellow
The Intellinet 2m LC to ST patch cable is a duplex OS2 single-mode 9/125 µm fibre jumper with UPC-polished ceramic ferrules, built for linking equipment with LC ports (SFP transceivers, modern switches) to older ST panels, media converters or wall outlets.
The 3.0 mm LSZH (low smoke, zero halogen) jacket is yellow, the usual colour code for single-mode fibre, so it is easy to tell apart from other links in a crowded rack. Insertion loss is rated at ≤0.25 dB per connector and return loss at ≥55 dB.
Before you order: Fibre type must match on both ends. This is OS2 single-mode (9 µm core) — it will not work with multimode (OM1–OM5) transceivers or patch panels.
What's in the Box
- 1 × Intellinet duplex fibre optic patch cable, LC to ST, 2m
- Supplied in a polybag (bag packaging)
What It Means in Practice
- Duplex means two fibres in one zip-cord: one carries transmit, the other receive — exactly what SFP/SFP+ ports and media converters expect.

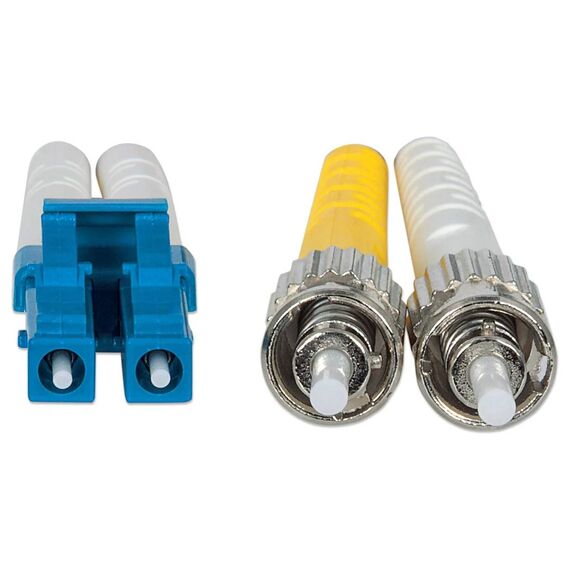

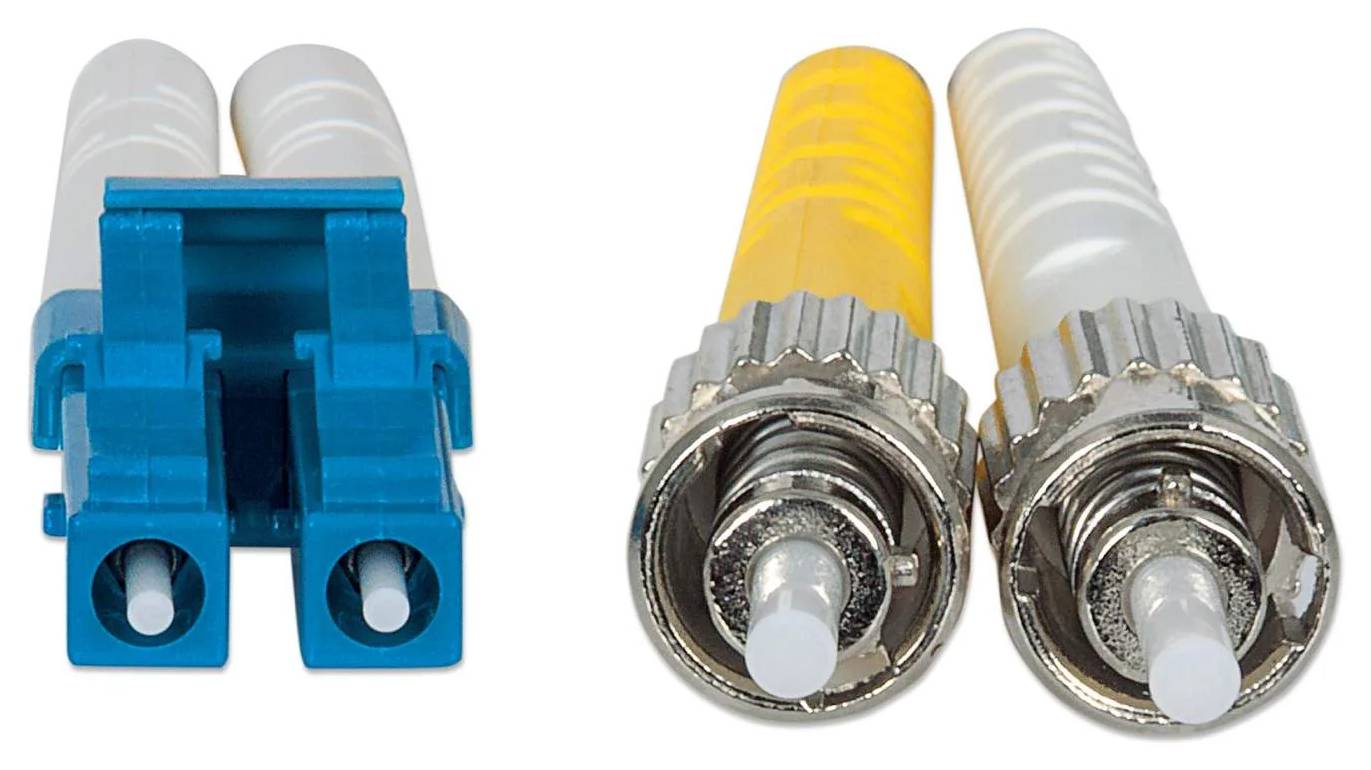

- One end is LC (small push-pull, used on SFP modules), the other ST (bayonet twist-lock, common on older panels and converters), so it replaces an extra adapter in mixed installations.
- OS2 single-mode carries 1G and 10G over long distances; the reach is set by the transceivers you use, not by this short jumper.
- LSZH jacketing is the safer choice inside offices and server rooms, where low smoke and no halogen gases matter in case of fire.
What Will Not Work
- Multimode SFP modules (SX, SR) or multimode patch panels — use an OM3/OM4 cable instead.
- Ports with other connectors (SC, MTP/MPO, E2000) unless you use the matching connector type at each end.
- APC (green, angled) ports — this cable is UPC polished; mating UPC with APC damages the end faces.
- Copper RJ45 ports — fibre needs an SFP module or a media converter.
Key Features
UPC ceramic ferrules
Precision ceramic ferrules with UPC polish keep insertion loss at ≤0.25 dB and return loss at ≥55 dB.
LSZH 3.0 mm jacket
Low-smoke zero-halogen jacket, yellow colour-coded for single-mode fibre.
Duplex zip-cord
Two fibres for transmit and receive, ready for SFP ports and media converters.
Wide temperature range
Rated for −40 to +75 °C operation with a 30 mm bend radius.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
Most fibre problems come from mismatched fibre types or connectors, not from the cable itself. Check the label on your transceivers (LX/LR = single-mode) and the connector on each end before ordering. If you are planning new links, browse our fibre-capable switches and pick optics that match this cable.
✓ Buy it if you need a 2m duplex OS2 single-mode jumper with LC on one end and ST on the other.
✕ Skip it if your optics are multimode, or your ports are APC (green).
→ Also consider the same cable in other lengths, or an OM3/OS2 version with different connectors — ask us.
Not sure it fits your setup? Send us the model of your rack, switch or device and we will check compatibility before you order.
Features - Intellinet - 750011
Colour
yellow
Length
2m
More Details
Product Code
04:194095
EAN Code
0766623750011
Manufacturer
Intellinet
