Intellinet 522533 Gigabit PCI Express Network Card 1x RJ45 10/100/1000 Mbps PCIe x1 VLAN Link/Act LEDs Low Profile Bracket

Brand:
Intellinet
Intellinet 522533 Gigabit PCI Express Network Card
Intellinet 522533 Gigabit PCI Express Network Card 1x RJ45 10/100/1000 Mbps PCIe x1 VLAN Link/Act LEDs Low Profile Bracket
€15.57 inc. VAT
Buy
522533
€13.08 €14.53
€15.57 inc. VAT
Ships from EU stock: 33 item(s)
+ −
Add to wish list Ask a question
Product Code
04:77377
EAN Code
0766623522533
Manufacturer
Intellinet

Quick Specs

Speed
Gigabit, 10/100/1000 Mbps
Interface
PCIe 1.0a x1
Port
1× RJ45
LEDs
Link, Activity
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Intellinet 522533 — Gigabit PCI Express Network Card

Gigabit EthernetPCIe x1RJ45Low-profile bracket

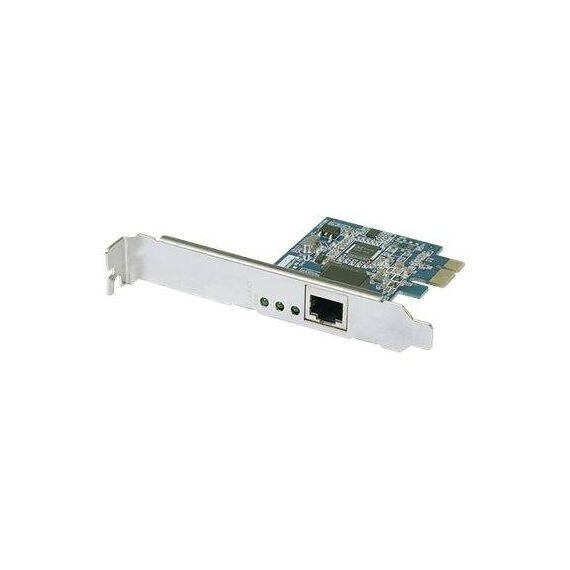

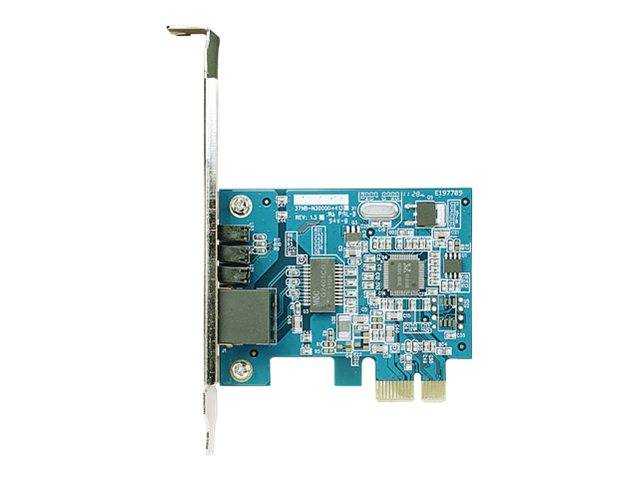

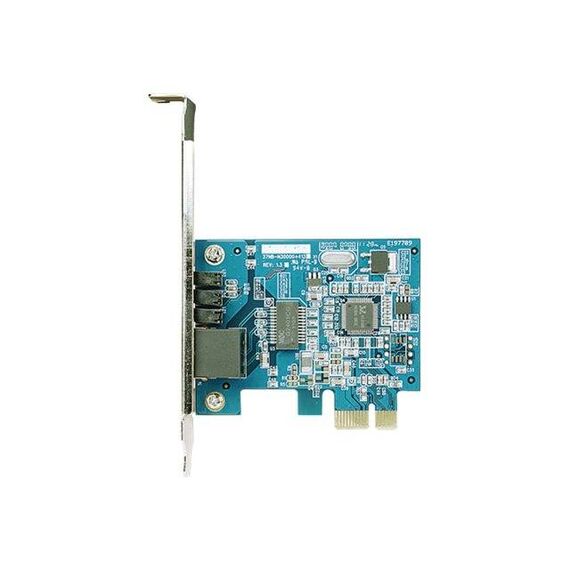

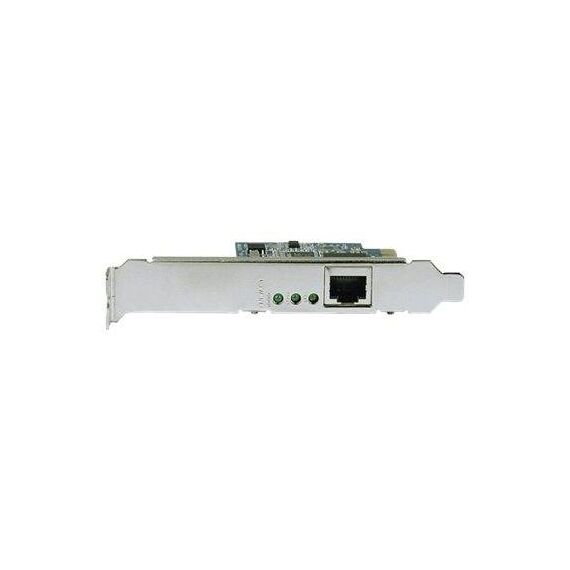

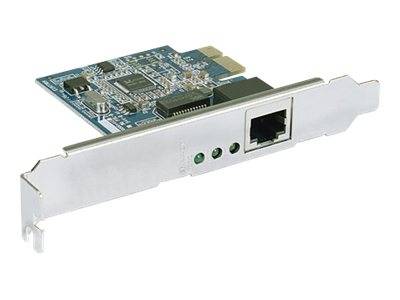

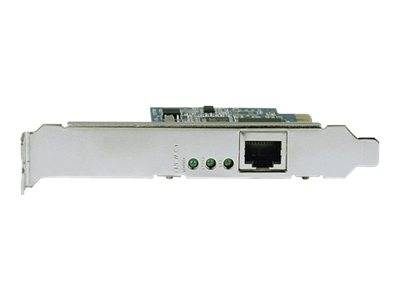

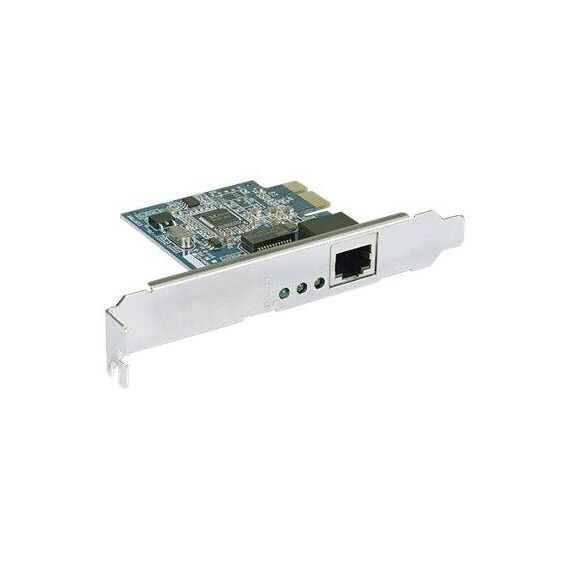

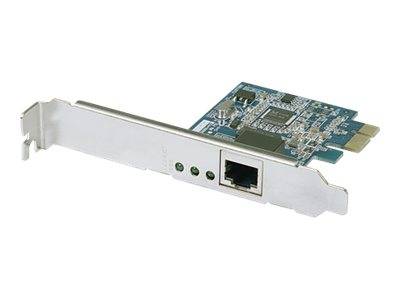

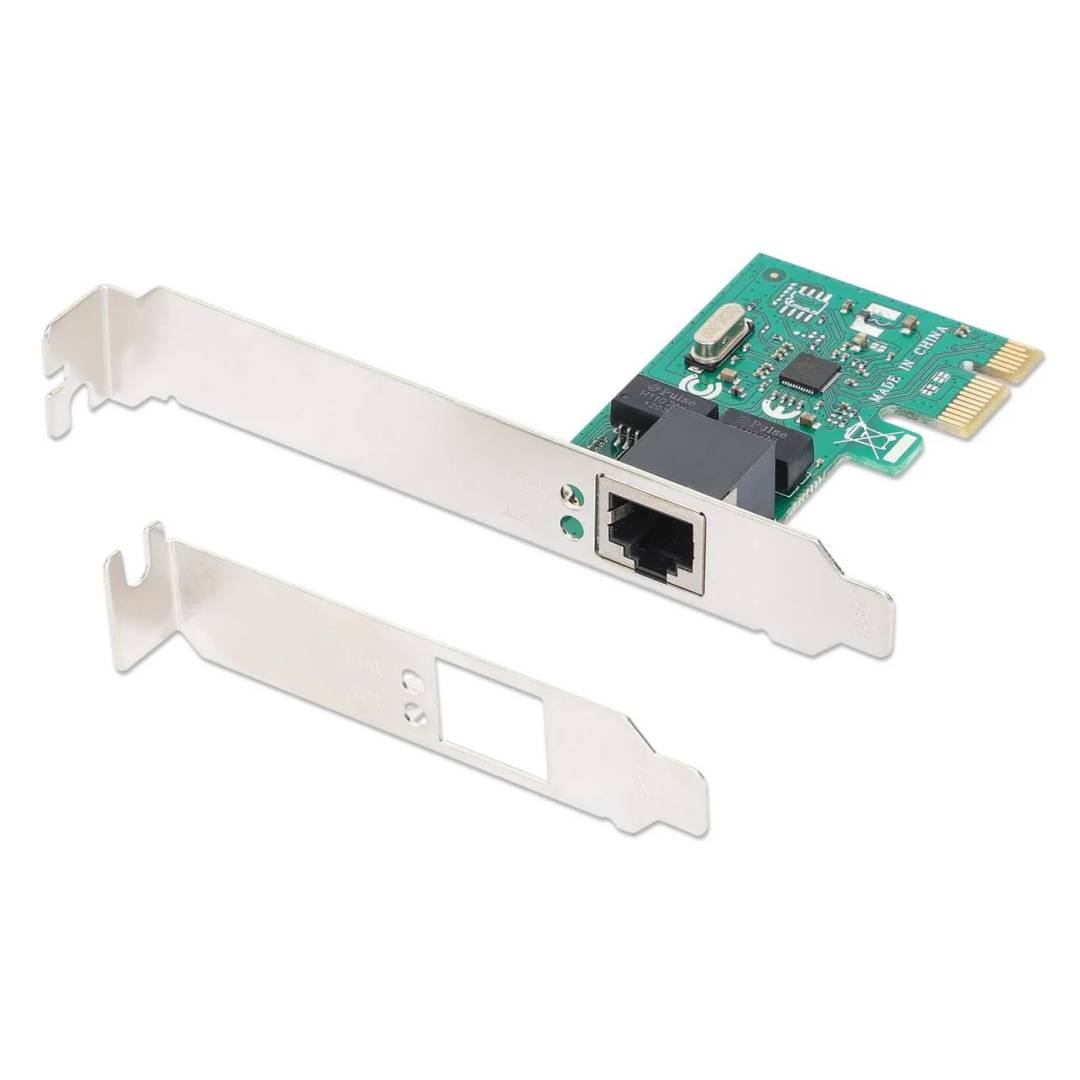

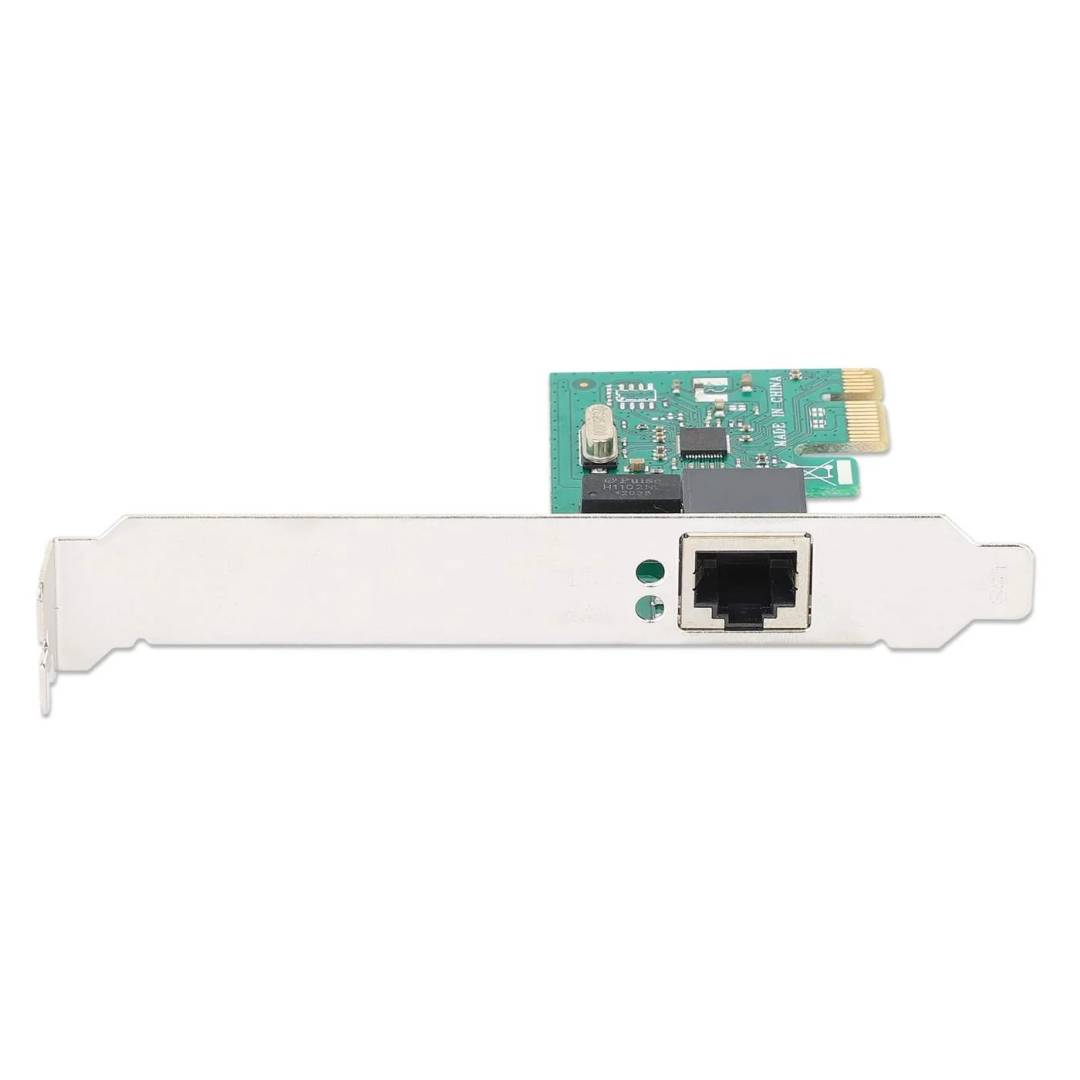

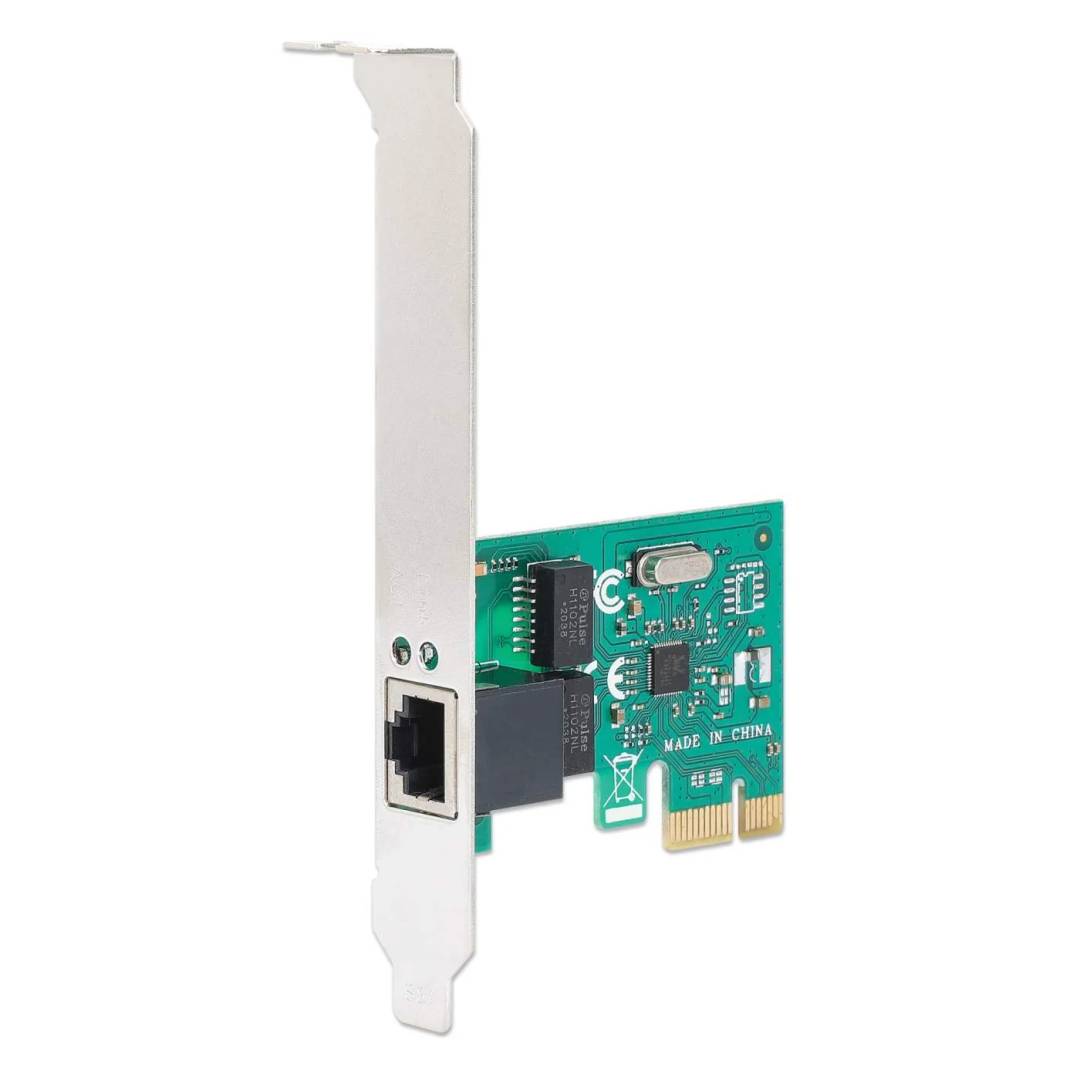

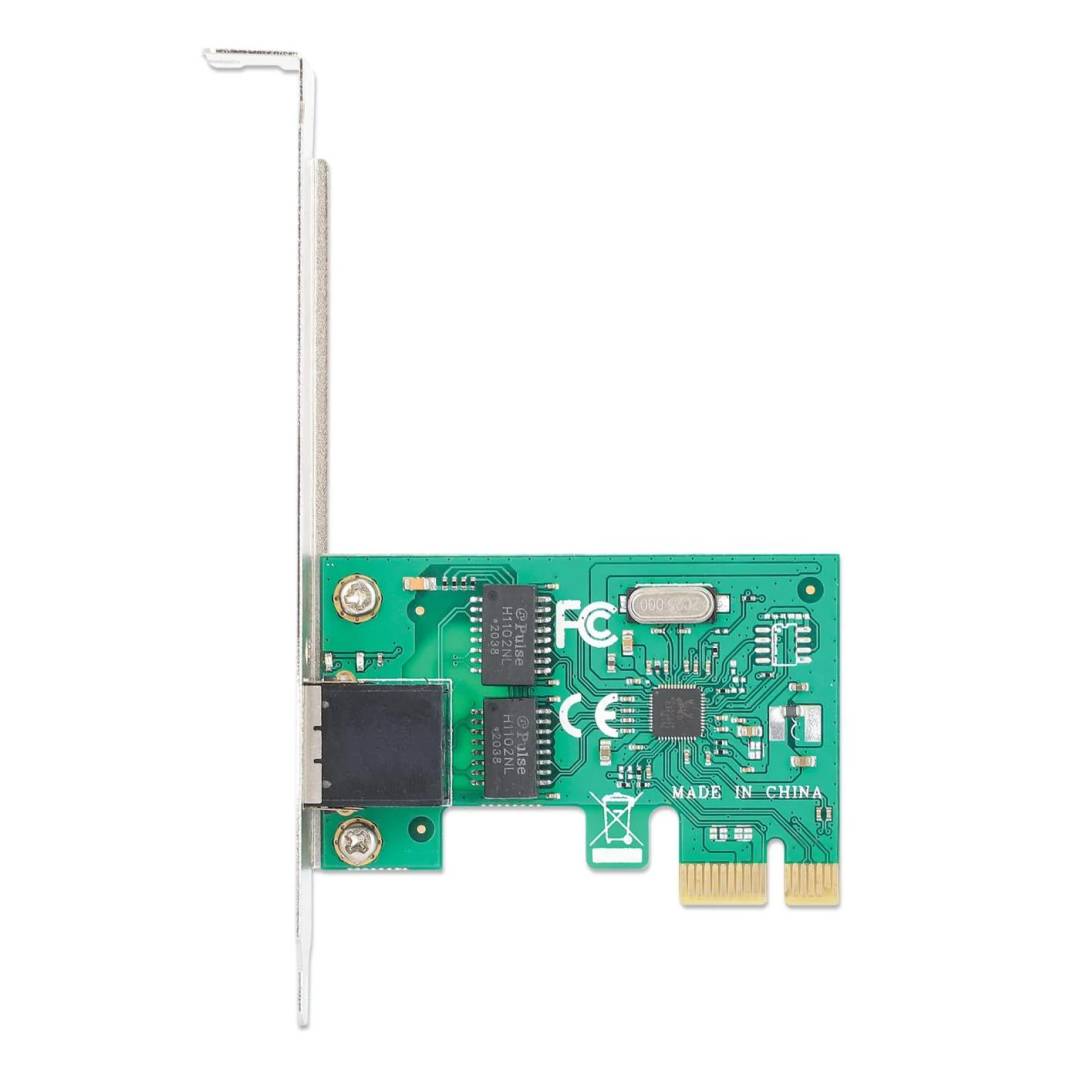

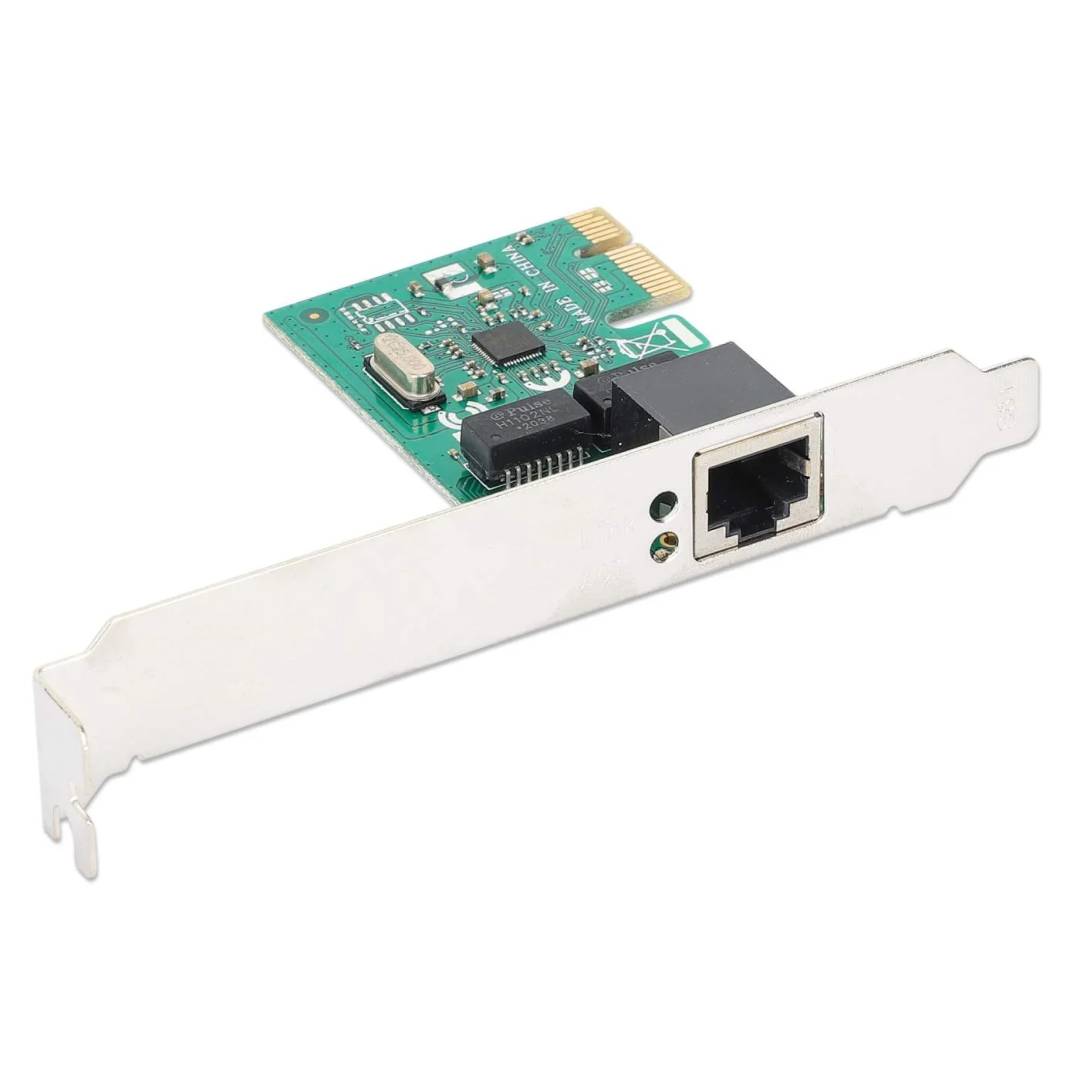

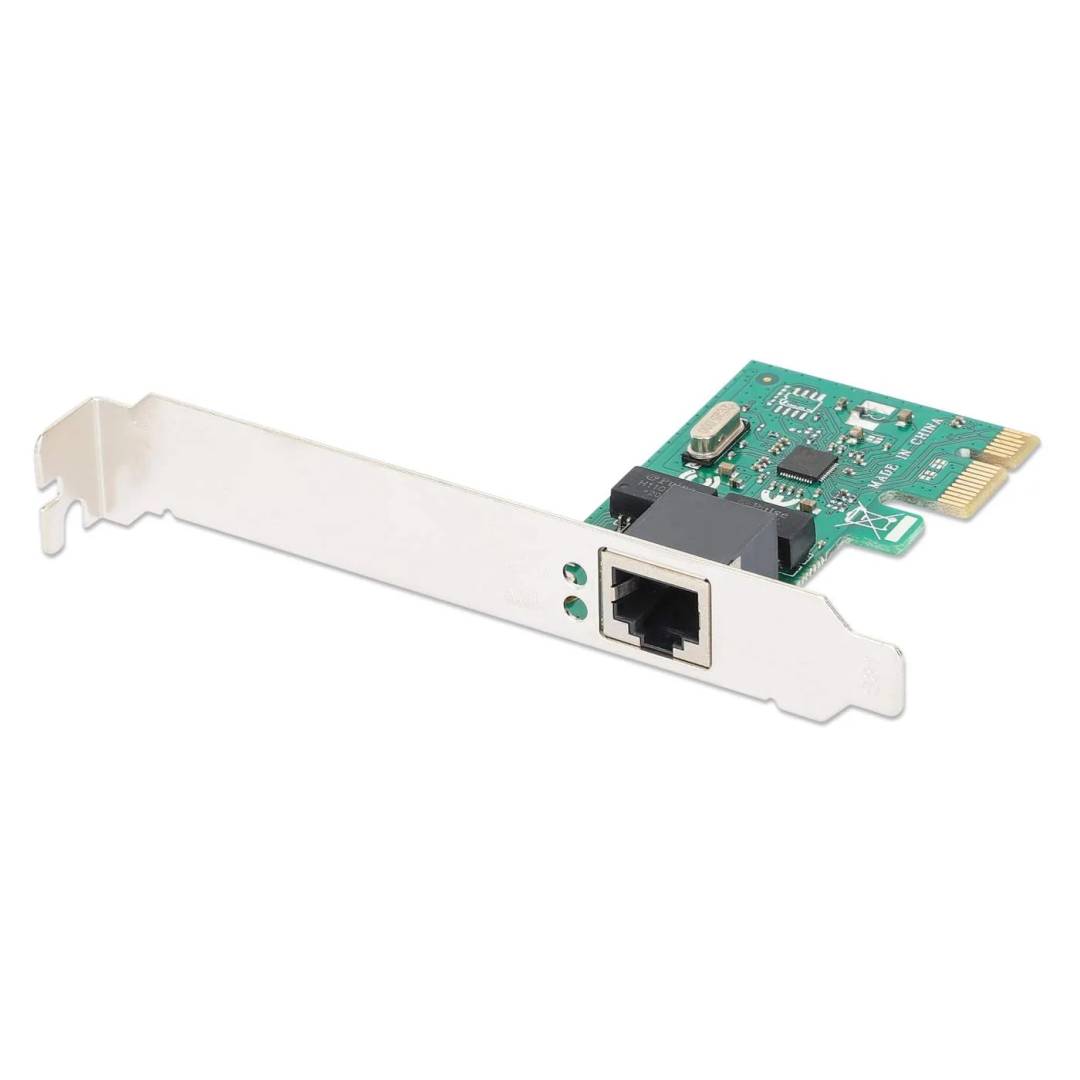

The Intellinet 522533 is a Gigabit PCI Express x1 network card with one RJ45 port. It goes into a free PCI Express slot inside a desktop PC or server and adds one RJ45 port for wired Gigabit Ethernet (10/100/1000 Mbps). It is a PCIe 1.0a x1 card that also works in x4, x8 and x16 slots, supports VLAN tagging (802.1Q) and priority (802.1P), shows link and activity on two LEDs, and ships with an 8 cm low-profile bracket. Typical reasons to fit one: the motherboard port has failed, the PC needs a second network interface for a separate network, firewall or NAS link, or an older board only has Fast Ethernet.

Compatibility — check before buying:
Compatibility — check before buying: it is an internal card for desktop PCs with a free PCIe slot (x1 or longer) — it does not fit laptops, all-in-ones or old PCI (non-Express) slots. An 8 cm low-profile bracket is included. Intellinet lists Windows Vista, 7, 8, 8.1, 10 and 11 and Linux; macOS is not listed. It is Gigabit only; for 2.5G or 10G links a different card is needed. Not sure your PC has a free slot? Send us the PC or motherboard model and we check.

Best For

✓ Replacing a failed onboard LAN port
✓ Second network interface for a PC
✓ Firewall and router PCs
✓ NAS and home-server builds
✓ Upgrading old Fast Ethernet boards
✓ Separating office and camera networks

Key Features


Gigabit Ethernet
10/100/1000 Mbps on one RJ45 port.

Fits any PCIe slot
PCIe 1.0a x1 card that also works in x4, x8 and x16 slots.

VLAN and QoS
IEEE 802.1Q and 802.1P support.

Link/Act LEDs
Quick status check at the back of the PC.

Technical Specifications

Identification
Brand Intellinet
Product Gigabit PCI Express Network Card
Part Number 522533
EAN / GTIN 0766623522533
Network
Ports 1× RJ45
Speed 10/100/1000 Mbps
Standards IEEE 802.3, 802.3u, 802.3ab, 802.1p, 802.1q
Chipset Intellinet does not name the chipset
LEDs Link, Act
Interface
Bus PCI Express 1.0a x1 (fits x1/x4/x8/x16)
Bracket Standard, plus 8 cm low-profile bracket included
Compatibility
Operating Systems Windows Vista, 7, 8, 8.1, 10, 11; Linux
Certifications FCC, CE
Physical
Dimensions 121 × 68 × 19 mm
Weight 39.6 g
In the Box
Included Gigabit PCI Express network card, low-profile bracket (8 cm)
Not Included Network cable, full-height bracket (unless listed)
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term Intellinet does not publish a warranty term for this model on its product page. Singular’s direct warranty is 1 year, and we support you locally for anything beyond it.

Frequently Asked Questions

Will it fit my PC?
If the PC has a free PCIe x1, x4, x8 or x16 slot, yes. Laptops and all-in-ones cannot take PCIe cards. Send us the model and we check.
Does it fit a slim case?
Yes. An 8 cm low-profile bracket is included.
Do I need a driver?
Windows 10 and 11 normally install it automatically. Intellinet offers drivers for Windows and Linux on its website.
Is it faster than my onboard port?
Only if your onboard port is slower than Gigabit. Its main uses are replacing a faulty port or adding a second one.
Singular Expert Insight
We suggest the Intellinet 522533 for office desktops and small servers that need a dependable Gigabit port with status LEDs you can check at a glance. Mind the code: Intellinet’s 522328 is the old PCI version, not PCI Express. For the other end of the cable, browse network switches and routers; more network cards — including 2.5G models — are in the same category. Local support in Cyprus comes with every order.

Buyer’s Guide

Buy it if

Your desktop has a free PCIe slot and runs Windows or Linux.

Skip it if

You need macOS support, 2.5G or a laptop solution.

Also consider

TP-Link TG-3468 — PCIe Gigabit card with low-profile bracket.
