Intellinet 560443 — run a non-PoE device from a PoE+ port
IEEE 802.3at input5 / 7.5 / 9 / 12 V DCGigabitMetal housing

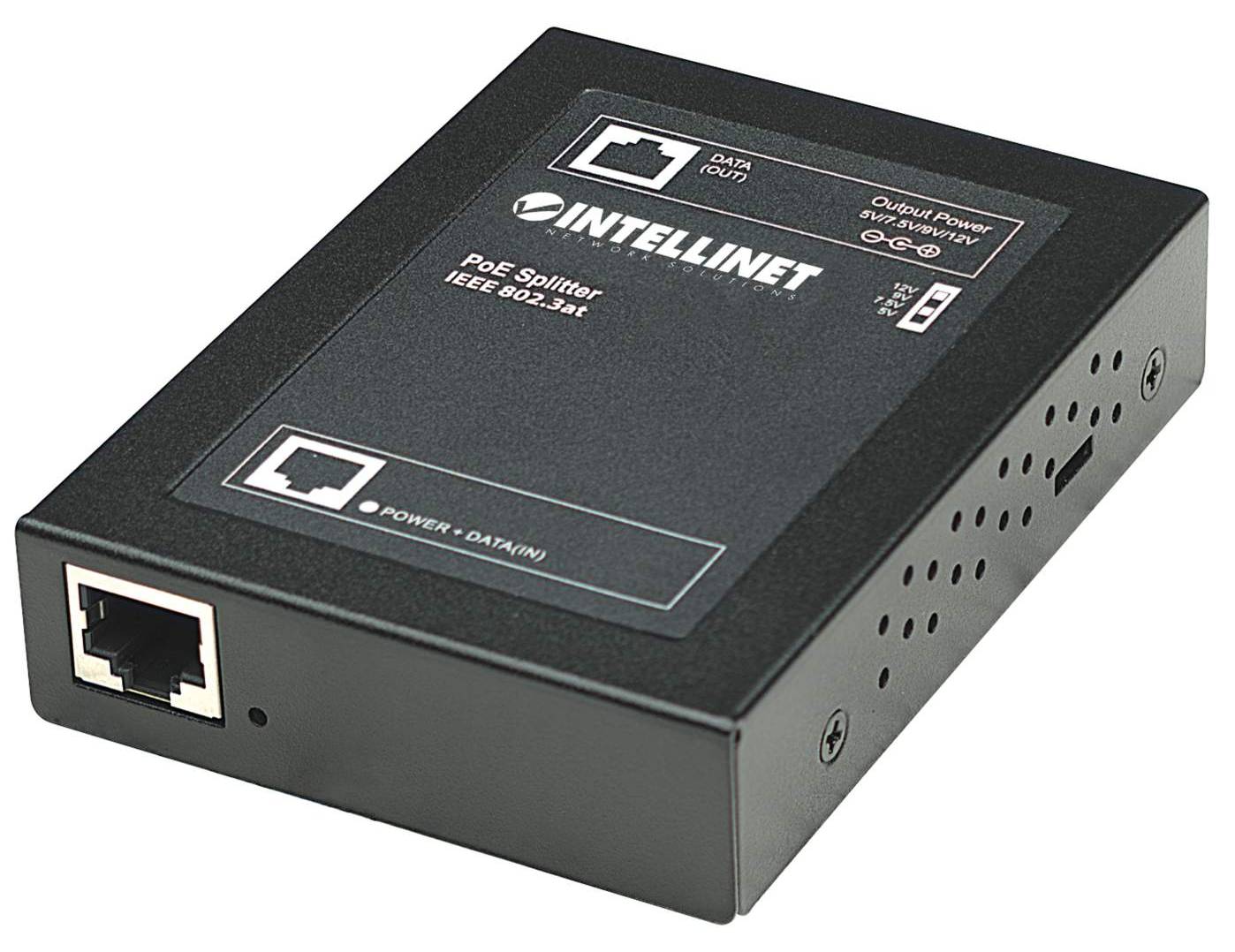

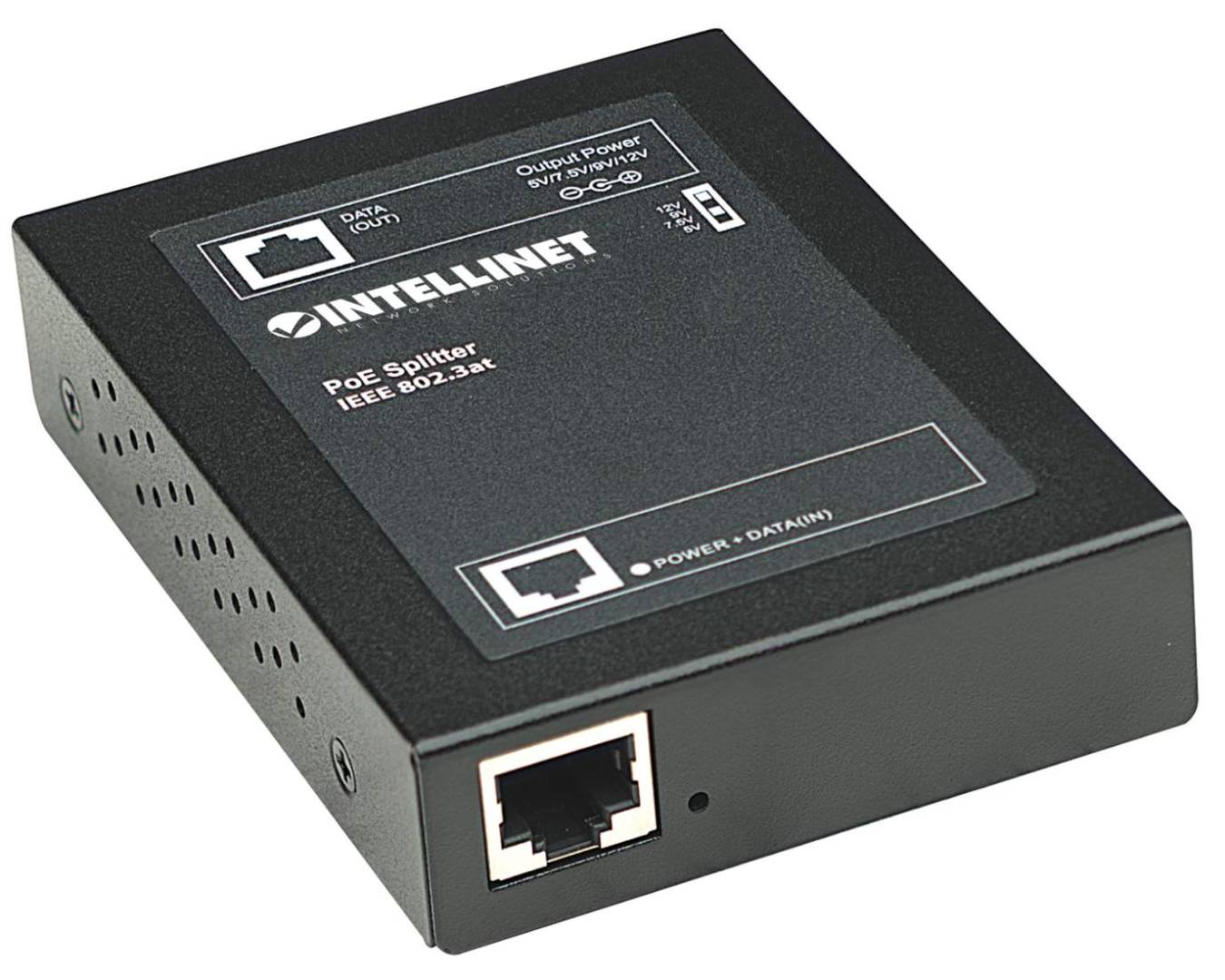

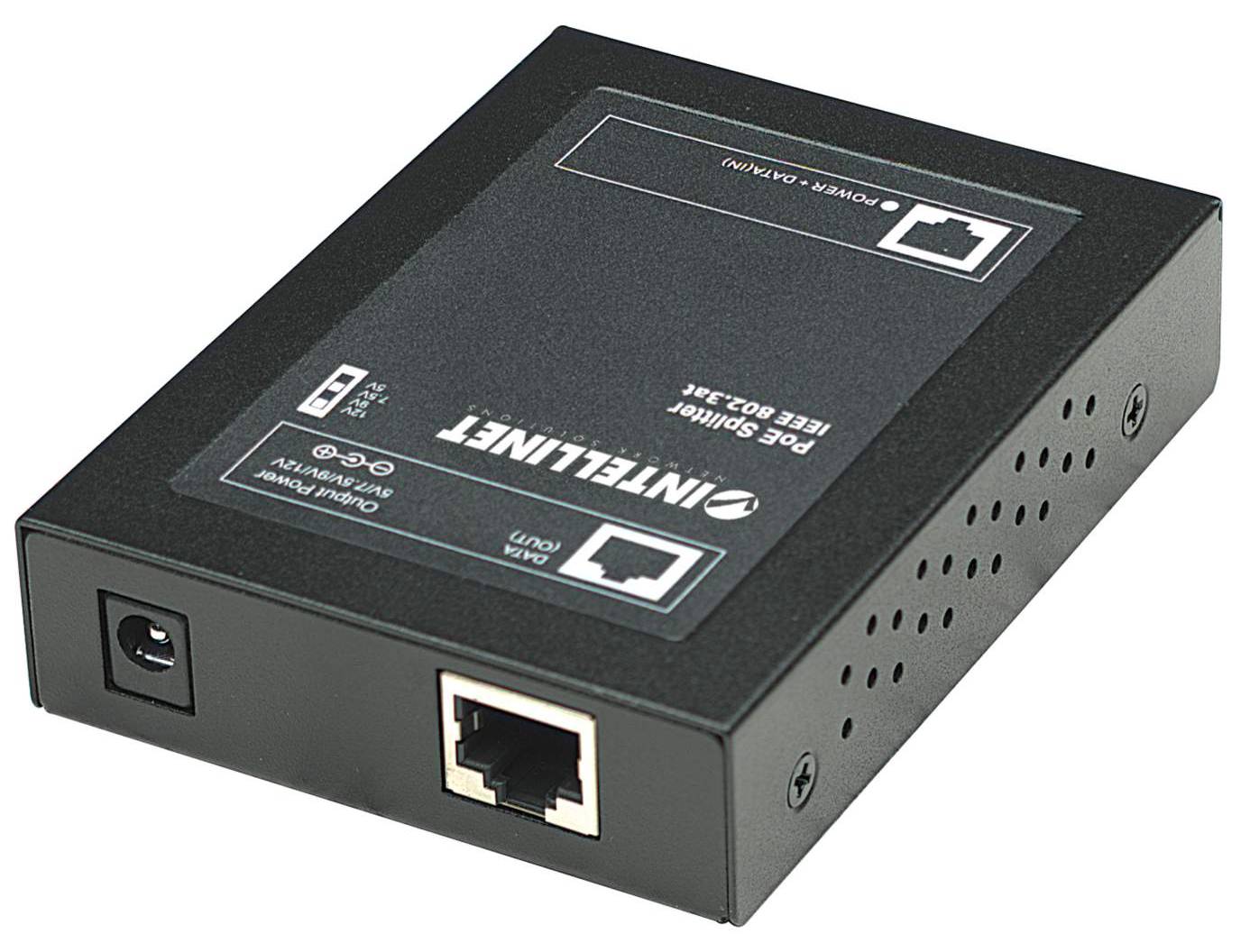

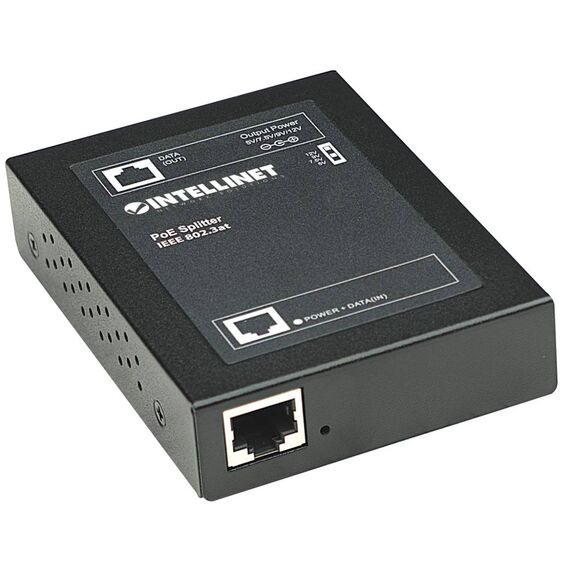

The Intellinet 560443 (IPK-30G) is a Gigabit PoE+ splitter that separates an IEEE 802.3at/af PoE feed into a DC power output and a normal Gigabit data port. It lets you install a device that has no PoE input — a camera, a small router, a media converter, a Raspberry Pi — using only one network cable from a PoE switch or injector.
A switch on the housing selects the output: 5 V / 4 A, 7.5 V / 2.7 A, 9 V / 2.3 A or 12 V / 1.7 A, delivered through the supplied power output cable (centre positive). Data passes at 10/100/1000 Mbps with auto-MDIX, and the metal housing keeps the unit robust in ceilings and cabinets.
Before you order: Set the voltage switch to the device rating before connecting the DC cable — the wrong setting can damage the device. Check that the supplied DC plug fits your device; the plug size is not published by Intellinet.
What's in the Box
- 560443 PoE+ splitter
- Power output cable
- User manual
What It Means in Practice
- One Cat5e/Cat6 cable from a PoE switch replaces a separate power adapter and socket at the device.
- 12 V covers most IP cameras and small network devices; 5 V suits USB-powered gear via a suitable cable.
- Maximum distance is 100 m from the power source, as with any PoE link.
- It draws up to 25.4 W from the PoE source, so plan it as a PoE+ (802.3at) load on the switch.
What Will Not Work
- It does not output 24 V or 48 V.
- It needs an 802.3af/at PoE switch or injector upstream — it does not create PoE.
- It does not power a PoE device (it removes PoE, it does not pass it through).
- It is not weatherproof.
Key Features
Four output voltages
5, 7.5, 9 or 12 V DC selected by switch.
Gigabit data
10/100/1000 Mbps with auto-MDIX.
PoE+ input
IEEE 802.3at, backward compatible with 802.3af sources.
Metal housing
Robust enclosure, 102 × 74 × 22 mm.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
A splitter is the clean answer when the camera or device you chose has no PoE input. Check two things: the voltage and current of the device, and that its DC plug matches the supplied cable. For PoE cameras that need no splitter, see our IP cameras.
✓ Buy it if you want to run a 5–12 V device from a PoE+ port with one cable.
✕ Skip it if the device already supports PoE, or needs 24 V or 48 V.
→ Also consider a 12 V Fast Ethernet splitter for low-power devices that do not need Gigabit.
Not sure it fits your setup? Send us the model of your rack, switch or device and we will check compatibility before you order.
