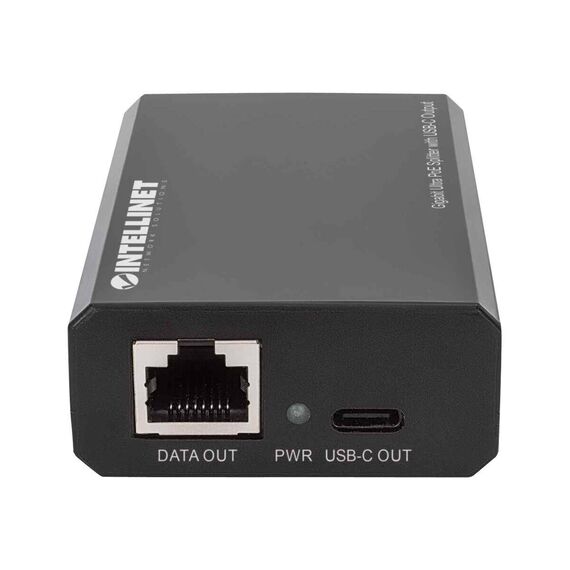

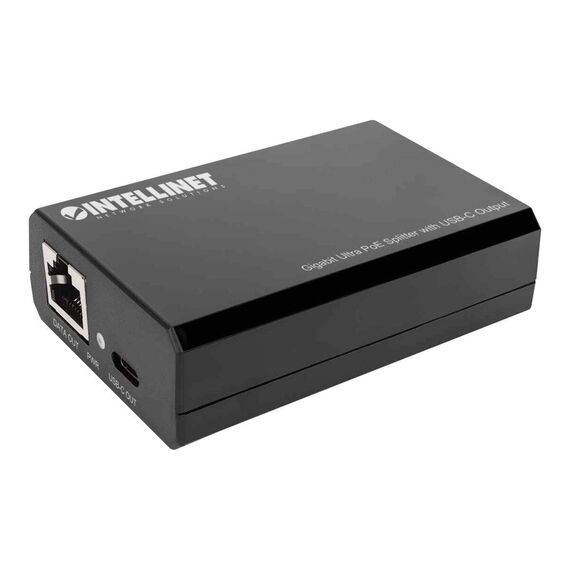

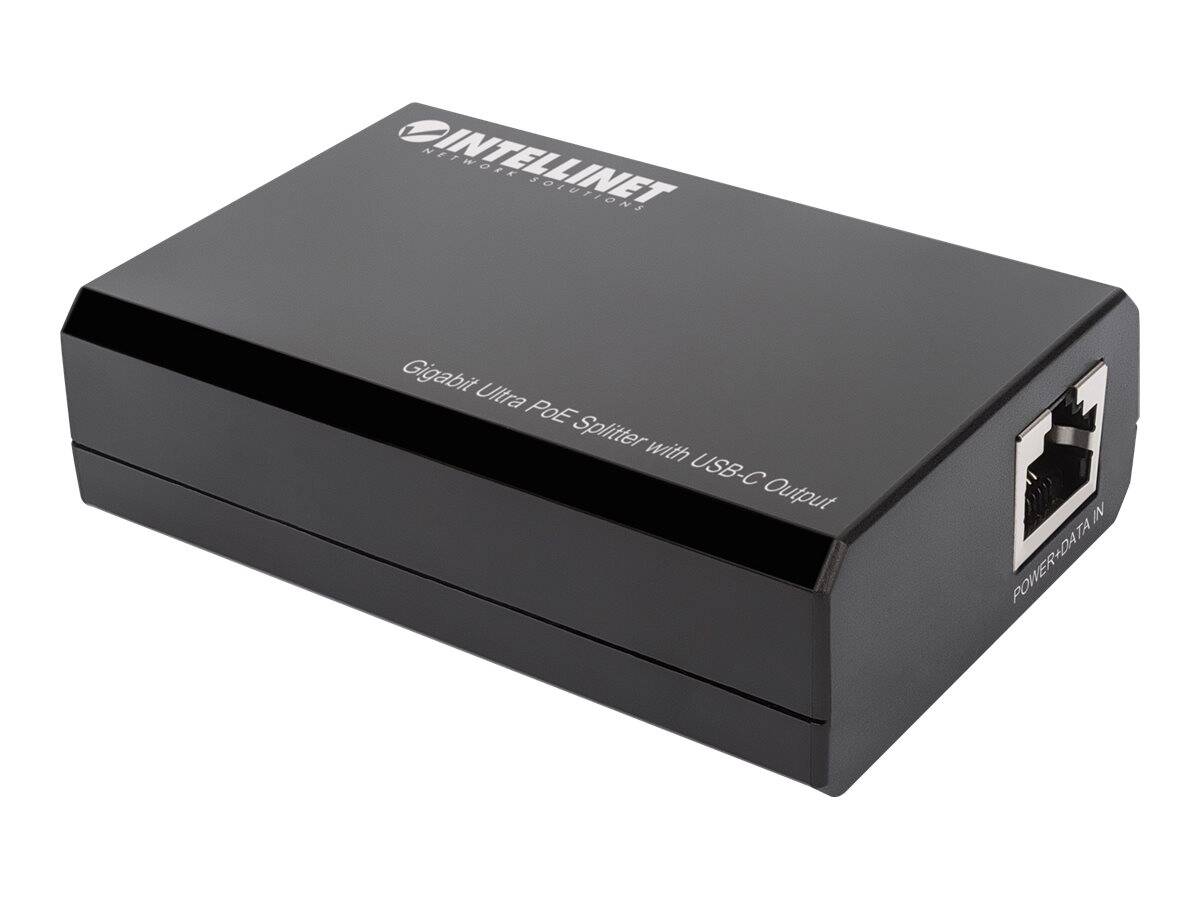

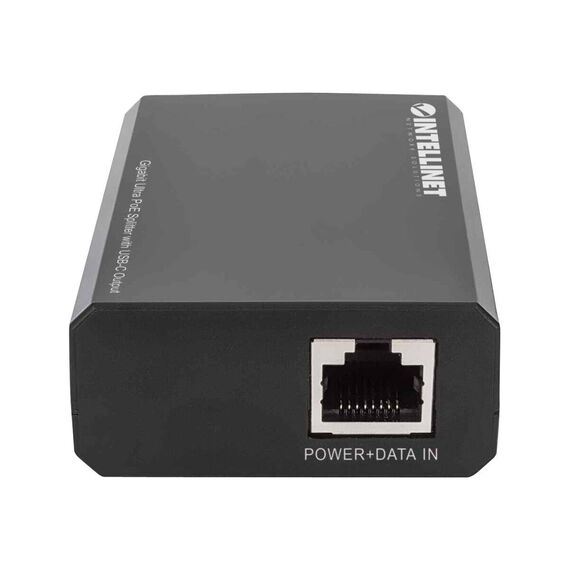

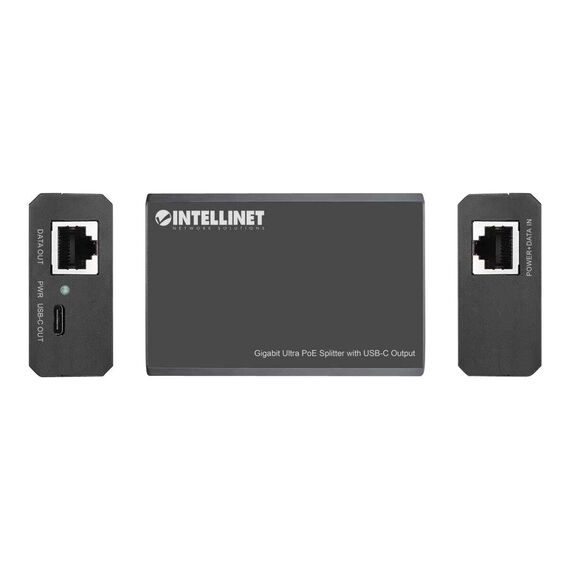

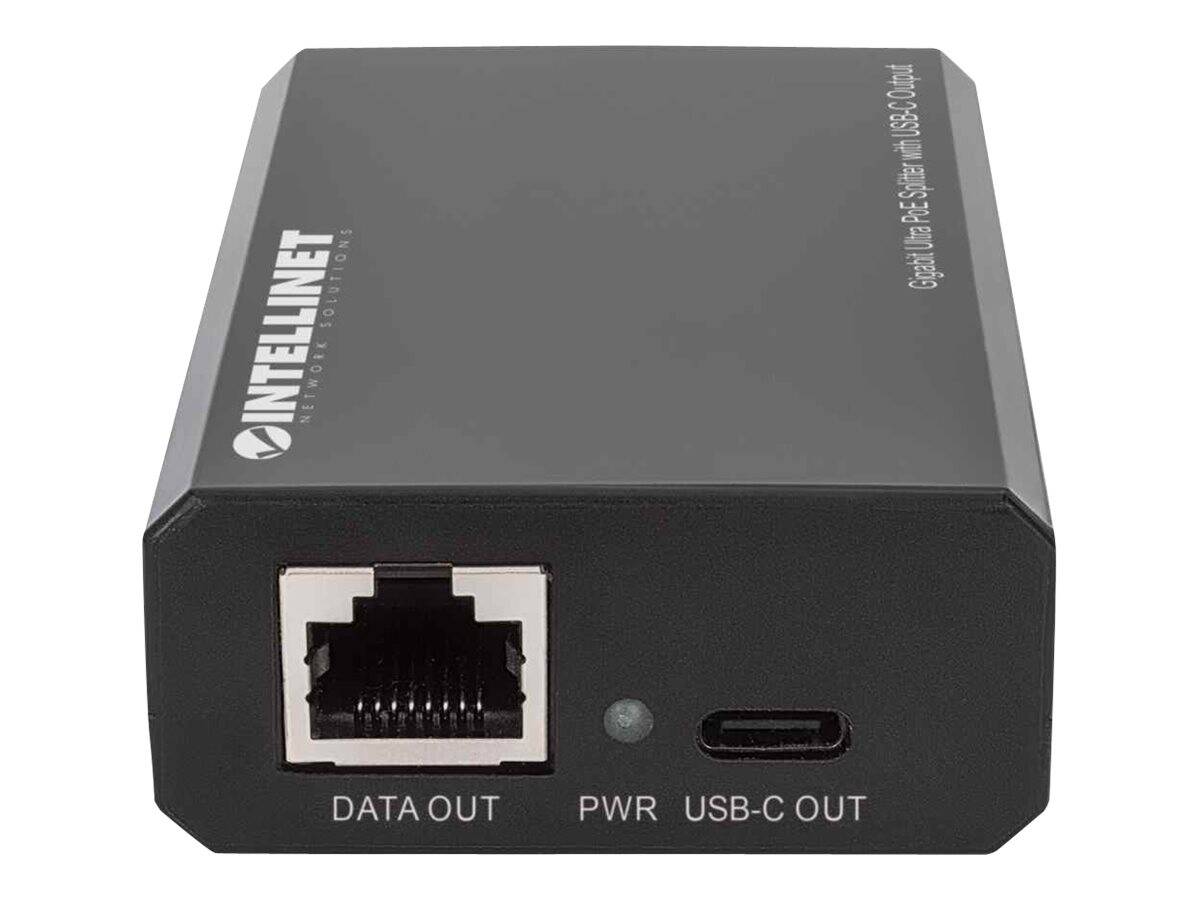

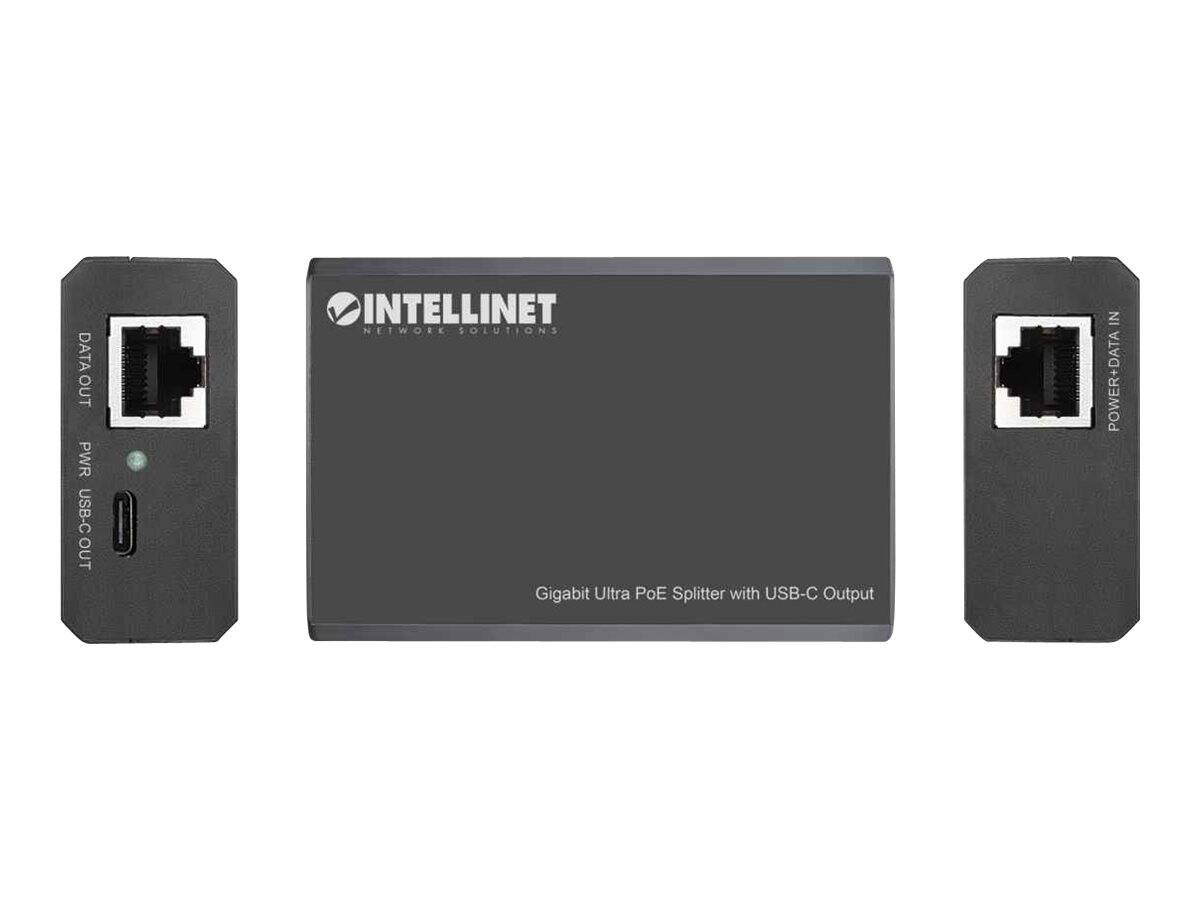

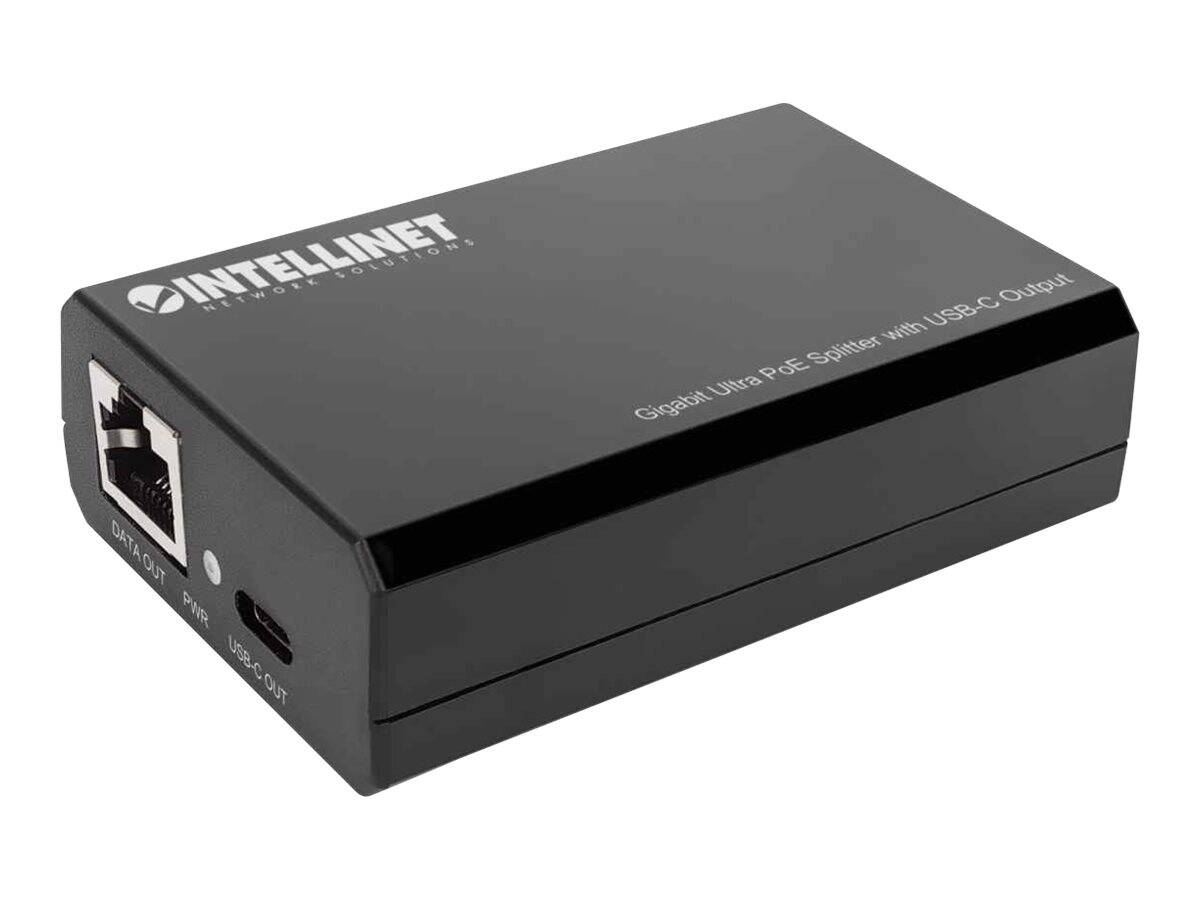

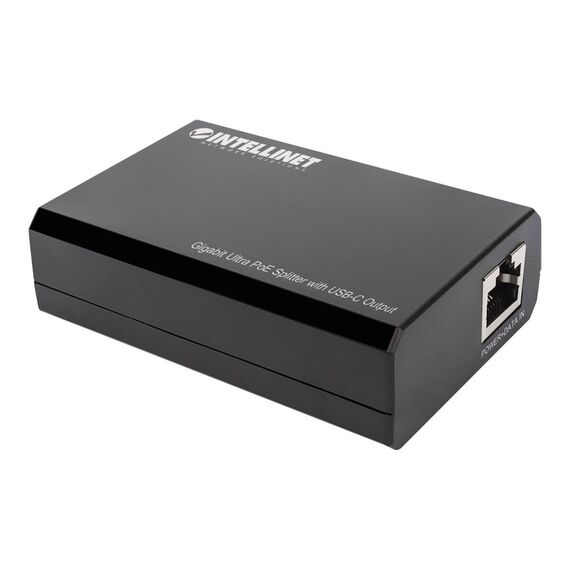

Intellinet PoE Splitter with USB-C Output, PoE++ / 4PPoE, Gigabit Ultra, IEEE 802.3bt, RJ45 In and Out Ports, Up to 45 W USB-C Output Port / PoE splitter / 45 Watt / output connectors: 1 | 561693
Please sign in so that we can notify you about a reply
Special Features
- Charges a USB-C powered device such as a notebook, Macbook Pro or tablet from a IEEE 802.3bt/at/af PoE connection
- Delivers Gigabit Ethernet to an RJ45-equipped device
- PoE power budget of 45 W with 60 W power input through IEEE 802.3bt connection
- PoE power budget of 23 W through IEEE 802.3at connection and 12 W through IEEE 802.3af connection
- Saves time and money by delivering data and power via existing network cables
- Overload, overcurrent and overheat protection
- Compatible with IEEE 802.3bt/at/af-compliant PoE injectors and PoE switches (PSE)
Product Specification
| Device Type | PoE splitter - external |
| Power Over Ethernet (PoE) | PoE++ (IEEE 802.3bt) |
| Power Device | Power Device |

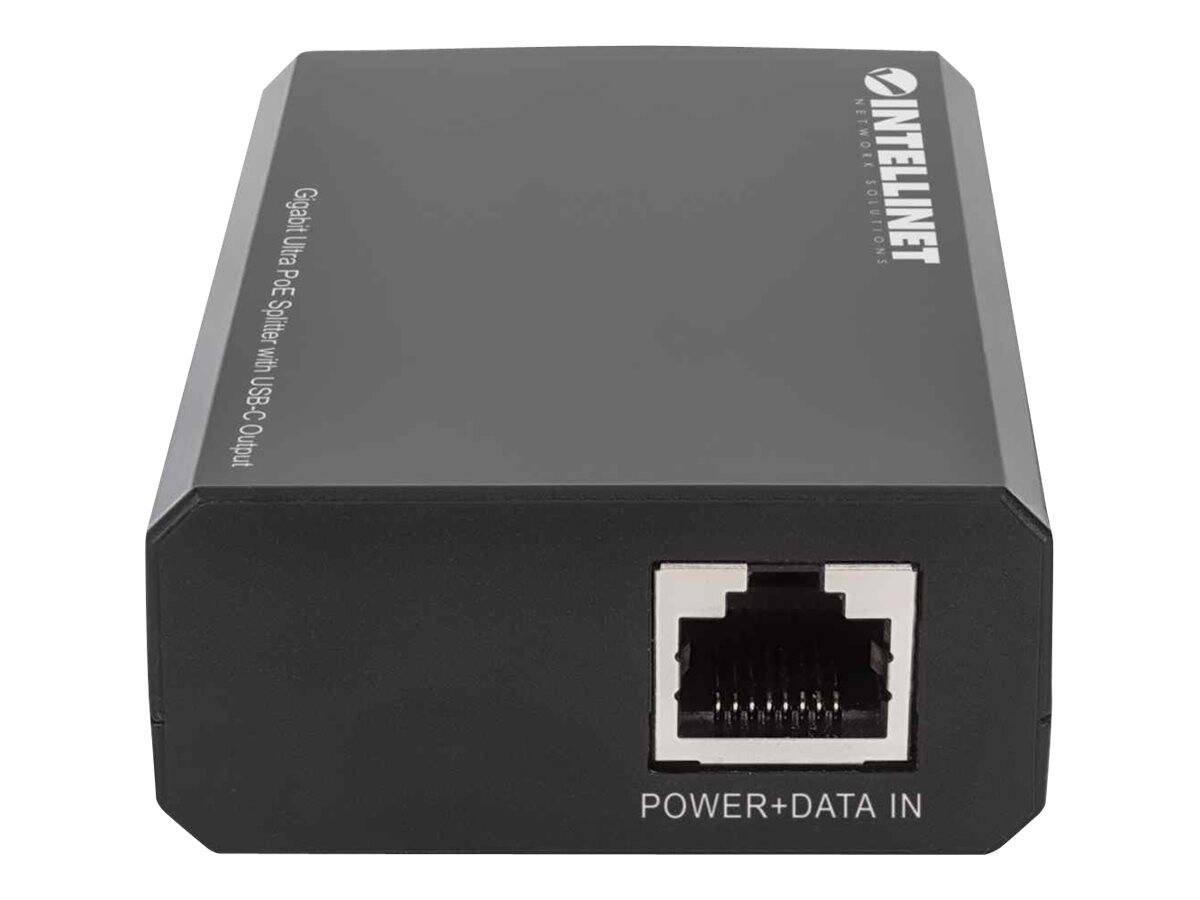

| Input Connectors | 1 x RJ-45 |
| Power Output Connectors Details | 1 x 24 pin USB-C |
| Output Voltage | 5 / 9 / 12 / 15 / 20 V |
| Power Capacity | 45 Watt |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x LAN - RJ-45 |
| Miscellaneous | Miscellaneous |
| Features | Plastic housing, overheat protection, over current protection, over voltage protection, overload protection, short-circuit protection, Power Delivery (PD) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, FCC Class A certified, RoHS |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Dimensions & Weight | Dimensions & Weight |
| Width | 8 cm |
| Depth | 5.4 cm |
| Height | 2.4 cm |
| Weight | 170 g |
Features - Intellinet - 561693
More Details
Product Code
04:361587
EAN Code
0766623561693
Manufacturer
Intellinet
