Intellinet 716178 19 Inch Wall Mount 2-Post Open Frame Network Rack 6U Swing Frame 400 mm Depth Flatpack with Cage Nuts Black

Brand:
Intellinet
Intellinet 716178 19" Open Frame Wall Rack 6U Black
Intellinet 716178 19 Inch Wall Mount 2-Post Open Frame Network Rack 6U Swing Frame 400 mm Depth Flatpack with Cage Nuts Black
€186.96 inc. VAT
Buy
716178
€157.11
€186.96 inc. VAT
Ships from EU stock: 3 item(s)
+ −
Add to wish list Ask a question
Product Code
04:433149
EAN Code
0766623716178
Manufacturer
Intellinet

Quick Specs

Rack Size
6U · 19″
Type
2-post open frame, swing
Installation Depth
400 mm
Max. Load
30 kg closed / 10 kg open
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Intellinet 716178 — 6U 19″ Wall Mount 2-Post Open Frame Network Rack, Black

6U · 19″Open frameSwing frameCage nuts included

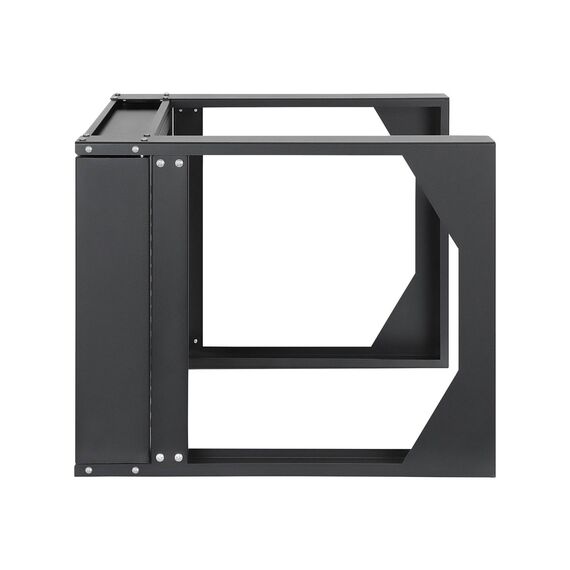

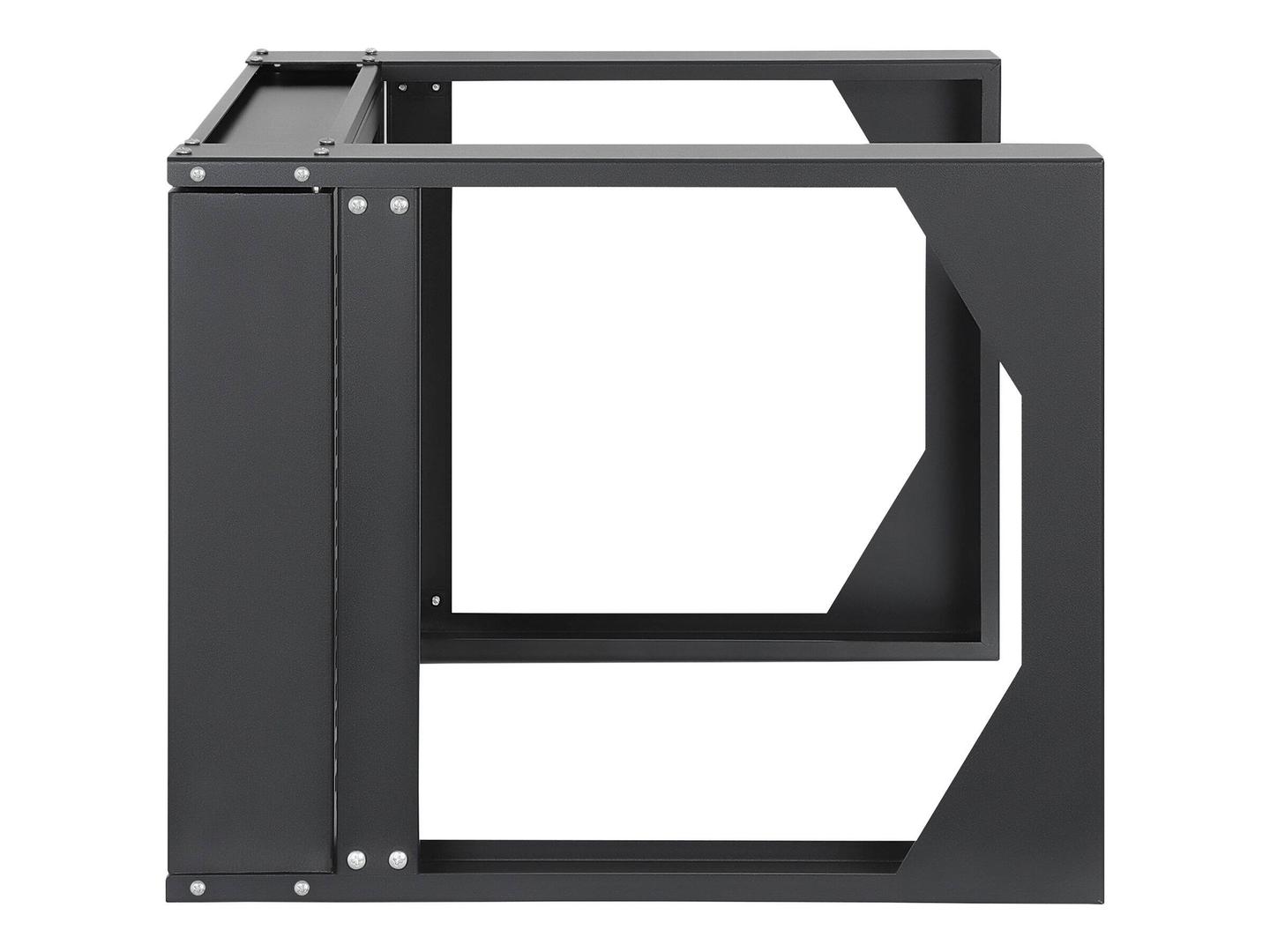

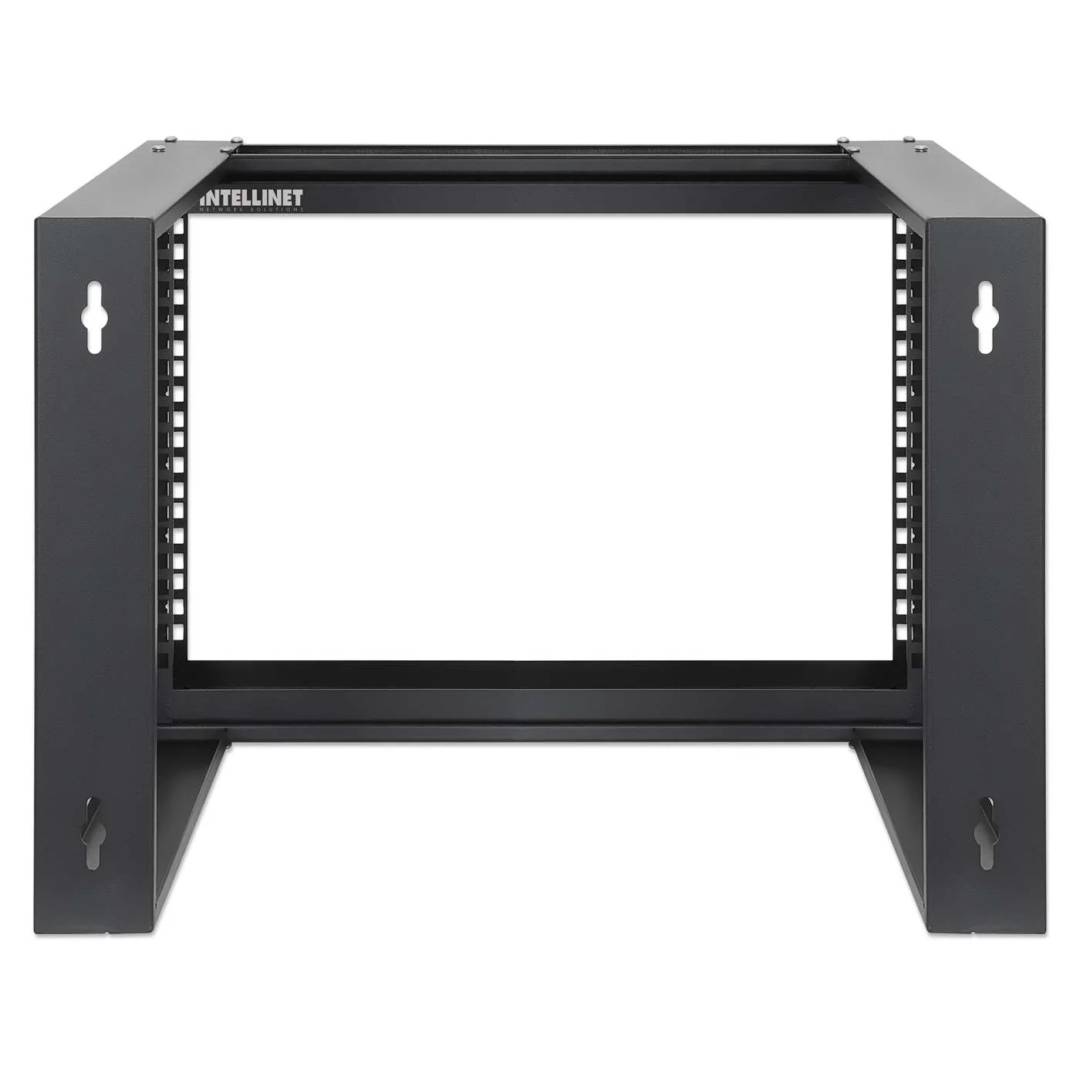

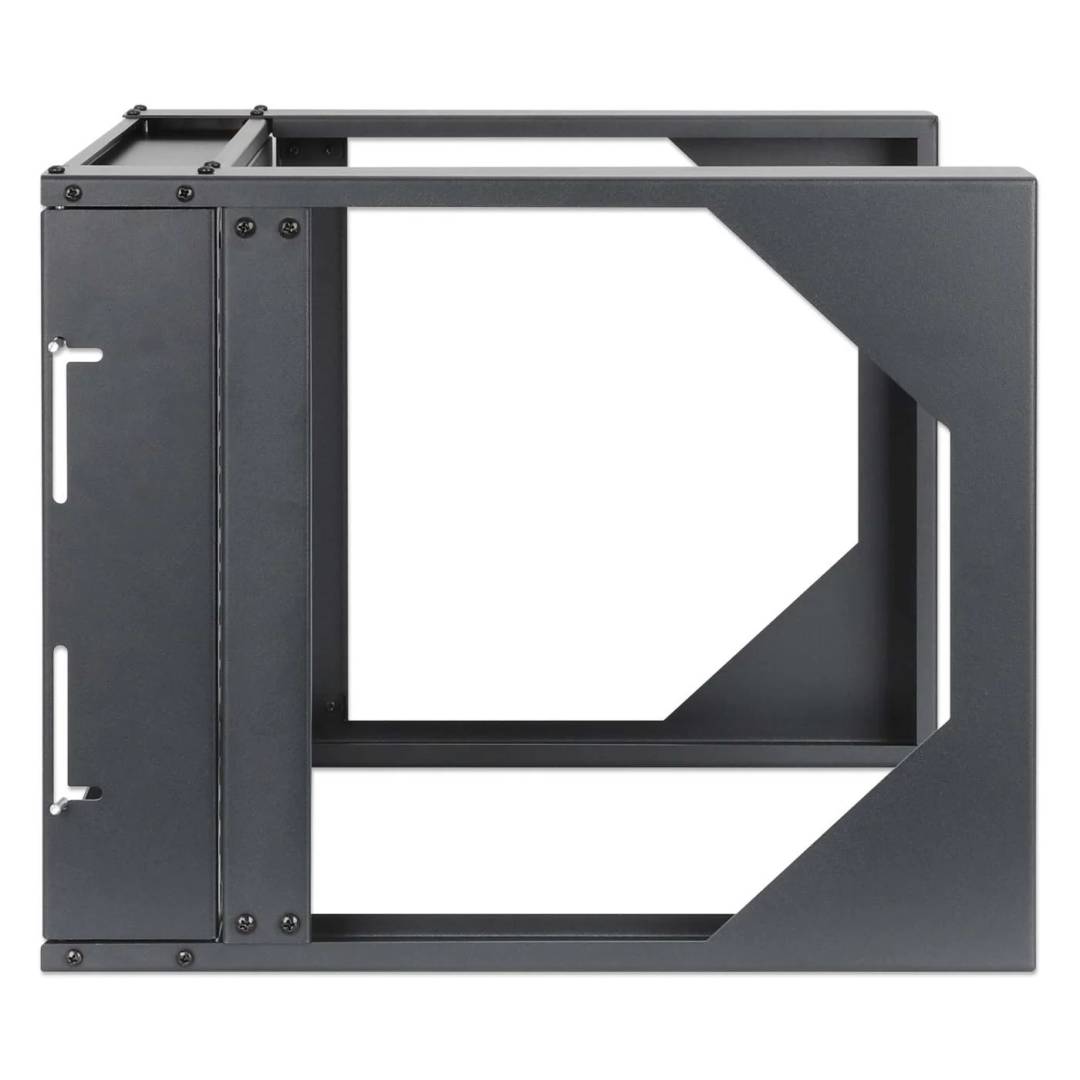

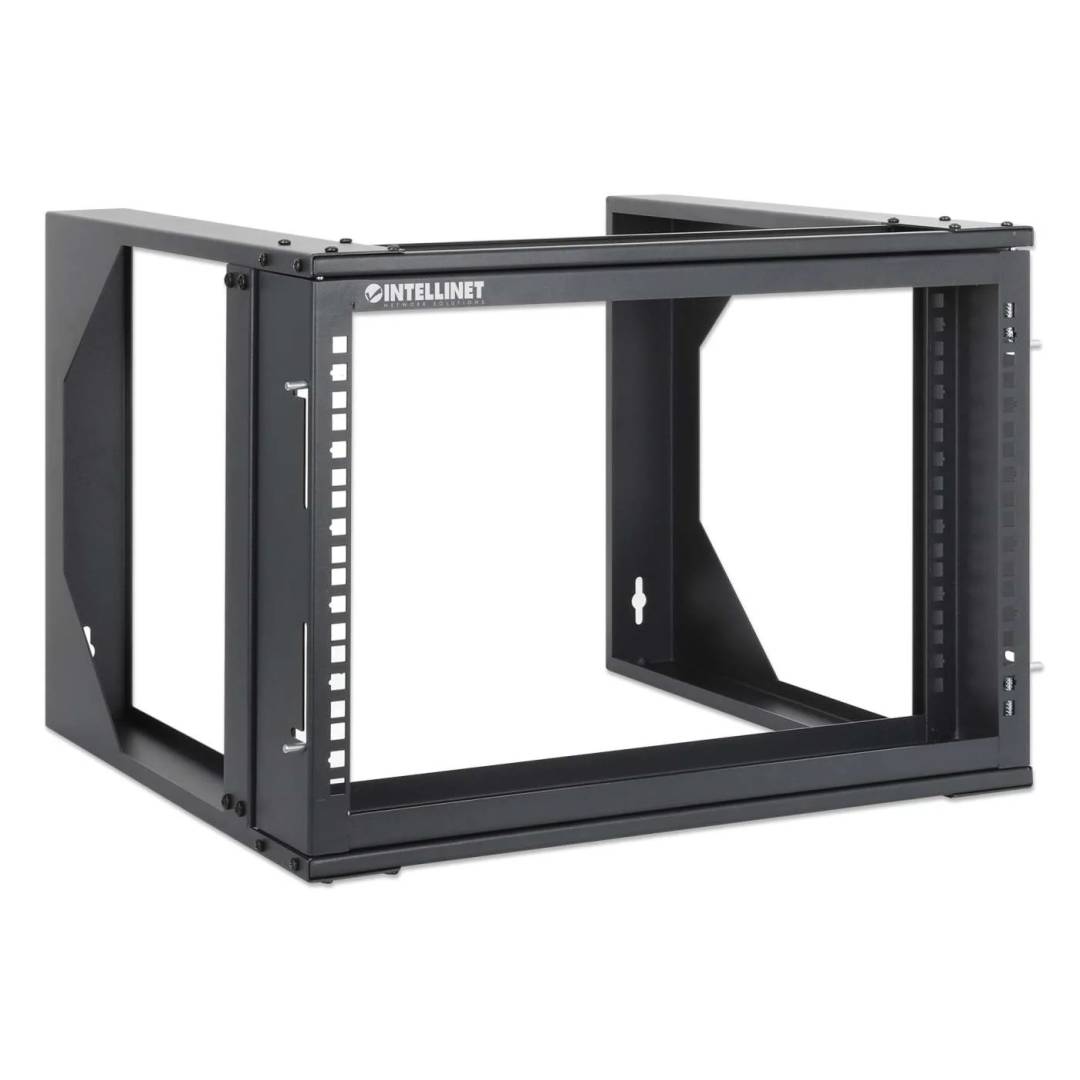

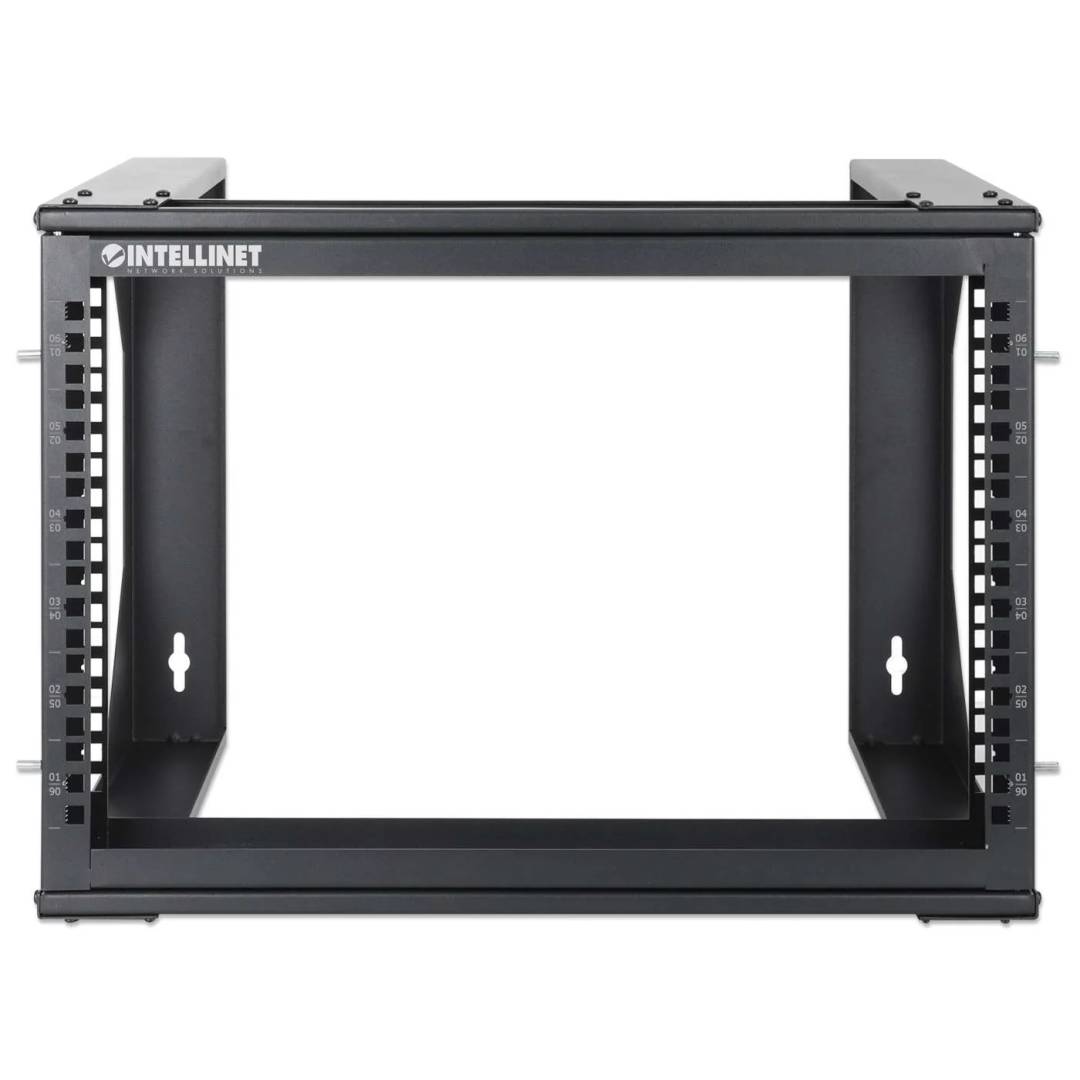

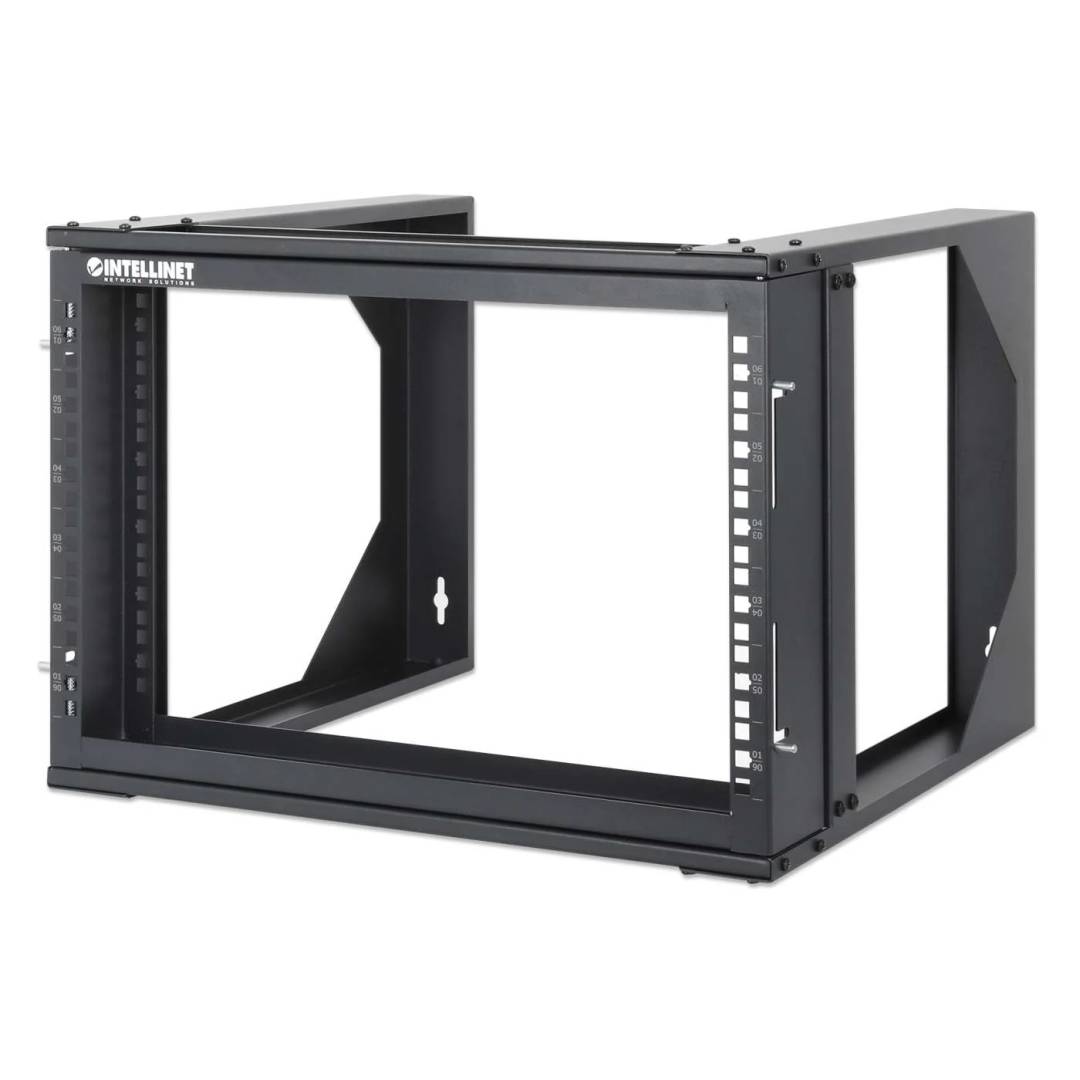

The Intellinet 716178 is a 6U, 19″ wall mount open frame network rack in black (RAL 9004): a 2-post steel frame with no door or side panels, 500 mm wide, 450 mm deep and 360 mm high, with 400 mm of usable installation depth. The front frame is hinged and swings open to the left or right, so the installer can reach the back of patch panels and switches without taking them off the wall. Cables can enter from every side, integrity bars keep the frame rigid, and the antistatic powder coat protects the steel. It ships as a flatpack with a full set of 20 M6 cage nuts, screws and washers plus the assembly screws, and conforms to IEC 60297-3 and ANSI/EIA 310-E. In practice it is a quick, open and low-cost way to put a patch panel and a switch on the wall of a technical room.

Compatibility — check before buying:
This is an open frame — no door, no lock, no side panels — so use it in a locked technical room or riser. Load is 30 kg with the frame closed and only 10 kg when it is swung open, so keep heavy equipment out of it. Wall mounting hardware is not included: choose fixings for your wall type. It takes 19″ equipment up to 400 mm deep. The 9U version is Intellinet 716185. Send us your equipment list and we check it.

Best For

✓ Technical and comms rooms
✓ Patch panel plus switch on the wall
✓ Installers who need rear access
✓ Risers and plant rooms
✓ Low-cost 19″ mounting
✓ Cabling from any direction

Key Features


Swing-out frame

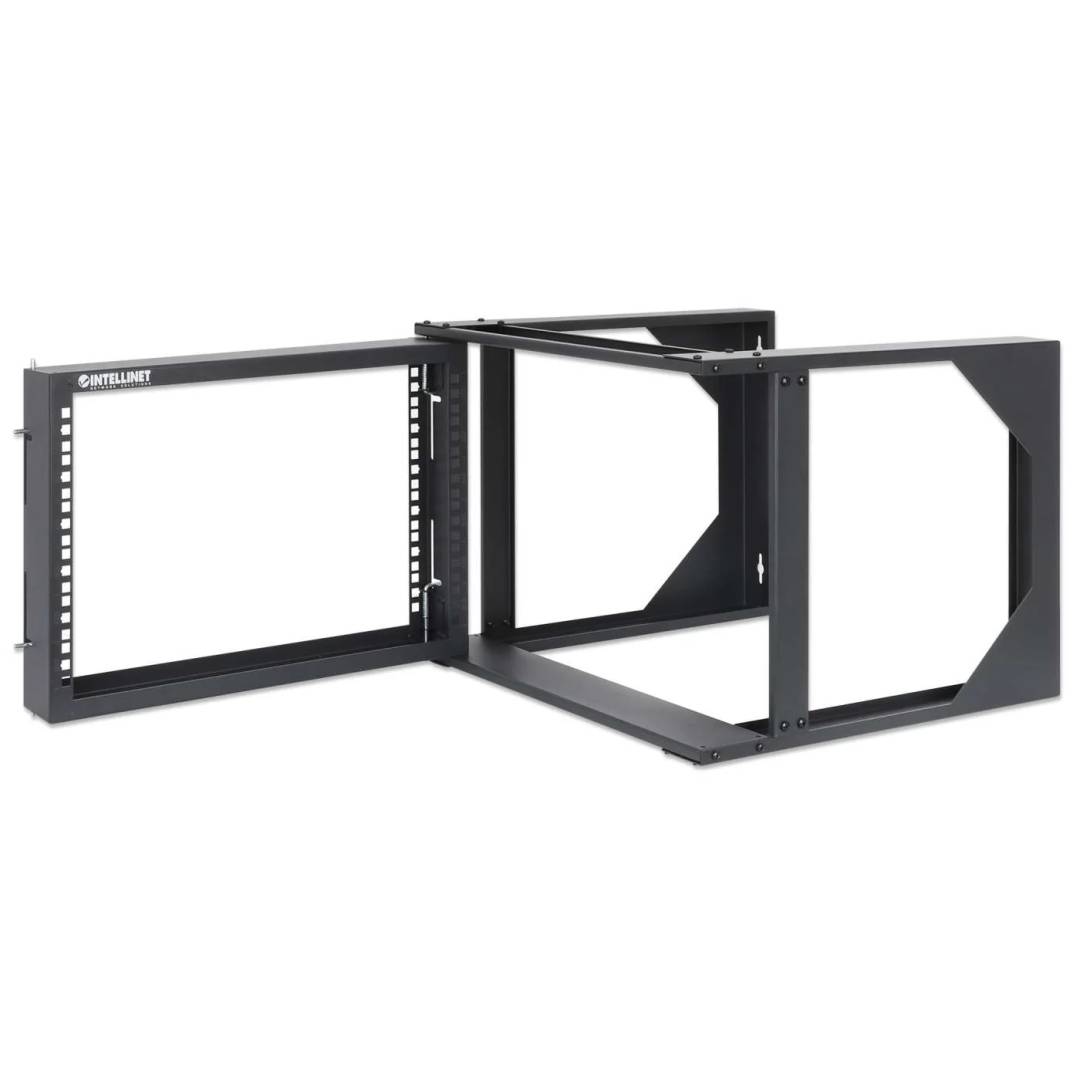

The hinged frame opens left or right for access to the rear of the equipment.

Open 2-post design
Cables can enter from all sides, and airflow is unrestricted.

Cage nut set included
20 M6 cage nuts, screws and washers come in the box.

Standards-based
Built to IEC 60297-3 and ANSI/EIA 310-E, with an antistatic powder coat.

Technical Specifications

Identification
Brand Intellinet
Product Intellinet 6U 19″ Wall Mount 2-Post Open Frame Network Rack, black
Part Number 716178
EAN / GTIN 0766623716178
Colour Black (RAL 9004)
Dimensions & Capacity
Rack Size 6U, 19″
External Size (W × D × H) 500 × 450 × 360 mm
Installation Depth 400 mm
Max. Load 30 kg frame closed, 10 kg frame open
Net Weight 6.6 kg
Construction
Type 2-post open frame, front swing frame (left or right)
Material Cold-rolled steel, antistatic powder coat
Colour Black (RAL 9004)
Standards IEC 60297-3, ANSI/EIA 310-E, RoHS
Mounting
Installation Wall mounting
Delivery Flatpack
Cable Entry From all sides
In the Box
Included Rack frame, 20 × M6 screws, 20 × M6 cage nuts, 20 × plastic washers, assembly screws, instructions
Not Included Wall mounting hardware (wall plugs and screws), door, side panels
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term Intellinet publishes a three-year warranty for this product on its European product page; terms vary by region. Singular’s direct warranty is 1 year; beyond that we assist you with the manufacturer’s warranty process for its full duration.

Frequently Asked Questions

Does it have a door?
No. It is an open frame rack for technical rooms. For a lockable enclosure choose a wall cabinet.
Why does it swing open?
The front frame is hinged so you can reach the back of patch panels and switches for cabling without removing them.
How much weight can it carry?
30 kg with the frame closed and 10 kg with the frame open, according to Intellinet.
Are wall screws included?
No. Cage nuts and screws for the equipment are included, but wall mounting hardware is not. We can add suitable fixings to your order.
Singular Expert Insight
We suggest the 716178 for technical rooms where a cabinet is not needed and fast access to the back of the patch panel matters. Keep the load limits in mind and order wall fixings with it. Every order comes with Singular’s local support in Cyprus. See our patch panels and network switches, or browse all racks and cabinets.

Buyer’s Guide

Buy it if

You need an open 6U 19″ wall rack with a swing frame in a secure room.

Skip it if

You need a door and lock, or want to mount heavy equipment.

Also consider

Intellinet 716185, the 9U version of the same rack.
