Inter-Tech IPC 2U Telescopic Slides 455 mm — Pull-Out Mounting for 2U 19-Inch Cases
2U455 mmRack depth 500-800 mmMax 30 kg

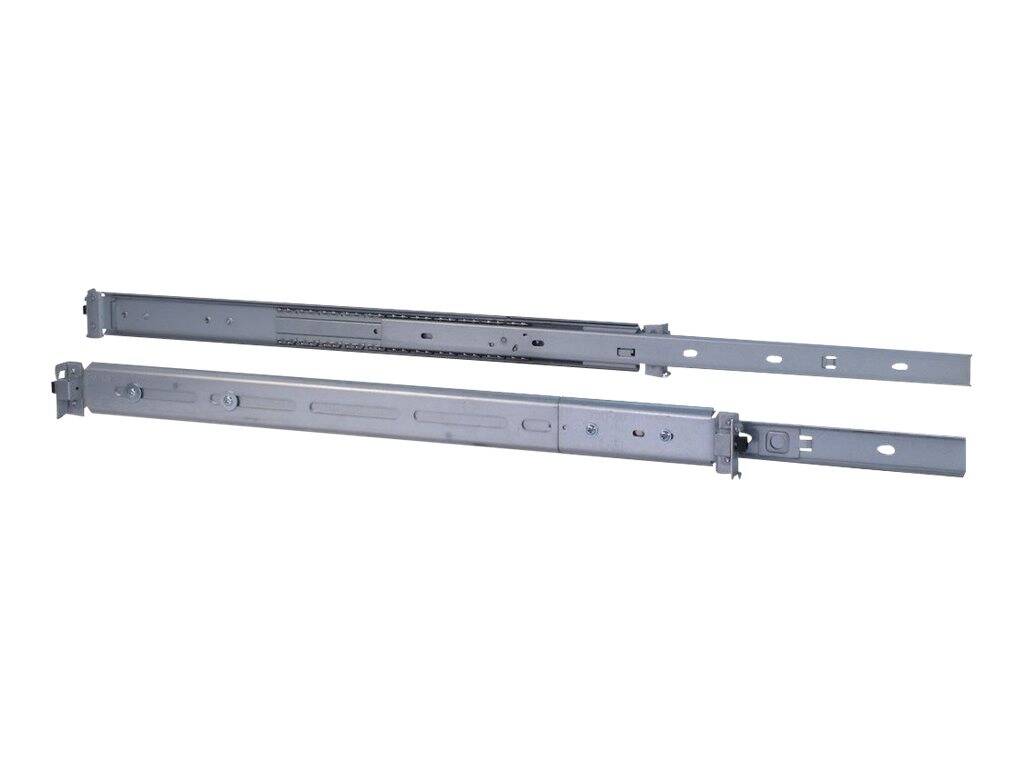

The Inter-Tech 88887221 is a set of 455 mm (18-inch) telescopic slides made for 2U 19-inch cases, fitting racks with a mounting depth of 500 to 800 mm and pulling the case out by up to 305 mm with a load of up to 30 kg.
With slides fitted, a 2U server or storage case can be drawn forward out of the cabinet to reach drives, fans and expansion cards, then pushed back and locked, without unscrewing the case or supporting its weight by hand. The slides snap into the rack and have an unlocking mechanism for removing the case completely. The 500 to 800 mm adjustment range covers most standard 600 mm and 800 mm deep server cabinets.
Before you order: These slides are the 2U version. Inter-Tech also sells a 1U 455 mm set as a separate product, so do not order this one for a 1U case. Your case must have side mounting points for slides.
What's in the Box
- 1 set of telescopic slides (left and right)
- Screws for mounting the slides on the case
What It Means in Practice
- Pull the case out by up to 305 mm for service, then slide it back in.
- Adjusts to rack depths from 500 to 800 mm, which covers most 600 mm and 800 mm deep cabinets.
- 30 kg load capacity for a typical populated 2U case.
- Snap-in rack mounting and an unlocking mechanism for fast installation and removal.
What Will Not Work
- 1U, 3U or 4U cases — this is the 2U set.
- Racks where the front-to-rear rail distance is less than 500 mm or more than 800 mm.
- Cases without side mounting points for slides.
- Loads above 30 kg.
Key Features
2U-specific
Mounting height of 40 mm with brackets, matched to 2U cases.
Wide depth range
Fits racks from 500 to 800 mm mounting depth.
305 mm extraction
Enough travel to open the case lid for service.
1.5 mm steel
Sturdy grey steel slides rated for 30 kg.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
Slides make sense for any 2U case that will be opened more than once a year — storage servers above all. Check the case height and the rail-to-rail depth, and you are done. More mounting parts are in our 19-inch rack accessories range.
✓ Buy it if you have a 2U 19-inch case with slide mounting points and a rack 500 to 800 mm deep.
✕ Skip it if your case is 1U or taller than 2U, or it is heavier than 30 kg.
→ Also consider the Inter-Tech IPC 20-inch or 26-inch telescopic rails for cases 2U and taller, or a fixed shelf if the case never needs to slide out.
Not sure it fits your case and cabinet? Send us the case model and the distance between your front and rear rack rails and we will check before you order.
Features - Inter-Tech - 88887221
Colour
grey
More Details
Product Code
04:230181
EAN Code
4260455641913
Manufacturer
Inter-Tech
