LANCOM SFP-DAC100-3M 60204 100G Direct Attach Cable 3 m for R&S Unified Firewalls with 2x 100G QSFP28 Extension Module

Brand:
Lancom Systems
LANCOM SFP-DAC100-3M 100G Direct Attach Cable 3 m
LANCOM SFP-DAC100-3M 60204 100G Direct Attach Cable 3 m for R&S Unified Firewalls with 2x 100G QSFP28 Extension Module
€321.75 inc. VAT
Buy
60204
€270.38
€321.75 inc. VAT
Ships from EU stock: 6 item(s)
+ −
Add to wish list Ask a question
Product Code
04:487483
EAN Code
4044144602047
Manufacturer
Lancom Systems

Quick Specs

Speed
Up to 100 Gbps
Length
3 m
Type
Direct attach cable
For
UF module 2x 100G QSFP28
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

R&S®LANCOM SFP-DAC100-3M — 100G, 3 m

100 Gbps3 mHot-swapFull duplex

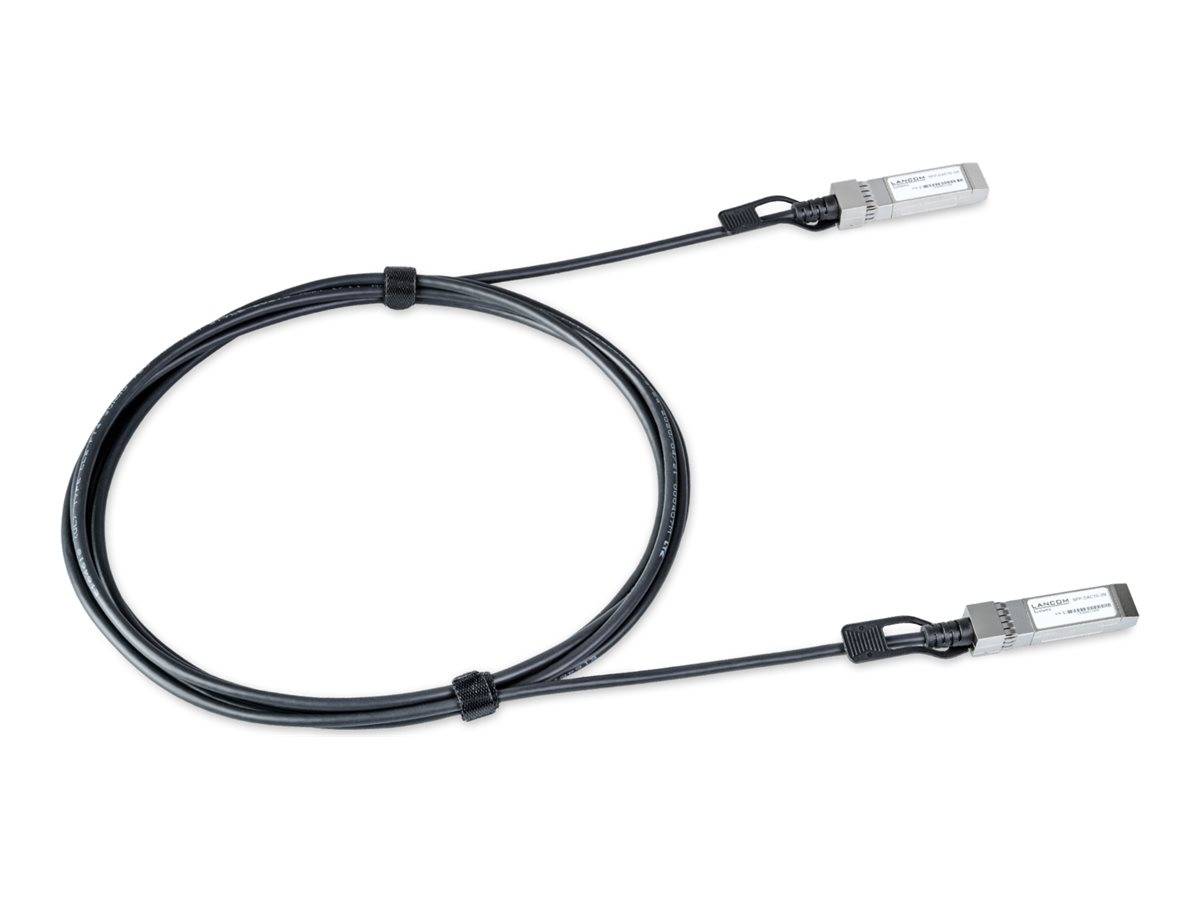

The LANCOM SFP-DAC100-3M (item number 60204) is a 3 m direct attach cable (DAC) for 100 Gbps connections between Rohde & Schwarz LANCOM devices. A DAC has the connectors fixed on both ends of the cable, so no separate transceivers are needed. It runs full duplex, can be swapped during operation and is rated for 0–70 °C. In the manufacturer’s compatibility table the 100G DAC is listed for the R&S Unified Firewall extension module 2× 100G QSFP28. In practice it links two 100G ports in the same or neighbouring racks at the lowest cost.

Compatibility — check before buying:
For 100G QSFP28 ports — not SFP+. Despite the “SFP” in its name, the only device listed for this cable is the Unified Firewall extension module with two 100G QSFP28 ports, so it will not plug into SFP+ or SFP28 switch ports. For 10G, 25G or 40G links LANCOM makes separate DAC cables (DAC10, DAC25, DAC40). The cable is 3 m; a 1 m version is 60203. Not sure? Tell us your model and we check it for you.

Best For

✓ R&S Unified Firewalls
✓ 100G uplinks in one rack
✓ Firewall-to-switch links
✓ Data-centre cabinets
✓ Low-cost short 100G links
✓ Replacing optics on short runs

Key Features


100 Gbps
Full-duplex link speed up to 100 Gbps.

No transceivers
Connectors fixed on both cable ends.

Hot-swappable
Can be changed during operation.

3 m length
For links within a rack or to the next one.

Technical Specifications

Identification
Brand LANCOM
Product R&S®LANCOM SFP-DAC100-3M
Part Number 60204
EAN / GTIN 4044144602047
Item number 60204
Product Type 100G direct attach cable, 3 m
Cable
Type Direct attach cable (DAC)
Link speed Up to 100 Gbps, full duplex
Length 3 m
Hot-swap Yes
Compatibility
Listed device R&S Unified Firewall extension module 2× 100G QSFP28
Other lengths SFP-DAC100-1M (60203)
Also offered 8-piece bulk package
Environment
Operating temperature 0 to 70 °C
Before You Order
Your ports 100G QSFP28
Distance Both devices within 3 m
Other speeds Choose the matching DAC10/25/40 cable
In the Box
Included 1 direct attach cable
Not Included Transceivers (not needed); the devices it connects
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term LANCOM publishes a 2-year warranty in the datasheet for its direct attach cables. Singular’s direct warranty is 1 year; beyond that we assist you with the manufacturer’s warranty process for its full duration.

Frequently Asked Questions

Does it fit an SFP+ port?
No. It is a 100G cable for QSFP28 ports.
Do I need transceivers?
No. The connectors are part of the cable.
How long is it?
3 m.
Which LANCOM device uses it?
The listed device is the Unified Firewall 2× 100G QSFP28 extension module.
Singular Expert Insight
For short 100G links a DAC is cheaper and uses less power than a pair of optics. Check the port type first — QSFP28 and SFP28 look similar in a spec sheet but are not interchangeable. See our firewalls and network switches.

Buyer’s Guide

Buy it if

You connect two 100G QSFP28 ports up to 3 m apart.

Skip it if

Your ports are SFP+ or SFP28.

Also consider

LANCOM SFP-DAC100-1M (60203) for 1 m links.

Features - Lancom Systems - 60204

Length
3.0m
More Details
Product Code
04:487483
EAN Code
4044144602047
Manufacturer
Lancom Systems
