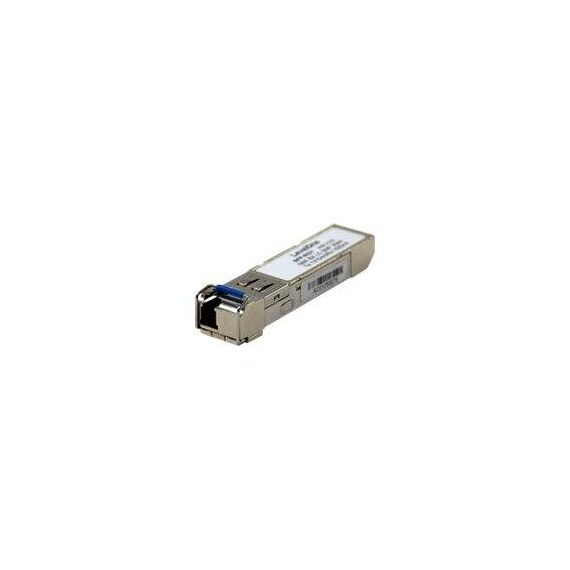

LevelOne SFP-9221 / SFP (mini-GBIC) transceiver module / GigE / Fibre Channel, 1000Base-BX10-U / LC single-mode / up to 10 km / 1310 (TX) / 1550 (RX) nm | SFP-9221
Please sign in so that we can notify you about a reply
Special Features
- AC/AC differential electrical interface
- RoHS compliant and lead-free
- Compliant with Multi-Source Agreement (MSA) Small Form Factor Pluggable (SFP)
- Single LC connector
- Compliance with specifications for IEEE802.3z Gigabit Ethernet at 1.25 Gbps
- Compliance with ANSI specifications for Fiber Channel applications at 1.06 bps
- Eye safety designed
Product Specification
| Device Type | SFP (mini-GBIC) transceiver module |
| Form Factor | Plug-in module |
| Networking | Networking |
| Connectivity Technology | Wired |
| Cabling Type | Fibre Channel, 1000Base-BX10-U |
| Data Link Protocol | GigE |
| Data Transfer Rate | 1.25 Gbps |
| Optical Wave Length | 1310 (TX) / 1550 (RX) nm |
| Line Coding Format | NRZ |
| Max Transfer Distance | 10 km |
| Features | Hot swap module replacement |
| Compliant Standards | IEEE 802.3z |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x Fibre Channel / Ethernet 1000Base-BX10-U - LC single-mode female |
| Miscellaneous | Miscellaneous |
| Compliant Standards | FCC, RoHS, Laser Class 1, EN 60825-1, MSA |
| Dimensions & Weight | Dimensions & Weight |
| Width | 1.37 cm |
| Depth | 5.65 cm |
| Height | 0.895 cm |
| Weight | 20 g |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 70 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
Features - LevelOne - SFP-9221
More Details
Product Code
04:117375
EAN Code
4015867154779
Manufacturer
LevelOne
