LevelOne GVT-2001 Gigabit Media Converter, RJ45 to SC Multimode, 850 nm, up to 550 m

Brand:
LevelOne

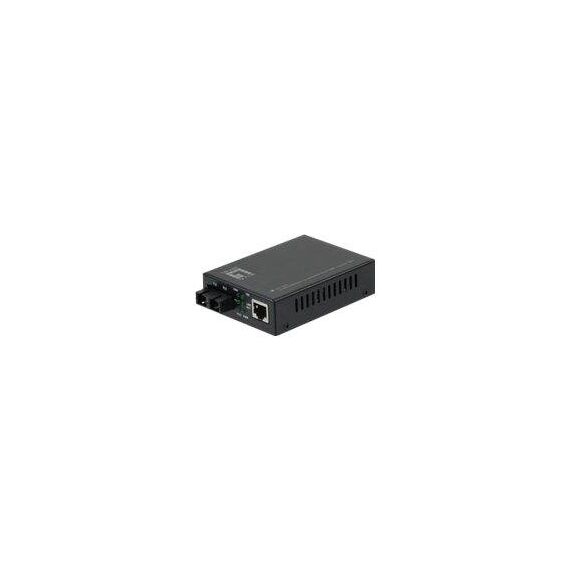

LevelOne GVT-2001 Gigabit RJ45 to SC Multimode Media Converter
LevelOne GVT-2001 Gigabit Media Converter, RJ45 to SC Multimode, 850 nm, up to 550 m
€91.05 inc. VAT
Buy
GVT-2001
€76.51
€91.05 inc. VAT
Ships from EU stock: 297 item(s)
+ −
Add to wish list Ask a question
Product Code
04:156047
EAN Code
4015867185162
Manufacturer
LevelOne

Quick Specs

Copper
RJ45 10/100/1000
Optical connection
SC multimode
Wavelength / reach
850 nm / up to 550 m
Link monitoring
Smart LFP / DIP
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Gigabit Copper to Multimode Fibre

RJ45 → SC1 Gbps850 nm550 m

Extend a copper Ethernet connection over a planned multimode fibre route. GVT-2001 combines an auto-sensing 10/100/1000 RJ45 port with built-in 850 nm SC optics, rated by LevelOne for links up to 550 m. It works as a standalone converter or in a CHV-2000 chassis; Smart LFP and DIP controls help configure and monitor the link.

Compatibility — check before buying:
Match multimode fibre, SC termination, 850 nm optics and the link budget at the other end. The 550 m figure is a manufacturer maximum, not a guarantee for every installed route. This is unmanaged and does not supply PoE.

Key Features


Built-in multimode SC optics
The fixed 850 nm optical connection removes SFP selection from this converter. Confirm the fibre route and remote optical specification before choosing it.

Detect link faults
Smart LFP propagates link faults across the conversion point. DIP switches provide local configuration.

Standalone or chassis installation
Use the supplied power adapter for a standalone link, or install the converter in a compatible CHV-2000 19-inch chassis. Jumbo frames are supported up to 9 kB.

Technical Specifications

Identification
Model GVT-2001
EAN / GTIN 4015867185162
Network and optics
Copper port RJ45, auto-sensing 10/100/1000Base-T
Fibre port SC, multimode
Data rate 1 Gbps
Wavelength 850 nm
Optical reach Up to 550 m, with matching multimode fibre and optical link budget
Jumbo frames Up to 9 kB
Flow control IEEE 802.3x
Link monitoring Smart LFP
Configuration DIP 1: LFP; DIP 2/3 OFF/OFF store-and-forward (default), OFF/ON cut-through, ON/OFF smart pass-through, ON/ON pass-through
Management Unmanaged
PoE Not supported
Installation Standalone or CHV-2000 19-inch 14-slot chassis
Physical and environment
Colour Black
Dimensions (W × D × H) 94 × 70 × 25 mm
Weight 0.42 kg
Grade Commercial
Power supply Power adapter included
Operating temperature -10°C–55°C
Operating humidity 5%–90% RH
Buffer 768K, manufacturer reference
Standards IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.3z
Indicators PWR; TX FDX, 100, 1000, Link/Act; FX Link/Act

What's in the Box

GVT-2001
Power adapter
Quick Installation Guide

Frequently Asked Questions

Will it work with single-mode fibre?
Choose multimode fibre for the built-in 850 nm SC interface. A single-mode installation requires matching single-mode optics.
Is an SFP module required?
No. The SC optical interface is built in; it is not an open SFP slot.
Does every 550 m route work?
Check fibre loss, connections and the optical budget against the remote equipment. The manufacturer reach is an upper reference for a suitable link.
Singular Expert Insight
Choose this model around its fixed SC multimode optical specification. Verify the remote wavelength and loss budget before using the 550 m reach as a selection criterion. Choose multimode fibre cabling with matching SC terminations

Buyer’s Guide

Buy it if

You need Gigabit copper-to-SC multimode conversion at 850 nm.

Skip it if

The route is single-mode, needs a pluggable SFP or requires remote management.

Also consider

A single-mode SC converter for a longer single-mode route, or an SFP model for flexible optics.

Features - LevelOne - GVT-2001

Colour
black
Interface
  • Ethernet
Port Speed
  • 1 Gbps
More Details
Product Code
04:156047
EAN Code
4015867185162
Manufacturer
LevelOne
