LevelOne 10/100/1000BASE-T-1000BASE-X (GVT-2000)

LevelOne Y983231

Hover over an image to enlarge

76.45
(Including VAT)
8 item(s)
+
GVT-2000
Product Code:Y983231
EAN Code:4015867185179
Manufacturer:LevelOne

Free Store
Pickup

Delivery within 2-4
business days

2 Years Warranty

LevelOne GVT-2000 LevelOne 10/100/1000BASE-T-1000BASE-X (GVT-2000)

LevelOne 10/100/1000BASE-T-1000BASE-X (GVT-2000)

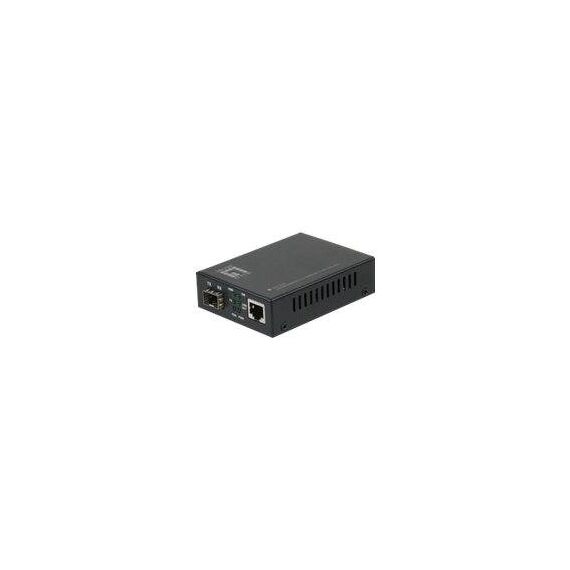

The GVT-2000 media converter is able to convert network signals between copper and fiber-optic based networks. The converter provides a SFP slot for 1000Base-X Gigabit optic module and a 10/100/1000Base-T RJ-45 port, supports full duplex and half duplex switch connectivity and 10Base-T, 100Base-TX and 1000Base-T auto-sensing.

The device features built-in Dip switches for easy converter configuration, which function on the Smart LFP Link Fault Pass-through, allowing the converter to monitor both the fiber and copper ports for signal loss, as well as cut through and smart pass through mode.

The GVT-2000 is able to operate in temperatures from -10° up to 55° Celsius. The converter can be used as a standalone unit or as a slide-in module to the CHV-2000 19” converter rack, which can accommodate up to 14 units for use in a central wiring closet.

Feature list

Data transfer rate max: 1000 Mbit/s
Converter input interface: 1000Base-T, 100Base-TX, 10Base-T
Fiber optic connector: SFP
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Auto MDI/MDI-X: Y
Duplex system: Full, Half
Ethernet LAN data rates: 10, 100, 1000 Mbit/s
Ethernet interface type: Gigabit
Converter output interface: 1000Base-SX
Connectivity technology: Wired
Ethernet LAN RJ-45 ports: 1
Fiber ports quantity: 1
DC-in jack: Y
Internal: N
LED indicators: Y
Colour of product: Black
Input voltage: 5 V
Input current: 2 A
Operating temperature T-T: -10 - 55 °C
Storage temperature T-T: -40 - 75 °C
Operating relative humidity H-H: 5 - 90 %
Certification: CE, FCC
Width: 71 mm
Depth: 94 mm
Height: 26 mm
Weight: 420 g
