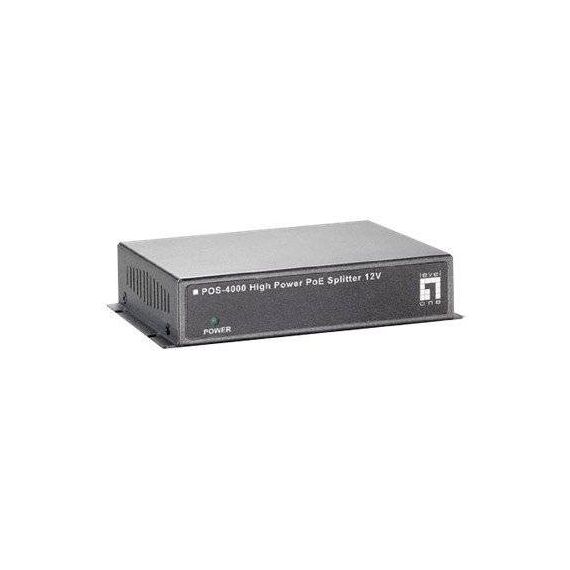

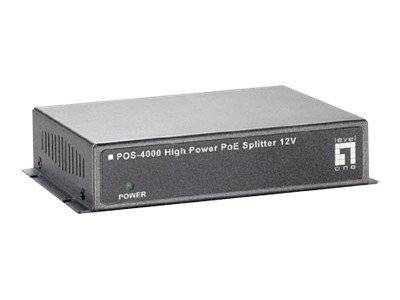

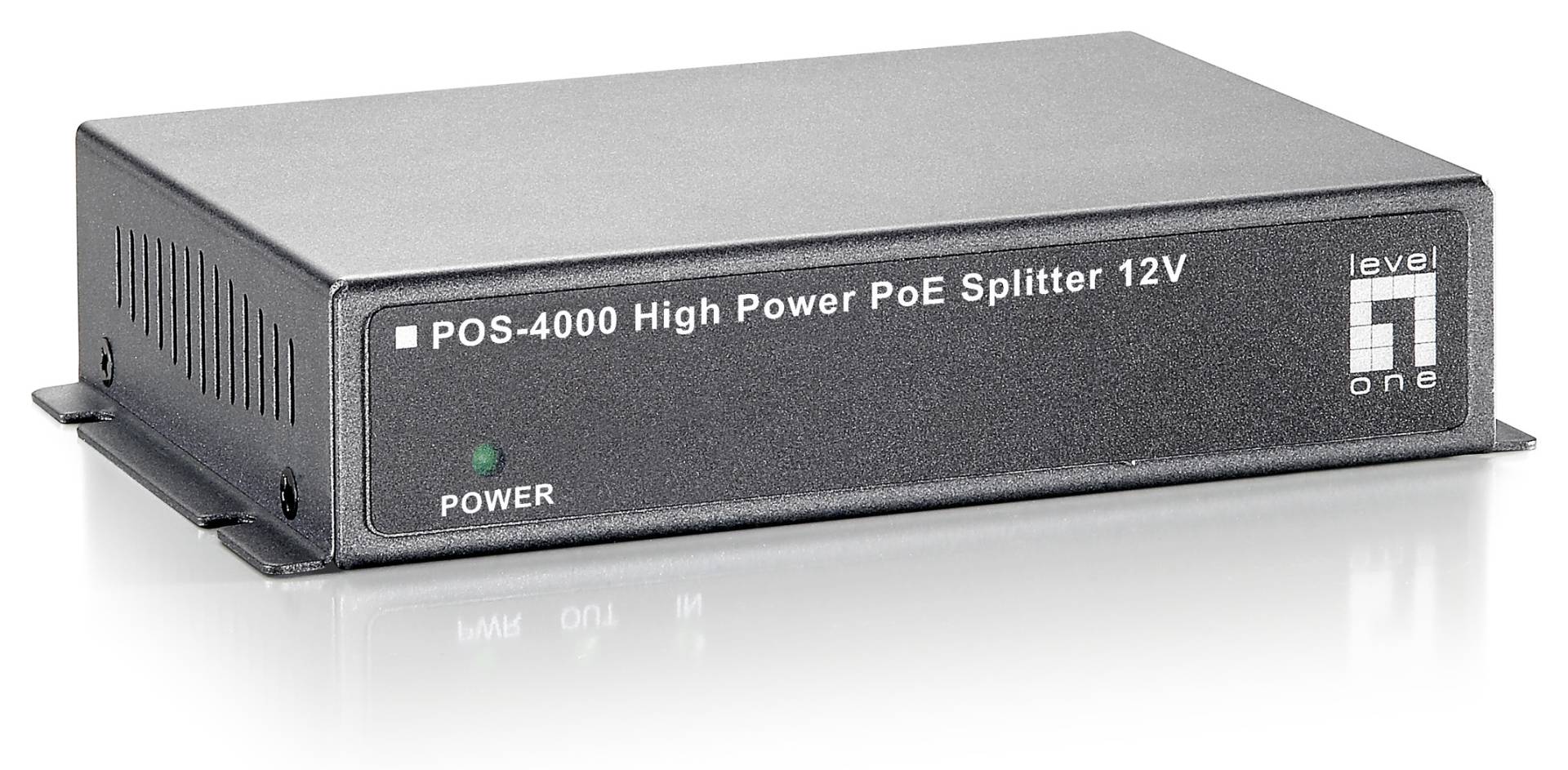

LevelOne POS-4000 High-Power PoE Splitter, 12V DC 2.5A 30W Output, Fast Ethernet, for LevelOne High-Power Injectors, Grey
Brand:
LevelOne
LevelOne POS-4000 High-Power PoE Splitter, 12V DC 2.5A 30W Output, Fast Ethernet, for LevelOne High-Power Injectors, Grey
€82.46 inc. VAT
POS-4000
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
LevelOne POS-4000 — 12 V / 30 W at the device, from a LevelOne high-power PoE source
12V DC · 2.5A · 30WFast EthernetNon-standard high-power PoEUp to 100 m
The LevelOne POS-4000 is a high-power PoE splitter that separates power and data from one Ethernet cable into a 10/100 Mbps RJ45 data port and a fixed 12 V DC output of up to 2.5 A (30 W). It is designed to work with LevelOne’s own high-power PoE sources — POI-4000, FSW-0513 and POH-1260 — to run a non-PoE camera, access point or IP phone up to 100 m away.

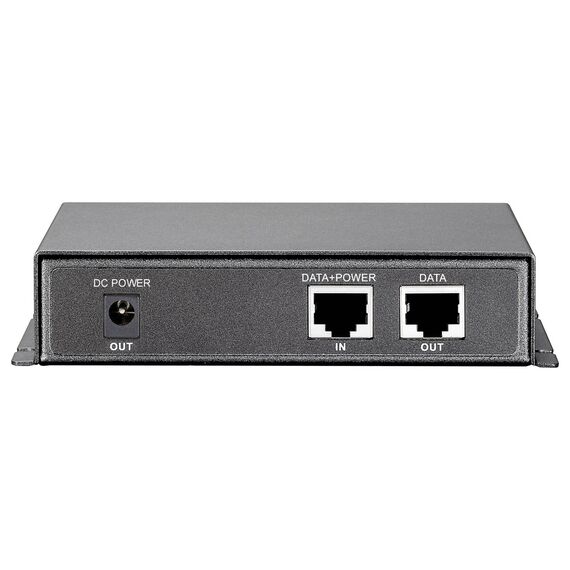

Connect the PoE cable from the LevelOne injector to the splitter, the device’s network port to the data output and its 12 V power input to the DC jack.
Before you order: The POS-4000 supports only LevelOne’s non-standard high-power PoE source input. It will not work from a standard IEEE 802.3af/at switch or injector — make sure your source is a LevelOne POI-4000, FSW-0513 or POH-1260.
What's in the Box
- LevelOne POS-4000 High-Power PoE Splitter
- Output power jack
- Quick Installation Guide
What It Means in Practice
- A 12 V device using up to 30 W can be mounted where only a network cable reaches.
- Data runs at 10/100 Mbps — fine for cameras and phones of that generation.
- Overload, short-circuit and current-limit protection protect the device at the far end.
- Typical use: replacement or expansion in existing LevelOne high-power PoE installations.
What Will Not Work
- Standard 802.3af/at PoE switches and injectors cannot power it.
- No Gigabit — data is limited to 100 Mbps.
- The output is fixed at 12 V; 5 V, 9 V, 19 V or 24 V devices are not supported.
- It is not an injector and does not supply PoE to other devices.
Key Features
30 W at 12 V
Fixed 12 V DC, up to 2.5 A.
LevelOne high-power PoE
Matched to POI-4000, FSW-0513 and POH-1260 sources.
Protection
Overload, short-circuit and current-limit protection.
Plug and play
No configuration, up to 100 m from the source.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
This is a matching part for existing LevelOne high-power PoE setups, not a general-purpose splitter. If you are starting fresh with a standard PoE+ switch, a standard 802.3at splitter with selectable voltage is the right choice for your IP camera or device.
✓ Buy it if you already run a LevelOne POI-4000, FSW-0513 or POH-1260 and need a 12 V / 30 W output.
✕ Skip it if your PoE source is a standard 802.3af/at switch or injector, or you need Gigabit.
→ Also consider PLANET POE-171S Ultra PoE splitter (12/19/24 V, Gigabit) for standard 4-pair sources.
Tell us which injector or switch you have and we will confirm whether the POS-4000 or a standard splitter is the right part.
