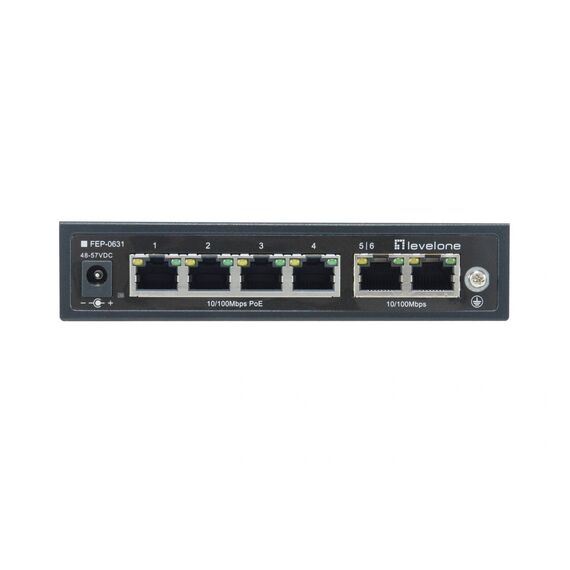

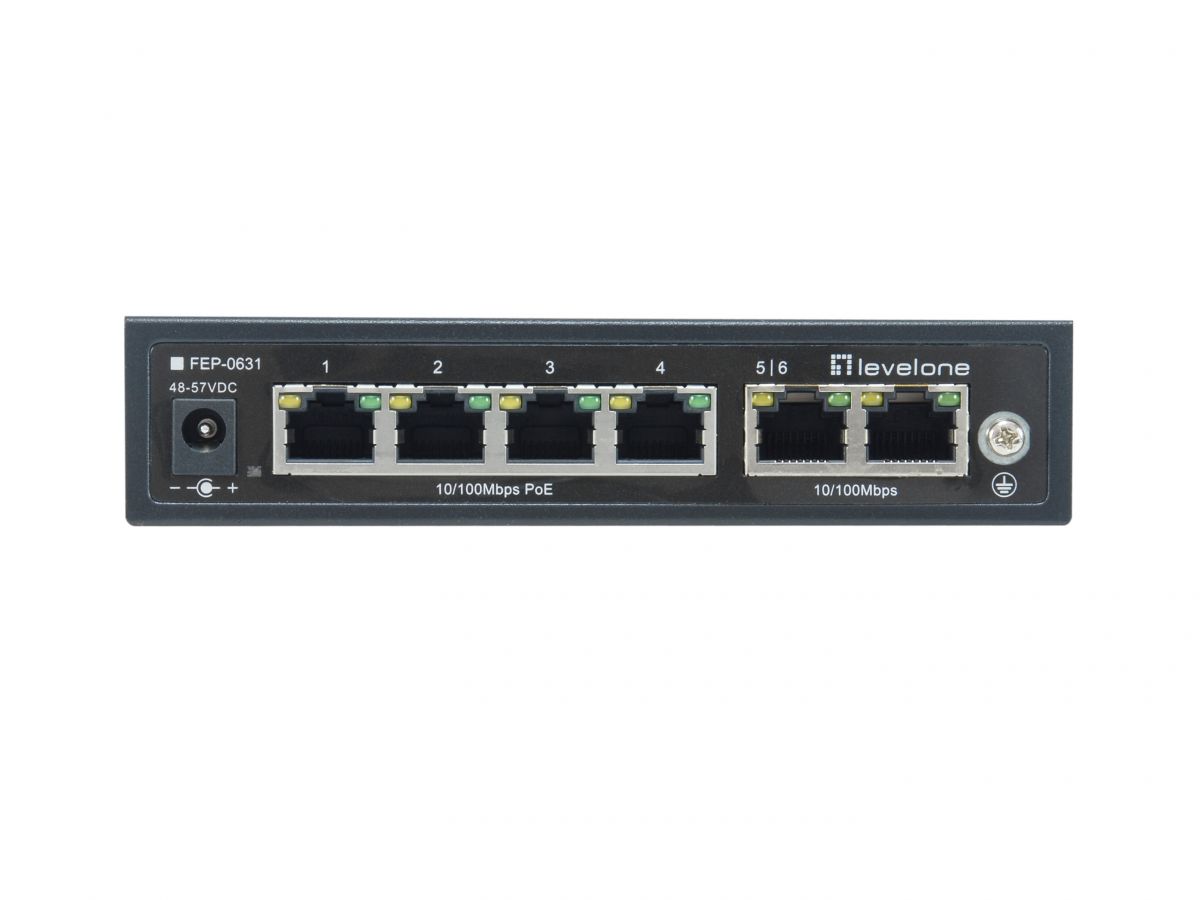

LevelOne FEP-0631 / Switch / unmanaged / 4 x 10/100 (PoE) + 2 x 10/100 (uplink) / desktop / PoE (60 W) | FEP-0631
Please sign in so that we can notify you about a reply
Special Features
- IEEE 802.3af/at PoE compliant to simplify deployment and installation
- Supports port-based VLAN
- Connection distance of up to 250m at 10Mbps data rate
- Auto-detection and protection of non-standard PoE devices
- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
Product Specification
| Device Type | Switch - 6 ports - unmanaged |
| Enclosure Type | Desktop |
| Subtype | Fast Ethernet |
| Ports | 4 x 10/100 (PoE) + 2 x 10/100 (uplink) |
| Power Over Ethernet (PoE) | PoE |
| PoE Budget | 60 W |
| Performance | Backplane speed: 1.2 Gbps |
| Capacity | Packet buffer size: 448000 |
| MAC Address Table Size | 1K entries |
| Features | Flow control, auto-negotiation, VLAN support, store and forward, full duplex mode, port-based VLAN |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at |
| Status Indicators | Port transmission speed, power, active, PoE |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 4 x 100Base-TX RJ-45 PoE - 30 W ¦ 2 x 100Base-TX RJ-45 uplink |
| Power | Power |
| Power Device | External power adapter |
| Miscellaneous | Miscellaneous |
| Colour | Black |
| Compliant Standards | FCC |
| Dimensions & Weight | Dimensions & Weight |
| Width | 13.5 cm |
| Depth | 8 cm |
| Height | 3 cm |
| Weight | 340 g |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -10 °C |
| Max Operating Temperature | 50 °C |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 85 °C |
| Humidity Range Storage | 0 - 95% |
Features - LevelOne - FEP-0631
More Details
Product Code
04:374009
EAN Code
4015867225851
Manufacturer
LevelOne
