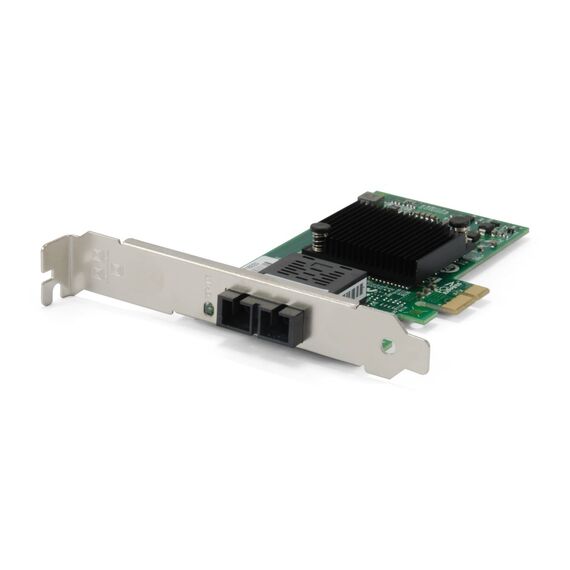

LevelOne GNC-0200 / Network adapter / PCIe 2.0 low profile / 1000Base-LX/1000Base-SX / 850 nm | GNC-0200
Please sign in so that we can notify you about a reply
Special Features
- Host interface standard support PCI Express 2.0a
- High performance, reliability, and low power use
- Independently fiber Gigabit Ethernet channels support Gigabit Ethernet 1000Base-SX
- Ultra-deep packet buffer per channel lowers CPU utilization
- Hardware acceleration, that can offload tasks from the host processor
- The controllers can offload TCP/UDP/IP checksum
- Calculations and TCP segmentation
Product Specification
| Device Type | Network adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 2.0 x1 |
| Networking | Networking |
| Ports | 1000Base-LX/1000Base-SX |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 1000Base-LX, Ethernet 1000Base-SX |
| Data Link Protocol | Gigabit Ethernet |
| Data Transfer Rate | 1 Gbps |
| Capacity | Jumbo frame size: 16000 |
| Optical Wave Length | 850 nm |
| Status Indicators | Link/activity |
| Features | Flow control, auto-negotiation, trunking, VLAN support, wake on LAN (WOL), PXE support, tagged VLAN, TCP/IP checksum offload, UDP/IP checksum offload |
| Compliant Standards | IEEE 802.3, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP) |
| Processor / Memory | Processor / Memory |
| Processor | 82575EB - Intel |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x 1000Base-LX/SX - SC multi-mode |
| Dimensions & Weight | Dimensions & Weight |
| Width | 11.5 cm |
| Depth | 1.7 cm |
| Height | 6.8 cm |
| Weight | 67 g |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 55 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
Features - LevelOne - GNC-0200
More Details
Product Code
04:210174
EAN Code
4015867187838
Manufacturer
LevelOne
