LevelOne HVE-9200 — HDMI, IR and RS-232 over one Cat cable up to 100 m
HDBaseTUp to 100 m4K2K / 1080pIR + RS-232

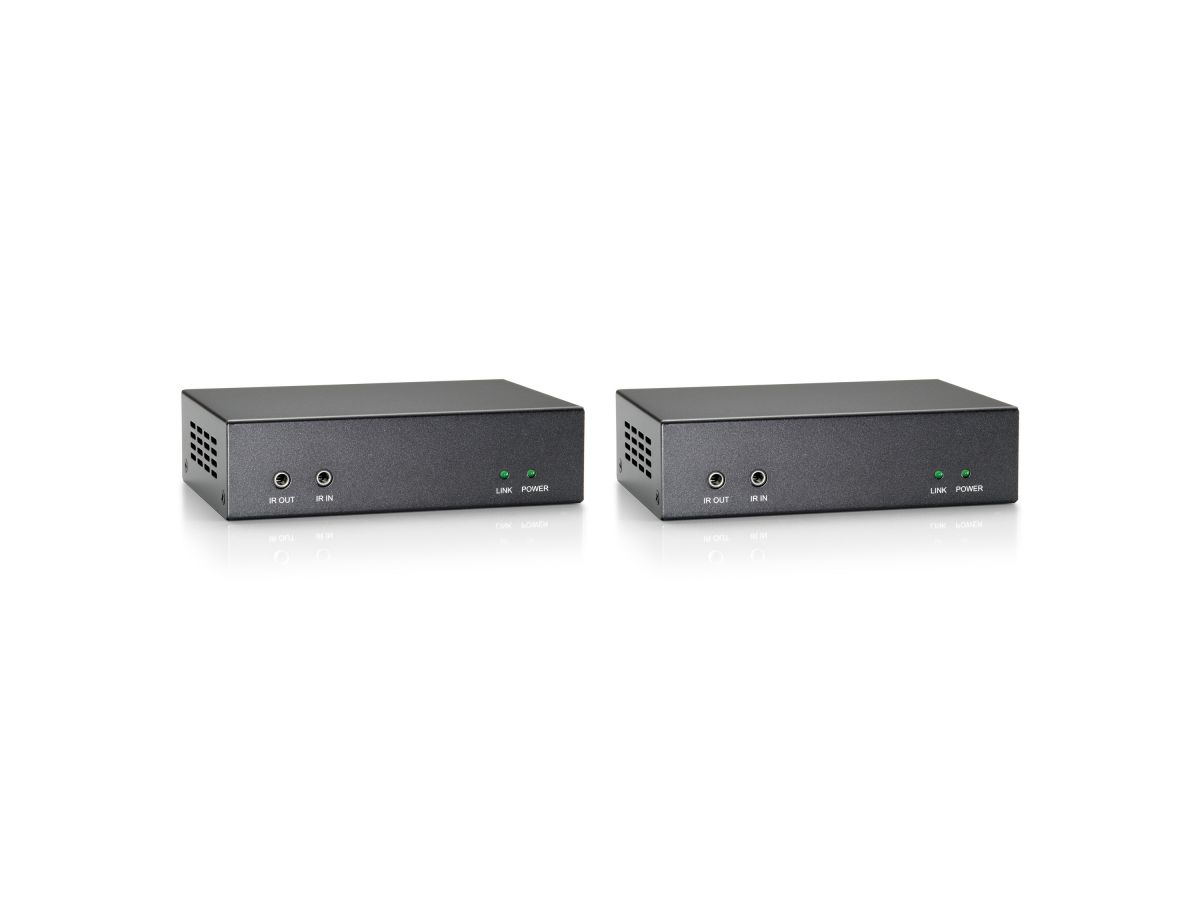

The LevelOne HVE-9200 is an HDBaseT HDMI extender kit — transmitter HVE-9211T plus receiver HVE-9211R — that sends HDMI video, multichannel audio, IR and RS-232 over a single Cat5e or Cat6 cable up to 100 m, for installers connecting a source in a rack or office to a display in another room.
Both units have their own 12 V power adapter, so each end needs a mains socket. Two IR remote-extender sets and bi-directional RS-232 let you keep controlling the source or the display from the far end.
Before you order: Each unit needs its own power at its location. If there is no socket at the display end, choose the HVE-9200P, which powers the receiver over the cable.
What's in the Box
- HVE-9211T transmitter
- HVE-9211R receiver
- 2 × IR remote-control extension kits (TX and RX)
- 2 × locking DC 12 V 1 A power adapters
- 2 × AC power cords
- User manual
What It Means in Practice
- Put the source (PC, media player, set-top box) in the rack or office and the display up to 100 m away — only one Cat cable runs between them.
- Point the remote at the display end and the IR signal reaches the source; RS-232 carries projector or display control commands.
- EDID handling selects a resolution the display supports, so the picture comes up without manual setup.
- Use this kit where both ends have power; it keeps the installation simple and independent of PoE.
What Will Not Work
- Receiver will not run without its own adapter — this kit has no PoE.
- No 4K at 60 Hz — the maximum is 3840 × 2160 at 30 Hz.
- Not for use through a network switch — HDBaseT needs a direct point-to-point Cat cable run.
- LevelOne does not publish an Ethernet/LAN pass-through for this series, so do not plan network connectivity over the same cable.
Key Features
HDBaseT over one cable
HDMI video, audio, IR and RS-232 over one Cat5e/Cat6 cable up to 100 m.
4K2K and Full HD
Ultra HD 3840 × 2160 at 30 Hz and 1080p, 3D, CEC and Lip Sync pass-through.
HD audio pass-through
Dolby TrueHD, DTS-HD Master Audio, Dolby Digital Plus, LPCM 7.1.
Control signals
Bi-directional RS-232 up to 115,200 bps and IR 38 kHz in both directions.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
The HVE-9200 is the dependable choice for fixed installations like reception screens and meeting-room displays where both ends have a socket. Use solid-copper Cat6 cable for the run — see our network cables.
✓ Buy it if you need HDMI with IR and RS-232 over one Cat cable up to 100 m and have power at both ends.
✕ Skip it if you need 4K60 or have no socket at the display end.
→ Also consider HVE-9200P for single-adapter installs, or HVE-9214PT to feed four displays.
Planning an installation? Send us the source, display and cable distance and we will confirm the right LevelOne set before you order.
