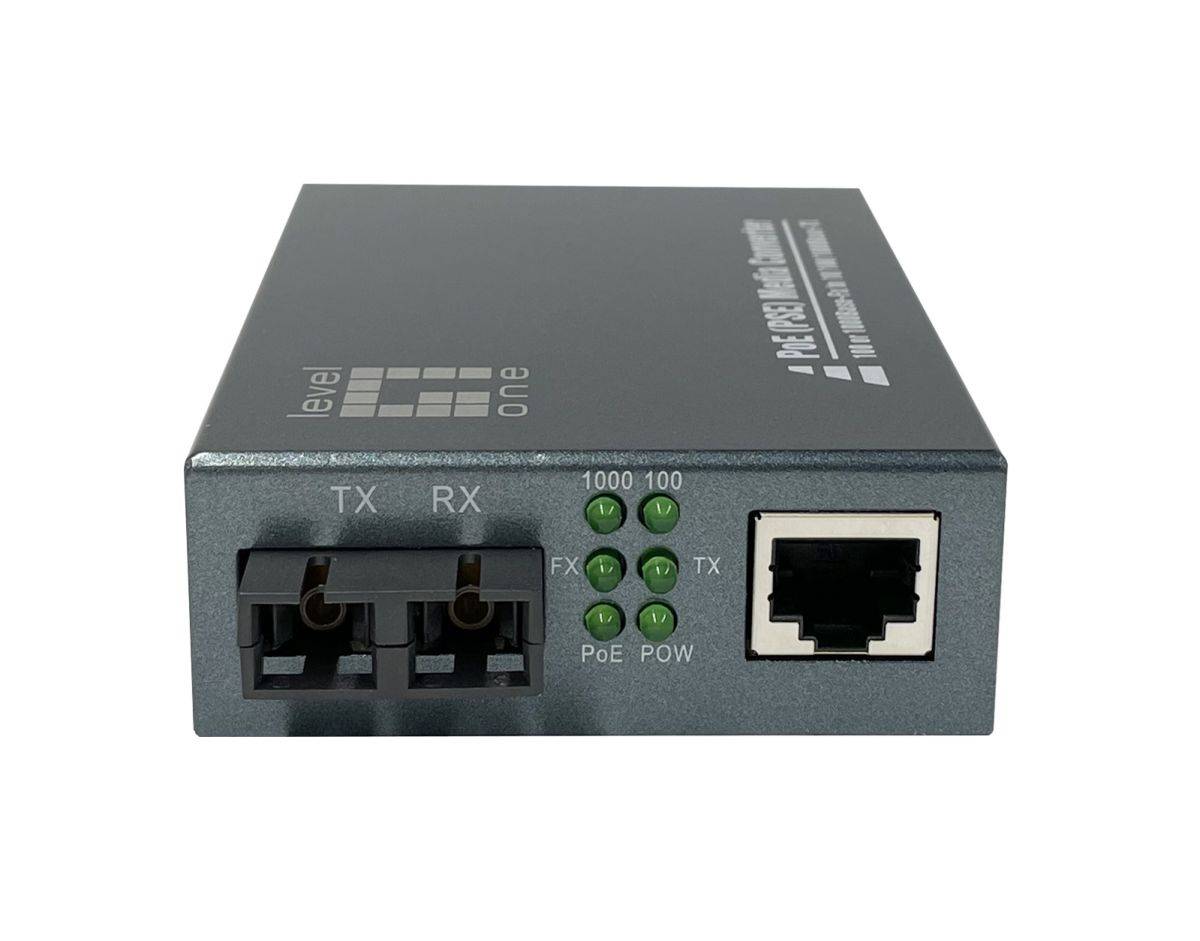

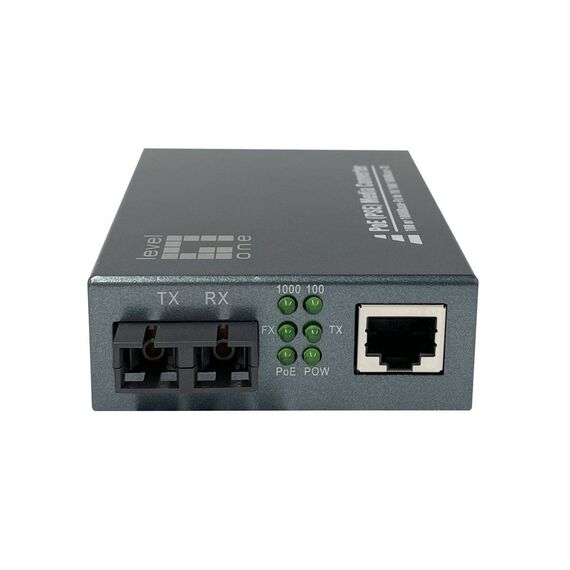

LevelOne GVT-2014 Gigabit PoE+ Media Converter, RJ45 to SC Single-Mode 1310nm, 20 km, 30W PSE, Black

Brand:
LevelOne
LevelOne RJ45 to SC Gigabit Media Converter GVT2014
LevelOne GVT-2014 Gigabit PoE+ Media Converter, RJ45 to SC Single-Mode 1310nm, 20 km, 30W PSE, Black
€221.36 inc. VAT
Buy
GVT-2014
€186.02
€221.36 inc. VAT
Ships from EU stock: 30 item(s)
+ −
Add to wish list Ask a question
Product Code
04:522708
EAN Code
4015867231227
Manufacturer
LevelOne

Quick Specs

Type
PoE+ media converter (PSE)
Connectors/Interface
1x RJ45 PoE+ 10/100/1000 · 1x SC single-mode
Key spec
1310 nm, up to 20 km · 30 W PoE
Compatibility
Far end: 1000BASE-LX single-mode 1310 nm
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

LevelOne GVT-2014 — Gigabit PoE+ Media Converter, SC Single-Mode up to 20 km

30 W PoE+ outSC single-mode 1310 nmUp to 20 kmAdapter included

The LevelOne GVT-2014 is a Gigabit media converter with a built-in 1000BASE-LX single-mode transceiver (1310 nm, SC, up to 20 km) and an RJ45 port that supplies IEEE 802.3af/at PoE+ power of up to 30 W.

It is made for long fibre runs that end at a single powered device — a camera on a perimeter fence, an access point in a remote building or an IP phone in a gate house — with no SFP to source and the power adapter in the box.

Before you order: Single-mode only. It will not link over multimode (orange/aqua) fibre, and the far end must be a 1000BASE-LX 1310 nm single-mode device with SC (or an LC–SC patch cord).

What's in the Box

  • GVT-2014 media converter
  • Power adapter with power cord
  • Quick installation guide
  • Declaration of conformity

What It Means in Practice

  • Data: Gigabit Ethernet with auto-negotiation and auto MDI/MDI-X on the RJ45 side.
  • Power: one PoE+ device up to 30 W, 802.3af and 802.3at; pins 1/2 (+) and 3/6 (−).
  • Distance: up to 20 km on single-mode fibre — far beyond anything copper can do.
  • A pair of GVT-2014 makes a complete point-to-point link if there is no switch with a fibre port at the other end.

What Will Not Work

  • Multimode fibre — for that use the GVT-2013 (500 m).
  • Devices that need 802.3bt (60/90 W).
  • It needs its adapter and a mains socket at the converter location; the PoE budget is for one device.
  • It is rated 0–45°C, so it is not for unconditioned outdoor cabinets.

Key Features


Fixed SC optics
1310 nm single-mode transceiver built in — nothing extra to buy.

PoE+ PSE
IEEE 802.3af/at, 30 W on the RJ45 port.

20 km reach
Long runs between buildings or across a site.

9K jumbo frames
Store-and-forward forwarding and IEEE 802.3x flow control.

Technical Specifications

Identification
Part Number GVT-2014
Brand LevelOne
Type RJ45 to SC Gigabit PoE PSE media converter, single-mode
Ports
Copper 1x 10/100/1000BASE-T RJ45 with PoE+, auto MDI/MDI-X
Fibre 1x SC, 1000BASE-LX single-mode, 1310 nm
Distance Up to 20 km
PoE
Standard IEEE 802.3af / 802.3at
Budget 30 W
Pin assignment 1/2 (+), 3/6 (−)
Performance
Forwarding Store-and-forward
Jumbo frames 9 KB
Management Unmanaged
MTBF 400,000 hours
Power & physical
Power input 52V DC 1.25A (65 W) from the included adapter
Consumption 33 W at full PoE load
Mounting Desktop
Dimensions 71 x 94 x 26 mm
Weight 0.182 kg
Colour Black
Operating temperature 0–45°C
Certifications CE, UKCA, FCC Part 15 Class B, RoHS
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term Not published by LevelOne — claims handled through Singular

Frequently Asked Questions

Do I need an SFP?
No. The single-mode transceiver is built in with an SC connector.
What goes at the other end?
A second GVT-2014 or a switch with a 1000BASE-LX 1310 nm single-mode SFP.
Is 20 km guaranteed on my fibre?
20 km is the rated reach. Very lossy links (many splices or connectors) shorten it; we can check your link budget if you send us the details.
Singular Expert Insight · Buyer's Guide
The GVT-2014 makes sense when a single powered device sits far away on single-mode fibre: built-in optics, 30 W PoE+ and a power adapter in the box keep the remote installation to one small unit. Confirm the fibre is single-mode (usually yellow) before ordering. For more devices at that point, combine fibre with one of our industrial and desktop switches.
✓ Buy it if you have single-mode fibre up to 20 km and one PoE+ device to power.
✕ Skip it if your fibre is multimode, or the device needs 802.3bt power.
→ Also consider LevelOne GVT-2013 (multimode) or GVT-2016 (SFP, 90 W).
Not sure it fits your setup? Send us the model of your rack, switch or device and we will check compatibility before you order.
