LogiLink NP0039A Cat.6 Wall Outlet 2x RJ45 Shielded with Surface Back Box Flush or Surface Mount LSA PoE++ Signal White
Μάρκα:
LogiLink
LogiLink NP0039A Cat.6 Wall Outlet 2x RJ45 Shielded with Surface Back Box Flush or Surface Mount LSA PoE++ Signal White
€12.14 inc. VAT
NP0039A
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Συνδεθείτε για να μπορέσουμε να σας ειδοποιήσουμε σχετικά με μια απάντηση
Cat.6 Wall Outlet — 2× RJ45, shielded, with back box
Cat.6 Class EGigabitSurface box includedSignal white

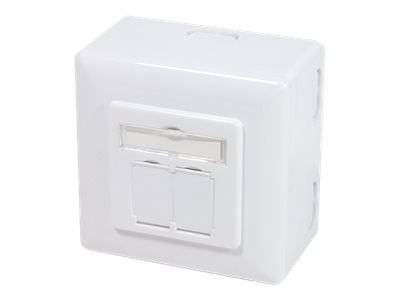

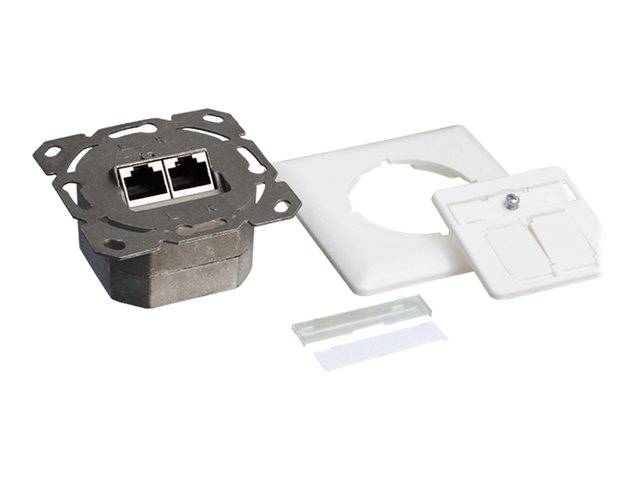

The LogiLink NP0039A is a shielded Cat.6 wall outlet with two RJ45 ports and a surface back box in the box, so it mounts flush, on the surface of a bare wall, or in a cable duct. It is rated for Gigabit Ethernet and works with Cat.5e and Cat.6 installations, carries PoE, PoE+ and PoE++, and terminates on LSA strips for 22–24 AWG solid installation cable. The metal die-cast housing has strain relief, and the two ports sit at 40°. The colour is signal white (RAL 9003). In practice it is the universal network point for offices and homes where no flush box is available.
Compatibility — check before buying:

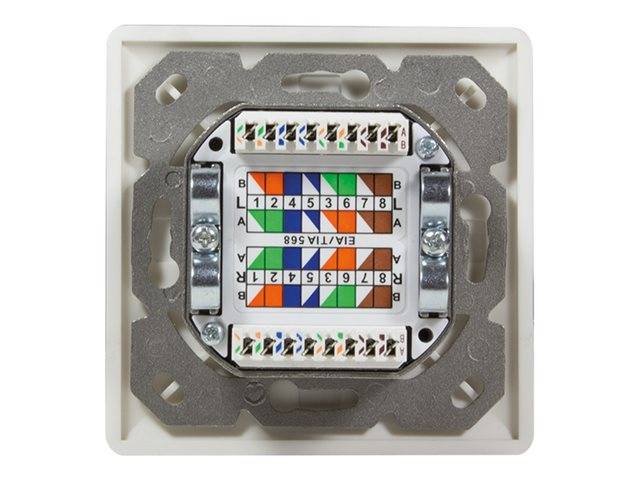

Cat.6 means Gigabit, not 10 Gigabit. For a 10G-ready point, choose a Cat.6A outlet such as the NP0124. LSA takes solid installation cable (22–24 AWG) — do not terminate stranded patch cable on it. Wiring is on LSA strips with a punch-down (LSA) tool; the tool and the installation cable are not included. Not sure which outlet suits your wall box or cable? Tell us the cable type and a photo of the wall point, and we check it for you.
Best For
✓ Surface mounting on bare walls
✓ Offices without flush boxes
✓ Gigabit desk points
✓ PoE phones and access points
✓ Home networks
✓ Replacing old outlets
Key Features

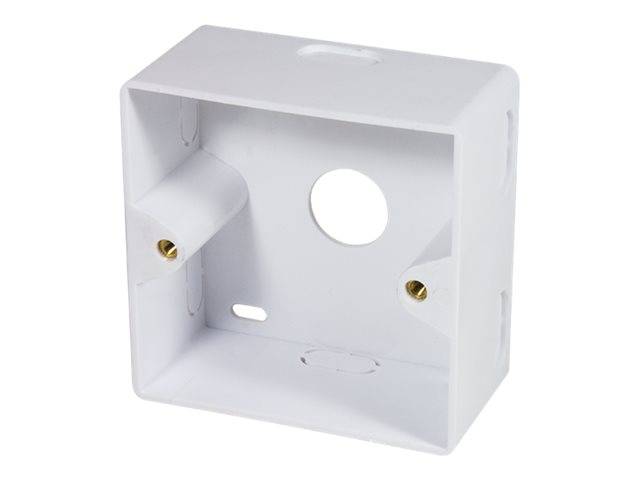

Surface box included
Mount it on a bare wall without cutting a flush box.
Shielded Cat.6
Class E, fully shielded, for Gigabit and PoE++.
Two angled ports
RJ45 at 40° with strain relief.
Three mounting options
Flush, surface or cable duct.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
The NP0039A is our quick answer when a customer has a cable but no wall box: the surface box is in the pack. If the rest of the building is already Cat.6A, match it with the NP0124 instead. For switches and access points, see our switches and access points. Singular’s direct warranty is 1 year, and we support you locally for anything beyond it.
Buyer’s Guide
Buy it if
You need a shielded Gigabit wall point that can mount on a bare wall.
Skip it if
You are building a 10G-ready installation.
Also consider
LogiLink NP0124 — Cat.6A version with surface box.
Colour
white
Χαρακτηριστικά
Product Code
04:208923
EAN Code
4052792032093
Manufacturer
LogiLink
