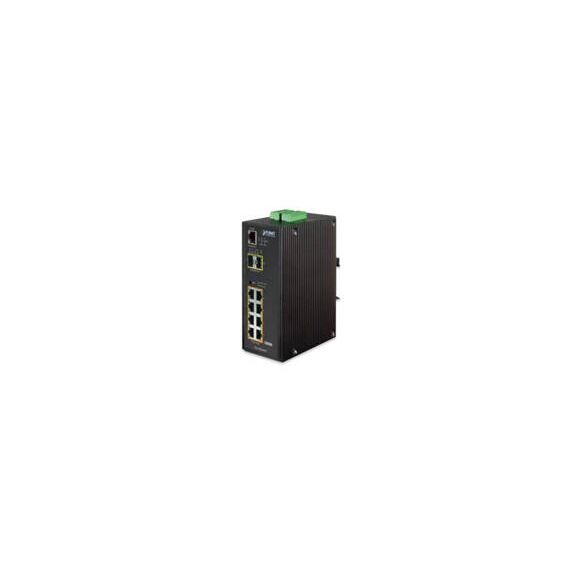

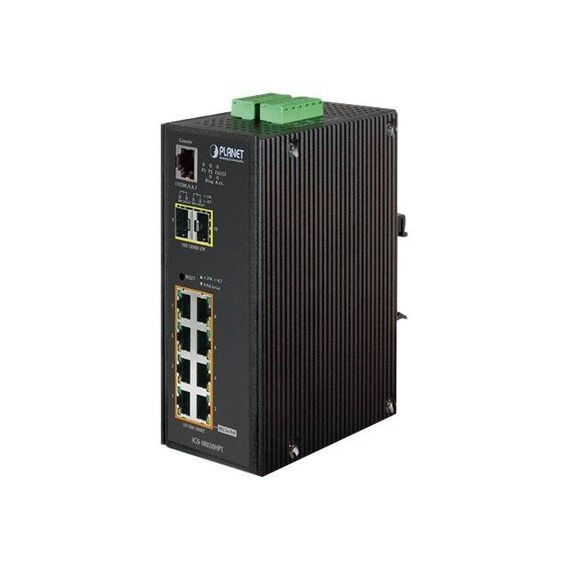

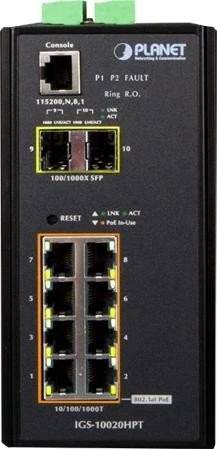

PLANET IGS-10020HPT Industrial 10-Port Gigabit L2+ Managed PoE+ Switch 8x PoE 2x SFP 270W IP30 DIN-Rail

Brand:
Planet

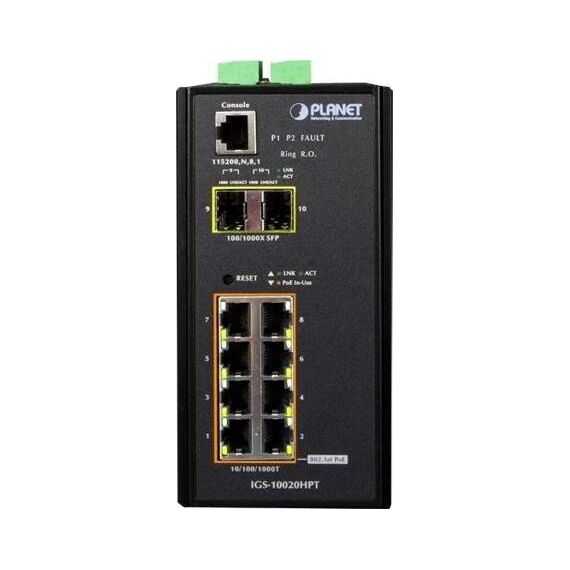

PLANET IGS-10020HPT - Switch - L2+ - Managed - 8 x 10/100/1000 (P
PLANET IGS-10020HPT Industrial 10-Port Gigabit L2+ Managed PoE+ Switch 8x PoE 2x SFP 270W IP30 DIN-Rail
€704.98 inc. VAT
Buy
IGS-10020HPT
€592.42 €658.25
€704.98 inc. VAT
Ships from EU stock: 5 item(s)
+ −
Add to wish list Ask a question
Product Code
04:247742
EAN Code
4711213689116
Manufacturer
Planet

Quick Specs

Ports
8× 1G PoE+ + 2× SFP
PoE
802.3af/at · up to 270W
Environment
IP30 · -40~75°C · fanless
Management
L2+ · ERPS ring
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

PLANET IGS-10020HPT — Industrial 8-Port Gigabit PoE+ Managed Switch

8× Gigabit PoE+2× SFP UplinkIP30 · -40~75°CERPS Ring · Dual DC

The PLANET IGS-10020HPT is an industrial Layer 2+ managed Gigabit PoE+ switch with 8 PoE+ copper ports and 2 SFP fibre uplinks, hardened for harsh environments. It runs fanless in an IP30 metal case across a -40 to 75°C range, with dual redundant DC power, an alarm relay and G.8032 ERPS ring protection. This is model IGS-10020HPT, a 10-port DIN-rail switch. Typically in stock with fast delivery across Cyprus.

Compatibility — check before buying:
PoE is IEEE 802.3af/at (PoE+) up to 30W per port — not 802.3bt / PoE++ — sharing a 270W-class budget that depends on the DC input voltage, so size your power supply accordingly. It is powered by industrial DC (dual redundant input), not a standard AC cord. IP30 protects against dust and contact for indoor cabinets — it is not a weatherproof outdoor enclosure.

Best For

✓Industrial IP surveillance (PTZ / IR)
✓Factory-floor networks
✓Traffic & roadside cabinets
✓Utility & transportation sites
✓Harsh-environment ring backbones
✓DIN-rail cabinet installs

Key Features

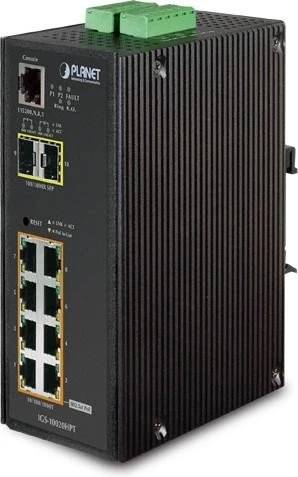

Hardened Fanless IP30 Design

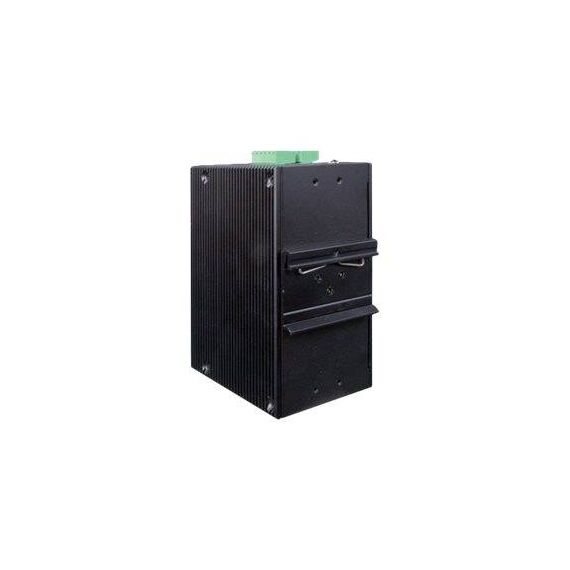

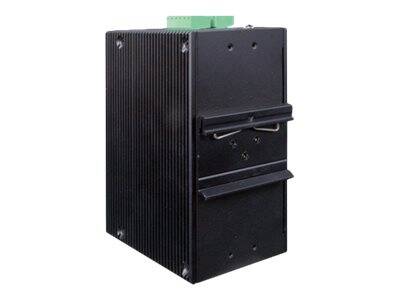

A rugged fanless IP30 metal case operates from -40 to 75°C with DIN-rail and wall mounting, built to survive dust, vibration and temperature extremes.

8× Gigabit PoE+ Ports
Eight gigabit ports deliver 802.3af/at PoE+ up to 30W each within a 270W-class budget, driving PTZ cameras, IR illuminators and access points in the field.

Redundant Power & Alarm

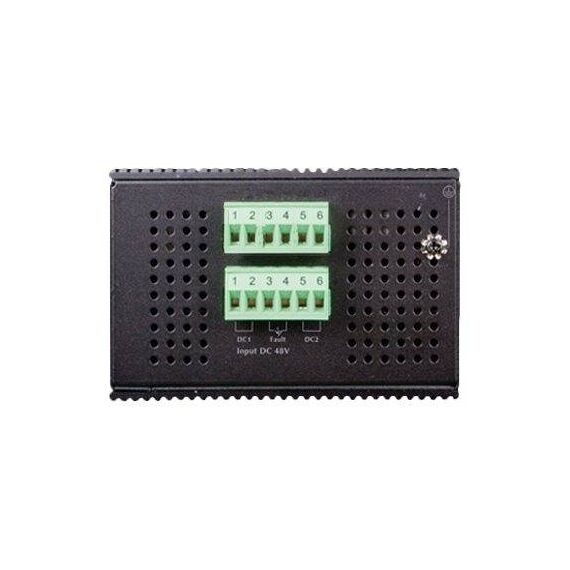

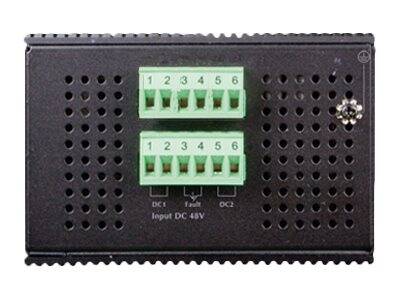

Dual redundant DC power inputs with reverse-polarity protection and an alarm relay flag power or port failures — key for unattended cabinets.

L2+ Managed with ERPS Ring
G.8032 ERPS self-healing ring plus STP/RSTP/MSTP, VLANs, QoS, IGMP snooping, LACP, ACLs and SNMP give resilient, managed industrial networking.

Technical Specifications

Identification
Brand PLANET
Model IGS-10020HPT
Part Number IGS-10020HPT
EAN / GTIN 4711213689116
MPN IGS-10020HPT
Ports & Switching

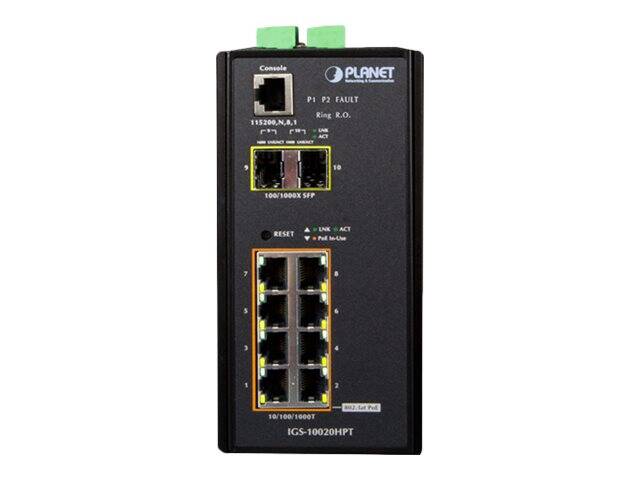

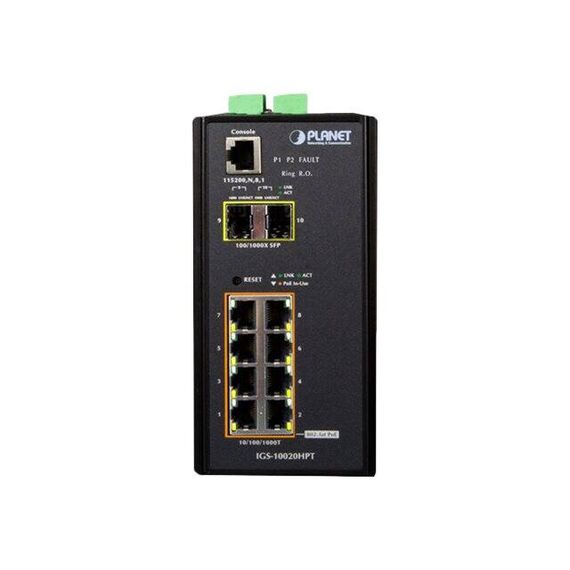

Ports 8 × 10/100/1000 RJ45 (PoE+) + 2 × SFP + 1 × console
Switching Capacity 20 Gbps (non-blocking)
Forwarding Rate 14.88 Mpps
MAC Address Table 8K
Power over Ethernet
PoE Standards IEEE 802.3af / 802.3at (PoE+)
PoE Ports 8
PoE Power Budget Up to 270W (DC-input dependent)
Per-Port Max 30W
Management
Type Layer 2+ industrial managed
Ring / STP G.8032 ERPS + STP/RSTP/MSTP
VLAN 802.1Q (up to 255), Q-in-Q, Private VLAN
QoS 8 queues (SP/WRR)
Multicast IGMP v1/v2/v3 + MLD snooping
Link Aggregation LACP + static trunk
ACL IP / MAC
Security 802.1X port/MAC auth
Access Web, SNMP v1/v2c/v3, RMON
Environment & Mechanical
IP Rating IP30
Operating Temperature -40°C to 75°C
Mounting DIN-rail + wall
Cooling Fanless
Alarm Relay output (power / port fail)
Weight approx. 1.68 kg
Power
Input Dual redundant DC (12–48V), reverse-polarity protected
Consumption up to approx. 255W (full PoE load)
Warranty
Warranty PLANET limited manufacturer warranty. Singular’s direct warranty is 1 year; beyond that we assist you with the manufacturer’s warranty process.

Frequently Asked Questions

Is this an outdoor / weatherproof switch?
It is IP30-rated and industrial-hardened for -40 to 75°C, designed for indoor cabinets, DIN-rail and wall mounting. IP30 resists dust and contact but is not a weatherproof (IP55/IP65) outdoor enclosure.
How is it powered?
By industrial DC with dual redundant inputs (12–48V) and reverse-polarity protection, plus an alarm relay — not a standard AC power cord. Size the DC supply to the PoE load you need.
How many ports does it have?
Ten in total: 8 Gigabit RJ45 PoE+ ports plus 2 SFP fibre uplink slots (and a console port). The "10020" name reflects the 8 copper + 2 SFP layout.
Does it support ring redundancy?
Yes. It supports ITU-T G.8032 ERPS self-healing ring protection alongside STP/RSTP/MSTP and LACP, ideal for resilient industrial ring topologies.
Singular Expert Insight
The IGS-10020HPT is built for field and factory sites that need managed PoE with ring redundancy in a fanless, wide-temperature package. For weatherproof outdoor mounting choose an IP55/IP65 enclosure switch; for pure office use a standard managed switch is cheaper. Browse our network switches range, or the IP cameras it powers in the field.

Buyer’s Guide

Buy it if
You need managed PoE for cameras or APs in a harsh, unattended location — fanless -40~75°C IP30, dual redundant DC power, alarm relay and ERPS ring resilience.
Skip it if
You need a weatherproof outdoor enclosure (choose an IP55/IP65 model), 802.3bt / PoE++, or a simple office switch — an indoor managed or unmanaged switch is cheaper.
Also consider
An IP55/IP65 outdoor enclosure switch for exposed mounting, or a standard rack PoE switch for indoor office use.
