Microchip Adaptec Internal Fan-out Cable Mini SAS HD SFF-8643 to 4x SFF-8482 SAS with Power, 0.8m, with Sideband

Brand:
Microchip
Microsemi Adaptec SAS internal cable 2280100-R
Microchip Adaptec Internal Fan-out Cable Mini SAS HD SFF-8643 to 4x SFF-8482 SAS with Power, 0.8m, with Sideband
€46.03 inc. VAT
Buy
2280100-R
€38.68
€46.03 inc. VAT
Ships from EU stock: 20 item(s)
+ −
Add to wish list Ask a question
Product Code
2961481
EAN Code
0760884157077
Manufacturer
Microchip

Quick Specs

Type
Internal fan-out cable
Connectors
SFF-8643 to 4x SFF-8482
Key spec
0.8 m · 6 Gb/s · sideband
Compatibility
Adaptec RAID / HBA
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Microchip Adaptec ACK-I-HDmSAS-4SAS-SB-.8M — SFF-8643 to 4× SAS SFF-8482, 0.8 m

0.8 mSFF-8643 → 4× SFF-84826 Gb/sWith sideband

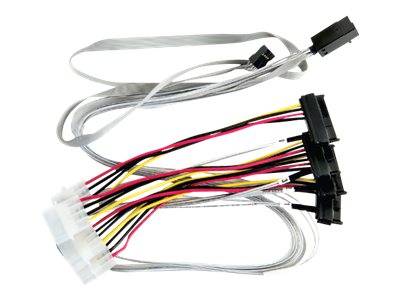

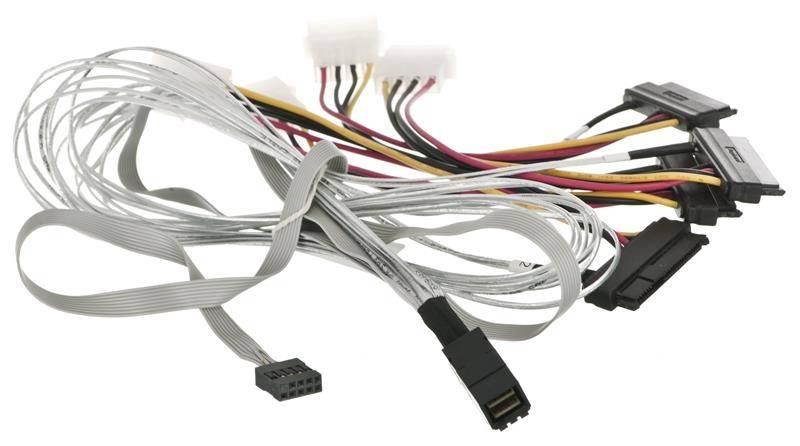

The Microchip Adaptec ACK-I-HDmSAS-4SAS-SB-.8M (2280100-R) is a 0.8 m internal cable that connects one x4 Mini SAS HD (SFF-8643) port of an Adaptec RAID controller or HBA to four SAS drives directly, through SFF-8482 drive connectors that include a 4-pin power input.

Microchip lists its Adaptec SAS HD internal cables for SmartRAID 3100, SmartHBA 2100, HBA 1100, HBA 1000 and Series 8/8Q/8E adapters. It includes a sideband lead for the backplane or enclosure management signals.

Before you order: The controller end is Mini SAS HD (SFF-8643). Older cards and backplanes with Mini SAS (SFF-8087) need a different cable, and Microchip's published cable list for SmartRAID 3200 and HBA 1200 uses a different set — for those, send us the card model first.

What's in the Box

  • 1 × Microchip Adaptec ACK-I-HDmSAS-4SAS-SB-.8M cable (2280100-R), 0.8 m

What It Means in Practice

  • Four individual SFF-8482 plugs go straight onto four SAS drives (no backplane needed); each plug also accepts SATA drives.
  • Each SFF-8482 plug has a 4-pin power input — feed it from the power supply.
  • 0.8 m of fan-out leaves room to route to four drives in a typical tower cage.
  • Listed at 6 Gb/s.

What Will Not Work

  • Mini SAS (SFF-8087) ports on older controllers or backplanes — they need a different cable.
  • External enclosures — this is an internal cable.
  • Backplane SATA sockets — SFF-8482 plugs are made to mate with the drive itself.

Technical Specifications

Identification
Part Number 2280100-R
Model ACK-I-HDmSAS-4SAS-SB-.8M
EAN / GTIN 0760884157077
Brand Microchip Adaptec
Connectivity
Controller end Mini SAS HD SFF-8643 (x4)
Device end 4 × SFF-8482 SAS drive connectors with 4-pin power input
Lanes 4
Rated speed 6 Gb/s (as listed)
Sideband Yes
Cable
Length 0.8 m
Type Internal
Compatibility
Adaptec adapters (Microchip list) SmartRAID 3100, SmartHBA 2100, HBA 1100, HBA 1000 and Series 8/8Q/8E
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term Microchip does not publish a separate term for this cable — claims handled through Singular

Frequently Asked Questions

Will it work with a non-Adaptec controller?
The SFF-8643 connector is an industry standard, so the data lanes usually work. Sideband and backplane management signals can differ between vendors, so send us the controller and backplane model and we check before you order.
How many drives does one cable handle?
Four — one x4 SFF-8643 port carries four SAS/SATA lanes. An 8-port card with two SFF-8643 connectors needs two cables for eight drives.
Singular Expert Insight · Buyer's Guide
Internal SAS cabling is mostly about matching the connectors at both ends: SFF-8643 on the controller, and either a backplane connector or individual drive plugs. Check what your chassis has before ordering, and see our storage controllers if you are still choosing the card.
✓ Buy it if your Adaptec controller has SFF-8643 ports and you need to connect four SAS drives directly.
✕ Skip it if your controller or backplane uses SFF-8087, or you are connecting to a backplane.
→ Also consider 2279800-R — the SFF-8643 to 4× SATA version for SATA drives or backplane SATA ports.
Not sure which cable fits? Send us the controller and chassis/backplane model and we will check the connectors before you order.
