Zebra SE-965HP Integrated Barcode Scanner | 104 scans/sec | TTL | Decoded

Μάρκα: Zebra

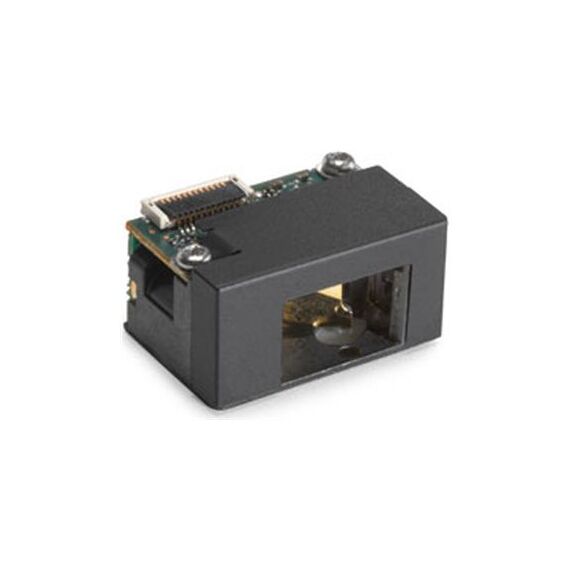

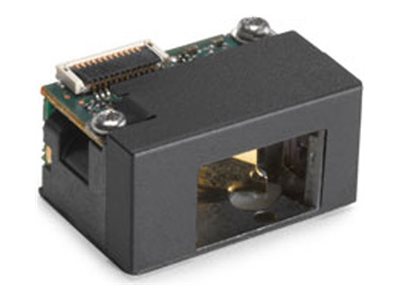

Zebra SE-965HP Integrated Barcode Scanner
Zebra SE-965HP Integrated Barcode Scanner | 104 scans/sec | TTL | Decoded
€153.58 inc. VAT
SE-965HP-I305R
129.06
153.58 με Φ.Π.Α.
Διαθέσιμο με παραγγελία: 5 Είδη
ManufacturerZebra

Quick Specs

Interfaces
1 x serial - ZIF
Product Type
AC Adapter
Connectivity
Wired
Scan speed
104 scan/sec
Type
Barcode scanner - integrated
Dimensions
2.16 x 1.55 x 1.175 cm
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Singular Selected

Zebra SE-965HP Integrated Barcode Scanner

The Zebra SE-965HP is an integrated barcode scanner for wired point-of-sale and embedded scanning setups where a compact, decoded laser module is needed. It offers TTL output, a serial ZIF interface and support for Code 39, Code 128 and UPC, with a fast 104 scans per second capture rate.
1 x serial - ZIF AC Adapter Wired 104 scan/sec

The Zebra SE-965HP is an integrated barcode scanner for wired point-of-sale and embedded scanning setups where a compact, decoded laser module is needed. It offers TTL output, a serial ZIF interface and support for Code 39, Code 128 and UPC, with a fast 104 scans per second capture rate.

Best For
✓ Suitable for retailers, kiosks
✓ Embedded system builds that need a compact wired scanner module with decoded output
✓ Straightforward serial integration

Key Features


Commercial Fit
Its main strength is the combination of fast 104 scans per second capture, decoded TTL output and a compact integrated format that suits built-in scanning applications.

Connectivity
Connectivity: Wired

Scan speed
Scan speed: 104 scan/sec

Interfaces
Interfaces: 1 x serial - ZIF

Technical Specifications

Type Barcode scanner - integrated
Scan element Laser
Scan speed 104 scan/sec
Decode capability Code 39 | Code 128 | UPC
TTL decoding Decoded
Interface type TTL
Interfaces 1 x serial - ZIF
Connectivity Wired
Minimum bar width 5 mil
Light source wavelength 650 nm
Skew 40°
Pitch 65°
Print contrast signal (PCS) 25%
Voltage DC 5 V
Current required 62 mA (typical) | 0.025 mA (standby)
Dimensions 2.16 x 1.55 x 1.175 cm
Weight 7.6 g
Operating temperature -30 °C to 60 °C
Operating humidity 95% (non-condensing)
Compliance EMI FCC part 15 subpart B class B | ICES-003 Class B | CISPR Class B | VCCI Class B | RoHS
Product Type AC Adapter
SKU / EAN SE-965HP-I305R

Frequently Asked Questions

What should I know before buying?
This is an integrated scanner module, not a standalone handheld unit. It uses a wired serial ZIF interface and requires compatible system integration before it can be used.
What connectivity does it offer?
TTL
What are the key specifications?
Connectivity: Wired | Scan speed: 104 scan/sec | Interfaces: 1 x serial - ZIF
Singular Expert Insight
Its main strength is the combination of fast 104 scans per second capture, decoded TTL output and a compact integrated format that suits built-in scanning applications.

Buyer’s Guide

Buy it if
Suitable for retailers, kiosks and embedded system builds that need a compact wired scanner module with decoded output and straightforward serial integration.
Skip it if
This is an integrated scanner module, not a standalone handheld unit. It uses a wired serial ZIF interface and requires compatible system integration before it can be used.
Also consider
If you do not need a built-in scanner module, a standard handheld barcode scanner may be the simpler choice for everyday checkout or general-purpose use.
