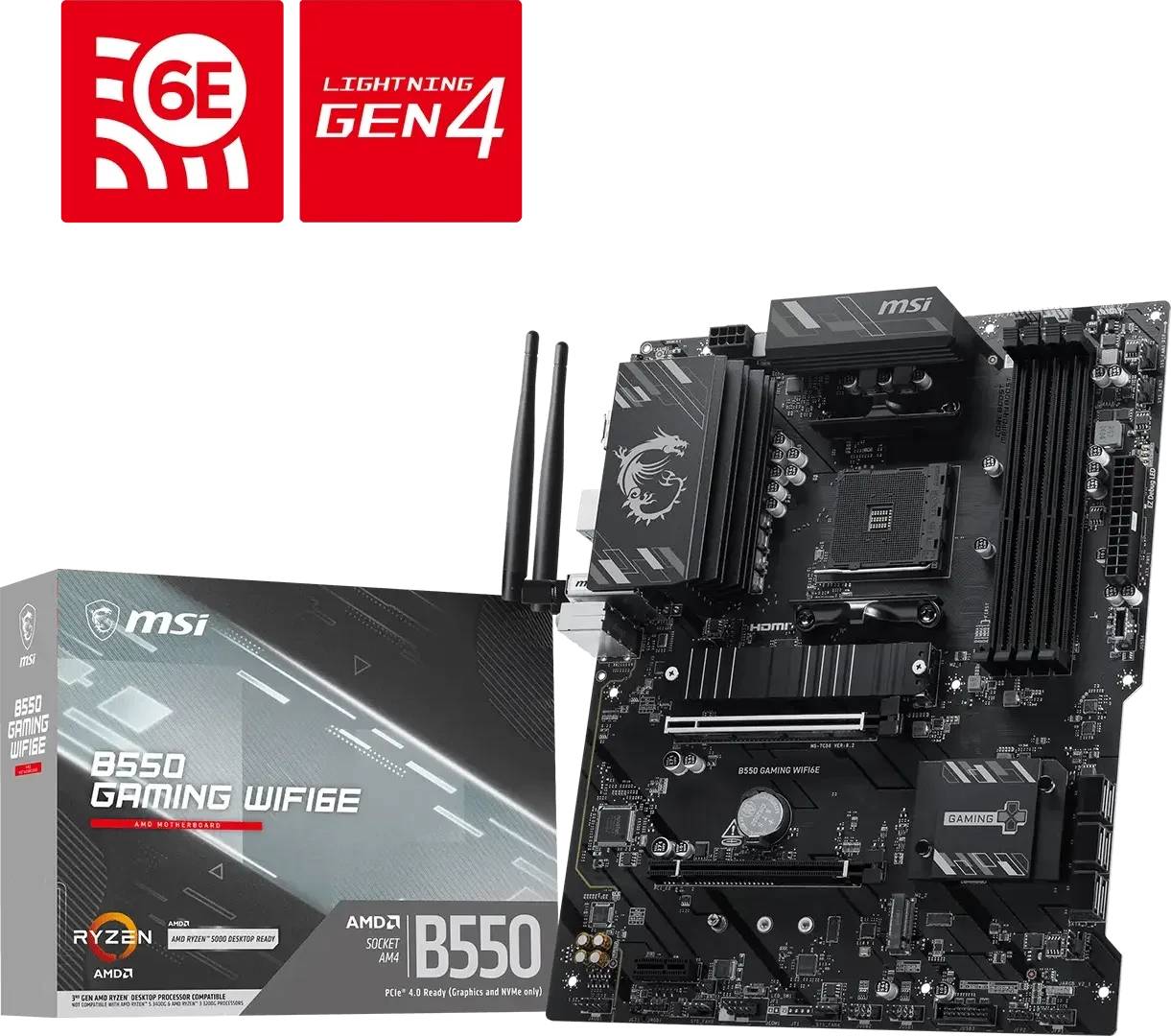

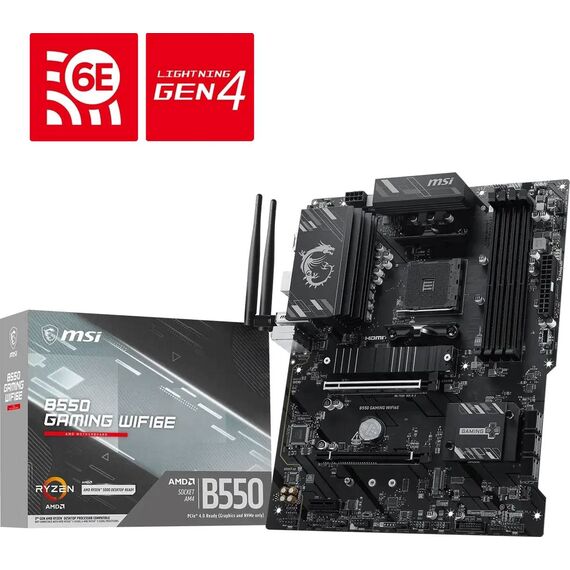

MSI B550 GAMING WIFI6E Motherboard - ATX - Socket AM4 - AMD B550 - 4x DDR4 - PCIe 4.0 - Wi-Fi 6E - Bluetooth 5.3
Brand:
MSI
MSI B550 GAMING WIFI6E Motherboard - ATX - Socket AM4 - AMD B550 - 4x DDR4 - PCIe 4.0 - Wi-Fi 6E - Bluetooth 5.3
€179.44 inc. VAT
7C56-092R
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply

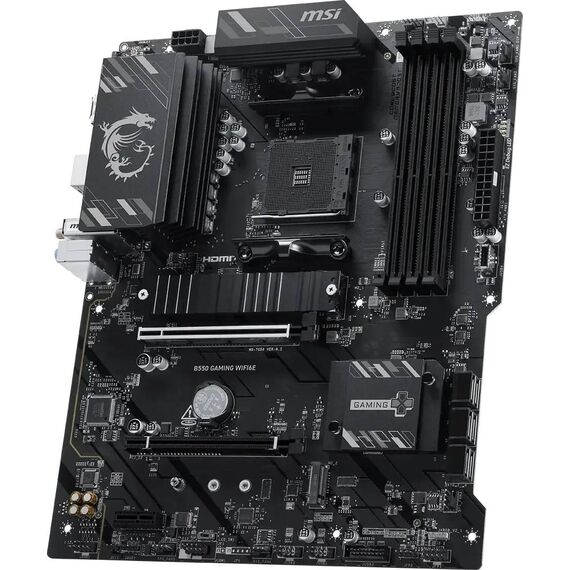

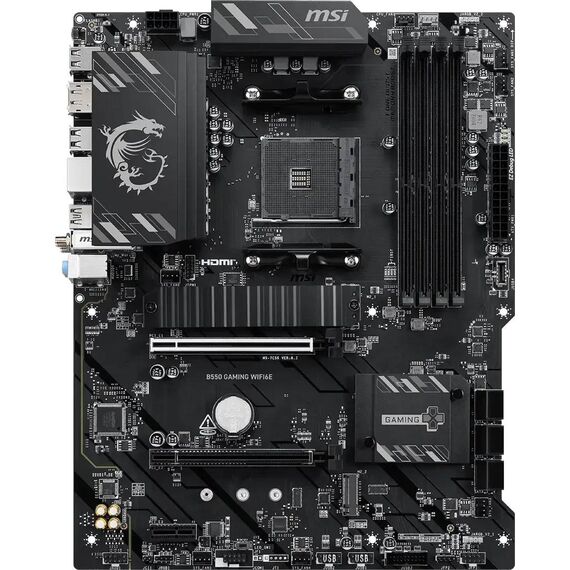

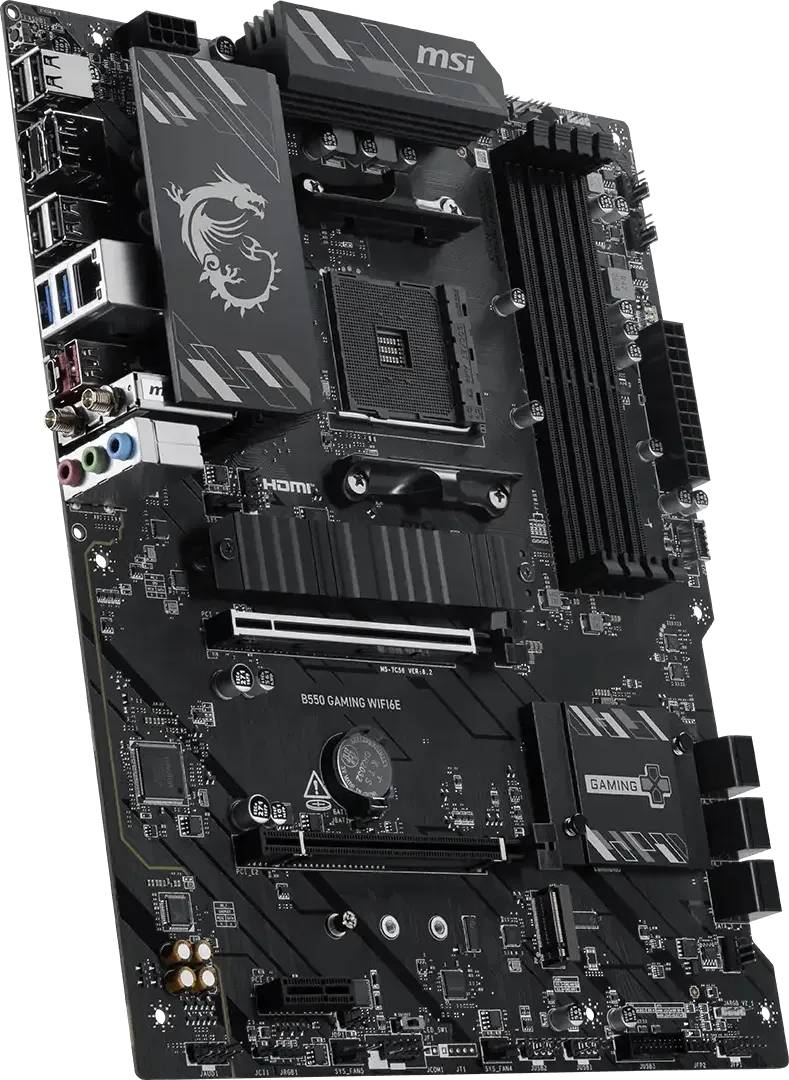

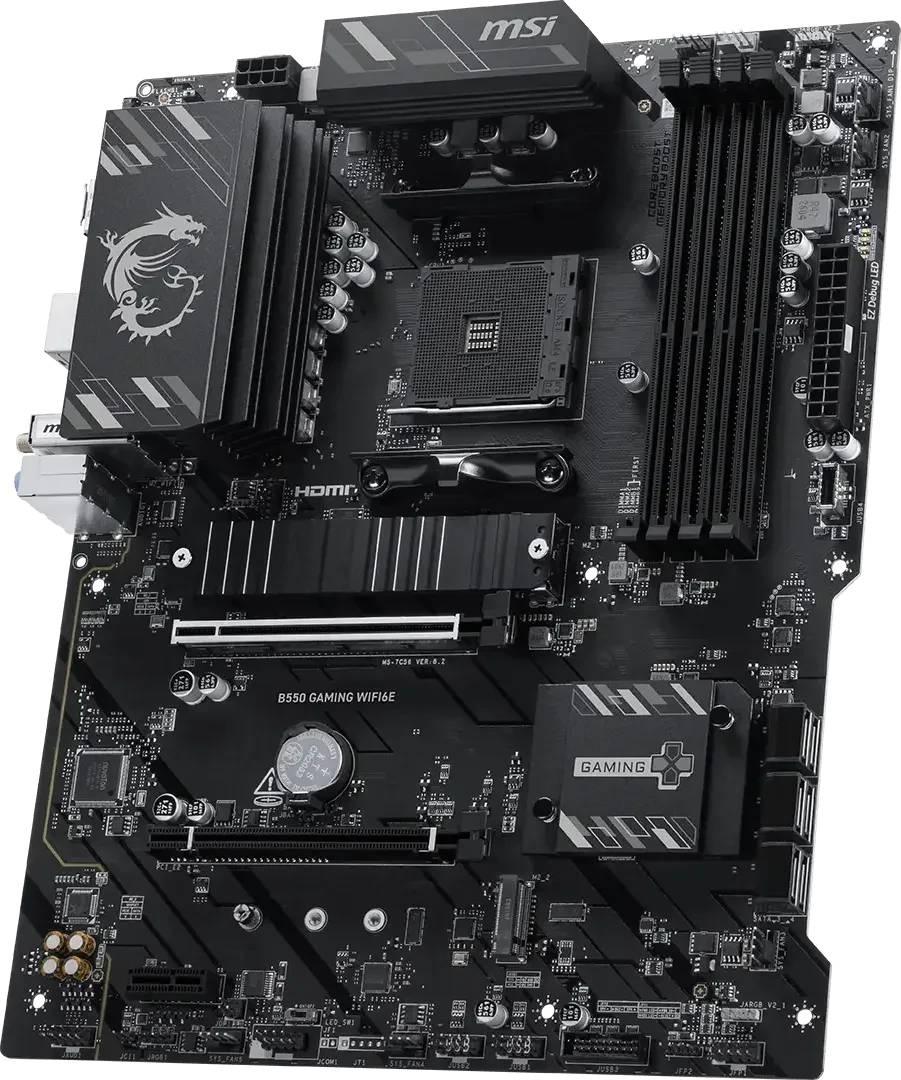

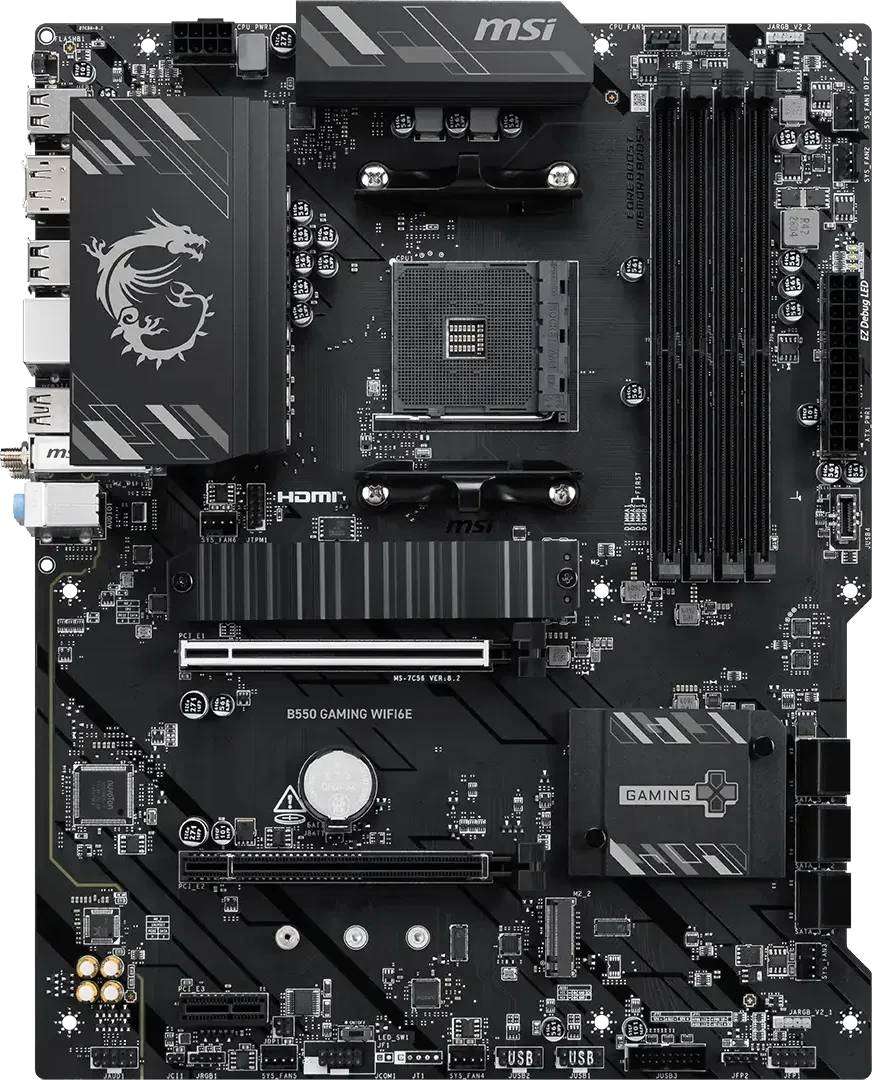

MSI B550 GAMING WIFI6E — ATX Socket AM4 Motherboard with PCIe 4.0, Dual M.2 and Wi-Fi 6E
Socket AM4 · AMD B5504x DDR4, up to 128GBPCIe 4.0 x16 + 2x M.2Wi-Fi 6E + Bluetooth 5.3
The MSI B550 GAMING WIFI6E is a full-size ATX motherboard for AMD Socket AM4 processors, built on the AMD B550 chipset with four DDR4 slots for up to 128 GB of memory. It pairs a CPU-fed PCIe 4.0 x16 graphics slot with two M.2 slots, six SATA 6 Gb/s ports and built-in Wi-Fi 6E with Bluetooth 5.3, which makes it a straightforward base for a Ryzen 5000 gaming or general-purpose desktop that does not need a separate wireless card. Power delivery is an 8-phase Duet Rail design with 50 A DrMOS, and the first M.2 slot sits under an M.2 Shield Frozr heatsink. Our part number for this board is 7C56-092R. Typically in stock with fast delivery across Cyprus.
Compatibility — check before buying:
CPU support: AMD Ryzen 5000 Series, Ryzen 5000 G-Series, Ryzen 4000 G-Series and Ryzen 3000 Series on Socket AM4. MSI states it is not compatible with the Ryzen 5 3400G and Ryzen 3 3200G — those two older APUs will not work on this board. Video outputs need an APU: the HDMI and DisplayPort connectors on the rear panel only produce a picture with a processor that has integrated graphics (the G-Series parts). A Ryzen 5 5600X or 5800X has no iGPU, so a graphics card is mandatory with those. Lane sharing: fitting a PCIe SSD in the second M.2 slot (M.2_2) disables the PCI_E2 expansion slot — plan your add-in cards accordingly. Network speed: the wired port is 1 Gigabit, not 2.5 Gigabit, despite the Wi-Fi 6E radio.
Best For
✓ A Ryzen 5000 gaming desktop that needs Wi-Fi 6E without adding a card
✓ Builders who want PCIe 4.0 graphics and a PCIe 4.0 NVMe boot drive
✓ Upgrades from an older AM4 board that keep existing DDR4 memory
✓ General-purpose and office desktops built on Ryzen 5000 G-Series APUs
Key Features
PCIe 4.0 from the CPU, plus dual M.2
The primary x16 slot runs PCIe 4.0 x16 straight from the processor and is reinforced with Steel Armor. M.2_1 is PCIe 4.0 x4 or SATA and takes 2242 to 22110 drives under an M.2 Shield Frozr heatsink; M.2_2 is PCIe 3.0 x4 for 2242 to 2280 drives.
Wi-Fi 6E and Bluetooth 5.3 on board

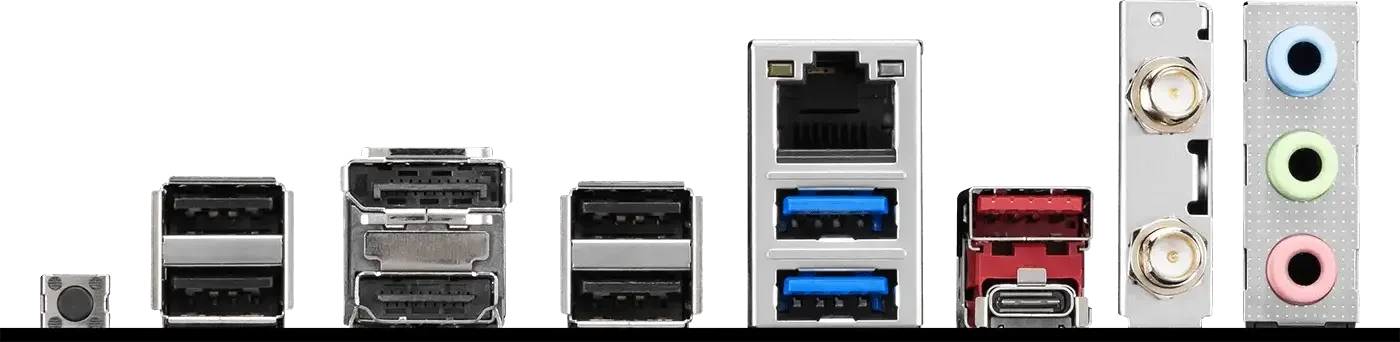

The wireless module covers the 2.4 GHz, 5 GHz and 6 GHz bands, with Bluetooth 5.3 for controllers and headsets. Wired networking is a Realtek 8111H 1 Gigabit port. Antennas connect to the rear panel.
Four DDR4 slots, up to 128 GB
Dual-channel DDR4 across four DIMM slots, supporting both non-ECC and ECC UDIMMs, with A-XMP overclocking rated up to 4866+ MHz. MSI quotes 4800+ MHz with one single-rank module per channel, dropping to 3600+ MHz when all four slots are populated with dual-rank modules.
Build-friendly extras
A Flash BIOS Button updates the firmware from a USB stick with no CPU or memory installed, and four EZ Debug LEDs show where a failed boot is stuck. Eight fan headers, two addressable RGB V2 headers, one 12 V RGB header and a TPM 2.0 header are on board.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
B550 is the sweet spot of the AM4 platform, and this board is a late, well-equipped example of it. The parts of the specification that matter most for a gaming build are the ones that come from the CPU: a PCIe 4.0 x16 graphics slot and a PCIe 4.0 x4 M.2 slot under a proper heatsink, backed by an 8-phase Duet Rail VRM with 50 A DrMOS that has no trouble with a Ryzen 7 or Ryzen 9 5000. Wi-Fi 6E on board is the differentiator against the cheaper B550 boards — it saves a PCIe slot and a purchase. The compromises are worth naming plainly: the wired port is 1 Gigabit rather than 2.5, the audio codec is the entry-level ALC897, and the second full-length slot is only PCIe 3.0 x4. None of those matter for a single-GPU gaming desktop, and all of them are why the board sits where it does on price. Choose it if you are staying on AM4 with DDR4 memory you already own; if you are building from nothing today, price it against the current AM5 generation before deciding. Browse the rest of our AMD motherboards for AM5 alternatives, and check our DDR4 and DDR5 memory for a matching kit.
Buyer’s Guide
Buy it if
You are building or upgrading a Ryzen 5000 desktop on Socket AM4, you already have or intend to buy DDR4 memory, and you want PCIe 4.0 graphics and storage plus Wi-Fi 6E without adding a wireless card.
Skip it if
You need 2.5 Gigabit or faster wired networking, DDR5 memory, PCIe 5.0, or premium onboard audio — or your processor is a Ryzen 5 3400G or Ryzen 3 3200G, which MSI lists as not compatible with this board.
Also consider
An AM5 motherboard with DDR5 and PCIe 5.0 if you are building a new system from scratch, or a cheaper B550 board without Wi-Fi if your desktop is always on a wired connection.
Features - MSI - 7C56-092R
More Details
Product Code
03:280685
EAN Code
4711377459082
Manufacturer
MSI
Technical specifications
CPU Type
- AMD Ryzen
