MSI PRO B860M-P WIFI6E — Micro-ATX B860 Board for Intel Core Ultra 200S
LGA1851 · Intel B8604 × DDR5 up to 256 GBPCIe 5.0 x16 + M.2 Gen5Wi-Fi 6E · 2.5G LAN

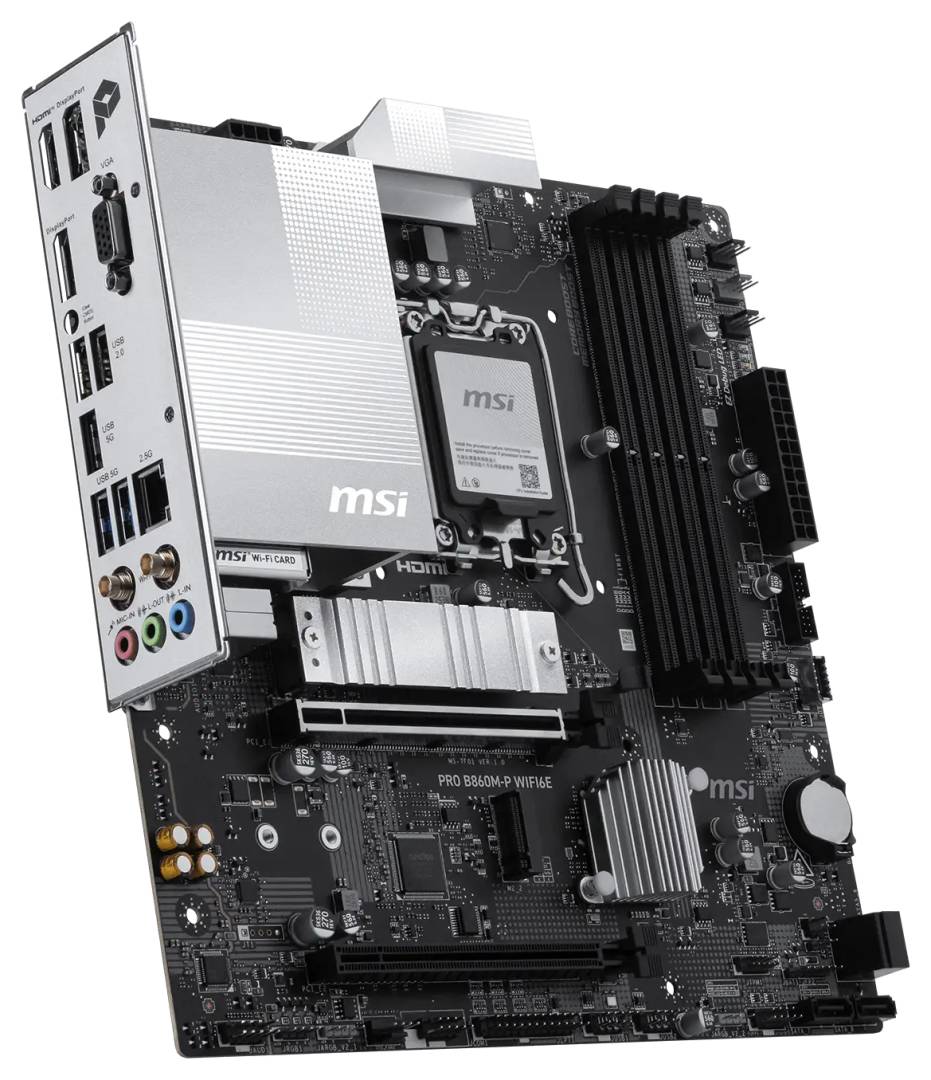

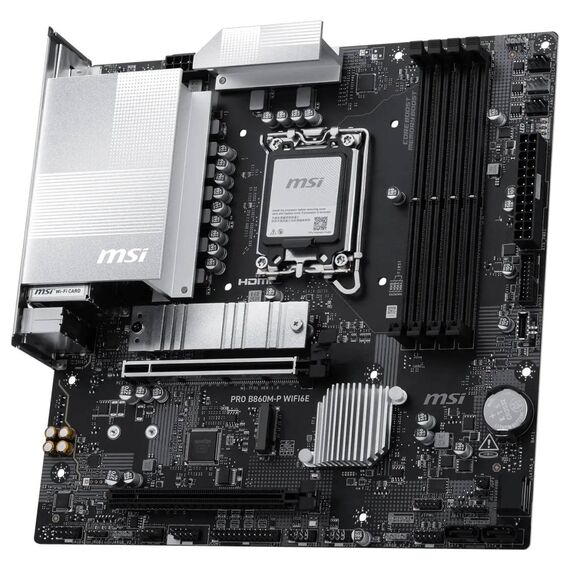

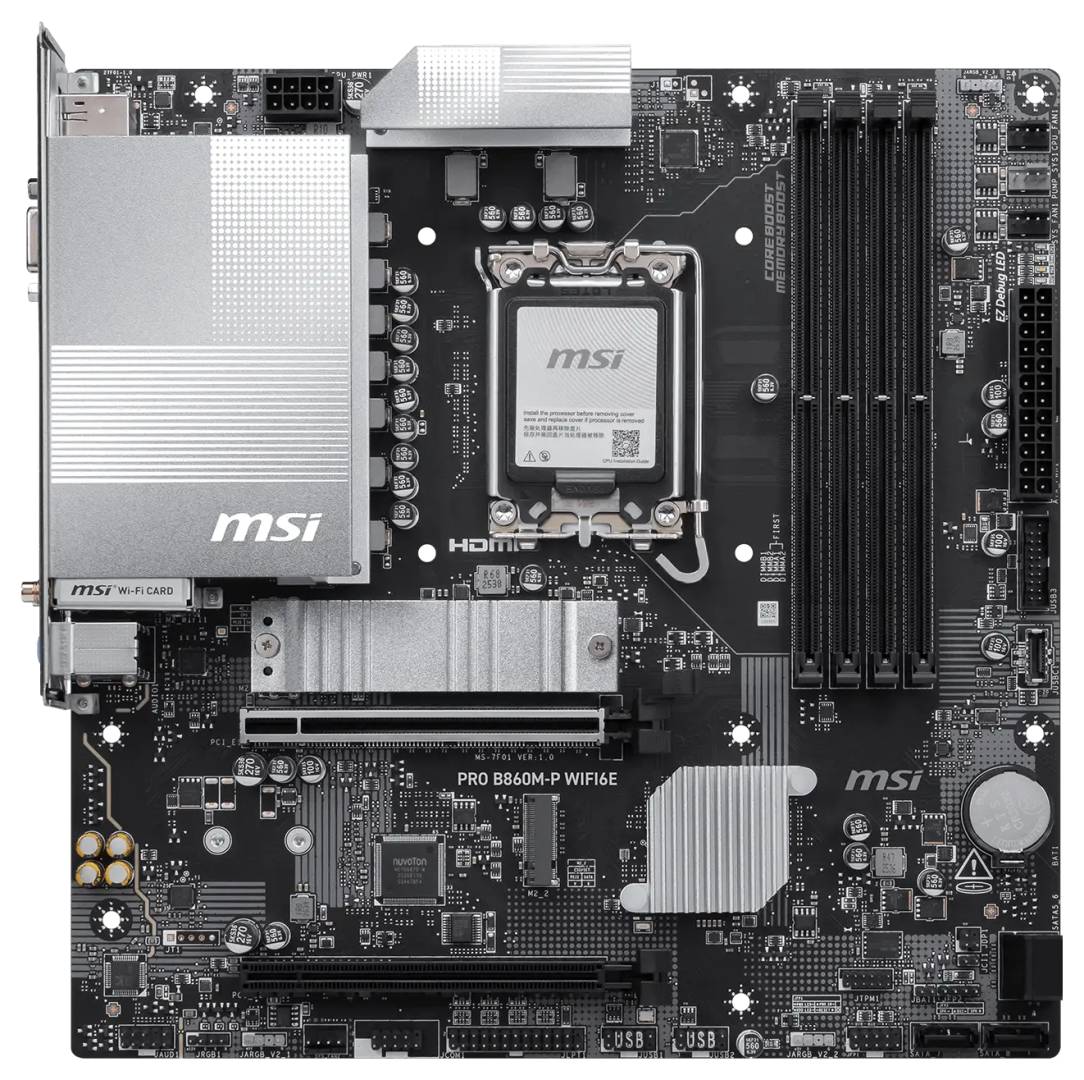

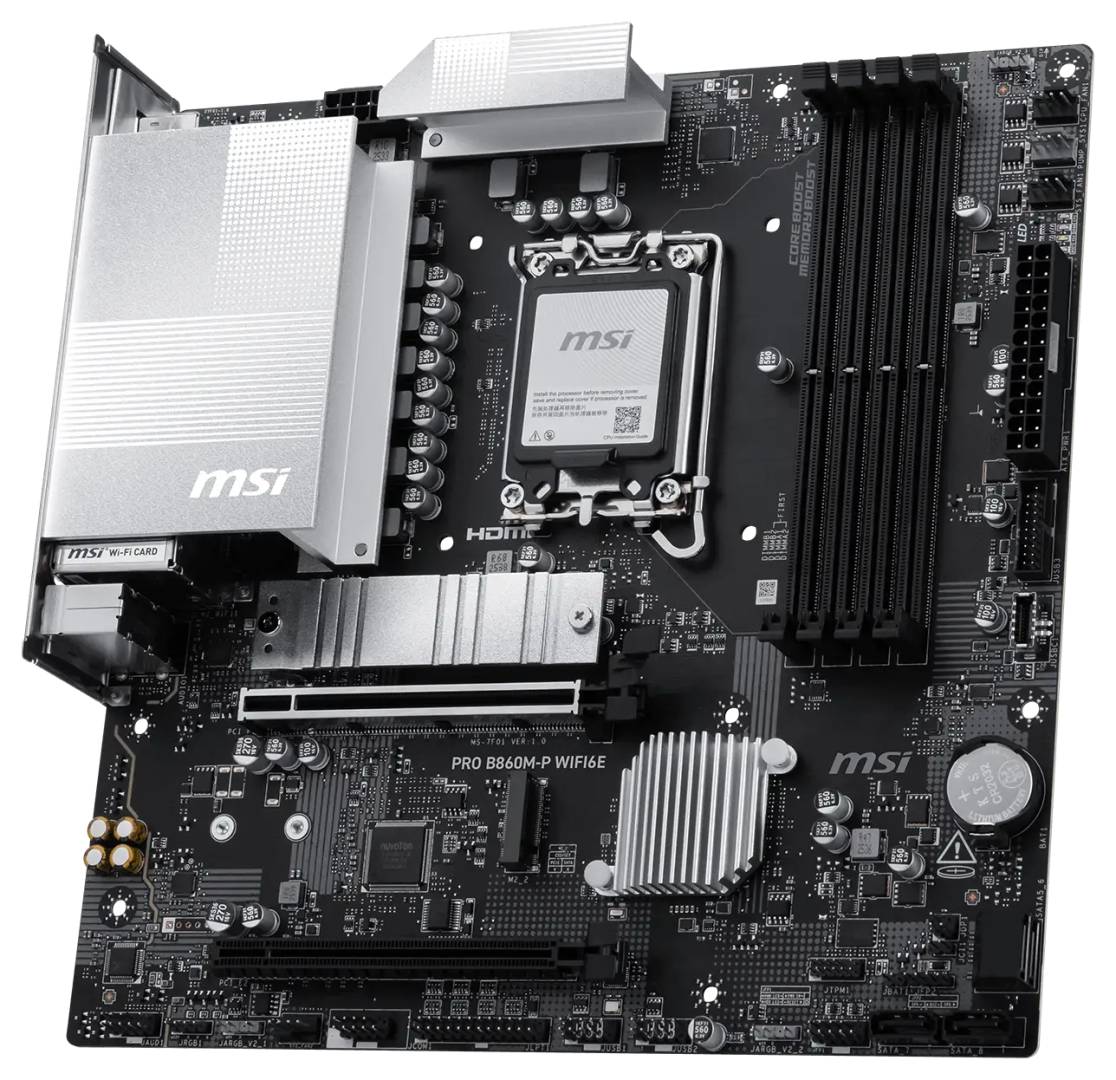

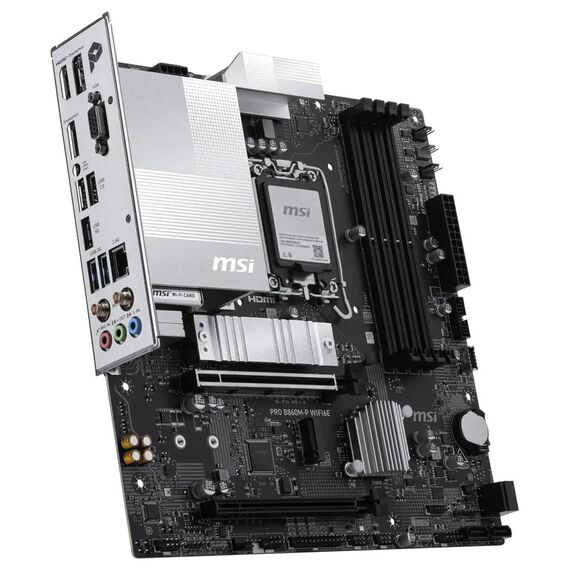

The MSI PRO B860M-P WIFI6E (part number 7F01-001R) is a Micro-ATX motherboard with the Intel B860 chipset and LGA1851 socket for Intel Core Ultra 200S (Series 2) desktop processors. It combines four DDR5 slots, a PCIe 5.0 x16 graphics slot, a PCIe 5.0 M.2 slot, Wi-Fi 6E and 2.5G LAN — a solid base for office, business and mid-range gaming builds.
It suits system builders and businesses who want current Intel connectivity in a compact mATX case without paying for Z890 overclocking features. Legacy COM and LPT headers make it a practical choice for office and industrial PCs that still use serial or parallel devices.
Before you order: LGA1851 only: Intel Core Ultra 200S (Series 2) desktop processors. 12th, 13th and 14th Gen Core (LGA1700) CPUs do not fit. The video outputs work only with a CPU that has integrated graphics.
What's in the Box
- MSI PRO B860M-P WIFI6E motherboard with pre-installed Wi-Fi 6E / Bluetooth 5.3 module
- MSI publishes the accessory bundle only as a picture — ask us if you need the exact cable and antenna list
What It Means in Practice
- Four DDR5 slots: up to 256 GB, JEDEC up to 6400 MT/s, XMP 3.0 profiles up to 8800+ MT/s with one single-rank module per channel (two modules per channel run lower, around 5600+).
- Two NVMe drives: M.2_1 PCIe 5.0 x4 from the CPU and M.2_2 PCIe 4.0 x4 from the chipset, plus 4 SATA ports with RAID 0/1/5/10.
- A front USB-C (5 Gbps) header is on board — useful if your case has a Type-C port.
- Video out: HDMI 2.1, 2 × DisplayPort 1.4 and VGA, up to 4K 60 Hz, when using a CPU with integrated graphics.
What Will Not Work
- No LGA1700 (12th–14th Gen Core) processors.
- No CPU overclocking — that needs a Z890 board.
- The 6 GHz Wi-Fi band needs Windows 11 and is subject to country regulations.
- Only 2 PCIe expansion slots — not the board for builds with several add-in cards.
Key Features
PCIe 5.0 graphics and storage
PCIe 5.0 x16 slot from the CPU plus a PCIe 5.0 x4 M.2 slot for the fastest SSDs.
Fast DDR5 support
Four slots, up to 256 GB, CUDIMM support and XMP 3.0 profiles.
Wireless and wired
Wi-Fi 6E with Bluetooth 5.3 pre-installed, plus Realtek 2.5G LAN.
Office-friendly headers
COM and LPT headers, TPM 2.0 header, chassis intrusion and EZ Debug LEDs.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
The PRO B860M-P WIFI6E is the sensible business board for Core Ultra 200S: PCIe 5.0 where it matters, Wi-Fi 6E built in and COM/LPT headers for older office devices. Match it with two DDR5 modules from our desktop DDR5 memory range for dual-channel speed.
✓ Buy it if you are building a compact Core Ultra 200S PC for office, business or mid-range gaming and want Wi-Fi without an add-in card.
✕ Skip it if you have a 12th–14th Gen Core CPU (LGA1700) or want to overclock a K processor.
→ Also consider MSI PRO A620AM-G EVO WIFI (7E96-001R) for an AMD Ryzen AM5 build.
Not sure which CPU or memory to pair it with? Send us your planned parts list and we will check compatibility before you order.
