Switch NETGEAR AV Line M4250-12M2XF / Switch / L3 / Managed / 12 x 10/100/1000/2.5G + 2 x 10 Gigabit SFP+ / side to side airflow / rack-mountable | MSM4214X-100EUS

NETGEAR AV Line M4250-12M2XF Switch L3 MSM4214X-100EUS

Description
Features

NETGEAR AV Line M4250-12M2XF / Switch / L3 / Managed / 12 x 10/100/1000/2.5G + 2 x 10 Gigabit SFP+ / side to side airflow / rack-mountable | MSM4214X-100EUS

Description

The NETGEAR M4250 switch series was developed and engineered for audio / video professionals with dedicated service and support. M4250 has been built from the ground up for the growing AV over IP market. AV codecs generally use 1 Gbps or 10 Gbps per stream and the AV Line of M4250 targets the widespread 1 Gbps codecs. M4250 switch comes pre-configured for standard audio and video signals. When requirements are more specific, an AV user interface offers customization with port-based profiles. For audio Dante, Q-SYS and AES67 profiles are available. For video the M4250 offers profiles for NVX, SVSI, Q-SYS, NDI, Dante, as well as audio / video / control mixed profiles.

NETGEAR AV Line M4250-12M2XF / Switch | MSM4214X-100EUS

Special Features

Dedicated AV web-based GUI interface for more specific AV installations
Color-based AV profiles can be applied to the different ports
Dante, Q-SYS, AES67 and AVB audio profiles
NVX, SVSI, Q-SYS, NDI and Dante video profiles
Audio / video / control mixed profiles
Automatic switch interconnect with NETGEAR IGMP Plus
Common Layer 2 and Layer 3 switching engine
Built-in IT web GUI, console, Telnet and SSH
12-port 100 / 1000 / 2.5GBase-T (RJ-45)
2-port 1000 / 10GBase-X (SFP+)
100 Gbps non-blocking fabric across 14 ports
Out-of-band 1G Ethernet management port
USB-C and RJ-45 RS232 console ports and USB-A storage port
Rack-mounting standard brackets

Product Specification

Device Type	Switch - 14 ports - L3 - Managed
Enclosure Type	Side to side airflow rack-mountable 1U
Subtype	10 Gigabit Ethernet
Ports	12 x 10/100/1000/2.5G + 2 x 10 Gigabit SFP+
Performance	Switching capacity: 100 Gbps ¦ Firewall throughput (64-byte packet size): 74.4 mpps ¦ Latency (2.5 Gbps): 6.013 µs ¦ Latency (10 Gbps): 0.807 µs
Capacity	VLANs supported: 4093 ¦ ARP entries: 4000 ¦ Multicast entries (IPv4): 512 ¦ Multicast entries (IPv6): 128 ¦ Jumbo frame size: up to 12000 ¦ IGMP multicast groups: 2000 ¦ MSTP instances: 16 ¦ PVST instances: 32
MAC Address Table Size	16K entries
Routing Protocol	RIP, IGMPv2, IGMP, PIM-SM, PIM-DM, IGMPv3, PIM-SSM, static IPv4 routing, static IPv6 routing, MLDv2
Remote Management Protocol	RMON 1, RMON 2, SNMP, RMON 9, Telnet, HTTPS, SSH, CLI, TACACS+, RADIUS
Encryption Algorithm	SSL 3.0, TLS 1.2
Features	VLAN support, DoS attack prevention, sFlow, Spanning Tree Protocol (STP) support, DHCP snooping, Quality of Service (QoS), DHCP server, Dynamic ARP Inspection (DAI), DHCP relay, Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), Dynamic VLAN Support (GVRP), Multiple VLAN Registration Protocol (MVRP), 16MB packet buffer, IP source guard, Bridge protocol data unit (BPDU), GARP Multicast Registration Protocol (GMRP), Spanning-tree Root Guard (STRG), policy based routing, Authentication, Authorization and Accounting (AAA), LLDP-MED, Private VLAN, Protocol Independent Multicast (PIM), Rapid Reconfiguration of Spanning Tree (RSTP), Link Aggregation Group (LAG)
Compliant Standards	IEEE 802.3ad (LACP), IEEE 802.1as, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3az, IEEE 802.1AX, IEEE 802.1Qat, IEEE 802.1Qav
Processor	X ARM A9: 1.25 GHz
RAM	2 GB
Flash Memory	256 MB
Status Indicators	Link/speed

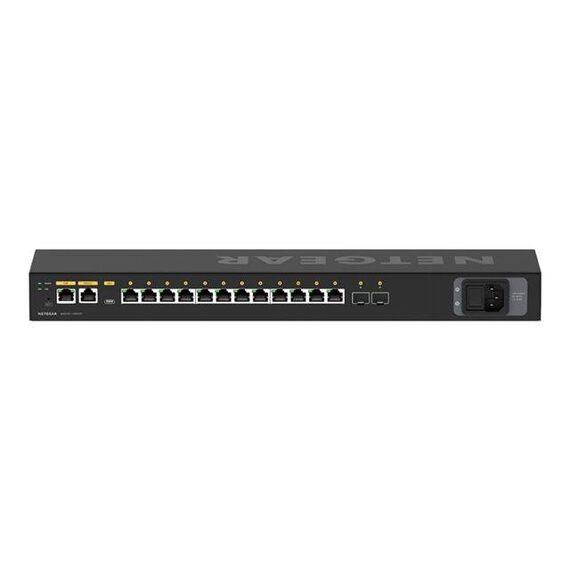

Interfaces	12 x 10/100/1000/2.5G RJ-45 ¦ 2 x 10GBase-X SFP+ ¦ 1 x management (Gigabit LAN) RJ-45 ¦ 1 x console RJ-45 ¦ 1 x USB Type A ¦ 1 x console (USB) Type C
Power Device	Internal power supply
Installed Qty	1
Power Consumption Operational	37.9 Watt
Power Consumption Stand by	14.1 Watt
Included Accessories	Mounting brackets
Cables Included	Console cable ¦ USB-C to USB-A cable
Rack Mounting Kit	Included
Compliant Standards	CCC, EN 61000-3-3:2013, EN 55024:2010, YD/T993-1998, IEC60950/EN60950, FCC CFR47 Part 15 B Class A, CNS 13438 Class A, GB 4943.1-2011, EN 55032:2012+AC:2013 Class A, CNS 14336-1, IEEE 1588, ICES-003:2016 issue 6 Class A, CISPR 32:2012, EN 61000-3-2:2014 Class A, VCCI-CISPR 32:2016 Class A, AN/NZS 60950.1:2015, AS/NZS CISPR32:2013 Class A, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, EN 60950-1:2006+A1:2010+A11:2009+A2:2013+A12:2011, GB/T9254-2008 Class A, ANSI C63.4:2014
Localisation	Europe
Width	44 cm
Depth	10 cm
Height	4.32 cm
Weight	1.745 kg
Service & Support	Limited warranty - lifetime
Min Operating Temperature	0 °C
Max Operating Temperature	50 °C
Humidity Range Operating	90% (non-condensing)
Min Storage Temperature	-20 °C
Max Storage Temperature	70 °C
Humidity Range Storage	95% (non-condensing)
