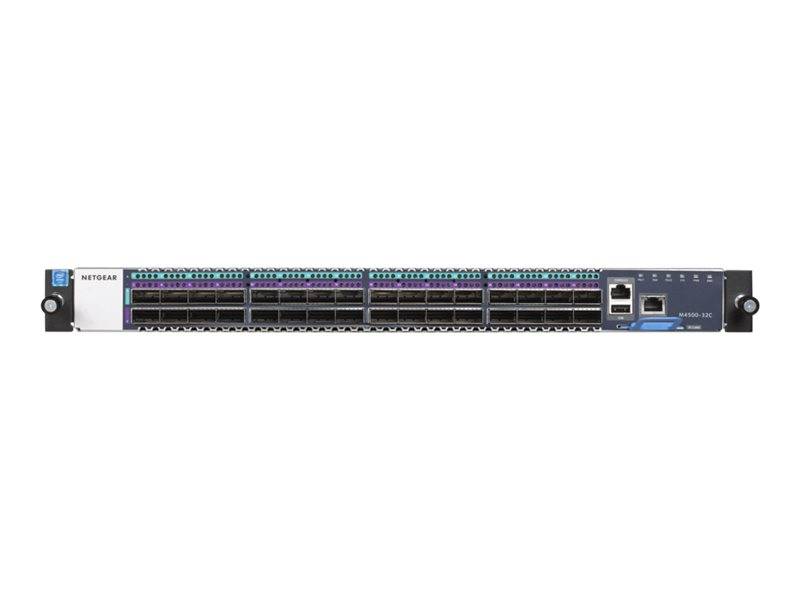

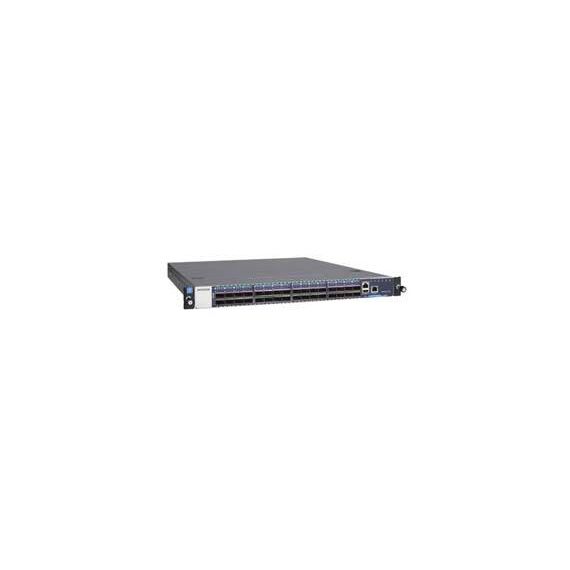

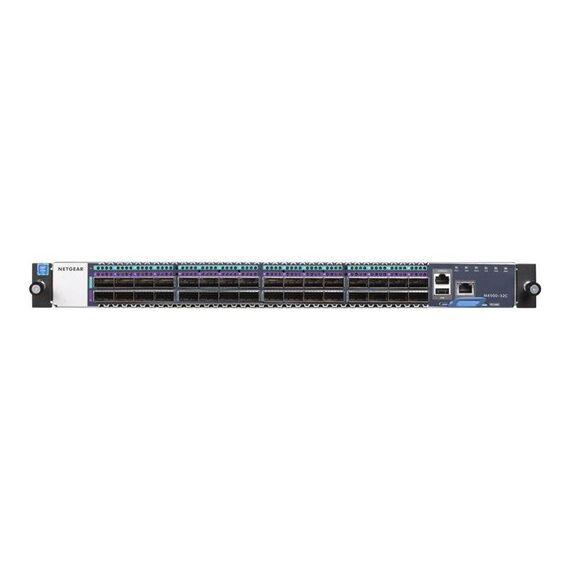

NETGEAR M4500-32C / Switch / L3 / Managed / 32 x 10 Gigabit / 25 Gigabit / 40 Gigabit / 50 Gigabit / 100 Gigabit QSFP28 / rack-mountable | CSM4532-100EUS
Please sign in so that we can notify you about a reply
Special Features
- Cost effective 100G aggregation and 10G access layer for AV deployments and redundant spine & leaf topologies
- Zero Touch AV over IP with pre-configured L2 Multicast on all models (10G AV encoders and decoders) and SDVoE-ready
- Advanced Layer 3 feature set including IP Multinetting/CIDR, Static, PBR, VRRPv2, OSPFv3, PIM-SM, VxLAN, BGP4, VRF-Lite
- Optimized for "Spine and Leaf" redundant AV installations, with or without MLAG between spine switches
- Up to 320 TX / 320 RX (10 Gigabit) nodes all line rate with each other in a redundant spine and leaf architecture
Product Specification
| Device Type | Switch - 32 ports - L3 - Managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 10 Gigabit Ethernet |
| Ports | 32 x 10 Gigabit / 25 Gigabit / 40 Gigabit / 50 Gigabit / 100 Gigabit QSFP28 |
| Performance | Switching capacity: 6.4 Tbps ¦ Throughput: 2 Bpps |
| Capacity | Virtual interfaces (VLANs): 4000 ¦ IPv4 routes: 32000 ¦ IPv6 routes: 24000 ¦ Latency: 64 ¦ ARP entries: 8000 ¦ Multicast entries (IPv4): 2048 ¦ Multicast entries (IPv6): 2048 ¦ NDP entries: 2500 ¦ Static routes: 128 ¦ IGMP multicast groups: 4000 ¦ LAG groups: 64 |
| MAC Address Table Size | 32K entries |
| Jumbo Frame Support | 9KB |
| Routing Protocol | BGP-4, IS-IS, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, IGMPv3, OSPFv3, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), MLDv2, MLD, VRRPv2, Bidirectional Forwarding Detection (BFD), CIDR, RSTP, STP |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI, SCP, ASF, SFTP, DHCP, IPv4, IPv6, RSTP, TACACS+, RADIUS |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2), MS-CHAP v.2 |
| Features | Flow control, auto-negotiation, BOOTP support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, DiffServ support, sFlow, Multiple Spanning Tree Protocol (MSTP) support, Data Center Bridging Exchange (DCBX) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), Virtual Route Forwarding-Lite (VRF-Lite), Dynamic ARP Inspection (DAI), Uni-Directional Link Detection (UDLD), LACP support, LLDP support, DHCP relay, Remote Switch Port Analyzer (RSPAN), dual firmware images, Neighbor Discovery Protocol (NDP), loop prevention, Class of Service (CoS), 802.1x authentication, 6 fans, Storm Control, IP source guard, Back Pressure Support, Priority-Based Flow Control (PFC), Virtual Extensible LAN (VXLAN), Role-Based Access Control (RBAC), Source-Specific Multicast (SSM), Authentication, Authorization and Accounting (AAA), VLAN Double Tagging (Q-in-Q), Multi-Chassis Link Aggregation (MLAG), Switched Port Analyzer (SPAN), Protocol Independent Multicast (PIM), port trunking, MAC Access Bypass (MAB), BPDU Guard, 256MB packet buffer |
| Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.1AX |
| Processor | 1 x Intel Atom C3558 |
| RAM | 8 GB DDR3L SDRAM |
| Built-in Devices | 128 GB SSD |
| Status Indicators | Power, system, fan, link/activity/speed, PSU |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 32 x 100GBase-X QSFP28 ¦ 1 x management (RS-232) RJ-45 ¦ 1 x USB Type A ¦ 1 x management (Gigabit LAN) RJ-45 |
| Power | Power |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Power Provided | 750 Watt |
| Voltage Required | AC 120/230 V |
| Power Consumption Operational | 426 Watt |
| Features | Front-to-rear air?ow |
| Miscellaneous | Miscellaneous |
| Cables Included | Console cable |
| Rack Mounting Kit | Included |
| MTBF | 281,359 hours |
| Compliant Standards | BSMI, EN 60950, UL 1950, IEC 60950, CB, FCC CFR47 Part 15, LVD, RCM, BSMI CNS 14336-1, EN 61000-3-3:2013, YD/T993-1998, EN 61000-3-2:2014, CNS 13438 Class A, GB 4943.1-2011, EN 55032:2012+AC:2013 Class A, ANSI C63.4-2014, ISED, ICES-003:2016 issue 6 Class A, CISPR 32:2012, VCCI-CISPR 32:2016 Class A, AN/NZS 60950.1:2015, AS/NZS CISPR32:2013 Class A, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, EN 55024:2010 Class A, T9254-2008 (Class A), EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 |
| Localisation | Europe |
| Dimensions & Weight | Dimensions & Weight |
| Width | 44 cm |
| Depth | 50.8 cm |
| Height | 4.32 cm |
| Weight | 9.78 kg |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 90% (non-condensing) |
| Min Storage Temperature | -20 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 95% (non-condensing) |
Features - NetGear - CSM4532-100EUS
More Details
Product Code
0714607
EAN Code
0606449145731
Manufacturer
NetGear
