NETGEAR APS920W Modular Power Supply 920 W, Hot-Swap PSU for M4350 Switches, PoE Budget and Redundancy
Brand:
NetGear
NETGEAR APS920W Modular Power Supply 920 W, Hot-Swap PSU for M4350 Switches, PoE Budget and Redundancy
€730.45 inc. VAT
APS920W-100NES
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply

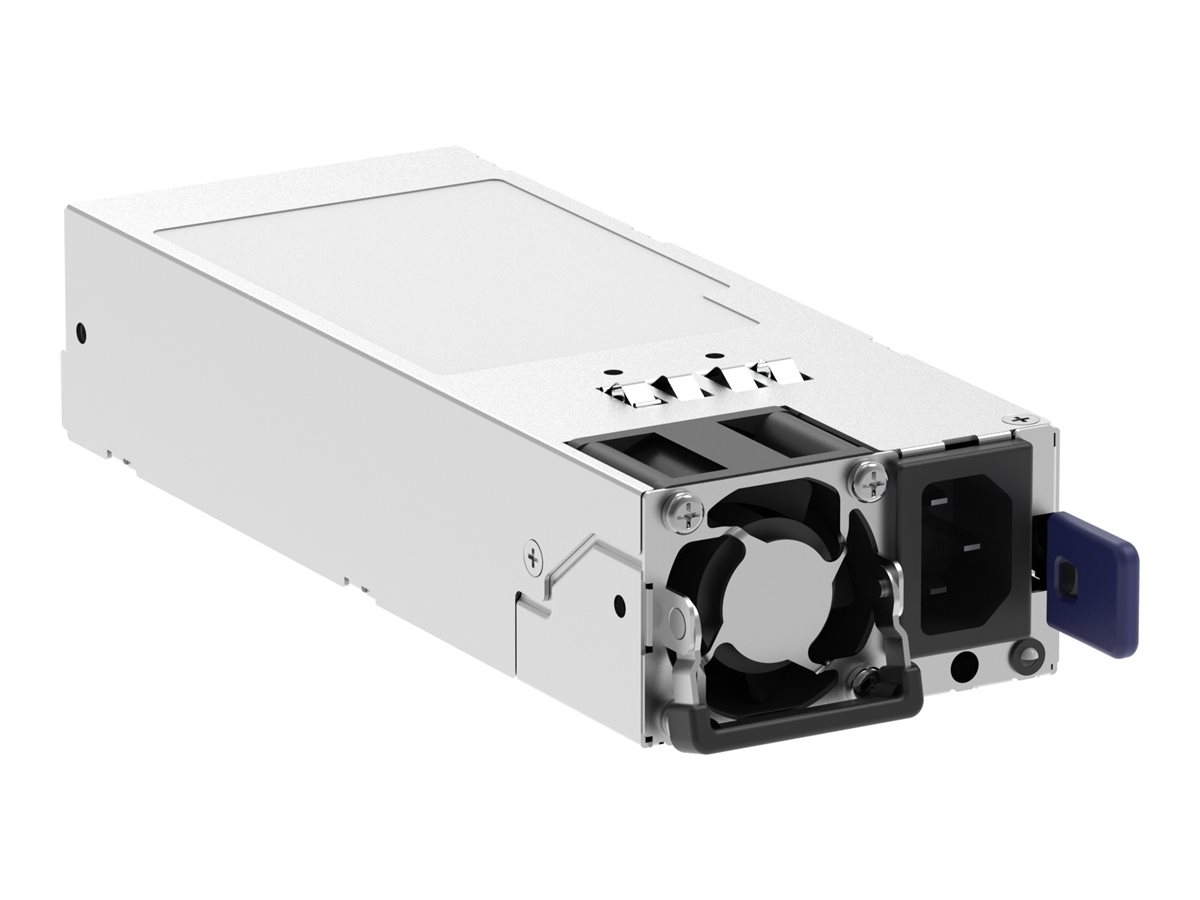

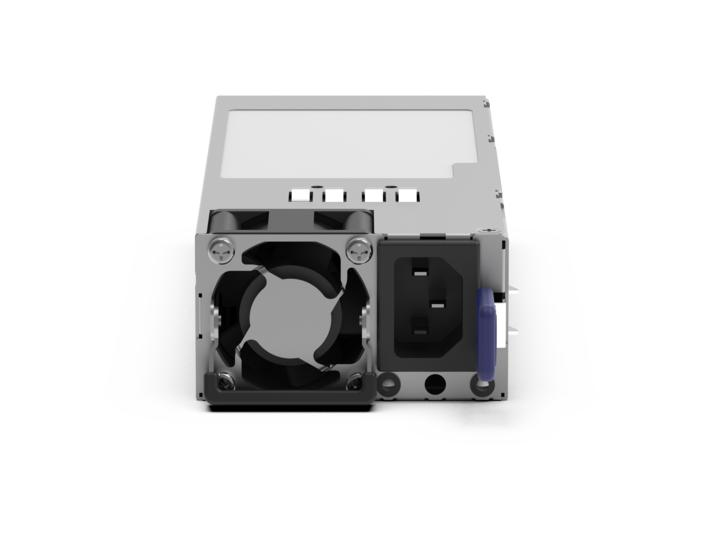

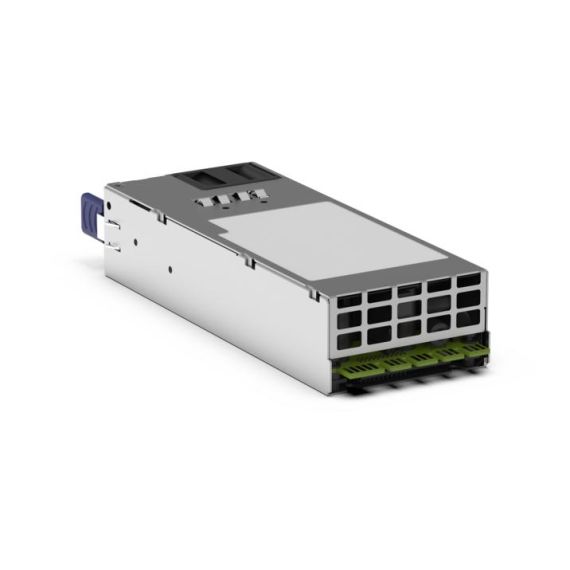

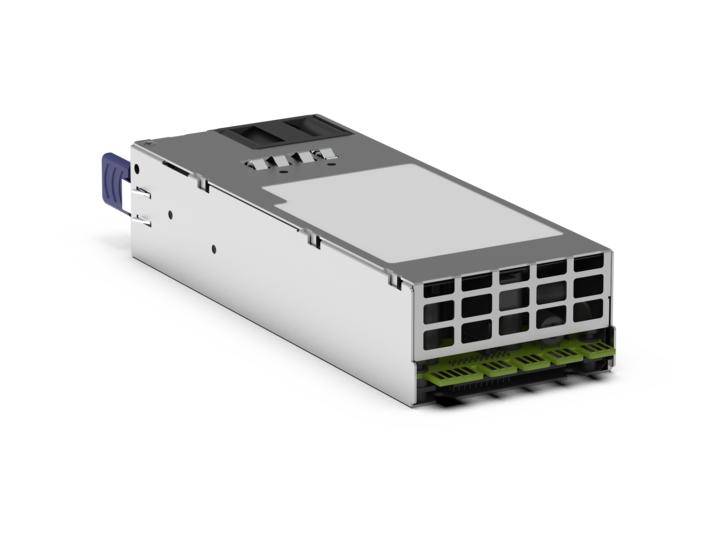

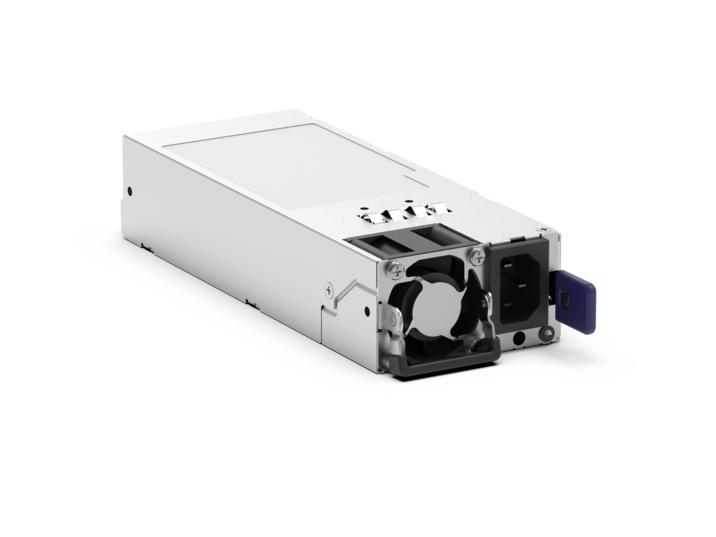

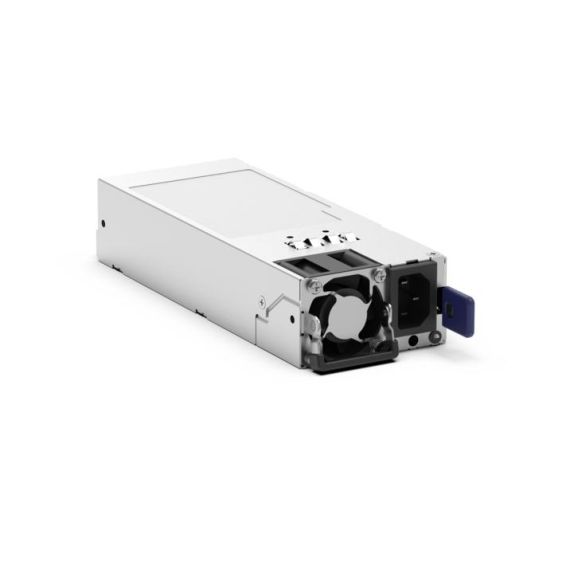

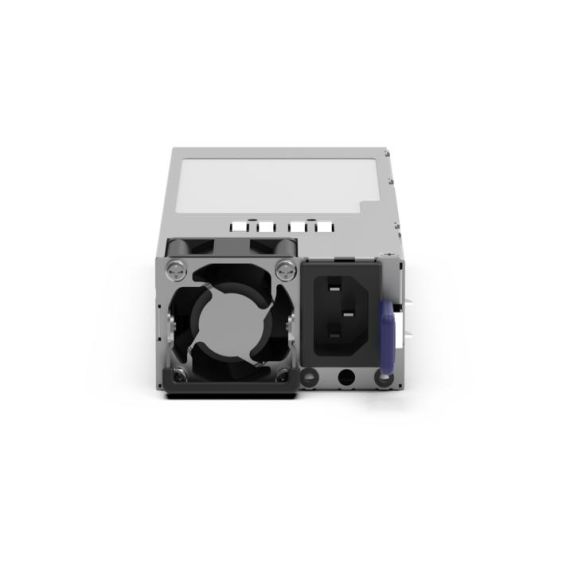

NETGEAR APS920W 920 W Modular Power Supply for M4350 Switches
920 WHot-swapPoE budget boostM4350 series
The NETGEAR APS920W (APS920W-100NES) is a 920 W hot-pluggable modular power supply for NETGEAR M4350 series managed switches. You add it to a free power supply bay to raise the switch PoE budget, to make the power supply redundant, or as a spare for a unit already in service.
In the M4350 the extra supply works automatically in power-sharing and 1+1 redundant mode. On the 48-port PoE models it lifts the PoE budget from a few hundred watts to well over 800 W, enough for Wi-Fi 7 access points, PTZ cameras and other high-power devices. It accepts 100 to 240 V AC through a standard C14 inlet.
Before you order: NETGEAR lists the APS920W for the M4350 series only (M4350-24G4XF, M4350-48G4XF, M4350-24X4V, M4350-44M4X4V, M4350-24F4V). It is not listed for M4300 or M4500 switches. Send us your switch model if it is not on this list.
What's in the Box
- 1 × NETGEAR APS920W modular power supply
- Installation guide
- Power cord: NETGEAR documents disagree on whether a cord is included; we confirm with your order
What It Means in Practice
- On an M4350-48G4XF the PoE budget rises from 236 W to 892 W with one APS920W, and to 1,440 W with two.
- On an M4350-44M4X4V it rises from 194 W to 850 W with one, and 1,586 W with two.
- On the 24-port M4350-24G4XF and 24X4V it adds headroom up to 720 W and a redundant supply.
- Hot-swap means you can replace a failed unit without shutting the switch down.
What Will Not Work
- It will not fit NETGEAR M4300, M4500 or other switch families.
- On the M4350-24F4V (no PoE) it adds redundancy only, not PoE power.
- It does not raise the PoE budget beyond the switch maximum shown in the NETGEAR datasheet.
- It is not an external RPS unit; it plugs into the switch power bay.
Key Features
920 W output
54.5 V DC at 16.88 A for PoE-heavy deployments.
Hot-pluggable
Replace or add a supply while the switch keeps running, in models with more than one bay.
Automatic EPS and RPS
Power sharing and 1+1 redundancy are set automatically in the M4350.
Universal input
100 to 127 V AC at 12 A or 200 to 240 V AC at 6 A, 50 to 60 Hz.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
The PoE budget is the number that limits real deployments: a 48-port switch that can only deliver 236 W runs out after a handful of Wi-Fi 7 access points. Adding an APS920W is usually cheaper than a second switch, and it gives redundancy as a bonus. See our network switches for M4350 models.
✓ Buy it if you run an M4350 switch and need more PoE power or a redundant supply.
✕ Skip it if your switch is not an M4350, or your PoE devices already fit the internal budget.
→ Also consider a second APS920W for maximum budget on 48-port models, or NETGEAR M4350 switches.
Not sure how much PoE you need? Send us the switch model and the devices you plan to connect and we will calculate the budget before you order.
Features - NetGear - APS920W-100NES
More Details
Product Code
CI35057
EAN Code
0606449162035
Manufacturer
NetGear
