NETGEAR ProSAFE AGM731F SFP Transceiver 1000BASE-SX 1 Gbps LC Multimode Fibre up to 550 m on OM3
Brand:
NetGear
NETGEAR ProSAFE AGM731F SFP Transceiver 1000BASE-SX 1 Gbps LC Multimode Fibre up to 550 m on OM3
€200.15 inc. VAT
AGM731F
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply

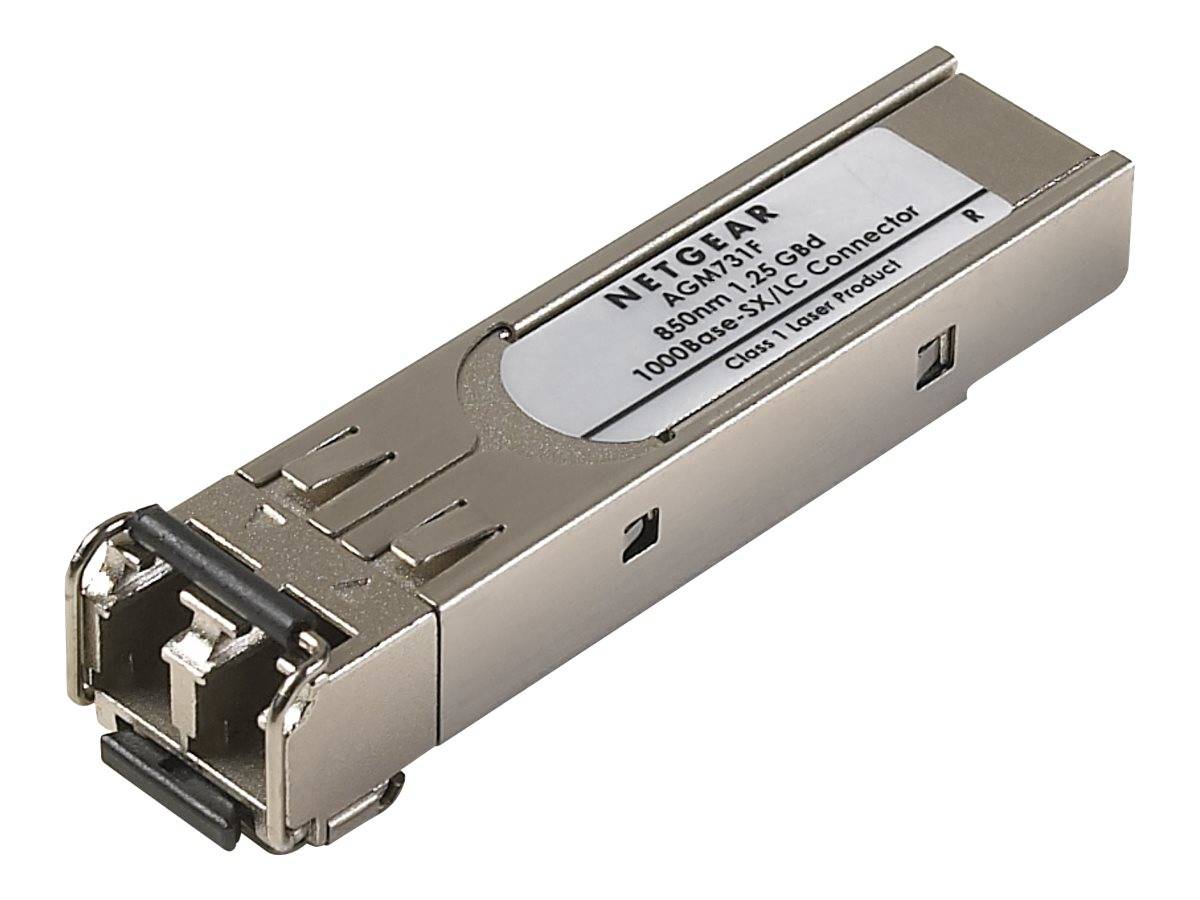

NETGEAR AGM731F — 1G Multimode SFP
1 Gbps1000BASE-SXLC multimodeOM3 550 m
The NETGEAR ProSAFE AGM731F is a Gigabit SFP transceiver for multimode fibre, running 1000BASE-SX over an LC duplex connection. NETGEAR’s installation guide gives 275 m on OM1, 275–550 m on OM2 and 550 m on OM3. It is the standard short-reach fibre optic for NETGEAR managed and smart switches, used for uplinks and building links inside one site. In practice, multimode optics are the cheaper choice for links inside one building: most server rooms and floor risers already carry OM3 or OM4 fibre, and the module plus a short LC patch cord is all a port needs. Before you order, check the fibre grade printed on the cable jacket and the real length of the run, including patch panels.
Compatibility — check before buying:
It runs at 1 Gbps only. NETGEAR notes that some SFP+ ports on its smart switches accept 1G SFPs and detect the speed, but a 1G module never gives 10G. It needs multimode fibre and an SX module at the far end. Its sibling AGM732F is the 1000BASE-LX single-mode version — order that one for fibre between buildings. Keep the dust cap on until you connect the fibre, and clean both connector ends before every mating — dirt is the most common cause of a link that will not come up. Not sure? Send us your switch model and the cable run and we check it before you order.
Best For
✓ Fibre uplinks in one building
✓ NETGEAR managed and smart switches
✓ Replacing a failed AGM731F
✓ Links to floor distributors
✓ OM1 to OM3 multimode fibre
✓ Spare optic for a NETGEAR network
Key Features
Wide temperature margin
Rated −5 to 70 °C with 1.1 W consumption, so it suits closets that run warmer than a server room.
Multimode fibre, short reach
Built for the short runs inside a building or data room over OM-grade multimode fibre. Reach depends on the fibre grade — the figures in the table are per grade, so check what is actually in your walls before you plan a link.
Hot-swappable
Modules plug into a live port without shutting the switch down, so a link can be added or replaced during working hours. Seat it until it clicks and use the latch to remove it.
Plan both ends together
A link only comes up when both ends use the same standard, speed and media. Order the far-end optic, the patch cord and any spares in one go and the link works on day one.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
The AGM731F is the fibre optic we pair with NETGEAR access switches for runs inside one building. For single-mode fibre between buildings, choose the AGM732F; for 10G links, NETGEAR’s AXM761 SR is the step up on OM3/OM4. Every order is backed by Singular’s local support in Cyprus — if a link will not come up, send us the port status from the switch and we help you find out whether it is the optic, the cable or the configuration. Browse all transceivers and DAC cables or the switches they plug into.
Buyer’s Guide
Buy it if
You need a 1G multimode optic for a NETGEAR SFP port on runs up to 550 m (OM3).
Skip it if
Your fibre is single-mode (AGM732F) or the link must run at 10G.
Also consider
NETGEAR AGM732F for single-mode, or AXM761 for 10G.
Features - NetGear - AGM731F
More Details
Product Code
0710317
EAN Code
0606449029734
Manufacturer
NetGear
