Baaske Network Isolator MI 1005 Retail | 2006484

Network isolator for medical engineering

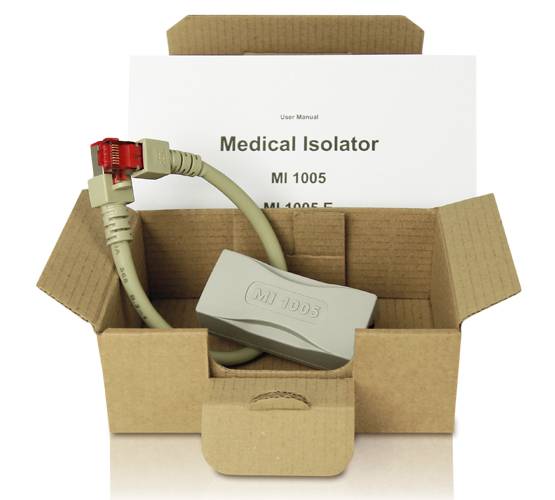

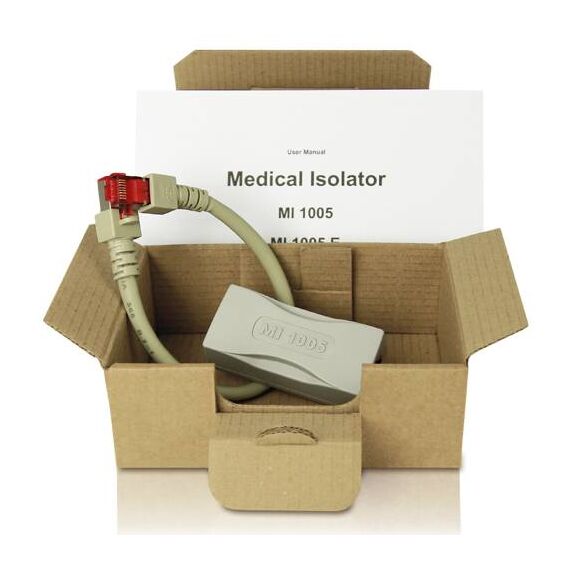

The network isolator MI 1005 Retail is particularly suitable for resellers in the medical market. The pre-packed complete set is include the network isolator MI 1005, patch cable (25cm), manual, outer packaging + serial number on the outer packaging.

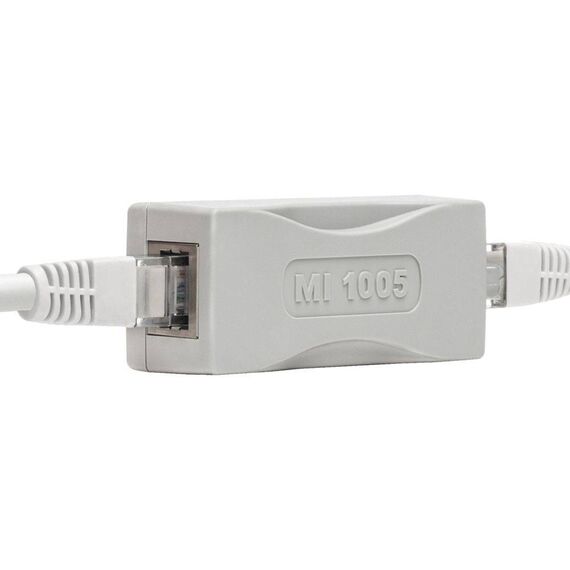

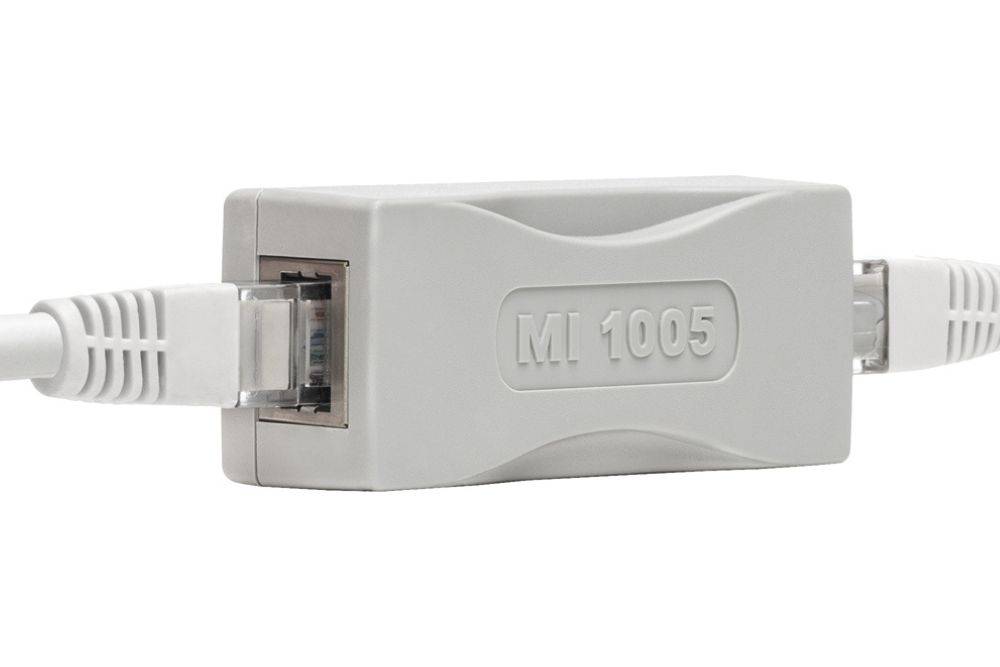

The MI 1005 is used between an active medical device and an Ethernet network or a non-medical device, such as an office PC, printer or laptop. In accordance with the IEC EN 60601-1 standard, devices and systems are safely galvanically isolated. In accordance with the requirements of IEC 60601-1 (edition 3.2), the network isolator MI 1005 has two independent protective measures (2 MOPP) for the patient and is therefore ideally suited for standard-compliant galvanic isolation of Ethernet-based signal interfaces within the patient environment.

Description:

Speed 10/100/1000 MBit/S, full IEEE 802.3ab compatibility, with standard certificate from Notified Body according to EN 60101-1, EN 60601-1-2 and UL E504923-D1000. The network isolator MI 1005 Retail was developed to protect against incalculable currents via the data lines. This network isolator enables the galvanic network separation of electrical devices and systems according to DIN EN 60601-1. The galvanic network separations are passive, electronic components without their own power supply. They behave completely transparently in the data network, therefore the installation of drivers or additional software is not necessary. Commissioning is done by simply inserting it into an existing network cabling. An external power source is not required for operation. The MI 1005 has been tested by the notified body for medical devices, the Eurocat Institute in Darmstadt, according to IEC 60601-1 and DIN EN 60601-1 as well as IEC 60601-1-2 and DIN EN 60601-1-2. In addition, certification according to UL E504923-D1000 is also available. A summary of the test reports is available on request. Only UL94-V0 materials were used to manufacture the MI 1005. The MI 1005 network insulator is equipped with a dielectric strength of 5,000 V and offers full IEEE 802.3 compatibility.

Product Specification
