Newland FM431 Barracuda Pro | 2D Fixed Mount Scanner | Dual Aimer | USB | IP54 | Black

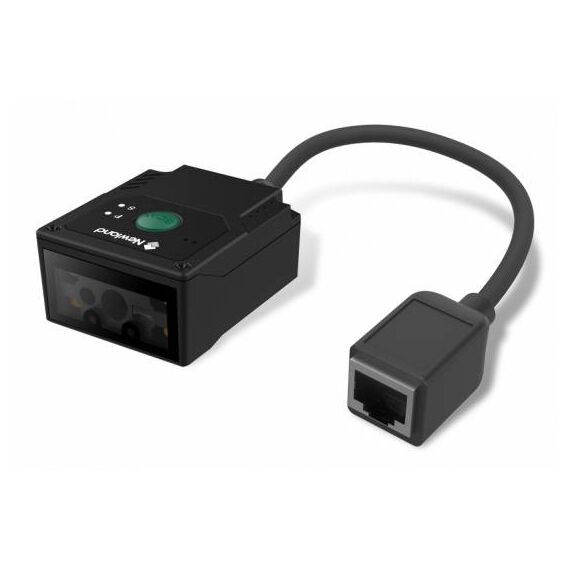

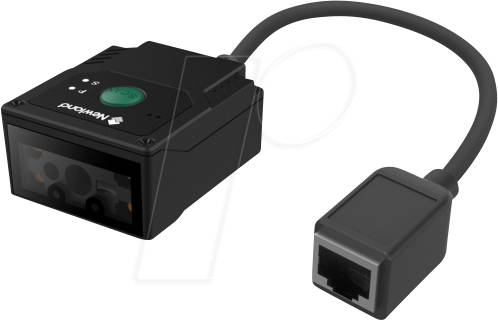

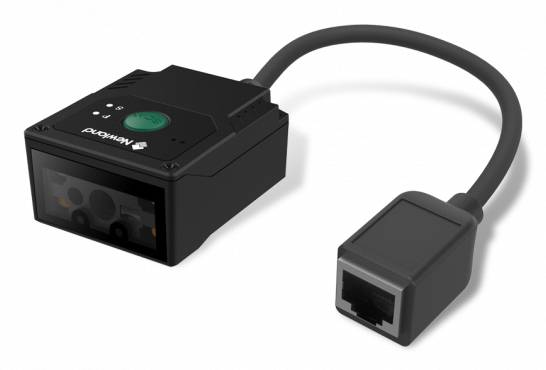

Newland FM431 Barracuda Pro
Black · 2D Fixed Mount Scanner · 1280×800 CMOS · Dual Aimer · USB · IP54
The Newland FM431 Barracuda Pro is a high-performance fixed mount 2D imager designed for demanding POS, manufacturing, automated vending and outdoor applications. It combines a 1280×800 CMOS sensor with high motion tolerance and dual aiming — laser for precision targeting and LED for customer-safe, consumer-facing deployments. Advanced Exposure Control handles everything from direct sunlight to reflective barcodes, while IP54 sealing and a -20°C to +60°C operating range make it Newland's most all-weather fixed mount scanner.
| Part Number | NLS-FM431-SR-U |
| EAN | 5715063057216 |
| Scanner Type | Fixed mount 2D area imager · Omnidirectional |
| Image Sensor | 1280×800 CMOS · White Light + IR |
| Resolution | 3 mil |
| Aiming System | Dual: Laser (precise targeting) + LED (customer-safe, good-read flood) |
| Barcode Support | 1D & 2D · QR Code · PDF417 · Data Matrix · EAN/UPC · Code 128 · GS1 DataBar · and more |
| Motion Tolerance | High — suitable for conveyors and automated/robotic applications |
| Light Conditions | Advanced Exposure Control · Operates under direct sunlight · Handles reflective barcodes |
| Interfaces | USB · RS-232 (dual interface) |
| Power Supply | 5V · 276mA (via USB or RS-232) |
| IP Rating | IP54 |
| Operating Temp | -20°C to +60°C |
| Dimensions | 41.5 × 49.5 × 24.3 mm |
| Weight | 56 g |
| Colour | Black |
| Compatibility | Drop-in replacement for FM430 Series (identical dimensions) |
| In the Box | FM431 scanner · 2m USB extension cable |
BUYER'S GUIDE
For whom: Systems integrators, OEM manufacturers, retail POS builders and industrial automation engineers who need a compact, high-performance fixed mount 2D scanner for embedding into kiosks, vending machines, conveyor lines or outdoor terminals.
Real reason to buy: Dual aiming in a single 56 g unit eliminates the need to choose between laser precision and LED safety — you get both, configurable per use case. The FM430 form-factor compatibility makes it a zero-effort upgrade for existing installations.
Know before you buy: This is an OEM/embedded scanner — no enclosure or stand is included. Mounting via the base mounting points is required. Configuration is via programming barcodes or RS-232 command protocol. The 2m USB cable is included; RS-232 cable is sold separately.
Verdict: The FM431 Barracuda Pro is the definitive upgrade for any FM430-based installation and the first choice for new fixed mount 2D deployments where environmental robustness, motion tolerance and dual aiming are priorities.
