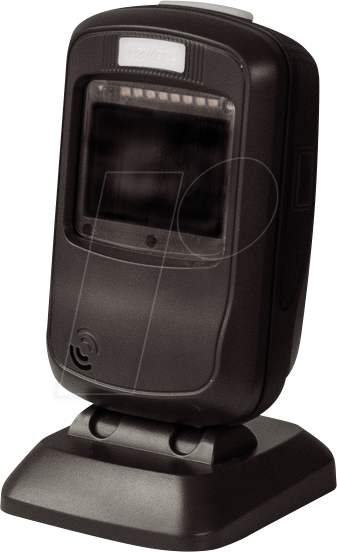

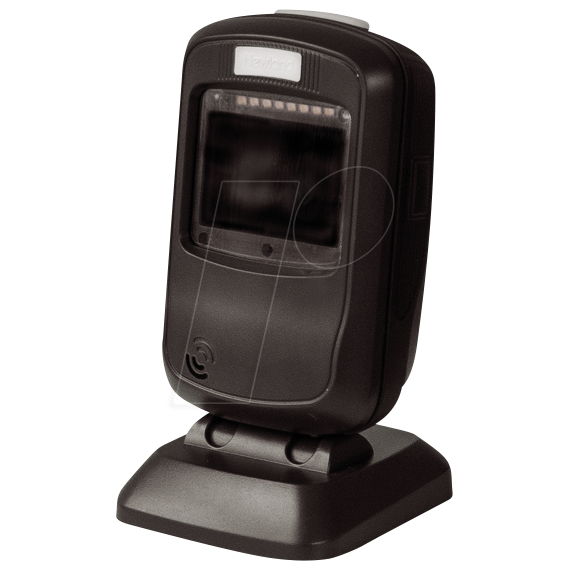

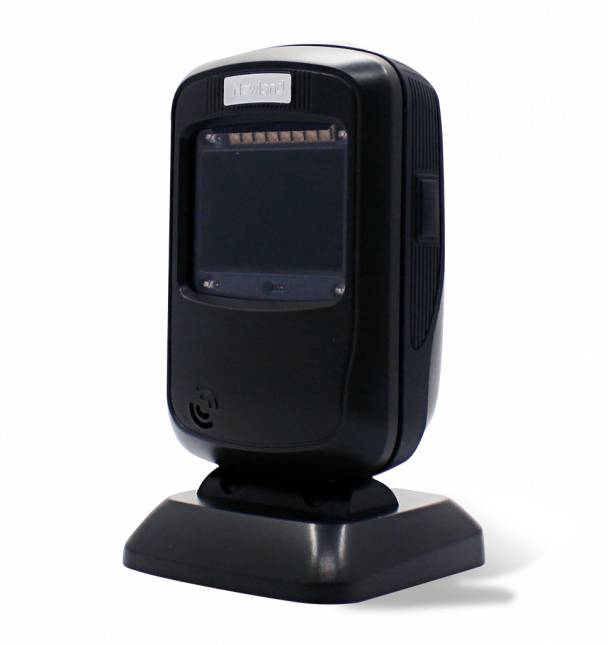

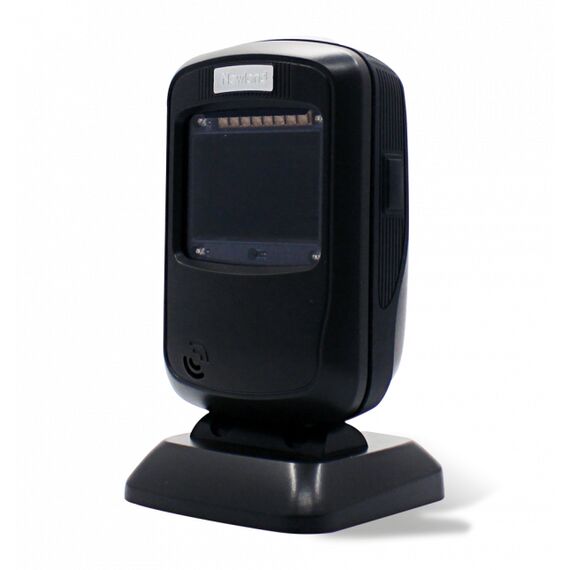

Newland Koi II FR4080-20 Black Desktop 1D/2D Barcode Scanner NLS-FR4080-20 with 1280 × 800 CMOS Imager, USB Kit, QR Code Reading and IP52 Protection
Μάρκα:
Newland
Newland Koi II FR4080-20 Black Desktop 1D/2D Barcode Scanner NLS-FR4080-20 with 1280 × 800 CMOS Imager, USB Kit, QR Code Reading and IP52 Protection
€209.01 inc. VAT
NLS-FR4080-20
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Συνδεθείτε για να μπορέσουμε να σας ειδοποιήσουμε σχετικά με μια απάντηση
Newland Koi II FR4080-20 — Desktop 1D/2D Barcode Scanner
Hands-Free Scanning1D & 2D BarcodesMobile Screen ReadingIP52 Protection
The Newland Koi II FR4080-20 (NLS-FR4080-20) is a compact, black desktop presentation scanner designed to read product barcodes without requiring the operator to hold a handheld reader. Its 1280 × 800 CMOS image sensor recognises supported 1D and 2D barcodes, including EAN product labels, QR codes, Data Matrix and PDF417. The scanner reads compatible barcodes printed on paper or displayed on smartphone screens, making it suitable for retail checkout, digital vouchers, loyalty applications and point-of-sale operations. An infrared activation sensor helps trigger scanning as barcodes are presented. The FR4080-20 USB kit provides a practical corded scanning solution for businesses that need both traditional product-code and mobile-barcode recognition.
Compatibility — check before buying:
Exact variant: NLS-FR4080-20 identifies the black Newland Koi II FR4080 desktop scanner supplied as a USB kit. It is a corded presentation scanner, not a cordless handheld model. Connection: this package is intended for USB-connected POS equipment; the FR4080 hardware family also supports RS-232, but an appropriate alternative connection cable is required for that interface. Software: confirm compatibility with the POS application and the required barcode formats. Protection: IP52 provides limited dust and dripping-water protection, not waterproofing. Reading performance varies with barcode quality, size, display brightness and presentation angle. The manufacturer's published operating and scanning figures are test-dependent and do not guarantee identical results in every checkout environment.
Best For
✓ Retail shops and supermarket checkout counters
✓ QR codes on smartphone screens
✓ Pharmacy and convenience-store POS systems
✓ Digital loyalty cards and barcode vouchers
✓ Compact hands-free desktop scanning
✓ USB-connected checkout installations
Key Features
1280 × 800 CMOS barcode imaging
The high-resolution CMOS sensor supports 1D and 2D barcode decoding. Newland's dual-core decoding platform and image-processing technology are designed for fast recognition of supported symbols, including difficult printed labels and barcodes presented on digital displays.
Reads printed and on-screen barcodes
The scanner can read compatible barcodes from printed packaging and electronic screens without needing separate scanning equipment. This is useful for shops handling physical products alongside digital coupons, loyalty codes or QR-based customer identification.
Infrared-triggered presentation scanning
An infrared sensor detects barcode presentation and activates scanning, allowing items or mobile screens to be moved in front of the reader without repeatedly operating a handheld trigger. Audible and LED feedback confirm successful scanning.
Wide barcode compatibility
Supported linear codes include EAN-13, EAN-8, UPC-A, UPC-E, Code 128, Code 39 and GS1 DataBar. Two-dimensional formats include QR Code, Micro QR, Data Matrix, PDF417 and Aztec. This makes the FR4080 suitable for both common retail product identification and supported digital barcode applications.
IP52-rated commercial construction
The housing carries an IP52 rating and is tested to withstand 1.2m drops onto concrete under the manufacturer's specified conditions. Its compact 83 × 81mm footprint helps conserve space on busy retail counters.
USB integration and low power requirements
The USB kit connects to suitable POS hosts, while the scanner platform supports USB and RS-232 interfaces. Newland specifies a typical operating current of 275mA at 5V and typical rated power consumption of 1375mW for the current published FR4080 specification.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
The Newland Koi II FR4080-20 is particularly useful when a checkout needs to recognise both ordinary product barcodes and QR codes shown on customers' phones. Unlike a 1D-only barcode reader, its CMOS area imager handles both barcode categories. Its infrared trigger is also practical for a fixed checkout station because the cashier can present products directly to the scanner without repeatedly pressing a trigger. For standard retail labels, Newland specifies a typical EAN-13 reading range reaching 280mm under test conditions. The 83 × 81mm footprint is relatively compact for a stationary reader, making it suitable for counters with limited available space. The most important purchasing distinction is the exact package: NLS-FR4080-20 is the black USB-kit version. The scanner platform also supports RS-232, but that does not mean an RS-232 connection cable is included in this particular package. The official FR4080 specifications also confirm IP52 sealing, 1.2m tested drop resistance and a 1280 × 800 CMOS sensor. If the main requirement is reliable counter-based reading of printed merchandise and digital QR codes through a compatible USB POS system, the Koi II is a relevant option.
Buyer's Guide
Buy it if
You need a black countertop scanner that reads printed EAN barcodes and mobile QR codes, offers hands-free infrared activation and connects through USB.
Skip it if
You require wireless scanning, a portable handheld device or a scanner for prolonged exposure to water. This is a corded IP52 desktop reader.
Also consider
A handheld 1D/2D scanner for scanning bulky products or stock away from the counter, or a dedicated RS-232 configuration when your POS system cannot use USB.
Colour
black
Χαρακτηριστικά
Product Code
CE77914
EAN Code
0000150349895
Manufacturer
Newland
