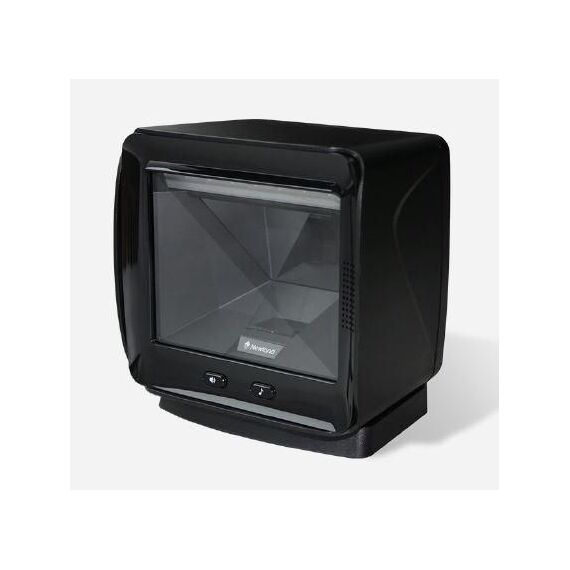

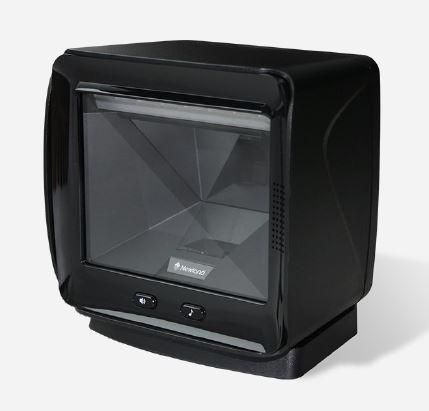

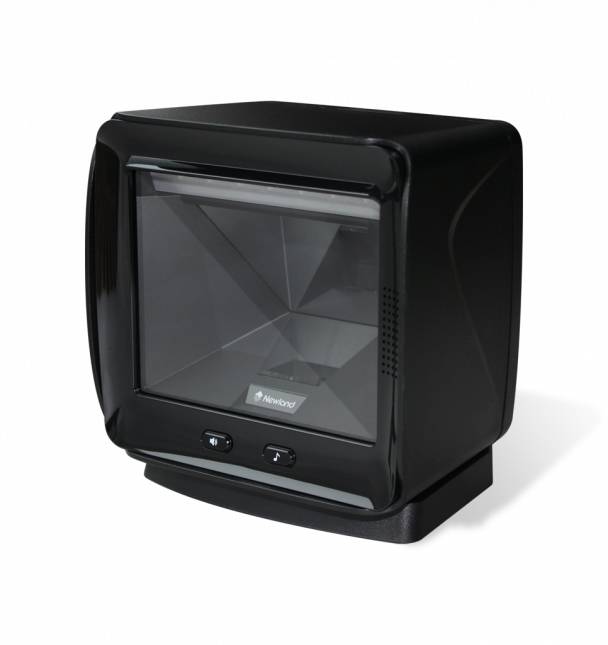

Newland FR80 Salmon | 2D Fixed Presentation Scanner | 1280×1088 CMOS | USB | Black

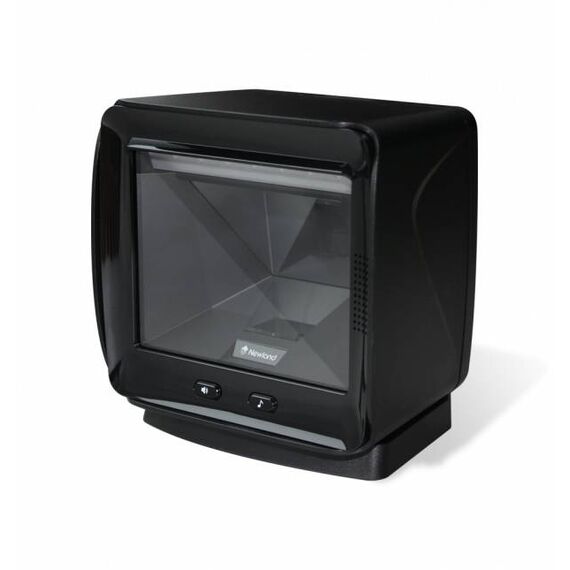

Newland FR80 Salmon
Fixed 2D Presentation Scanner · 1280×1088 CMOS · USB · IP52 · Black

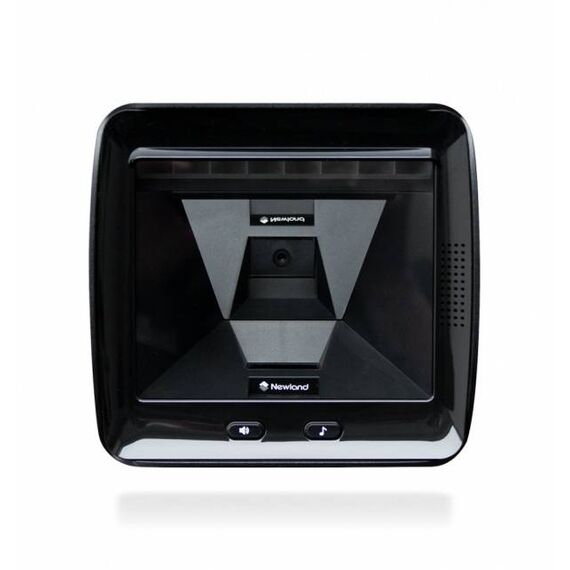

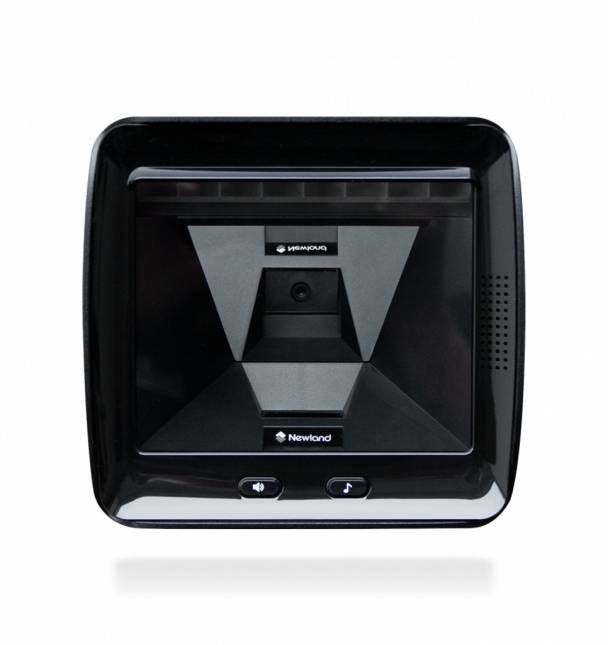

The Newland FR80 Salmon is a fixed presentation barcode scanner built for high-throughput retail and self-service environments. Its sixth-generation UIMG imaging sensor decodes all major 1D and 2D barcodes — including those on screens — with a motion tolerance of 3.5 m/s, so products moving quickly past the window are never missed. The large scan window accommodates items of varying sizes, and double-read prevention ensures each barcode is captured once, cleanly.
| Part Number | NLS-FR8080-20 |
| EAN | 5715063101896 |
| Scanner Type | Fixed presentation scanner (stationary / countertop) |
| Image Sensor | 1280 × 1088 CMOS · 6th-generation UIMG technology |
| Illumination | Red LED (614–624 nm) |
| Resolution | ≥3 mil (1D) |
| Depth of Field | 0–140 mm (13 mil barcode) |
| Motion Tolerance | 350 cm/s (3.5 m/s) |
| Scan Angles | Roll: 360° · Pitch: ±55° · Skew: ±50° |
| Barcode Support | 1D & 2D · QR Code · PDF417 · Data Matrix · EAN-13/8 · UPC-A/E · Code 128 · and more |
| Interface | USB (HID keyboard / virtual COM) |
| Operating Voltage | 5 VDC ±5% |
| Status Indicators | 6 LEDs (decode · config · comms · abnormal) + buzzer |
| IP Rating | IP52 |
| Dimensions | 151 (W) × 141.5 (H) × 97.5 (D) mm (without base) |
| Weight | 542 g (without base) |
| Operating Temp | -20°C to 50°C |
| Certifications | FCC Part 15 Class B · CE EMC Class B |
| In the Box | FR80 scanner · L-bracket mount · 3m USB cable · Multi-plug power adapter |
BUYER'S GUIDE
For whom: Retail POS operators, supermarkets, and self-service kiosk integrators who need a fast, reliable fixed scanner that handles both paper labels and screen-displayed codes without slowing down the line.
Real reason to buy: The 3.5 m/s motion tolerance and 360° roll acceptance mean cashiers don't need to orient items precisely — anything presented to the window gets read, fast. The large scan window handles bulky packaging too.
Know before you buy: This is a USB-wired fixed scanner — not portable or Bluetooth. The L-bracket mount is included but positions the scanner vertically; horizontal countertop placement requires the optional base stand.
Verdict: A solid, no-nonsense 2D presentation scanner at a competitive price point. If you need plug-and-play USB scanning with high motion tolerance and screen-read capability, the FR80 Salmon delivers.
