PLANET GTP-805A Gigabit PoE+ Media Converter, RJ45 to SFP, 802.3at 30W PSE, 52V Adapter Included

Brand:
Planet
PLANET GTP-805A - Fibre media converter - GigE - 10Base-T, 100Bas
PLANET GTP-805A Gigabit PoE+ Media Converter, RJ45 to SFP, 802.3at 30W PSE, 52V Adapter Included
€139.81 inc. VAT
Buy
GTP-805A
€117.49
€139.81 inc. VAT
Ships from EU stock: 10 item(s)
+ −
Add to wish list Ask a question
Product Code
04:247710
EAN Code
4711213687532
Manufacturer
Planet

Quick Specs

Type
PoE+ media converter (PSE)
Connectors/Interface
1x RJ45 PoE+ 10/100/1000 · 1x SFP 100/1000
Key spec
802.3at/af, 30 W on the RJ45 port
Compatibility
100FX/1000X SFP (not included)
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

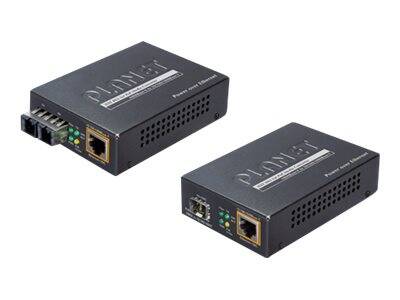

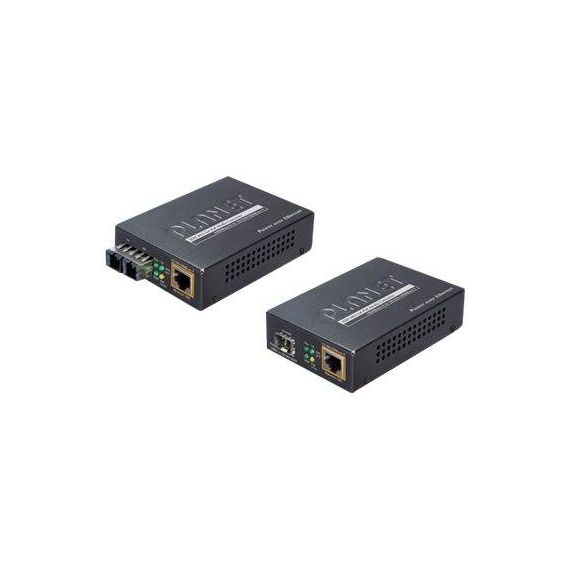

PLANET GTP-805A — Gigabit Fibre-to-PoE+ Media Converter

PoE+ 30 W out1x RJ45 + 1x SFPLFP52V adapter included

The PLANET GTP-805A is a Gigabit media converter that takes a fibre link on its 100/1000BASE-X SFP slot and delivers it on a 10/100/1000 RJ45 port with IEEE 802.3at PoE+ power — up to 30 W for one camera, access point or IP phone.

It is the simple way to reach a device at the end of a long fibre run without a switch or separate injector at the remote point: fibre in, data and power out on one Ethernet cable up to 100 m.

Before you order: The SFP module is not included. Choose one for your fibre (multimode or single-mode) and match it with the module at the other end. PoE output depends on the 52V adapter that comes in the box.

What's in the Box

  • GTP-805A media converter
  • AC-DC power adapter (52V DC)
  • User manual

What It Means in Practice

  • One PoE+ device per converter: up to 30 W on the RJ45 port, 802.3af and 802.3at devices are detected automatically.
  • The SFP slot accepts 100FX or 1000X modules — distance up to 120 km depending on the module.
  • Link Fault Pass-through (LFP) is on by default: if the fibre drops, the copper port goes down too, so the far-end equipment sees the fault. A DIP switch turns it off.
  • Desk or shelf mounting in a comms closet; it is a standalone metal unit.

What Will Not Work

  • It does not power 802.3bt (60/90 W) devices such as some PTZ cameras with heaters — look at an 802.3bt converter.
  • Without the supplied 52V adapter there is no PoE.
  • It is not industrial: rated 0–50°C, so not for outdoor cabinets.
  • No management and only one copper port.

Key Features


PoE+ PSE
IEEE 802.3at/af end-span, 30 W budget on one RJ45 port.

Dual-speed SFP
100BASE-FX or 1000BASE-X modules, multimode or single-mode.

LFP
Link fault pass-through with DIP switch on/off.

Jumbo frames
9K frames, store-and-forward, 802.3x flow control.

Technical Specifications

Identification
Part Number GTP-805A
Brand PLANET Technology
Type 100/1000BASE-X to 10/100/1000BASE-T PoE+ media converter
Ports
Copper 1x 10/100/1000BASE-T RJ45 with PoE+, auto MDI/MDI-X
Fibre 1x 100/1000BASE-X SFP slot
SFP module Not included
PoE
Standard IEEE 802.3at / 802.3af, end-span PSE
Budget 30 W max
Pin assignment 1/2 (+), 3/6 (−)
Performance
Forwarding Store-and-forward
Jumbo frames 9K
LFP Yes, DIP switch (default on)
Management Unmanaged
Power & physical
Power input 52V DC jack, external adapter 52V DC 0.58A (included)
Housing Metal, standalone
Dimensions 96 x 26 x 70 mm (W x D x H)
Weight 0.21 kg
Operating temperature 0–50°C
Certifications CE, FCC Part 15 Class A
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term Not published by PLANET — claims handled through Singular

Frequently Asked Questions

Can it power two cameras?
No. There is one RJ45 PoE+ port with up to 30 W. For several devices use a PoE switch at the remote end.
What do I need at the other end of the fibre?
A switch or converter with an SFP of the same fibre type and wavelength as the module you install here.
Does it need its own power at the remote site?
Yes — a mains socket for the supplied 52V adapter. The converter then powers the PoE device.
Singular Expert Insight · Buyer's Guide
The GTP-805A solves a common job neatly: one camera or access point at the far end of a fibre run, no switch there and no extra injector. Size the device first — anything that needs more than 30 W (802.3bt) belongs on a higher-power converter. If you need more ports at that point, start from our industrial and desktop switches.
✓ Buy it if you need to bring fibre to a single PoE+ device up to 30 W.
✕ Skip it if your device needs 802.3bt power or you work in an outdoor/industrial cabinet.
→ Also consider LevelOne GVT-2015 (60 W 802.3bt) or GVT-2016 (90 W).
Not sure it fits your setup? Send us the model of your rack, switch or device and we will check compatibility before you order.
