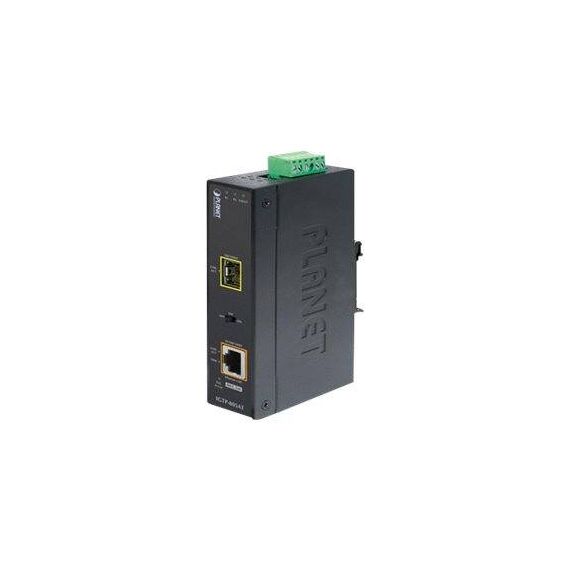

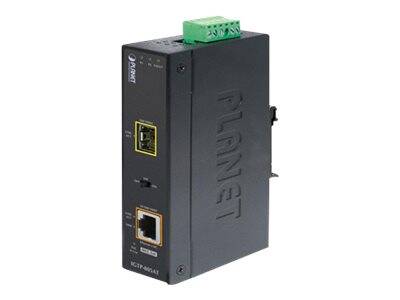

PLANET IGTP-805AT Industrial PoE+ Media Converter — SFP to RJ45, 802.3at
PoE+ 802.3at · 30 WSFP 100/1000Base-X-40 to 75 °C · IP3012–48 V DC / 24 V AC
The PLANET IGTP-805AT is an industrial media converter that takes fiber in through a 100/1000Base-X SFP slot and delivers Ethernet plus IEEE 802.3at PoE+ power (up to 30 W) on its RJ45 port. It is built for outdoor cabinets, traffic and parking systems, factories and utility sites, with an IP30 metal case, DIN-rail or wall mounting and a -40 to 75 °C operating range.
A built-in power booster converts a 12–48 V DC or 24 V AC input up to the 52 V needed for PoE, so you can run it from the low-voltage industrial supply already in the cabinet. Dual power inputs and a fault alarm relay support redundant installations.
Before you order: Two things are not in the box as far as PLANET lists: an SFP module (choose SX/LX or 100FX optics to match the far end) and a power supply. Size the supply for the PoE load — PLANET quotes about 47 W input at full 30 W PoE load from 12 or 48 V DC.
What's in the Box
- 1 × PLANET IGTP-805AT industrial PoE+ media converter
- Plan separately: an industrial 12–48 V DC or 24 V AC power supply
- Plan separately: a 100/1000Base-X SFP module and fiber patch cords
What It Means in Practice
- Typical job: fiber arrives at a roadside or perimeter cabinet; the IGTP-805AT feeds a PoE camera or access point from the cabinet’s 24 V supply.
- Dual-mode SFP slot: 100Base-FX or 1000Base-X, with distance set by the module (PLANET mentions up to 120 km with long-reach optics).
- Redundant master/slave power inputs with reverse-polarity protection on a removable terminal block; alarm relay rated 1 A at 24 V DC for power failure.
- LFP and FEF selectable by DIP switch; IEEE 802.3az energy-efficient Ethernet; 9K jumbo frames; 6 kV ESD protection.
- IP30 metal case 135 × 87.8 × 32 mm, 420 g, tested to IEC 60068-2-6/27/32 for vibration, shock and free fall.
What Will Not Work
- Operating without an SFP module or a DC/AC supply.
- 802.3bt devices or loads above 30 W.
- Being powered by PoE — it is a PoE source.
- 10G links — 100/1000 Mbps only.
- Wet outdoor exposure without an enclosure — IP30 protects against solid objects, not water.
Key Features
Industrial PoE+
IEEE 802.3af/at, up to 30 W on the RJ45 port.
Wide-range power
12–48 V DC or 24 V AC, boosted internally to 52 V for PoE.
Harsh environments
-40 to 75 °C, IP30 metal, DIN-rail or wall mount.
Redundancy
Dual power inputs plus fault alarm relay.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
For a camera or AP in an outdoor cabinet this is the robust version of a PoE media converter: wide temperature range, low-voltage input and redundancy. Budget the cabinet supply and order an industrial SFP with it. At the head end, one of our switches with SFP ports with matching optics completes the link.
✓ Buy it if you need fiber-to-PoE+ in an outdoor cabinet or industrial site.
✕ Skip it if the installation is indoors in an office — a desktop PoE converter is cheaper.
→ Also consider PLANET IGTP-802T (fixed SC multimode version) or Intellinet 508216 (desktop PoE+ converter).
Tell us the device, the cabinet power available and the fiber details, and we will specify the SFP and power supply before you order.
