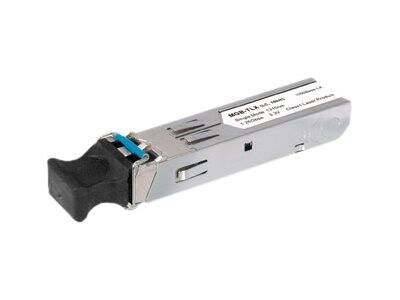

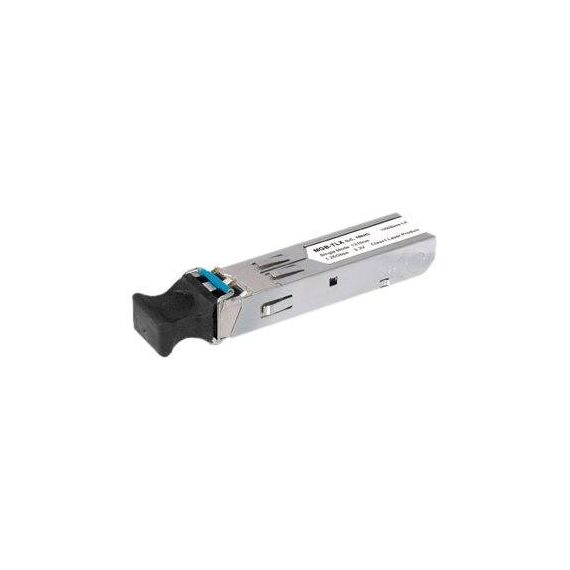

PLANET MGB-Series MGB-TLX - SFP (mini-GBIC) transceiver module - GigE - 1000Base-LX - SFP (mini-GBIC) - up to 10 km - 1310 nm | MGB-TLX
Please sign in so that we can notify you about a reply
Special Fetures
- Comply with the IEEE 802.3ab/802.3z Gigabit Ethernet standard
- 1 X 1000Mbps TP/LC fiber port
- Duplex/Single LC connector
- Differential PECL inputs and outputs
- Single power supply 3.3V
- TTL signal detect indicator
- Hot pluggable
- Plug and Play installation
Product Specification
| Device Type | SFP (mini-GBIC) transceiver module |
| Form Factor | Plug-in module |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 1000Base-LX |
| Data Link Protocol | GigE |
| Data Transfer Rate | 1 Gbps |
| Optical Wave Length | 1310 nm |
| Max Transfer Distance | 10 km |
| Compliant Standards | IEEE 802.3z |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 1000Base-LX - LC single-mode |
| Miscellaneous | |
| Compliant Standards | Plug and Play, EN 60825-1 |
| Environmental Parameters | |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 75 °C |
Features - Planet - MGB-TLX
More Details
Product Code
04:199683
EAN Code
4711213686184
Manufacturer
Planet
